1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 3 x USB - 16 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - Management Port - Rack-mountable
SKU
04034964
Category
Terminal & Device Servers
MSRP$5,404.00
$4,248.67
Save 21%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
04034964
Category
Terminal & Device Servers
Overview

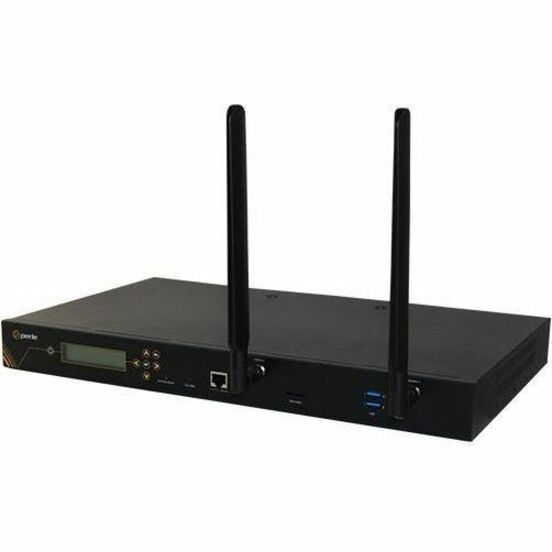

IOLAN SCG18 S-LA Console Server: 16 x software selectable RS232/422/485 RJ45 interfaces, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Cellular WWAN capability based on LTE (America including AT&T and Verizon) with fallback networks (HSPA+, UMTS, EDGE and GPRS), Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, REST / Python, Cloud-hosting, advanced data encryption, user authentication and event management security features included, COM port redirector, 15kv ESD, Expandable using IOLAN G16 Cards, Dual AC Power, adapter cord included.
The Perle IOLAN SCG S-L Console Servers incorporate EIA-232, EIA-422, and EIA-485 signals on a single RJ45 interface, enabling secure serial data transmission through an IP network or over an LTE Cellular network. The ability to individually configure each interface type using software commands enables organizations to access and support a variety of serial-based devices in their network. The modular design of the IOAN SCG allows the user to swap, upgrade and scale to anymix-and-matchcombination of 16-port USB 3.0, RS232 RJ45, or software-selectable RS232/422/485 RJ45 interface module cards.
With functionality that includes full routing capabilities with support for RIP, OSPF, and BGP protocols, Zero Touch Provisioning (ZTP), two-factor authentication (2FA), integrated firewall, advanced failover to multiple networks, advanced network security features, recognized authentication schemes, and leading-edge data encryption tools, IT administrators can feel confident that network data transmissions, and all access to the console admin ports on IT equipment, is secure.
Warranty
Limited Warranty: Lifetime
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
04034964
Brand Name
Perle
Product Line
IOLAN
Product Series
SCG
Product Model
SCG18 S-LA
Product Name
IOLAN SCG18 S-LA Console Server
Product Type
Device Server
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
Serial Port
Yes
Management Port
Yes
Number of Network (RJ-45) Ports
2
Number of USB Ports
3
Number of Serial Ports
16
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Memory
Standard Memory
1000 MB
Maximum Memory Supported
3.91 GB
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Standard
10/100/1000Base-T, 1000Base-X
Physical Characteristics
Form Factor
Rack-mountable
Height
1.7"
Width
17.1"
Depth
10.4"
Weight (Approximate)
7.28 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Power Consumption
18.50 W
Processor & Chipset
Processor Speed
500 MHz
Technical Information
Device Type
Console Server
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
2
Miscellaneous
Package Contents
IOLAN SCG18 S-LA Console Server
Front/Rear Mounting Hardware
Adapter Cord
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
