1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 3 x USB - 16 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - IEEE 802.11a/b/g/n - Wireless LAN - ISM Band ISM Band - UNII Band UNII Band - Management Port - Rack-mountable
SKU
Category
Terminal & Device Servers
MSRP$5,835.00
$5,356.91
Save 8%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 31 and Dec 5, then process your delivery right after.
Genuine Perle Systems through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Terminal & Device Servers
Overview

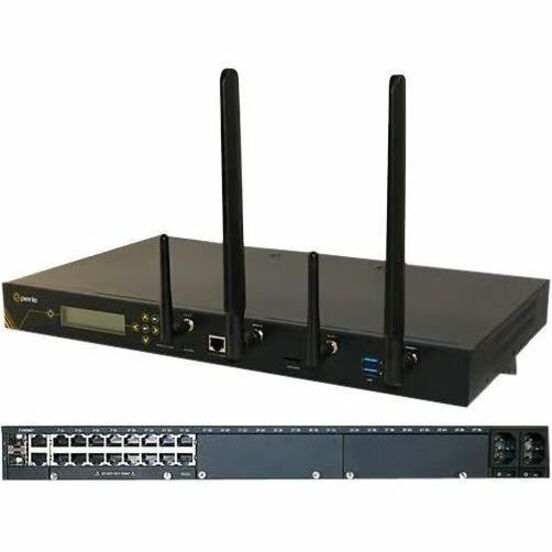

IOLAN SCG18 S-LAW Console Server: 16 x software selectable RS232/422/485 RJ45 interfaces, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Cellular WWAN capability based on LTE (America including AT&T and Verizon) with fallback networks (HSPA+, UMTS, EDGE and GPRS), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, REST / Python, Cloud-hosting, advanced data encryption, user authentication and event management security features included, COM port redirector, 15kv ESD, Expandable using IOLAN G16 Cards, Dual AC Power, adapter cord included.
The Perle IOLAN SCG S-LW Console Servers incorporate EIA-232, EIA-422, and EIA-485 signals on a single RJ45 interface, enabling secure serial data transmission over LTE Cellular or wireless LAN IP networks. The ability to individually configure each interface type using software commands enables organizations to access and support a variety of serial-based devices in their network. The modular design of the IOAN SCG allows the user to swap, upgrade and scale to anymix-and-matchcombination of 16-port USB 3.0, RS232 RJ45, or software-selectable RS232/422/485 RJ45 interface module cards.
With functionality that includes full routing capabilities with support for RIP, OSPF, and BGP protocols, Zero Touch Provisioning (ZTP), two-factor authentication (2FA), integrated firewall, advanced failover to multiple networks, advanced network security features, recognized authentication schemes, and leading-edge data encryption tools, IT administrators can feel confident that network data transmissions, and all access to the console admin ports on IT equipment, is secure.
Warranty
Limited Warranty: Lifetime
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
04034944
Brand Name
Perle
Product Line
IOLAN
Product Series
SCG
Product Model
SCG18 S-LAW
Product Name
IOLAN SCG18 S-LAW Console Server
Product Type
Device Server
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
Serial Port
Yes
Management Port
Yes
Number of Network (RJ-45) Ports
2
Number of USB Ports
3
Number of Serial Ports
16
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Memory
Standard Memory
1000 MB
Maximum Memory Supported
3.91 GB
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Standard
10/100/1000Base-T, 1000Base-X
Physical Characteristics
Form Factor
Rack-mountable
Height
1.7"
Width
17.1"
Depth
10.4"
Weight (Approximate)
7.34 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Power Consumption
20.50 W
Plug/Connector Type
IEC 320-C13, NEMA 5-15P
Processor & Chipset
Processor Speed
500 MHz
Technical Information
Device Type
Console Server
Warranty
Limited Warranty
Lifetime
Wireless Specifications
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11a/b/g/n
ISM Band
Yes
UNII Band
Yes
I/O Expansions
Total Number of Expansion Slots
2
Miscellaneous
Package Contents
IOLAN SCG18 S-LAW Console Server
Front/Rear Mounting Hardware
Adapter Cord
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
