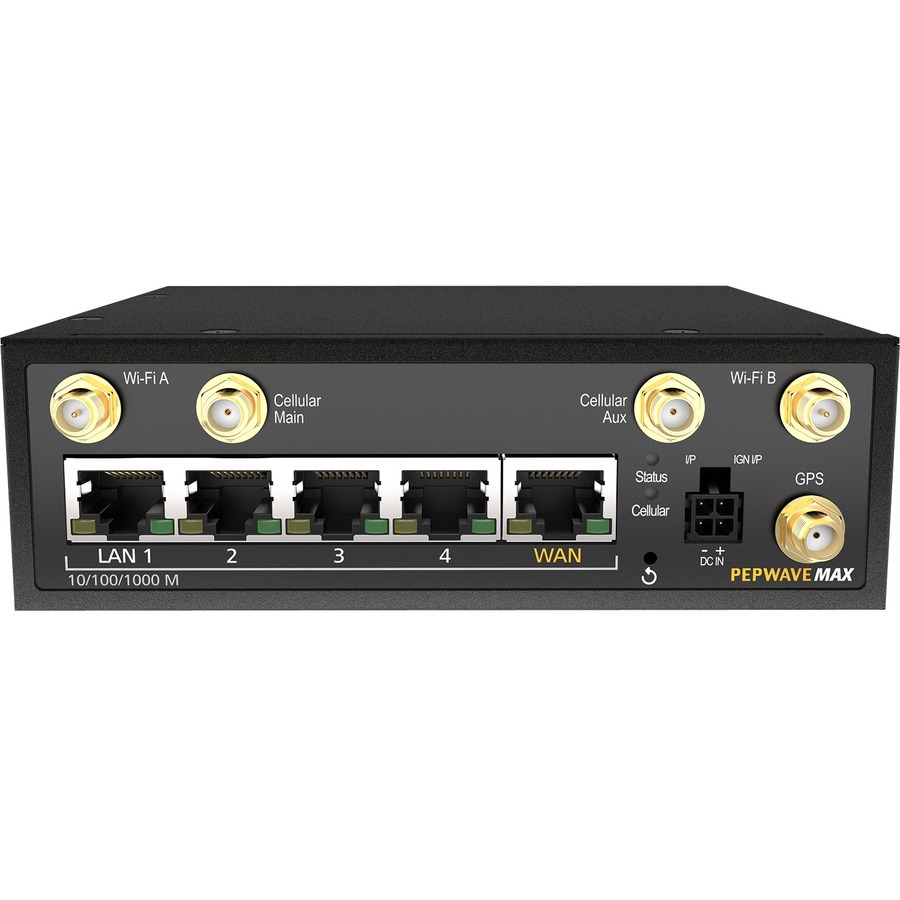

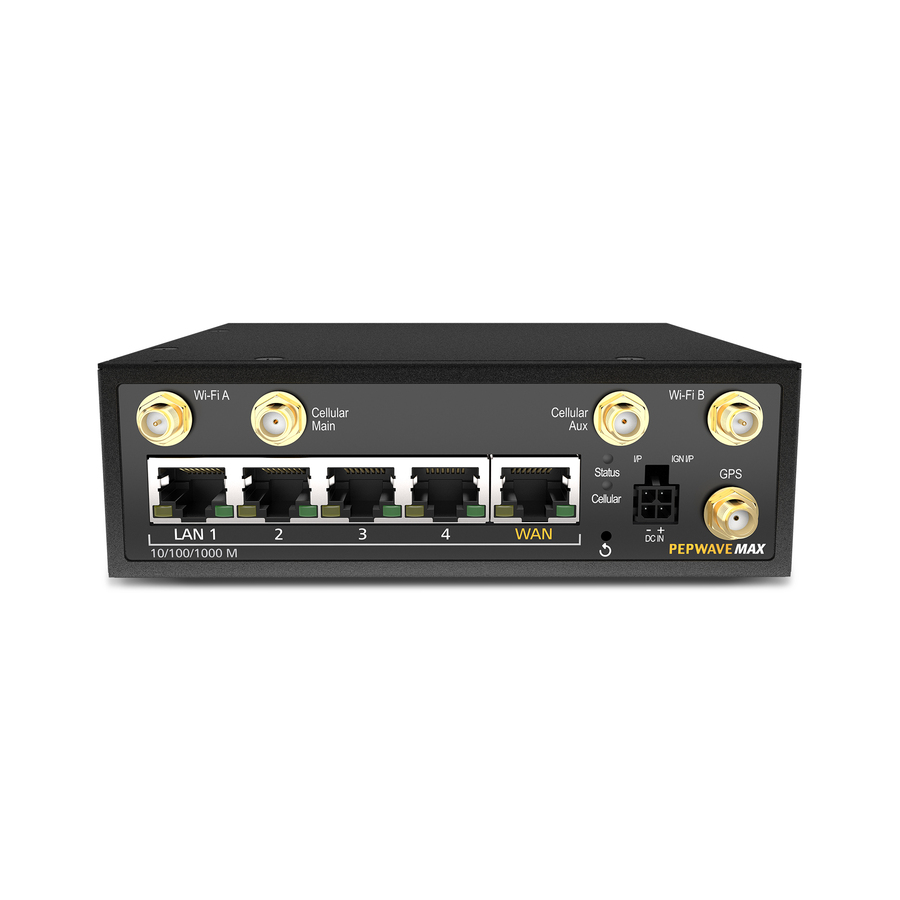

Pepwave MAX BR1 Pro Wi-Fi 6 IEEE 802.11ax 1 SIM Ethernet, Cellular Modem/Wireless Router
4G - LTE Advanced, HSPA+, DC-HSPA+ - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 5 x Antenna(5 x External) - 37.50 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - Gigabit Ethernet - VPN Supported - Desktop
- SKU
- MAX-BR1-PRO-LTEA-W-T
- Category
- Wireless Routers
$805.39
Back ordered — ships when restocked.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MAX-BR1-PRO-LTEA-W-T
- Category
- Wireless Routers
Overview
Connect Everything, Affordably

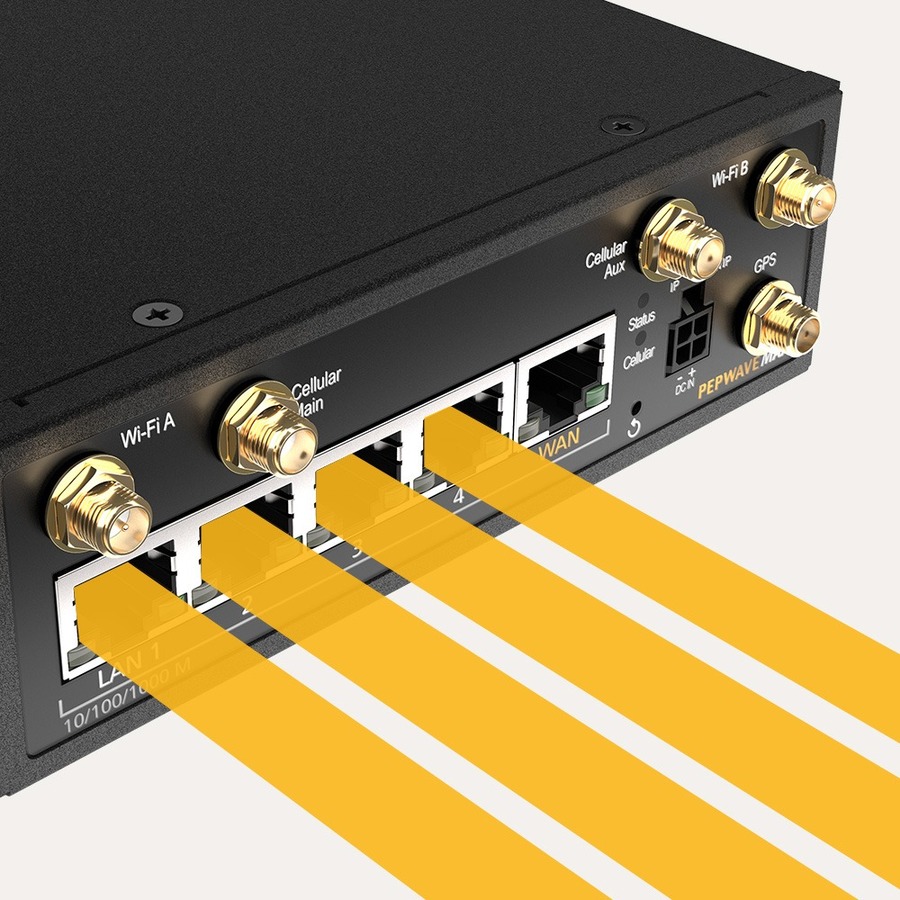

The BR1 Pro features 4x GE LAN ports to connect your wired clients, and Wi-Fi LAN to connect your wireless ones. All this in a rugged DIN mount compatible enclosure.
Fits Anywhere

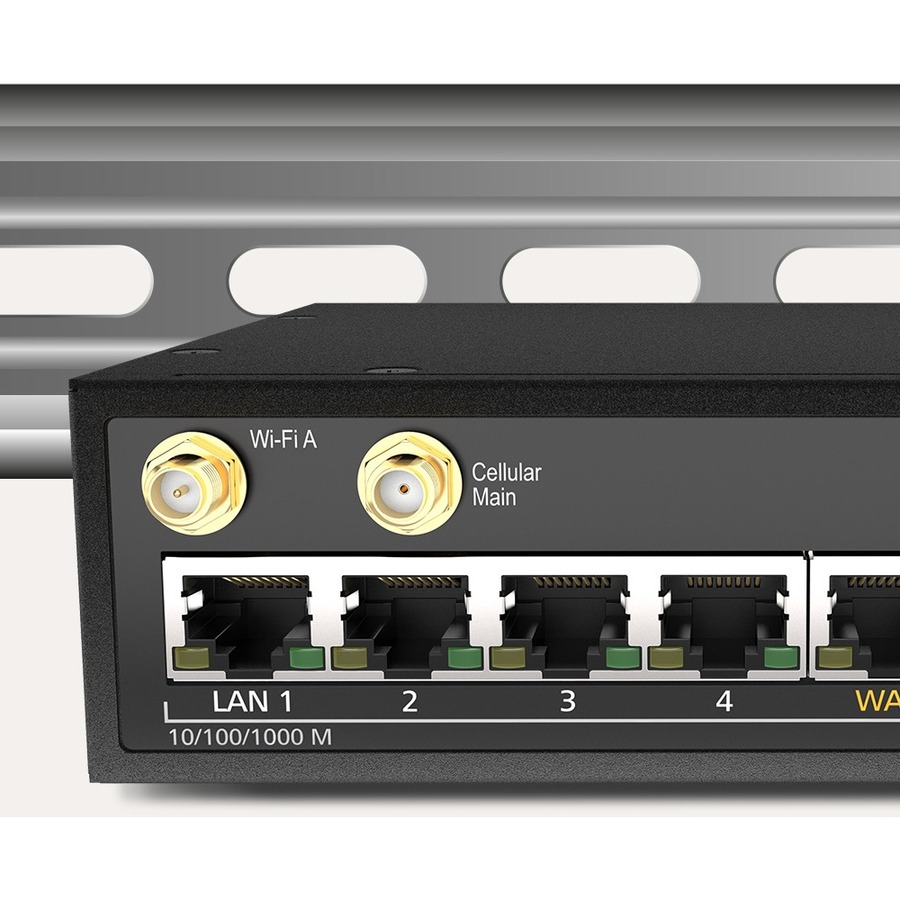

At 5.1 x 4.3 x 1.6 inches, the BR1 Pro can fit into tight spaces. It can also be mounted on DIN rails from different angles, so it fits anywhere that the rails can be installed.
Mobile Ready

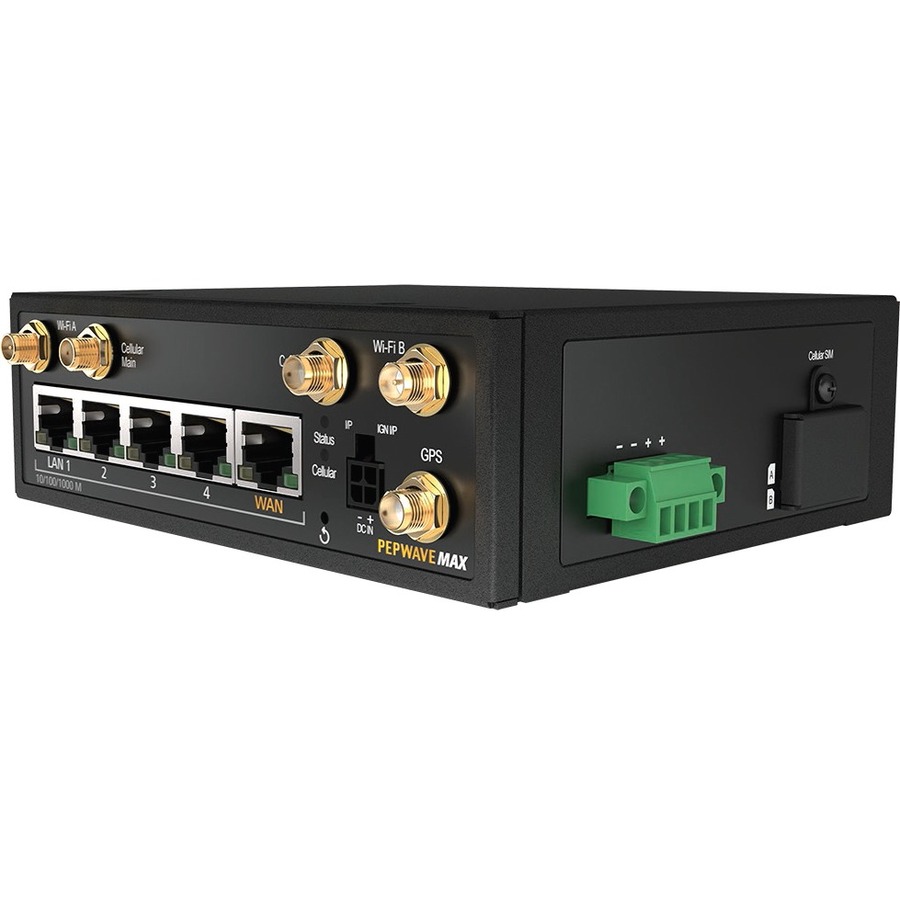

The BR1 Pro can accept power via a terminal block and is equipped with GPS. It also supports Ignition Sense, enabling it to power up or down depending on the vehicle's ignition status.
Easy to Deploy
Set up the BR1 Pro without changing the network configuration of your other devices. Use InControl to manage your whole network from any web browser.
Highlights
- Savor simultaneous downloading and seamless streaming
- Gigabit Ethernet port for ultra-fast wired network speeds
- Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
- Can be placed on the desktop surface for standalone installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Modem/Wireless Router |
| Manufacturer Part Number | MAX-BR1-PRO-LTEA-W-T |
| Limited Warranty | 1 Year |
| VPN Supported | Yes |
| Weight (Approximate) | 1.20 lb |
| Network Band | Dual Band |
| Form Factor | Desktop |
| Manufacturer | Peplink |
| Product Model | BR1 Pro |
| Product Name | MAX BR1 Pro Router |
| Product Line | MAX |
| Brand Name | Pepwave |
| Height | 5.1" |
| Width | 4.3" |
| Depth | 1.6" |
| Environmentally Friendly | Yes |
| Broadband Transmission Technology | Ethernet, Cellular |
| Wireless LAN Standard | IEEE 802.11ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 4 |
| Cellular Data Connectivity Technology | LTE Advanced, HSPA+, DC-HSPA+ |
| Cellular Generation | 4G |
| Number of Broadband (RJ-45) Ports | 1 |
| Number of SIM Card Supported | 1 |
| Total Number of Antennas | 5 |
| Number of External Antennas | 5 |
| Total Wireless Transmission Speed | 37.50 MB/s |
| Wi-Fi Generation | Wi-Fi 6 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
