6U Rack/Tower - 6.30 Minute Stand-by - 208 V AC Input - 120 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L6-20R, 6 x NEMA 5-15/20R - Serial Port
SKU
ED5000RTXL
Category
Industrial UPS
MSRP$6,315.00
$5,091.93
Save 19%
Back-ordered
Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Para Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ED5000RTXL
Category
Industrial UPS
Overview
Protection For Mission-critical Applications

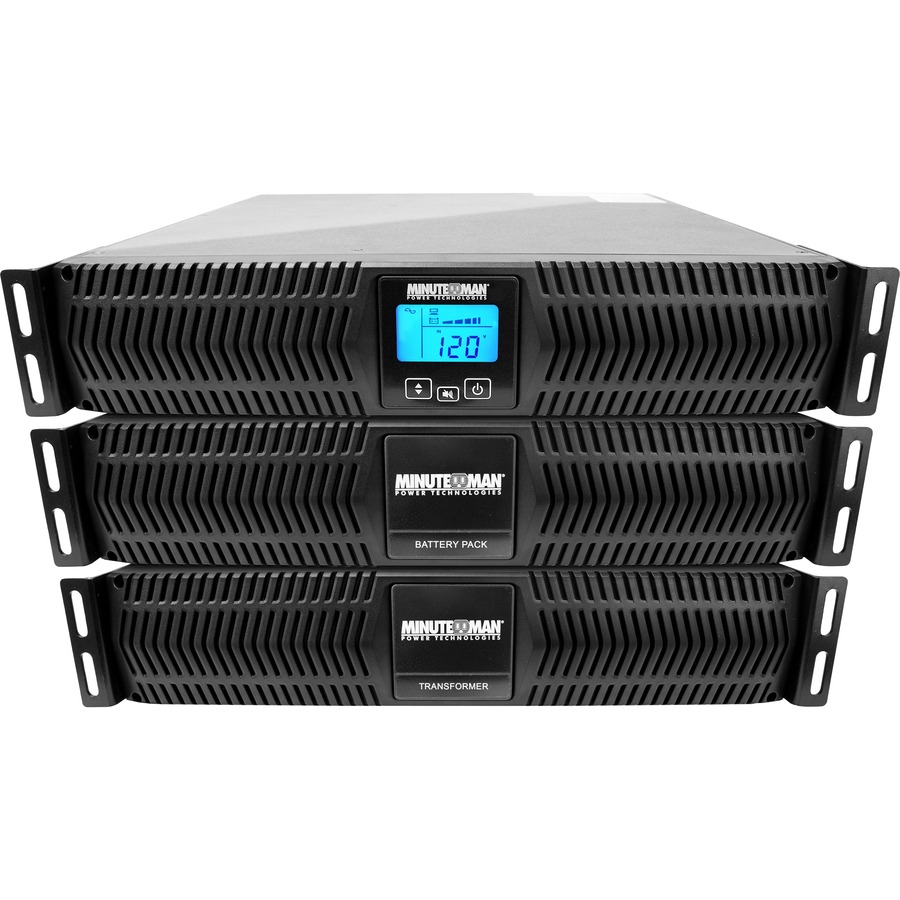

The Minuteman® EndeavorTM 5-10kVA Series UPS combines transient free pure sine wave output, extended runtime capability, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
Specifications
Software Included
Operating System Shutdown
Product Type
Double Conversion Online UPS
Input Voltage
208 V AC
Manufacturer Part Number
ED5000RTXL
Limited Warranty
3 Year
Output Voltage
120 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Weight (Approximate)
198.50 lb
Form Factor
Rack/Tower
Manufacturer
Para Systems, Inc
Product Model
ED5000RTXL
Product Name
5kVA On-line Rack/Tower UPS
Network Management
SNMP Manageable
Overload Protection
Yes
Product Line
Endeavor
Protection Type
Surge
Surge Energy Rating
1050 J
Waveform Type
Pure Sine Wave
Rack Height
6U
Brand Name
Minuteman
Plug/Connector Type
NEMA L6-30P
Output Frequency
60 Hz
Height
10.5"
Width
17.3"
Depth
26.2"
Input Frequency
70 Hz
Receptacle Type
NEMA L6-30R, NEMA L6-20R, NEMA 5-15/20R
Environmentally Friendly
Yes
Serial Port
Yes
Backup/Run Time (Half Load)
12.30 Minute
Backup/Run Time (Full Load)
6.30 Minute
Load Capacity (VA)
4556 VA
EMI/RFI Noise Filter
Yes
Energy Star
Yes
Receptacle Detail
1 x NEMA L6-30R, 1 x NEMA L6-20R, 6 x NEMA 5-15/20R
