Panorama Antennas CM[X]-24-58-2| Low Profile MiMo WiFi Antenna
Panorama Antennas

Panorama Antennas CM[X]-24-58-2| Low Profile MiMo WiFi Antenna

2.4 GHz to 2.5 GHz, 4.9 GHz to 6 GHz - Vehicle - White - Ceiling Mount, Panel - Omni-directional - N-connector, SMA Connector

SKU
CM3-24-58-2RANP
Category
Antennas

MSRP$151.26

$116.38

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CM3-24-58-2RANP
Category
Antennas

Overview

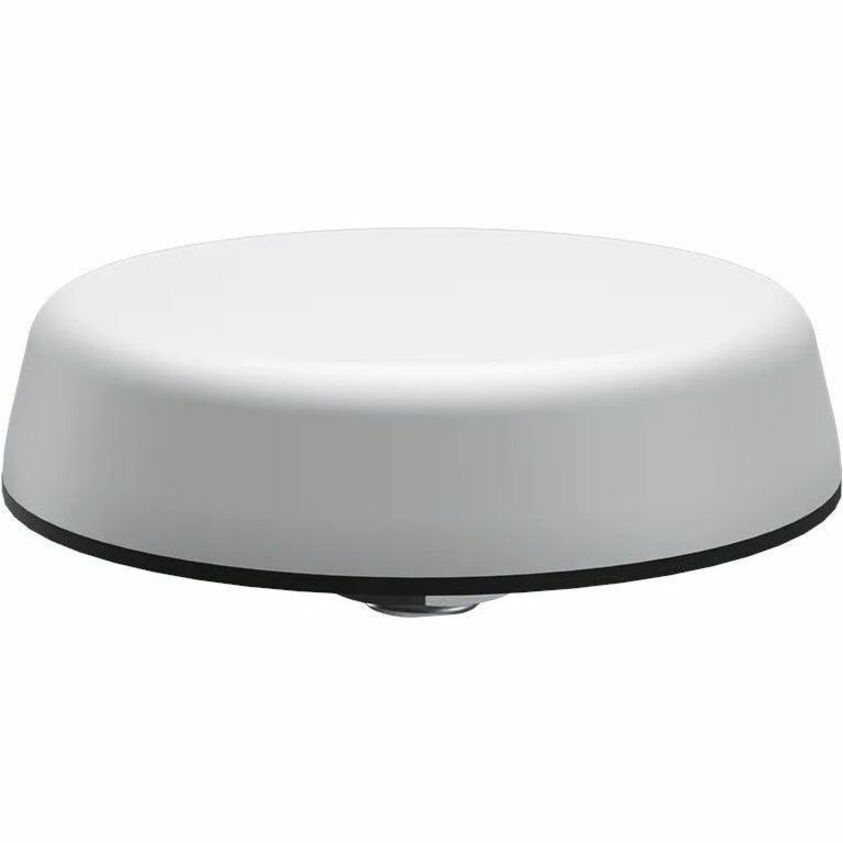

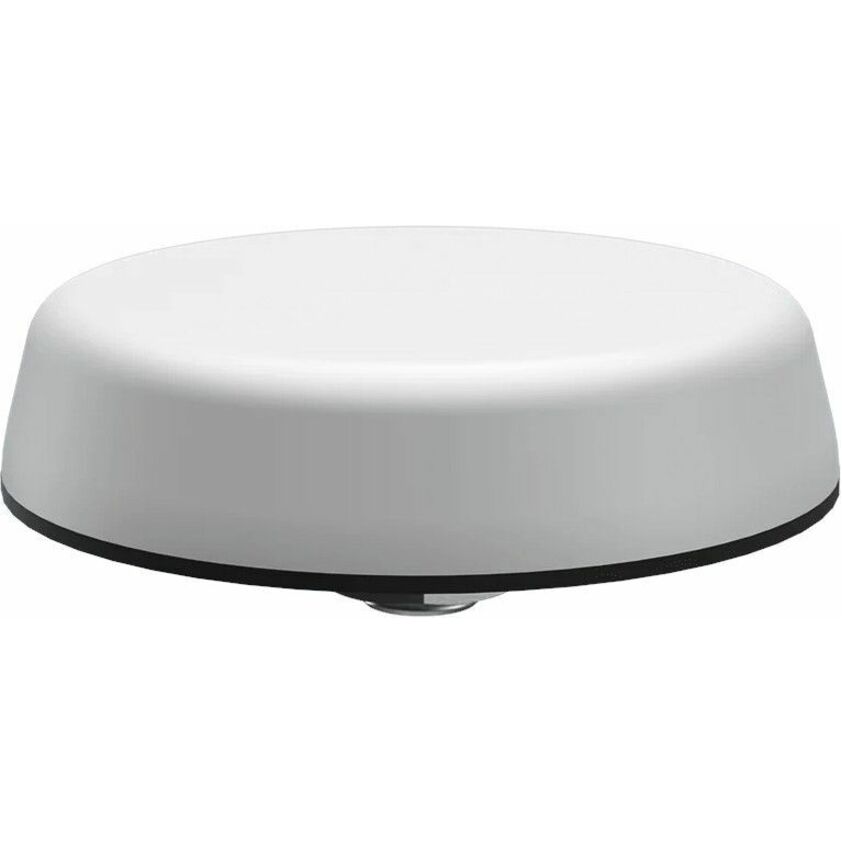

The CM[X]-24-58-2[VAR] range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package.

The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.

The antenna is designed to be ceiling mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen-free, flame retardant radome the antenna is suitable for many environments.

Highlights

  • Up to 4×4 MiMo dual band WiFi 2.4/5Ghz antenna
  • Low profile Omni-directional ceiling antenna
  • Minimal visual impact housing and footprint
  • EN50155 EN45545-2 certified
  • Covers 2.4GHz and 4.9-6GHz frequencies
  • Impact-resistant IK10 approved housing
  • Supplied with automotive-grade UN ECE R118 flame retardant cable assemblies

Specifications

Application/UsageVehicle
Product TypeAntenna
Manufacturer Part NumberCM3-24-58-2RANP
Connector TypeN-connector, SMA
Form FactorCeiling Mount, Panel
ManufacturerPanorama Antennas Ltd
Product NameCM[X]-24-58-2| Low Profile MiMo WiFi Antenna
Product SeriesCM[X]-24-58-2[VAR]
Brand NamePanorama Antennas
Diameter4.53"
Height1.18"
DirectivityOmni-directional
Product ColorWhite
Color FamilyWhite
Operating Frequency Range2.4 GHz to 2.5 GHz, 4.9 GHz to 6 GHz
