SKU
IAEBH6X
Category
Connectors
Overview

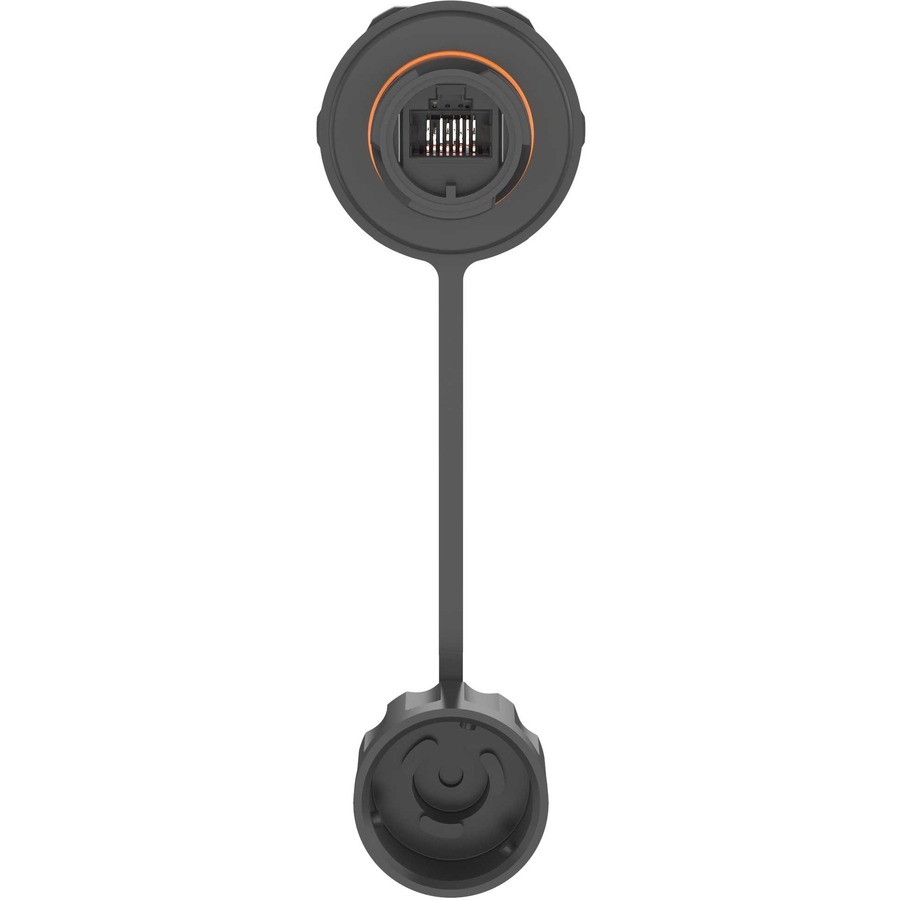

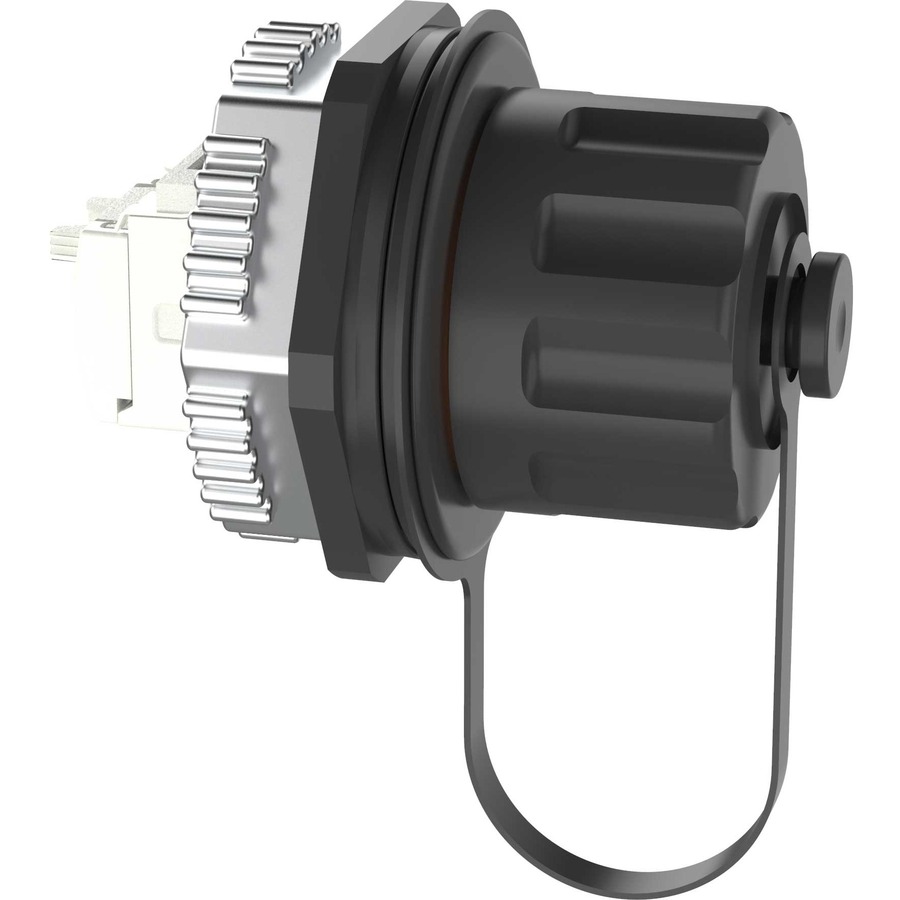

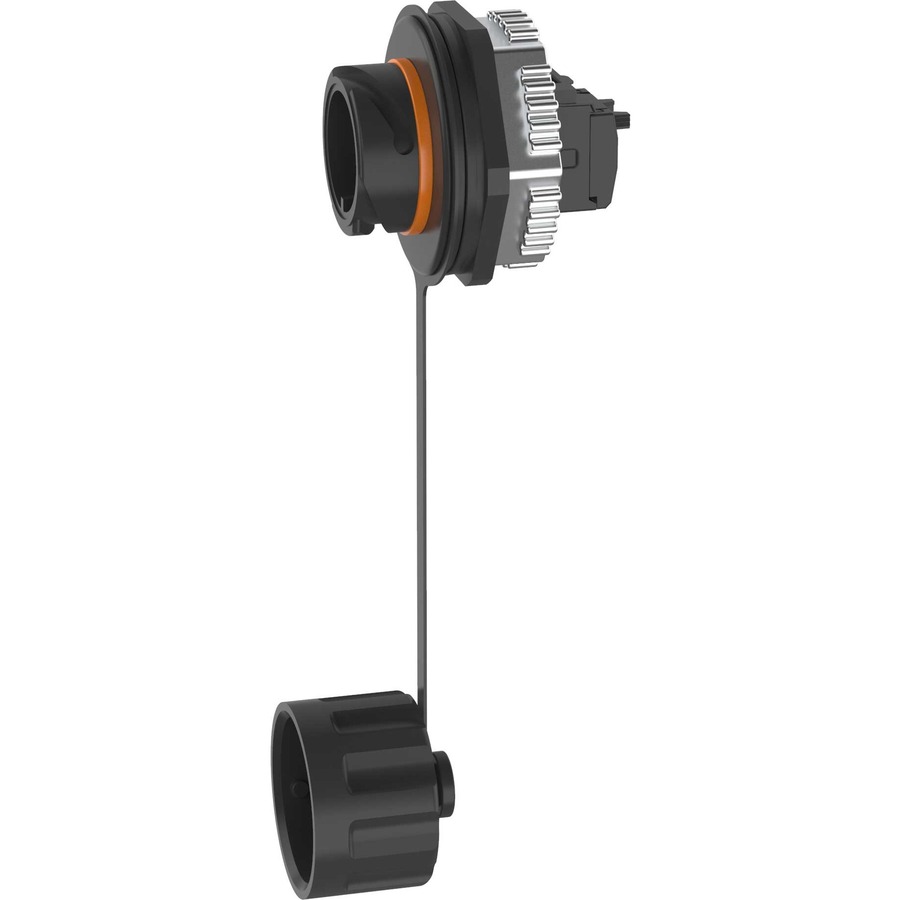

The IndustrialNet Cat 6A UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
Highlights
Bulkhead anti-rotation washer:Eliminates the potential for module rotation
Connector mounting nut:Holds bulkhead safely and securely from inside of enclosure
Robust construction: Plug contact plated with 50 micro inches of gold
Bayonet style interface: Provides positive reinforcement during mated condition; rated to 100 mating cycle

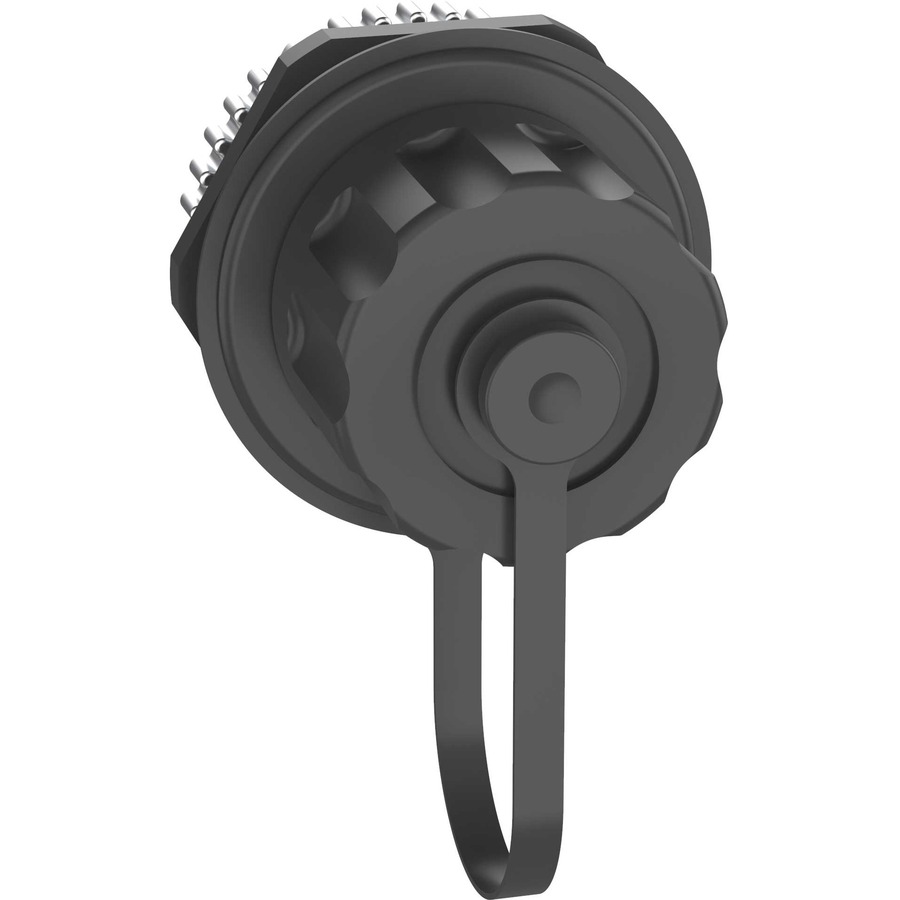

Protective cap: Maintains IP67 seal during unmated connection
Utilizes patented Giga-TX ? Technology:Optimizes performance by reducing conductor untwist to less than 1/8"
Forward motion termination: Speeds installation and places no impact on critical components for maximum reliability :Industry standard RJ45 interface Offers industry standard solution familiar to end users which speeds deployment
No punchdown tool required :Can terminate with standard adjustable slipjaw pliers or optional termination tool (EGJT)
Universal wiring scheme :Termination cap is color coded for T568A and T568B wiring schemes
Standard mounting :Bulkhead connector fits into standard IEC 1-13/64" (30.5mm) diameter mounting hole or optional faceplate
Specifications
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
IAEBH6X
Brand Name
IndustrialNet
Product Series
TX6A
Product Name
Industrial Cat 6A RJ45 UTP Bulkhead Connector
Packaged Quantity
1
Product Type
Network Connector
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Polybutylene Terephthalate (PBT), Plastic
Height
5.4"
Width
1.6"
Depth
1.7"
Length
5.4"
Technical Information
Connector Type
RJ-45 Network - Female
Connector Details
1 x RJ-45 Network - Female
Contact Plating
Phosphor Bronze, Gold
Shielding
No
Ingress Protection (IP) Rating
IP67
Features
Bulkhead, Protective Cap, Dust Protection, Water Resistant, PoE, Vibration Resistant, Temperature Resistant, Chemical Resistant, Anti-rotation, Moisture Resistant
