Overview
MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ONLY WHAT YOU NEED

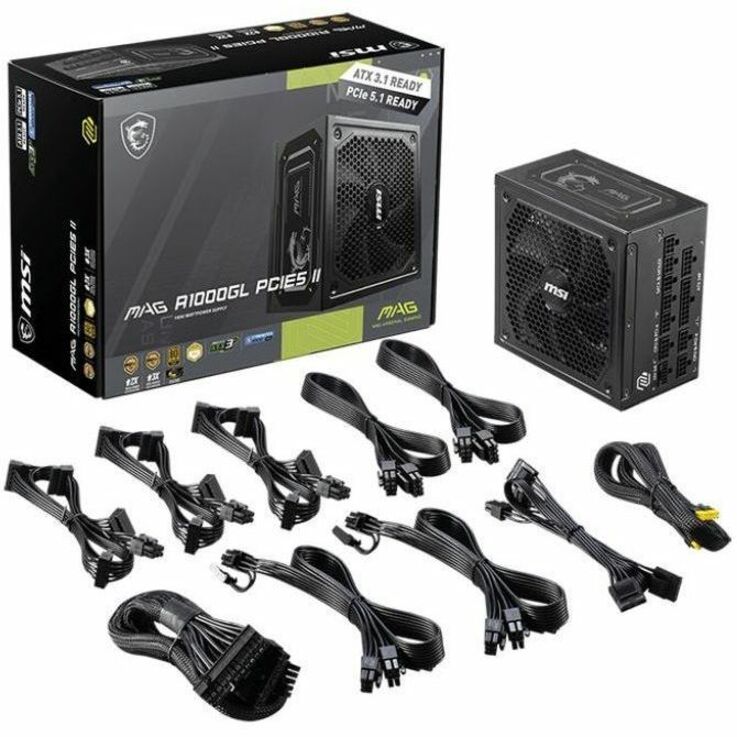

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING

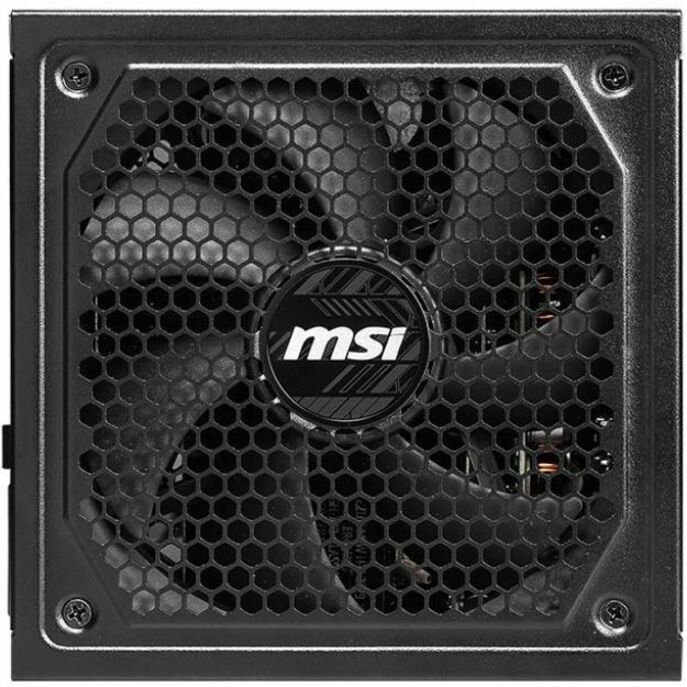

The power supply's fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
Highlights
ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
Supports NVIDIA ® GeForce RTX ? 40 series graphics cards
Fully modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design
Protection with OVP / OCP / OPP / OTP / SCP / UVP
135 mm fluid dynamic bearing fan
LLC half bridge topology with DC-to-DC module design
Specifications
General Information
Manufacturer
MSI
Manufacturer Part Number
MAGA1000GLPCIE5II
Brand Name
MSI
Product Series
MAG
Product Name
MAG 1000W Power Supply
Product Type
Power Supply
Interfaces/Ports
Number of SATA Power Connectors
12
PCI Express Connector
Yes
Number of (6+2 pin) PCI Express Power Connectors
4
Number of (4+4 pin) CPU Power Connectors
2
Number of 4-pin Molex Power Connectors
4
Physical Characteristics
Form Factor
Internal
Height
4.7"
Width
4.7"
Depth
1"
Power Description
Input Voltage
120 V AC, 230 V AC
Output Power
1000 W
Reliability
MTBF
150000 Hour
Technical Information
Specification Compliance
ATX 3.1
Efficiency
90%
Power Factor Correction (PFC)
Active
Number of Fans
1
Fan Bearing Type
Fluid Dynamic Bearing
Fan Diameter
135 mm
Protection Type
Over Current, Over Temperature, Over Voltage, Over Power, Under Voltage, Short Circuit
