High Dynamic Range (HDR) - 192 x 216 - 800 Nit
MSRP$1,792.00
$1,208.12
Save 33%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine LG Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Ultra Slim Depth
Its ultra-slim design with 41 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings.
Easy & Seamless Installation
The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content without additional cost and time for editing.
90° Corner Design Available
If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.
EMC Class B Certified & Fire Resistant Design
The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
Compatibility with LG Software Solutions
When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

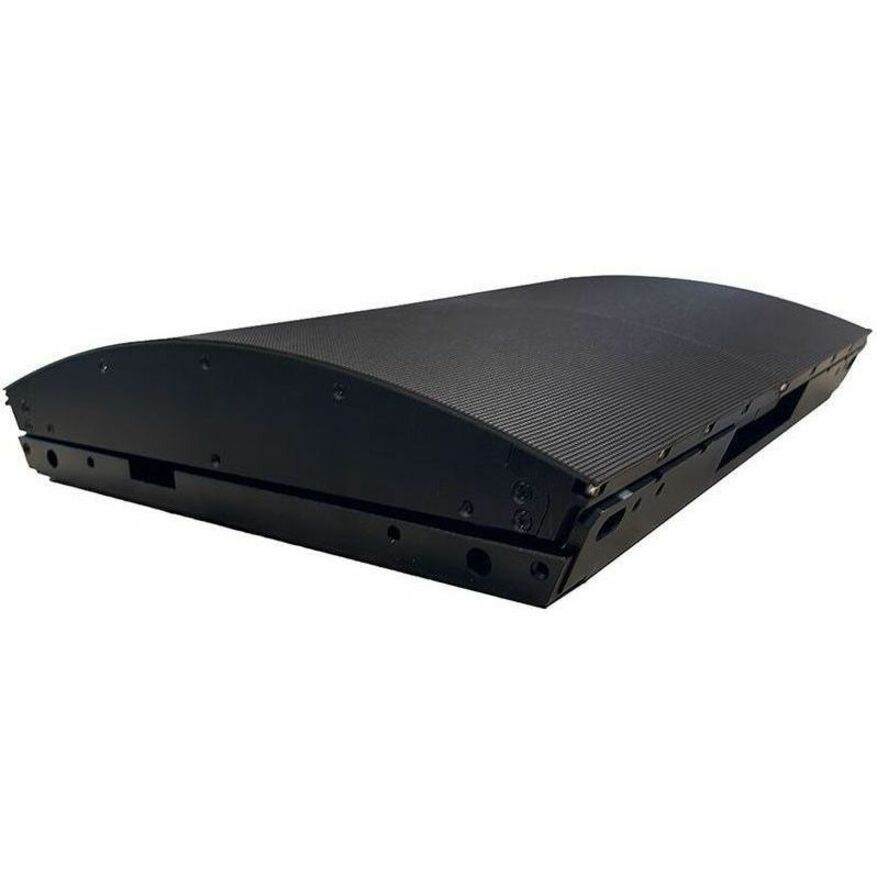

Flexible Curve LED Display
The LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm. This greatly enhances the design's flexibility, which allows users to freely create the curved screen as they want.
More from the Manufacturer
1.56mm LSCB Curved Ultra Slim Indoor LED with Copper Connectors
Key Features
1.56 mm Pixel Pitch, 300x337 cabinet
800 Nits Brightness & Expressive Colors
Front Accessible
IP30, EMS Certified and Fire Resistant
Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.)
Show your message 24/7
LSCB Direct View LED Customizable to fit your needs
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
Ultra Slim Depth
The LSCB Series’ ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Front and Rear Installation and Maintenance
Easy access to front or rear cabinet for maintenance.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
Compatibility with LG Software Solutions
Powered by LG’s high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
90° Corner Installation Available
This cabinet is designed to create a virtually seamless 90 degree corner. This option is a free add-on that must be requested.
Limited Warranty: 3 Year
LG is the brand that is Delightfully Smart. "Life's Good" slogan, and futuristic logo are a great representation of what we stand for. Global, Tomorrow, Energy, Humanity and Technology are the pillars that this corporation is founded on; with the capital letters L and G positioned inside a circle to center our ideals above all else, humanity. The symbol mark stands for our resolve to establish a lasting relationship with, and to achieve the highest satisfaction for our customers. The letters "L" and "G" in a circle symbolize the world, future, youth, humanity, and technology. Our philosophy is based on Humanity. Also, it represents LG's efforts to keep close relationships with our customers around the world. The symbol mark consists of two elements: the LG logo in LG Grey and the stylized image of a human face in the unique LG Red color. Red, the main color, represents our friendliness, and also gives a strong impression of LG's commitment to deliver the best. Therefore, the shape or the color of this symbol mark must never be changed. Our logo is the fundamental visual expression used to identify LG. It expresses the quality and sophistication that is the hallmark of our products. It is simple, modern and distinctive. Consistent and proper usage of the logo is absolutely essential. The logo is symbolic of our steadfast reputation for excellence; therefore, any variation of the logo diminishes the visual identity of LG Electronics and its products.
| Product Type | Digital Signage Display |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | LSCB015-CKF |
| Display Resolution | 192 x 216 |
| Limited Warranty | 3 Year |
| Brightness | 800 Nit |
| Manufacturer | LG Electronics |
| Product Model | LSCB015-CKF |
| Product Name | 1.56mm LSCB Curved Ultra Slim Indoor LED with Copper Connectors |
| Brand Name | LG |
| Height | 13.3" |
| Width | 11.8" |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| Native Contrast Ratio | 5,000:1 |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| TAA Compliant | No |
| High Dynamic Range (HDR) | Yes |
| Ingress Protection (IP) Rating | IP30 |
| High Dynamic Range (HDR) Type | HDR10, HDR10 Pro |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 80% |
| Number of Modules Per Cabinet | 1x2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Module Resolution | 192 x 108 |
| Maximum LED Life | 11.4 Year |
