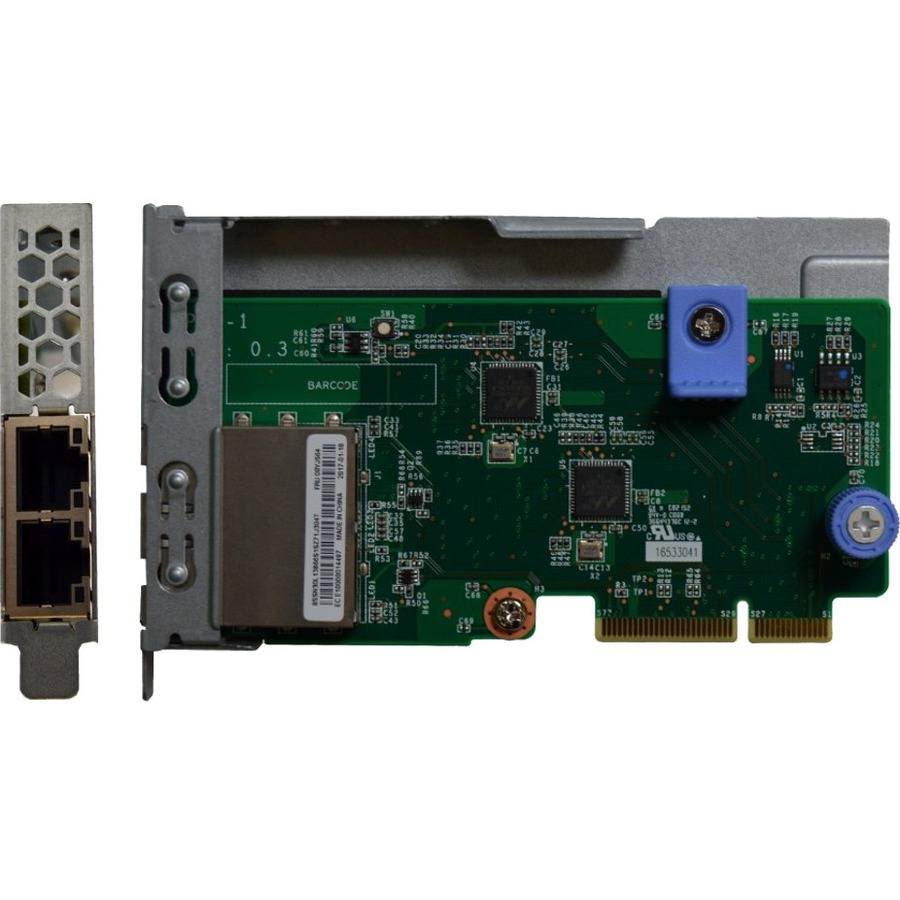

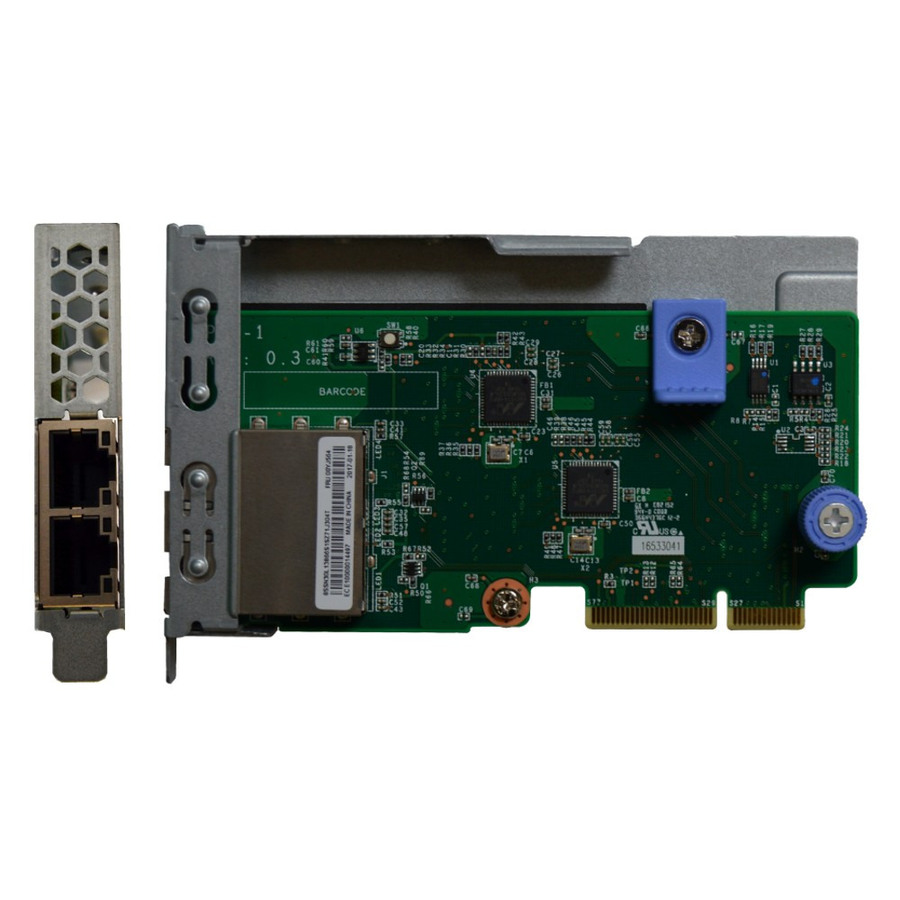

Lenovo ThinkSystem 1Gb 2-Port RJ45 LOM
PCI - 2 Port(s) - 2 - Twisted Pair - 1000Base-T - Plug-in Card
- SKU
- 7ZT7A00544
- Category
- Network Interface Cards
$90.52
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7ZT7A00544
- Category
- Network Interface Cards
Overview
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
Highlights
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- Plug into any PCI slots for flexible system design, while consuming less power
- This dual port gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
Specifications
| Host Interface | PCI |
|---|---|
| Product Type | Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | 7ZT7A00544 |
| Form Factor | Plug-in Card |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 1Gb 2-Port RJ45 LOM |
| Network Technology | 1000Base-T |
| Brand Name | Lenovo |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
