SKU
7M17A03933
Category
SCSI/RAID Controllers
Overview

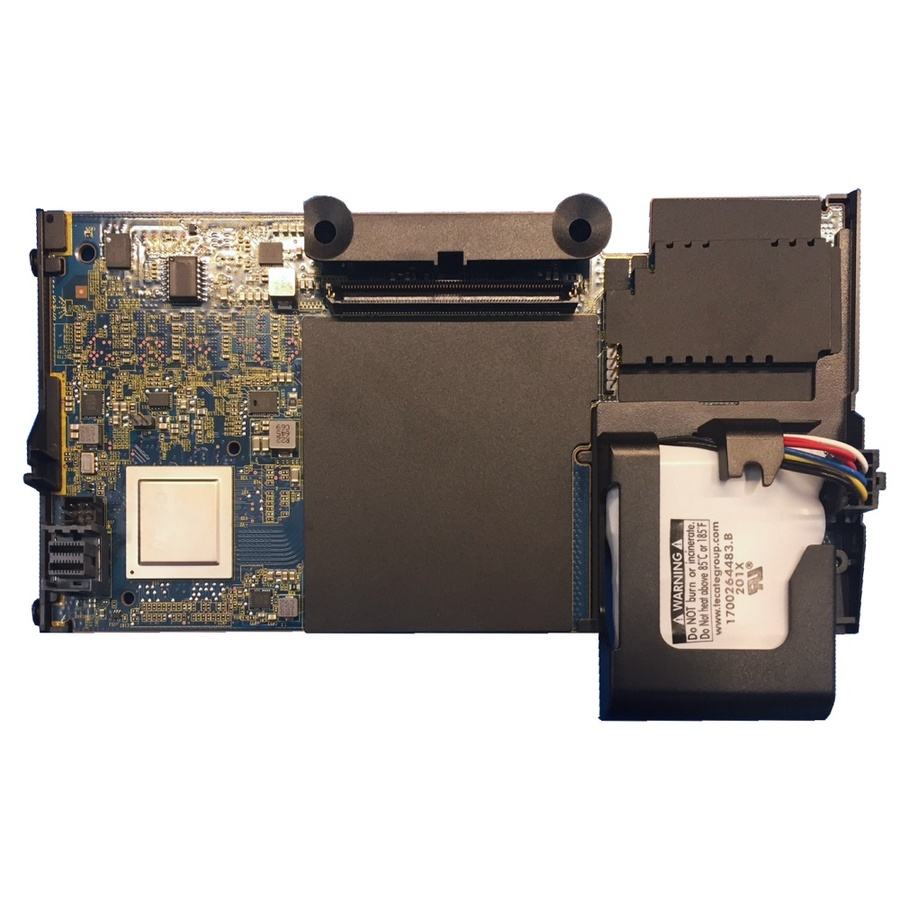

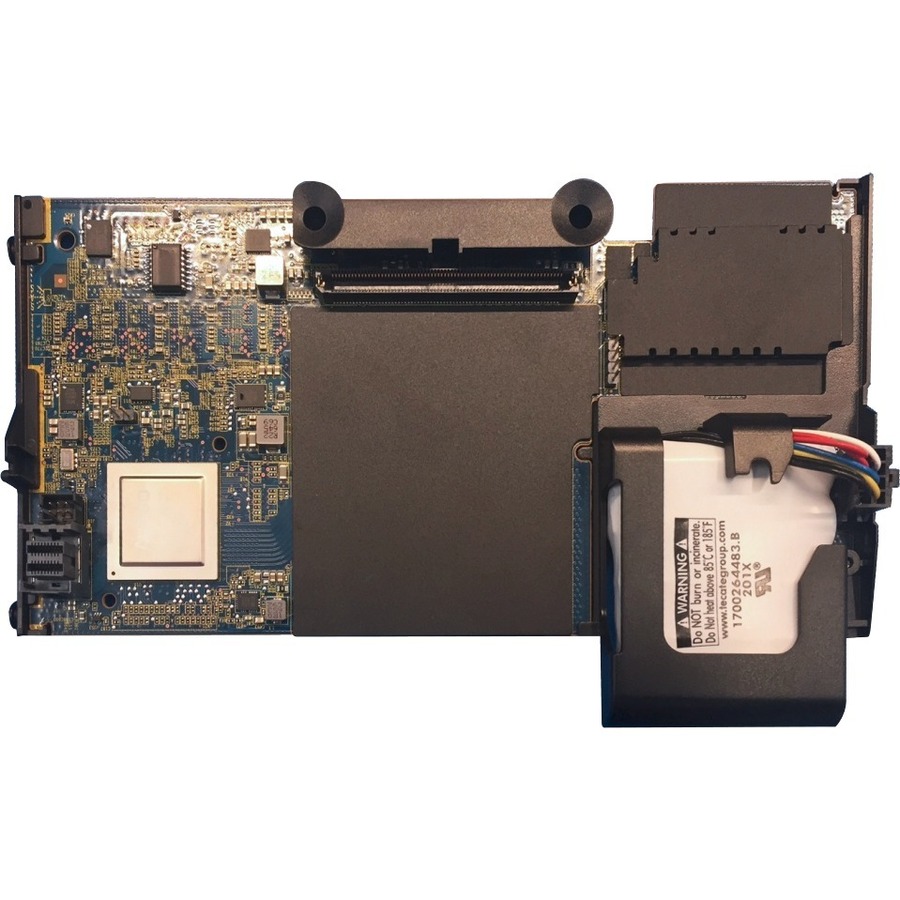

The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAIDon-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60 as well as JBOD, and include an extensive list of RAS and management features.
The family is comprised of four adapters:
• The ThinkSystem RAID 930-4i supports up to four internal SAS and SATA drives
• The ThinkSystem RAID 930-8i supports up to eight internal SAS and SATA drives
• The ThinkSystem RAID 930-16i supports up to 16 internal SAS and SATA drives
• The ThinkSystem RAID 930-24i supports up to 24 internal SAS and SATA drives
Warranty
Limited Warranty: 1 Year
About Lenovo
Join Lenovo
Transformation is a Team Sport
When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
MegaRAID FastPath SSD performance acceleration
MegaRAID flash cache protection
Auto-resume on array rebuild or array reconstruction after the loss of system power
Online Capacity Expansion
Online RAID Level Migration
Fast initialization for quick array setup
Consistency check for background data integrity
Extensive online configuration options and advanced monitoring and event notification
Patrol read for media scanning and repairing
Global and dedicated hot spare with revertible hot spare support
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
7M17A03933
Brand Name
Lenovo
Product Series
930
Product Model
930-4i
Product Name
ThinkSystem RAID 930-4i-2GB 4 Drive Adapter Kit for SN850
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
4
SAS Connector Details
1 x SFF-8643
Memory
Cache Memory
2 GB
Physical Characteristics
Form Factor
Plug-in Card
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, JBOD
Data Backup Type
Flash Backed Cache
Warranty
Limited Warranty
1 Year
Miscellaneous
Platform Supported
PC, Linux
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
