12Gb/s SAS, Serial ATA/600 - PCI Express 3.0 x8 - Low-profile - Plug-in Card - Mini SAS HD SFF8644 Two (x4) - 8 Total SAS Port(s) - 8 SAS Port(s) External - PC, SPARC, Linux - Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS Supported Operating System
SKU
Category
SCSI/RAID Controllers
MSRP$611.16
$585.98
Save 4%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Broadcom through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
SCSI/RAID Controllers
Overview

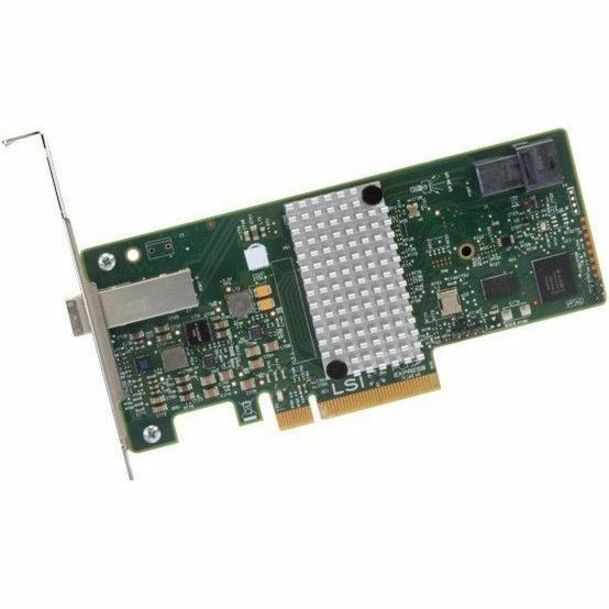

The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.
Warranty
Additional Warranty Information: 3 years, free advanced technical support, advanced replacement option. Limited Warranty: 3 Year
Highlights
Eight/four ports of 12Gb/s SAS + SATA ports
Eight lanes of PCI Express 3.0
Low-profile form factor
Mini-SAS HD connectors
SAS 3008 12Gb/s SAS+SATA controller
Supports SSDs, HDDs, and tape drives
Specifications
General Information
Manufacturer
Broadcom Corporation
Manufacturer Part Number
LSI00343
Brand Name
Avago
Product Model
9300-8e
Product Name
9300-8e Sas Controller
Packaged Quantity
1
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
8
Number of SAS Ports (External)
8
SAS Connector Details
Mini SAS HD SFF8644 Two (x4)
Physical Characteristics
Form Factor
Plug-in Card
Card Height
Low-profile
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS, Serial ATA/600
RAID Supported
No
Maximum Data Transfer Rate
12 Gbit/s
Device Supported
Hard Drive, Solid State Drive, Storage System
Operating System Supported
Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years, free advanced technical support, advanced replacement option.
Miscellaneous
Platform Supported
PC, SPARC, Linux
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
