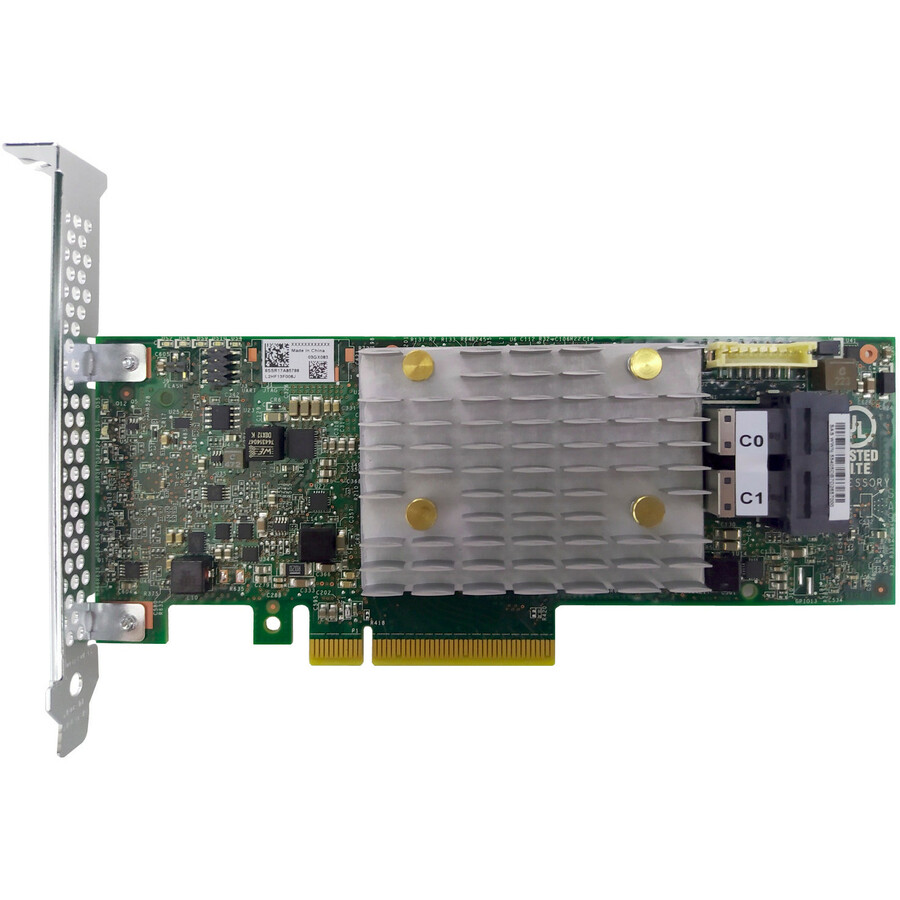

Lenovo ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Internal Adapter
Lenovo

Lenovo ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Internal Adapter

12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - 2x SlimSAS x4 (SFF-8654) - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 2 GB Flash Backed Cache

SKU
4Y37A72484
Category
SCSI/RAID Controllers

$3,598.86

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4Y37A72484
Category
SCSI/RAID Controllers

Overview

The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.

Highlights

  • PCIe 3.0 x8 host interface
  • Two (8i adapter) or four (16i adapter) connectors to the drive backplanes

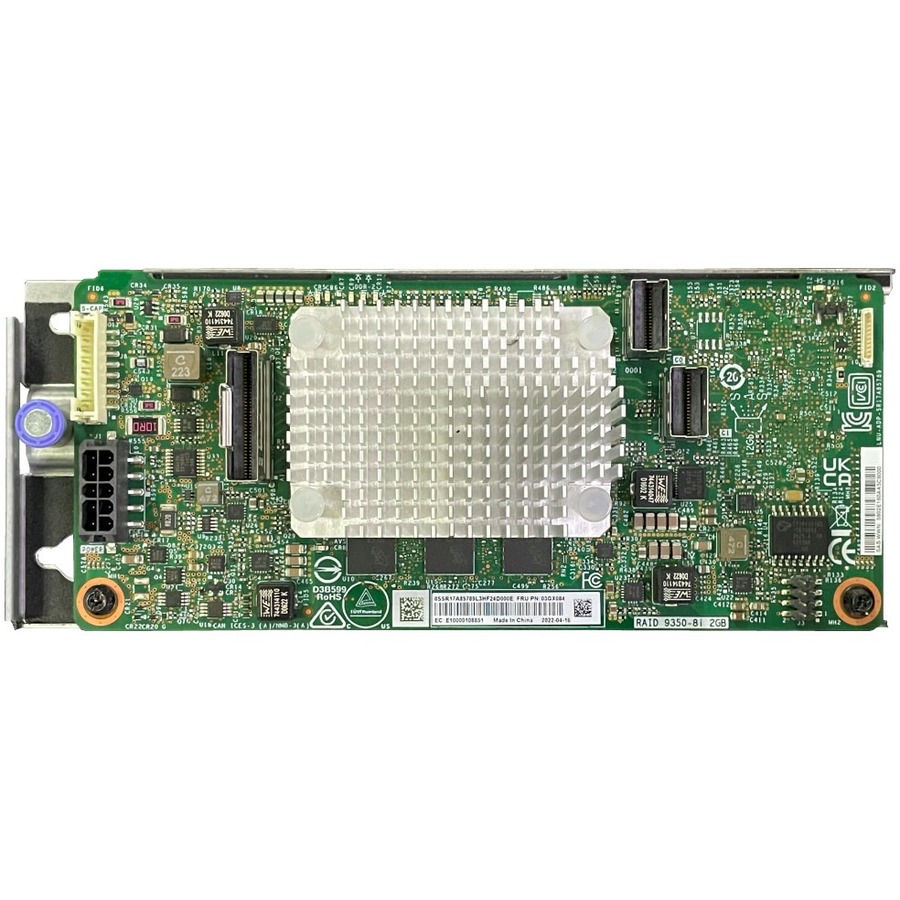

  • Two adapter form factors: Low-profile PCIe adapter with broad server compatibility; Custom form-factor, designed to not consume a standard PCIe slot
  • 12 Gbps SAS/SATA RAID controllers, based on the Adaptec SmartRAID 3152-8i and SmartRAID 3154-16i
  • 2GB (8i) or 4GB (16i) of integrated flash-backed cache
  • Connectivity for up to 8 (8i) or 16 (16i) internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
  • Support for intermixing of 12 Gbps and 6 Gbps drives.
  • Standard support for RAID 0, 1, 10, 5, 50, 6, 60, RAID 1 Triple, and RAID 10 Triple
  • Support for JBOD (non-RAID, called "raw" or "HBA mode" in Adaptec parlance) drive state

Specifications

Host InterfacePCI Express 3.0 x8
Product TypeSAS Controller
Device SupportedServer
Manufacturer Part Number4Y37A72484
Platform SupportedPC, Linux
Limited Warranty1 Year
Form FactorPlug-in Card
Length6.6"
ManufacturerLenovo Group Limited
Product Model9350-8i
Product NameThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Internal Adapter
RAID Levels0, 1, 5, 6, 10, 50, 60, JBOD
Controller Type12Gb/s SAS
Brand NameLenovo
Operating System SupportedWindows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, Ubuntu 20.04 LTS, Ubuntu 22.04 LTS
Height2.5"
Environmentally FriendlyYes
RAID SupportedYes
Data Backup TypeFlash Backed Cache
Total Number of SAS Ports8
Number of SAS Ports (Internal)8
SAS Connector Details2x SlimSAS x4 (SFF-8654)
Cache Memory2 GB
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
