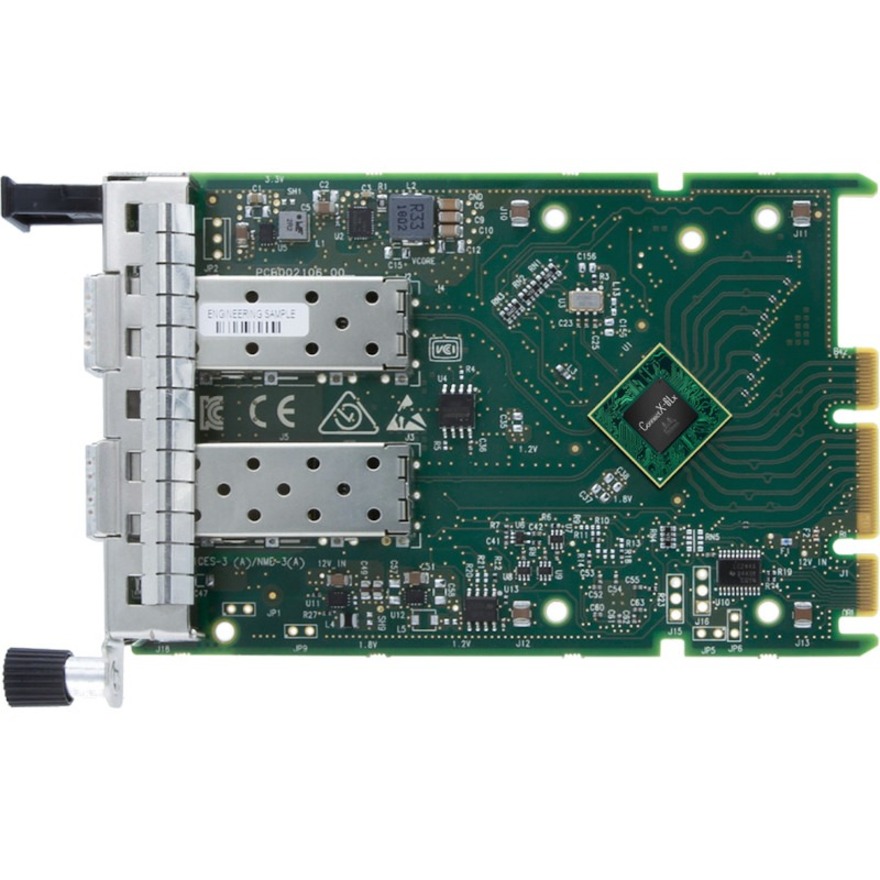

Lenovo ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
PCI Express 4.0 x8 - 24.41 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - OCP 3.0 Small Form Factor Bracket Height - 25GBase-X - SFP28 - Plug-in Card
- SKU
- 4XC7A62582
- Category
- Network Interface Cards
$833.34
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XC7A62582
- Category
- Network Interface Cards
Overview
NVIDIA® Mellanox® ConnectX®-6 Lx SmartNICs deliver scalability, high-performance, advanced security capabilities, and accelerated networking with the best total cost of ownership for 25 GbE deployments in cloud, telco, and enterprise data centers.
Providing up to two ports of 25 GbE connectivity, along with PCIe Gen 3.0/4.0 x8 host connectivity, ConnectX-6 Lx is a member of Mellanox's world-class, award-winning, ConnectX family of network adapters. Continuing Mellanox's consistent innovation in networking, ConnectX-6 Lx provides agility and efficiency at every scale.
ConnectX-6 Lx SmartNICs deliver cutting edge 25 GbE performance and security for uncompromising data centers.
WIDE SELECTION OF SMARTNICS
ConnectX-6 Lx SmartNICs are available in several form factors including low-profile PCIe and OCP 3.0 cards with SFP28 connectors for 10/25 GbE applications. Low-profile PCIe cards are available with tall and short brackets, while OCP3.0 cards are available with either a pull tab or an internal lock bracket.
BEST-IN-CLASS SDN ACCELERATION
Mellanox's ASAP - Accelerated Switch and Packet Processing® technology offloads the SDN data plane to the SmartNIC, accelerating performance and offloading the CPU in virtualized or containerized cloud data centers. Customers can accelerate their data centers with an SR-IOV or VirtIO interface while continuing to enjoy their SDN of choice.
The ConnectX-6 Lx ASAP rich feature set accelerates public and on-premises enterprise clouds, and boosts communication service providers (CSP) transition to NFV. ASAP supports these communication service providers by enabling packet encapsulations, such as MPLS and GTP, along side cloud encapsulations, such as VXLAN, Geneve, and others.
Highlights
- 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- PCI Express 4.0 x8 host interface for reliable data transfer and enhanced performance
- This dual port 25gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- 25GBase-X network technology for reliable connectivity with maximum productivity
Specifications
| Host Interface | PCI Express 4.0 x8 |
|---|---|
| Product Type | 25Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | 4XC7A62582 |
| Form Factor | Plug-in Card |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter |
| Network Technology | 25GBase-X |
| Brand Name | Lenovo |
| Expansion Slot Type | SFP28 |
| Height | 3" |
| Width | 4.5" |
| Maximum Data Transfer Rate | 24.41 Gbit/s |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 2 |
| Bracket Height | OCP 3.0 Small Form Factor |
