Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
DRK194431K
Category
Rack Equipment
Overview

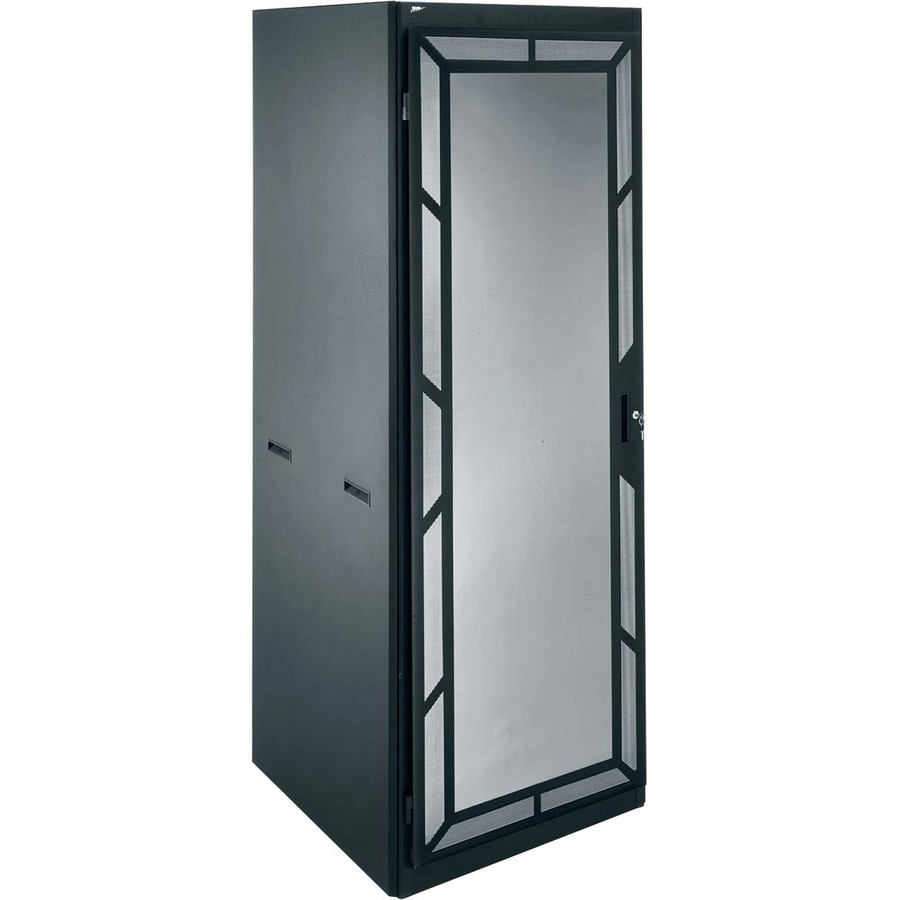

DRK19-44-31K
Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
Warranty
Limited Warranty: Lifetime
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Fully welded construction provides the following weight capacities - UL Listed load capacity: 2,500 lbs - Static load capacity: 10,000 lbs. - Seismic load capacity: 755 lbs.
1/8" thick structural steel internal braces
30" OD width, 31-1/2", 36" and 42" OD depths available
Includes 100 qty. rack screws
4 Grounding and bonding studs installed in base and top
1/2", 3/4", 1" & 1-1/2" electrical knockouts on split rear plates (top & bottom), easily removable for cable pass-through, top plates additionally include UHF/VHF knockouts
2 pairs of wide 11-gauge rackrail labeled with EIA standard rackspace increments available 10-32 threaded or cage-nut style
Vented rear door standard
23" panel width version available
One pair of cable ductss with solid steel hinged doors and 4-point magnetic closure pre-installed in front
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
DRK194431K
Brand Name
Middle Atlantic
Product Series
DRK
Product Model
DRK19-44-31K
Product Name
DRK Series Rack, DRK19-44-31K
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Floor Standing
Product Color
Black Powder Coat
Product Material
Steel
Static/Stationary Weight Capacity
10000 lb
Height
83.5"
Width
30"
Depth
31.4"
Rack Height
44U
Rack Width
19"
Rack Depth
24.25"
Weight (Approximate)
219 lb
Technical Information
Features
Cable Management, Adjustable Mounting Rails, Removable Door, Lockable Door
