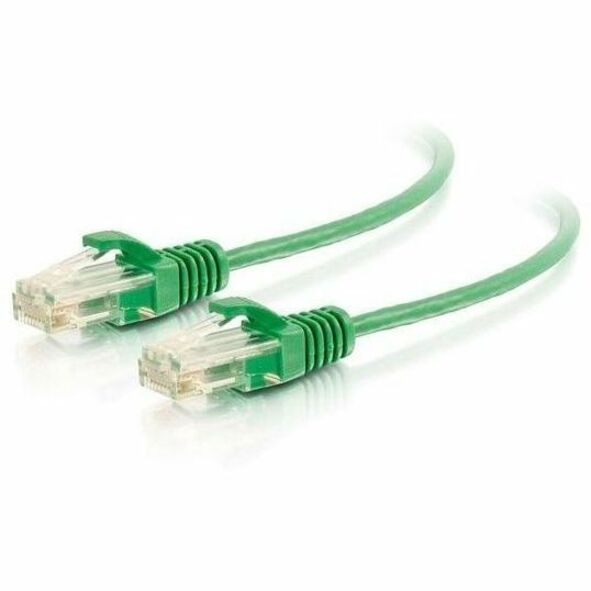

C2G 0.5ft (0.3m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable - Green
MSRP$7.99
$5.72
Save 28%In stock: 592
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.

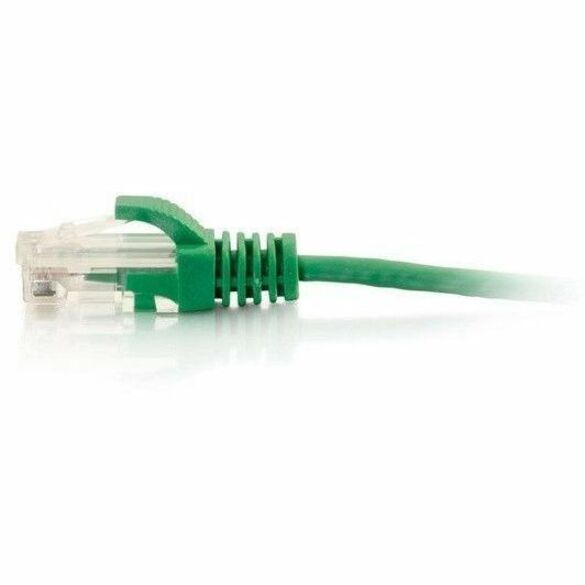

This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
This patch cable does not meet the recommend conductor size, 22-26AWG, requirement of ANSI/TIA-568-C.2. Attenuation is increased due to the smaller 28AWG conductors.
Maximum cable length recommendations:
96 Meter Channel (90 meters of horizontal cable and up to 6 meters of slim network patch cables)
93 Meter Channel (83 meters of horizontal cable and up to 10 meters of slim network patch cables)
For POE/POE+ applications we limit bundles to 40 cables due to heat dissipation of these reduced diameter cables.
Additional Technical Specifications
ELECTRICAL SPECIFICATIONS
Conductor DC Resistance: 9.38?/100m (maximum)
Impedance: 100?
Capacitance: 5600pf/100m
Propagation Delay: 545ns/100m (maximum)
Delay Skew: 45ns/100m (maximum)
PHYSICAL SPECIFICATIONS
Wiring Scheme: T568B
Temperature Rating: 75°C
Voltage Rating: 30V
Approvals: CE
Warranty: Lifetime
Package Type: Polybag
CONDUCTOR (4 PAIR)
Conductor Type: 248AWG (7/0.16 BC)
Insulation: FM-PE ID: ø.60±0.05
Twist Pair: White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown
CONNECTOR TYPE (QTY. 2)
Connector Type: 8P8C (RJ45)
Gender: Male
Contact Material: Gold Plated 50µ
Hood Material: Molded PVC, UL94V-0
OVERALL CABLE
Jacket: PVC
Outer Diameter: 3.8 ± 0.15mm
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G02220 |
| Brand Name | C2G |
| Product Name | C2G 0.5ft (0.3m) Cat6 Snagless (UTP) Slim Ethernet Network Patch Cable - Green |
| Product Type | Network Cable |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Product Material | Copper |
| Connector Material | Gold |
| Insulation Material | FM-PE |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.01 lb |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 6" |
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | Standard Non-rated |
| Device Supported | Network Device |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Molded, Snagless |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Impedance | 100 Ohm |
| Features | PoE, PoE+, Strain Relief, Stranded, Booted, Molded, Minimized Near-End Crosstalk (NEXT) |
| Miscellaneous | |
| Application/Usage | Commercial, Industrial, Residential, Indoor, Data Center |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
