Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
BGR-3827-AV
Category
Rack Equipment
Overview
A pre-configured floor standing cabinet built for today's AV systems. The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management. This 4-post rack includes (4) Forward 1RU flanged blank panels (FWD-EB1), (2) Forward 2RU flanged blank panels (FWD-EB2), (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK), (1) 4pk of Forward 2in offset horizontal lacer bar (FWD-LB-2A-4PK), (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-35-40), (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-35-40) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15, (2) Lever Lock vertical channel (LL-VC21), (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15), (2) Velcro straps for tie saddles (TW12), (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4), (1) Lever Lock plate for small device mounting (LL-VP2110), (1) DC fan top with 4 fans moving 276CFM. Includes controller and plugs for North America, EU, UK and Australia (IBGR-276FT-FC), (1) Solid front door (BFD-38), (1) Pair of side panels (BSPN-38-27), (1) set of leveling feet (LF-HD), and (100) 10-32 threaded rack screws (HP). More from the Manufacturer
Highlights
All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels,vent panels horizontal cable management and vertical cable management
Provides more rackspace in a smaller overall height than similar racks
Accepts patented Lever Lock tool free and hardware free internal device and cable management system accessories
Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
Pre-threaded ganging holes allow for rack joining after loading
Rackrail depth indicators
1/2", 3/4", 1" & 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass-through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" & 3" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts
23" OD width, multiple depths
Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
Optional stackable 3" extender bay available for front and rear
Specifications
Application/Usage
A/V Equipment, UPS, PDU
Package Contents
4 x Forward 1RU Flanged Blank Panels
2 x Forward 2RU Flanged Blank Panels
1 x 4pk of Forward Straight Horizontal Lacer Bar
1 x 4pk of Forward 2" Offset Horizontal Lacer Bar
1 x Forward Vertical Wire Grid Lace
1 x Forward Vertical Cable Management Lace
2 x Lever Lock Vertical Channel
1 x 15pk of Forward Tie Saddles
2 x Velcro Straps for Tie Saddles
2 x 4pk of Forward Small Device Clamps

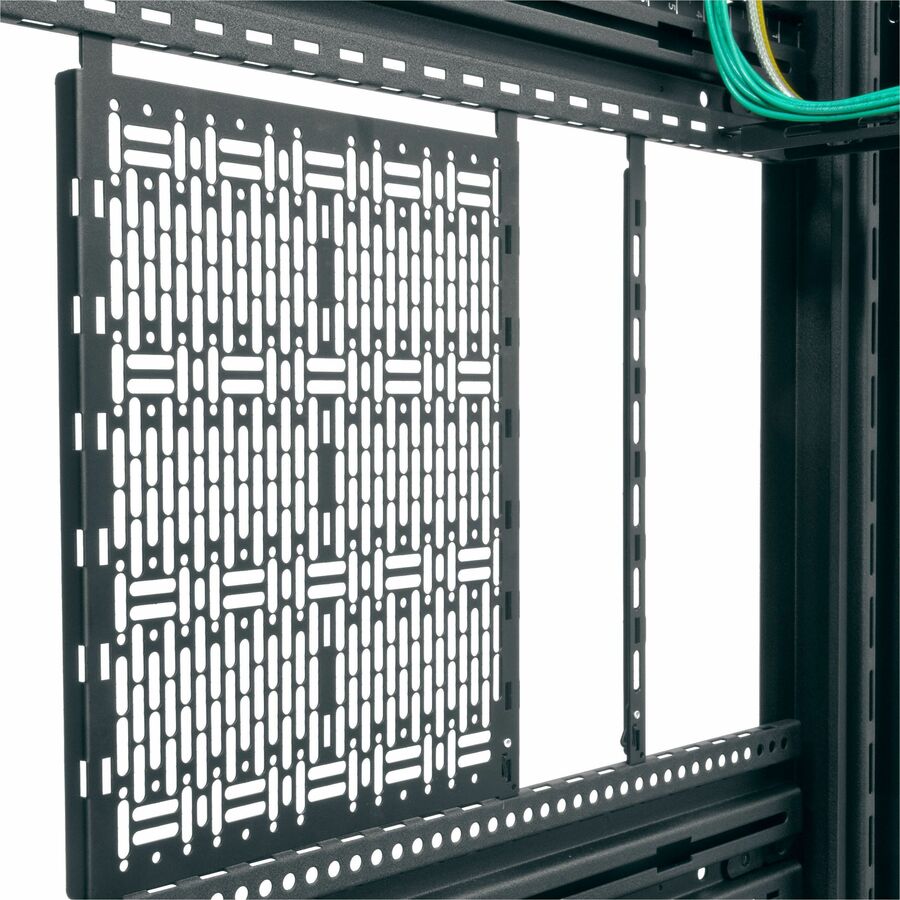

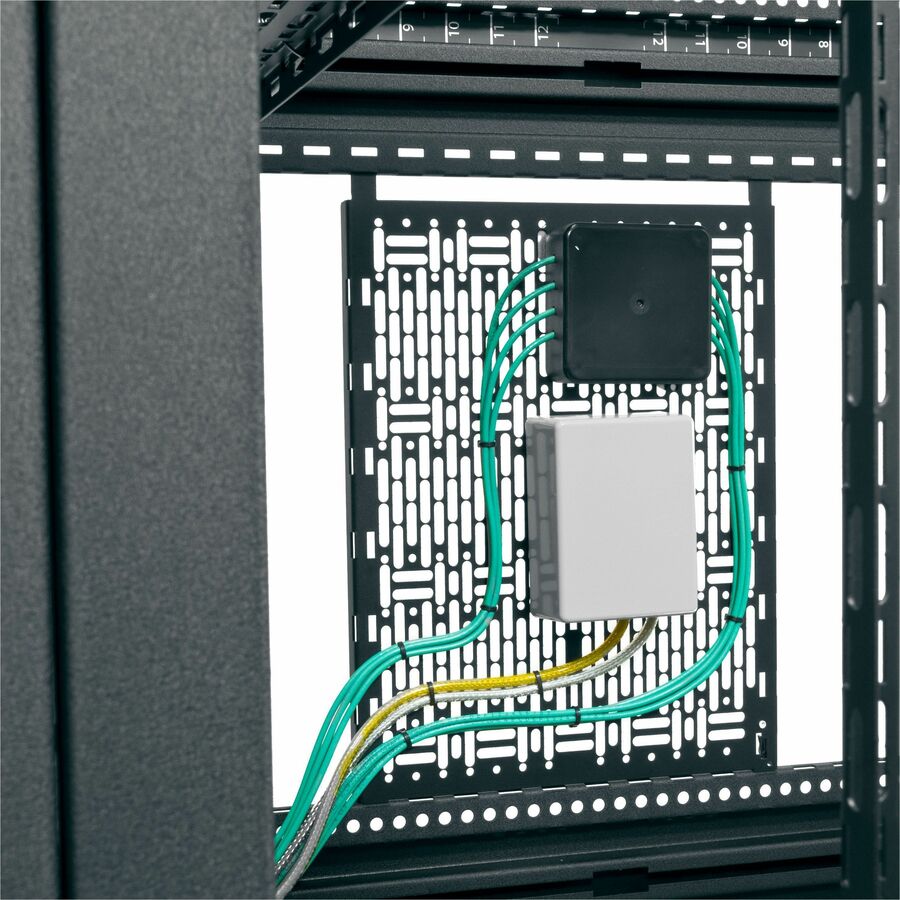

1 x Lever Lock Plate For Small Device Mounting
1 x DC Fan Top
1 x Solid Front Door
1 x Pair Of Side Panels
1 x Set Of Leveling Feet
100 x 10-32 Threaded Rackscrews (HP)
Product Type
Rack Cabinet
Manufacturer Part Number
BGR-3827-AV
Limited Warranty
Lifetime
Ventilation
Yes
Features
Cable Management, Adjustable Mounting Rails, Lockable Rear Door, Casters, Vented, Fan Cutout, Leveling Feet, Rear Door
Form Factor
Floor Standing
Manufacturer
Legrand Group
Product Model
BGR-3827-AV
Product Name

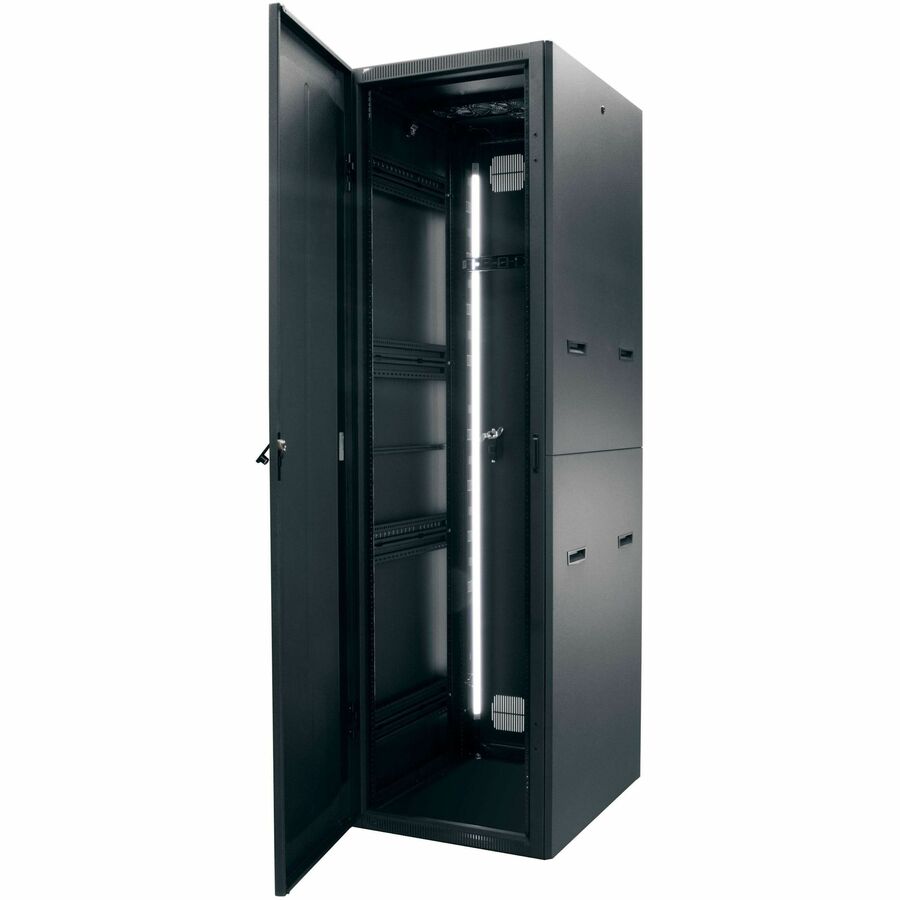

BGR Series 38RU AV 4-Post Rack with Rear Door - 27in Depth Floor Standing Rack
