Middle Atlantic 42 RU AXS Series In Rack (IR), 26 Inches Deep
Legrand

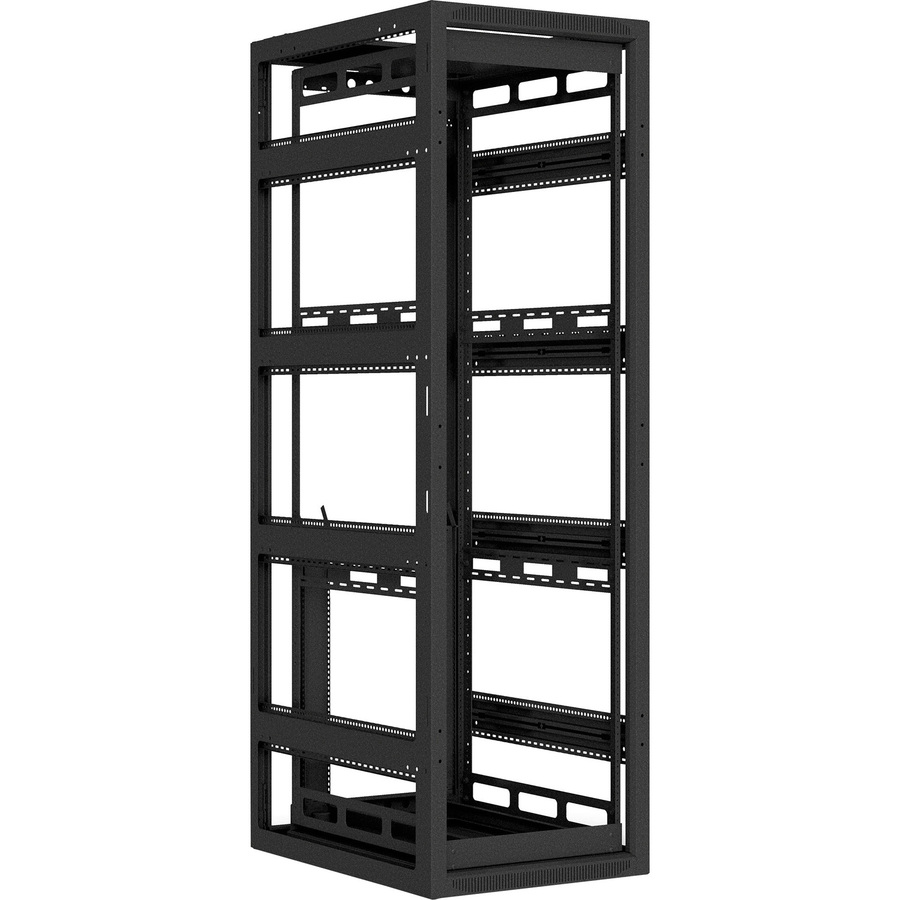

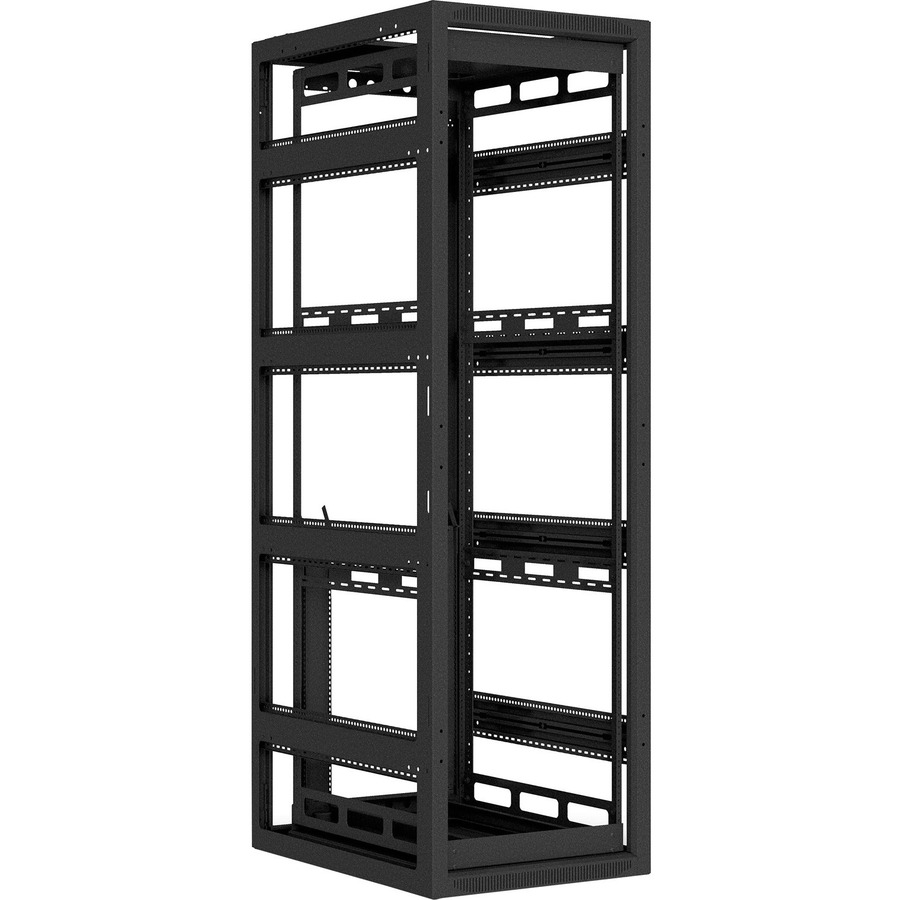

Middle Atlantic 42 RU AXS Series In Rack (IR), 26 Inches Deep

38U Rack Height x 19" Rack Width x 26" Rack Depth - Floor Standing Open Frame - Black Powder Coat - Steel - 650 lb Maximum Weight Capacity - 3 Year Warranty

SKU
AXS-IR-4132-26
Category
Rack Equipment

MSRP$3,687.00

$2,184.88

Save 41%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AXS-IR-4132-26
Category
Rack Equipment

Overview

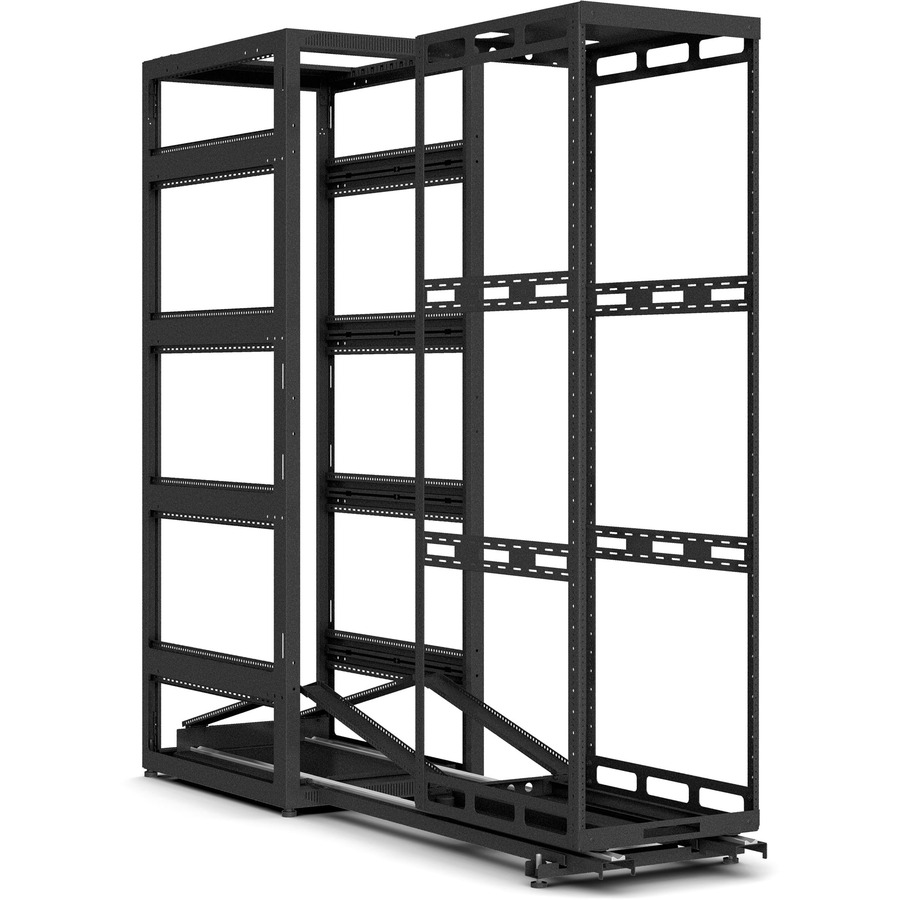

Roll entire bays of equipment straight out for service and installation flexibility. A factory-assembled AXS system in a rack (IR) is ideal for access to rear equipment connections or when space-limited environments require equipment bays to be placed up against a wall.

• 38 useable RUs in a 45RU enclosure

• 26" of useable depth in a32" deep enclosure

• The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the AXS system

• Seismically rated when installed with AXS-IR-Z4K kit

• Meets OSHPD OPM requirements in the State of California when using AXS-IR-Z4K seismic mounting kit

• AXS includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces

• Includes extending cable carriers for effective cable management when the AXS is pulled out or retracted

• Includes rack, rack frame, cable carriers, base, and safety leashes

• Service Tracks are required to pull AXS out of Host Enclosure for servicing

• Accepts standard BGR options like doors, side panels, tops, etc. (see below for all Compatible Products)

Highlights

  • Rack Frame allows quick and easy retrieval of your items with better organizing and feasible mounting
  • Comes in black powder coat color for a sophisticated and dazzling loo
  • Built with steel to offer great resistance to damage and deterioration
  • Floor Standing form factor allows hassle-free and easy usage with increased efficiency
  • Rack Frame provides effective cable management to help maintain basic functionality and protects the devices from clogged airflow due to disordered and jumbled cables

Specifications

Package Contents
  • 38 RU AXS Series In Rack (IR), 26 Inches Deep
  • Cable Carriers
  • Base
  • Safety Leashes
Product TypeRack Frame
Manufacturer Part NumberAXS-IR-4132-26
Limited Warranty3 Year
FeaturesCable Management, Fixed Front Rail
Form FactorFloor Standing
ManufacturerLegrand Group
Product Name42 RU AXS Series In Rack (IR), 26 Inches Deep
Product SeriesAXS-IR
Rack Width19"
Rack Height38U
Brand NameMiddle Atlantic
Country of OriginUnited States
Assembly RequiredYes
Height76.8"
Width23"
Depth32"
Environmentally FriendlyYes
Environmental CertificationGREENGUARD Gold
Maximum Weight Capacity650 lb
Rack Depth26"
Product ColorBlack Powder Coat
Rack TypeOpen Frame
Product MaterialSteel
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 3
