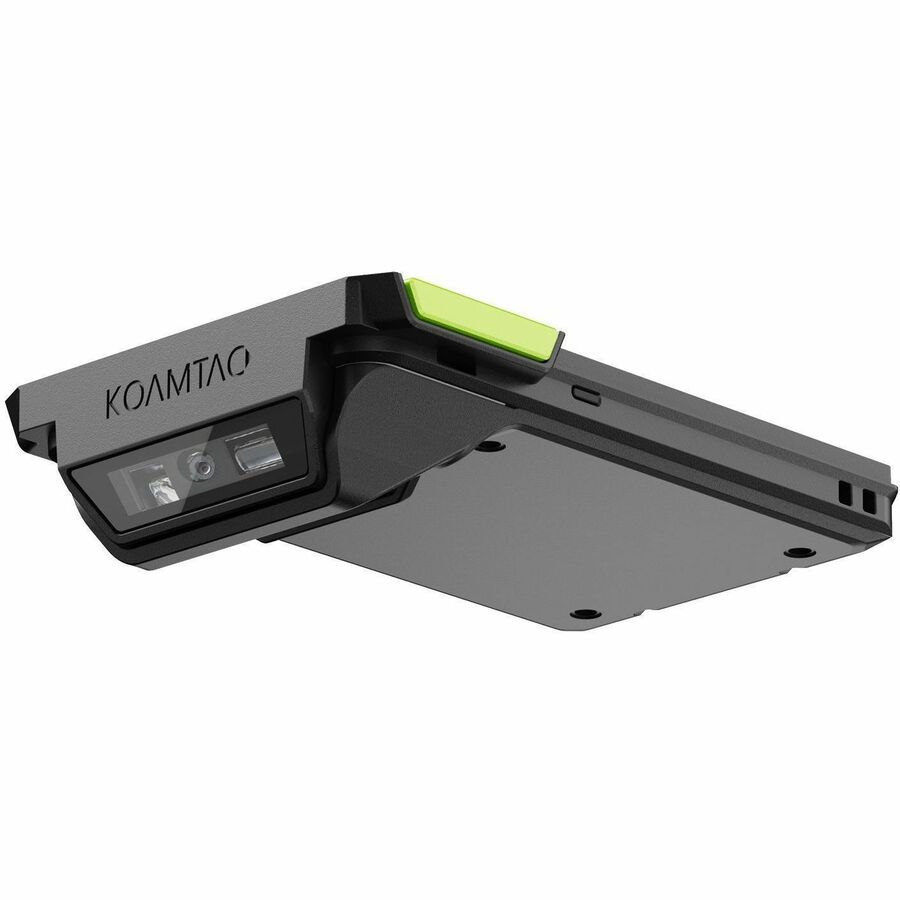

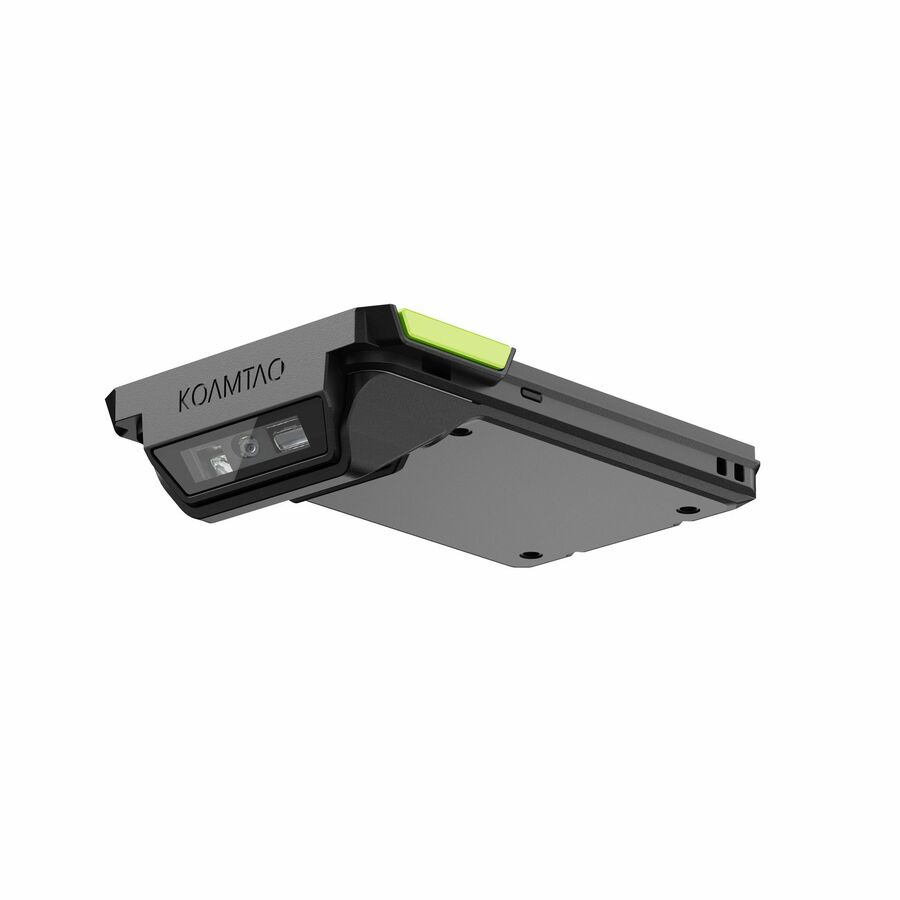

KoamTac KDC1100 Barcode SmartSled
Cable/Wireless Connectivity - 29.10" Scan Distance - 1D, 2D - Imager - Bluetooth - USB - IP65
- SKU
- 513460
- Category
- Barcode Scanners
MSRP$899.00
$666.24
Save 26%Back ordered — ships when restocked.
Genuine KoamTac through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 513460
- Category
- Barcode Scanners
Overview
Designed for Efficiency, Built for Performance.
The KDC1100 SmartSled features a sleek design and premium components for superior scanning. It connects to Android and iOS devices via a Custom Case, ensuring future readiness. With 1D/2D scanning and an IP65 rating, it delivers an outstanding experience.
Well-Equipped
Featuring a downward-angled scan engine, the KDC1100 SmartSled delivers exceptional performance. With standard, medium, and extended-range 2D imager options, it provides flexibility for both close and long-distance scanning. Contact us for details on the flat-angled scan engine variant, the KDC100 0 .
Future-Ready
The KDC1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case. It supports USB (for Android and iPhone 15 & 16), Lightning (for iPhone 13 & 14), and Bluetooth 5.0. Upgrading to a new device is simple with a Custom Case replacement, and its spacer system allows continued use during device changes.
Modular Design for Added Functionality
Through its modular design, the KDC1100 SmartSled allows users to easily attach companions for added functionality, such as UHF Readers, an HF Reader, a 2,000mAh Extended Battery, a Pistol Grip with a 6,000mAh Extended Battery, or mPOS companions.
Compatibility
Available for Apple iPhone 13/Pro/Pro Max, iPhone 14/Pro/Plus/Pro Max, iPhone 15/Pro/Plus/Pro Max models, and iPhone 16/Pro/Plus/Pro Max models; and Samsung Galaxy A35 and XCover7.
Highlights
- Allows productive and precise reading of 1D barcodes
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- Bluetooth technology - Allows compatibility with most of your smart devices
Specifications
| Barcode Symbology Supported | 1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1 2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post |
|---|---|
| Host Interface | USB |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | 513460 |
| Platform Supported | Android, iOS, Mac, Windows, Smartphone |
| Connectivity Technology | Cable/Wireless |
| Manufacturer | KoamTac, Inc |
| Product Model | KDC1100 |
| Product Name | KDC1100 Barcode SmartSled |
| Brand Name | KoamTac |
| Scanning Distance | 29.10" |
| Bluetooth | Yes |
| Scanner Range | Standard Range |
| Drop Specification |
|
| Image Sensor Type | Imager |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Ingress Protection (IP) Rating | IP65 |
| Scanning Capability | 1D, 2D |
| Minimum Element Resolution (Code 39) | 20 mil |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
