Cable/Wireless Connectivity - 29.10" Scan Distance - 1D, 2D - Imager - Bluetooth - USB - IP65
MSRP$499.00
$357.73
Save 28%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine KoamTac through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Experience the Next Generation SmartSled

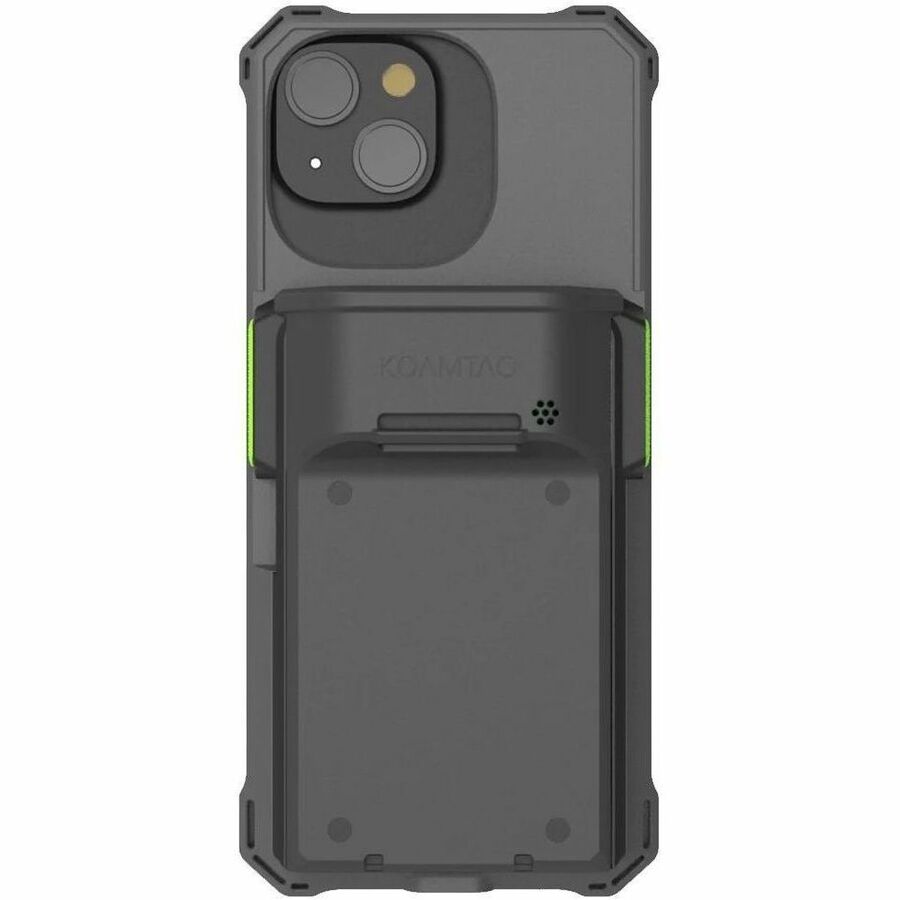

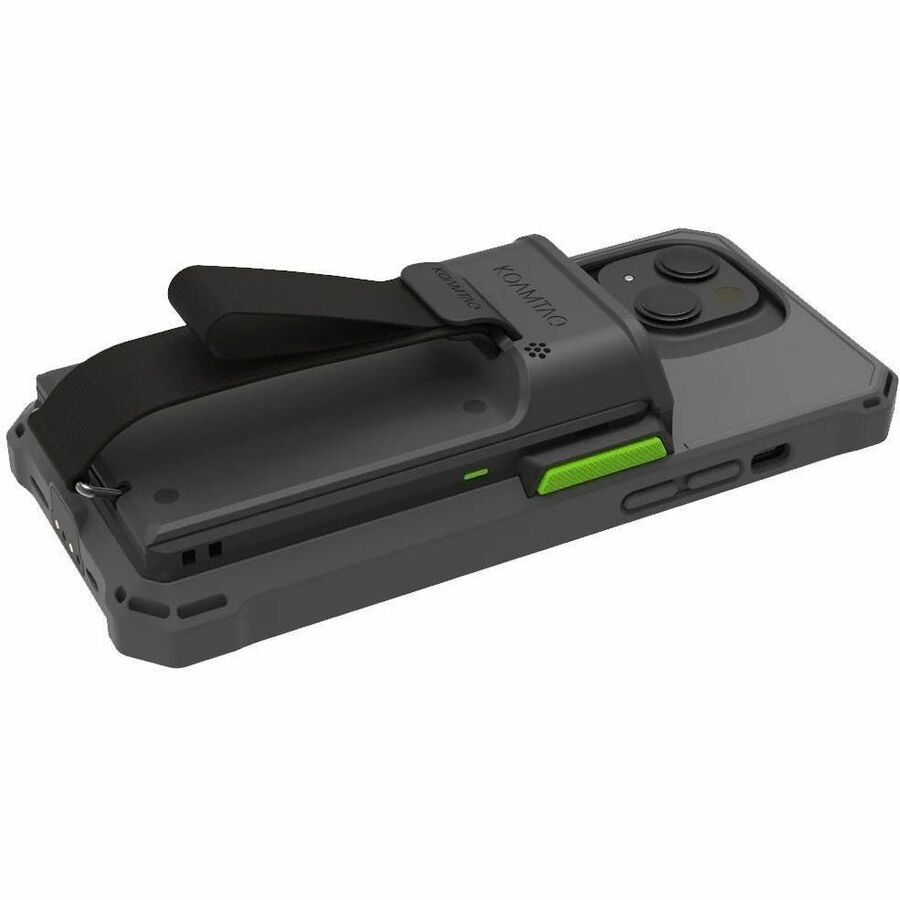

Introducing the KDC1000 Series SmartSled-an innovative leap forward in SmartSled technology! Its streamlined and modern design is equipped with high-quality components, delivering an exceptional scanning performance. It seamlessly integrates to select iPhone models through a Custom Case, providing a costeffective and future-ready scanning solution. With features like 1D/2D barcode scanning, IP65 rating, versatile charging, and a range of companions, it delivers an extraordinary scanning experience.
Universal Design
The KDC1000 SmartSled is designed to effortlessly connect with a range of compatible iOS devices through its innovative Custom Case solution, enabling barcode scanning functionality on your iPhone. When it is time to upgrade to a new host device, a simple Custom Case replacement allows you to keep your current SmartSled solution without investing in a new one, providing you with a truly cost-effective and future-ready scanning solution.
Well-Equipped
The KDC1000 SmartSled features a forward-facing scan engine designed to deliver exceptional scanning performance. Its standard 2D imager makes it an ideal solution for a wide range of scanning tasks, from near to long distance. Ask us about an angled scan engine variant for specialized needs.
Rugged
The KDC1000 has a 5' drop spec, and is IP65-rated. This means the device is dust tight and water resistant- ideal for any environment.
Powered
The KDC1000 utilizes the display and processing power of the connected smart device, providing accurate information in a form and appearance that is familiar to the user. Furthermore, the SmartSled establishes a seamless connection to the host device via USB OTG (for iPhone 15 & 16), Lightning® (for iPhone 13 & 14), or Bluetooth 5.0 connectivity. A variety of charging cradles are available for the KDC1100 and can be scaled to large and small operations.
Rich Companion Ecosystem
Leveraging a modular design, the KDC1000 offers users the flexibility to attach a range of companions, augmenting the functionality of the SmartSled. These companions include short and long-range UHF Readers, an HF (NFC) Reader, a 2,000mAh Extended Battery, a Pistol Grip with an optional 6,000mAh Extended Battery, as well as two mPOS options.
Keyboard wedging and configuration features are included in the complementary SDK for iOS, Xamarin, Cordova, React Native, Flutter, and Web. Additionally, receive technical support from top engineers and the development team to ensure ease of data collection in any situation.
| Barcode Symbology Supported | Imager (1D) Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1 Imager (2D) Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code Postal Codes POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post OCR/MRZ OCR-A, OCR-B, MICR E13-B, SEMI |
|---|---|
| Host Interface | USB |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | 503550 |
| Platform Supported | Android, iOS, Mac, Windows, Smartphone |
| Connectivity Technology | Cable/Wireless |
| Durability | Water Resistant, Dust Resistant |
| Form Factor | Handheld |
| Manufacturer | KoamTac, Inc |
| Product Model | KDC1000 |
| Product Name | KDC1000 ST SmartSled Scanner for iPhone 14 Pro |
| Brand Name | KoamTac |
| Scanning Distance | 29.10" |
| Bluetooth | Yes |
| Scanner Range | Standard Range |
| Drop Specification |
|
| Image Sensor Type | Imager |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Ingress Protection (IP) Rating | IP65 |
| Rugged | Yes |
| Scanning Capability | 1D, 2D |
| Minimum Element Resolution (Code 39) | 20 mil |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Humidity (Non-condensing) | 5% to 95% |
Send a bill of materials or part numbers — we confirm stock, TAA country of origin and a below-market total. No payment up front.
