Genuine KoamTac through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
513160
Category
Barcode Scanners
Overview
Innovative leap forward in SmartSled technology.

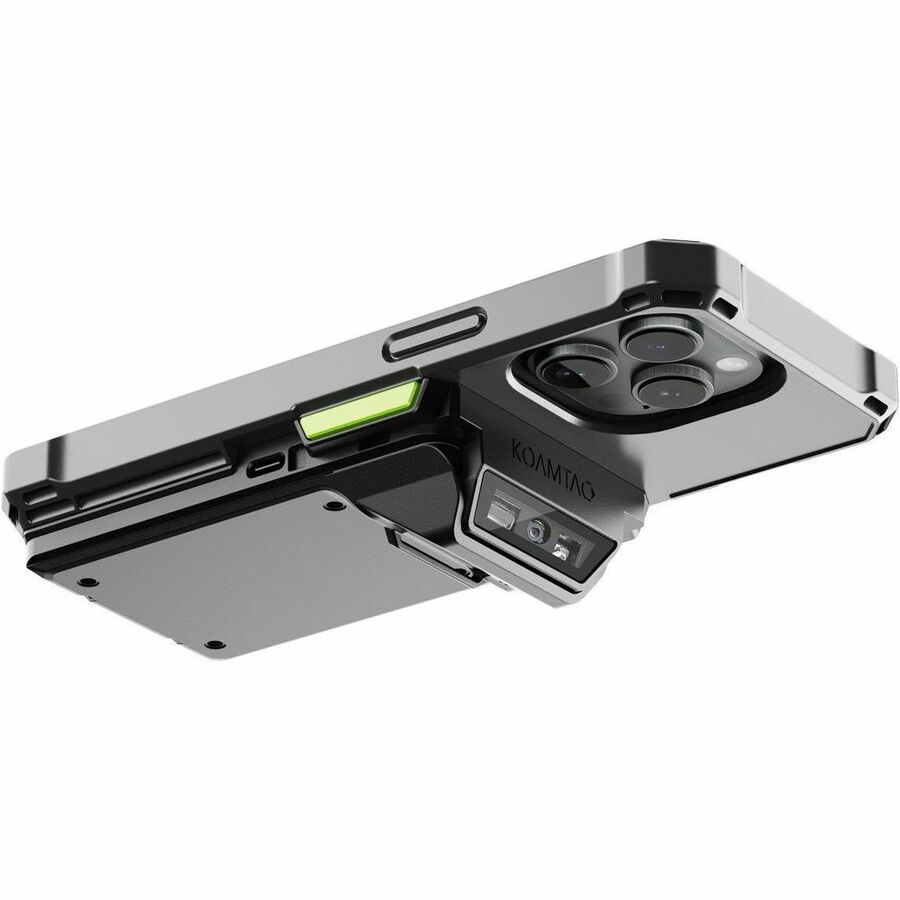

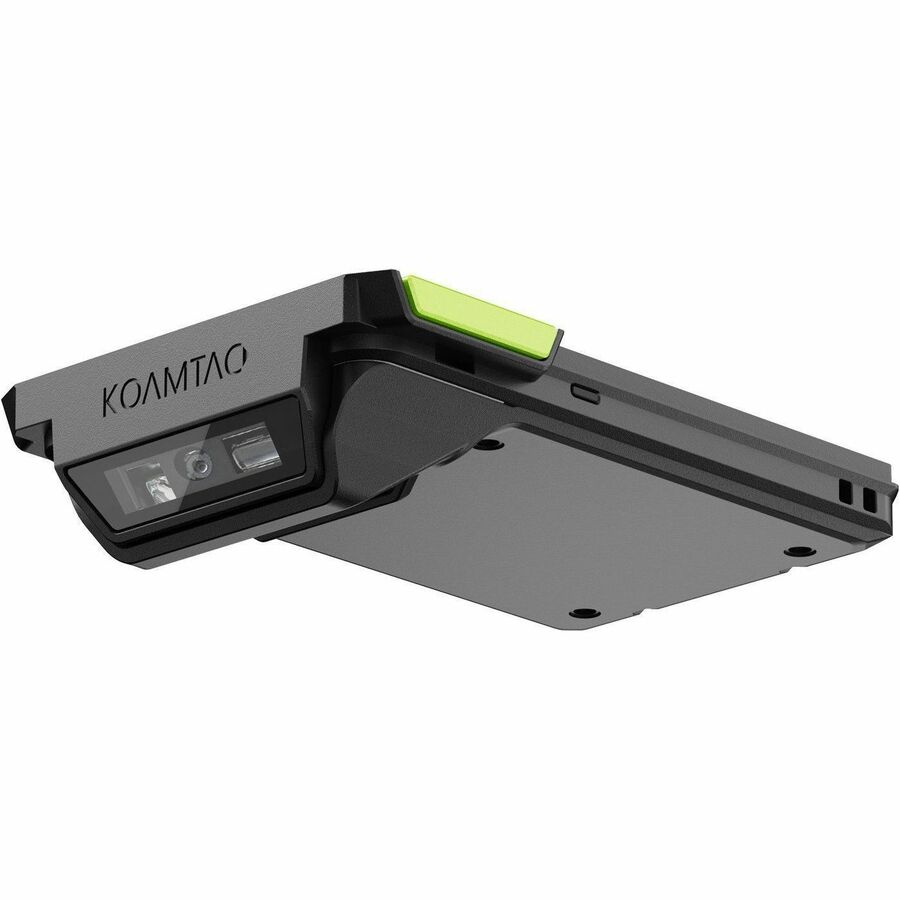

KDC1100 SmartSled features a sleek design and premium components for superior scanning. It connects to Android and iOS devices via a Custom Case, ensuring future readiness. With 1D/2D scanning and an IP65 rating, it delivers an outstanding experience.
Well-Equipped
KDC1100 SmartSled features a downward-angled scan engine for exceptional performance. With standard, medium, and extended-range 2D imager options, it offers flexibility for near- and long-distance tasks. Contact us for details on a flat-angled scan engine variant.
Future-Ready
KDC1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case. It supports USB (for Android & iPhone 15), Lightning (for iPhone 13 & 14), and Bluetooth 5.0. Upgrading to a new device is simple with a Custom Case replacement, and its spacer system allows continued use during device changes.
Modular Design for Added Functionality
KDC1100 SmartSled offers a modular design, enabling users to attach various companions for enhanced functionality. Options include UHF Readers, an HF Reader, a 2,000mAh Extended Battery, and a Pistol Grip with a 6,000mAh Extended Battery.
Compatibility
Available for Apple iPhone 13/Pro/Pro Max, iPhone 14/Pro/Plus/Pro Max, iPhone 15/Pro/Plus/Pro Max models, and iPhone 16/Pro/Plus/Pro Max models; and Samsung Galaxy A35 and XCover7.
Highlights
Allows productive and precise reading of 1D barcodes
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Bluetooth technology - Allows compatibility with most of your smart devices
Specifications
Battery Information
Battery Chemistry
Lithium Ion (Li-Ion)
Battery Capacity
750 mAh
Environmental Conditions
Operating Temperature
-4°F (-20°C) to 122°F (50°C)
Storage Temperature
-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)
5% to 95%
General Information
Manufacturer
KoamTac, Inc
Manufacturer Part Number
513160
Brand Name
KoamTac
Product Model
KDC1100
Product Name
KDC1100 Barcode SmartSled
Product Type
Barcode Scanner
Interfaces/Ports
Host Interface
USB
Network & Communication
Bluetooth
Yes
Technical Information
Connectivity Technology
Cable/Wireless
Scanning Capability
1D, 2D
Barcode Symbology Supported
1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1 2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
