Overview

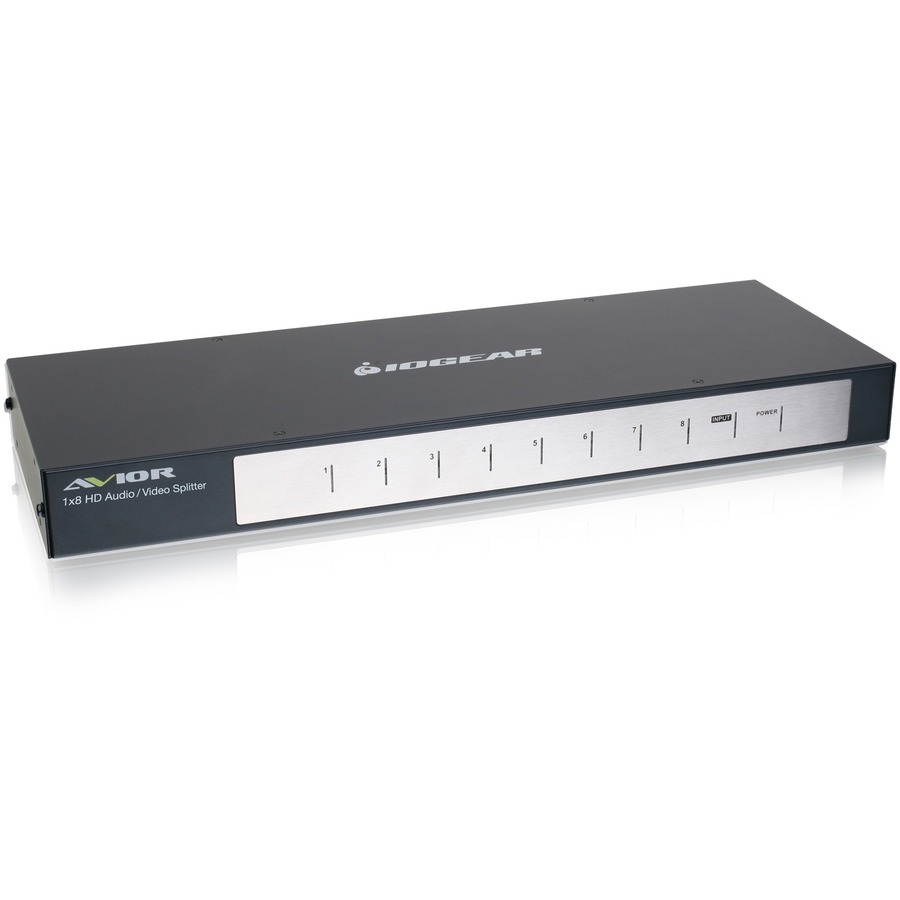

The AVIOR GHSP8118 is a rack-mountable 8-Port HDMI Audio/Video Splitter that takes high definition audio and video from a single HDMI media source and direct it to 8 separate HD TVs or displays. Using HDMI v1.3 and being HDCP compliant, the unit is able to support the highest quality HD video and multi - channel digital audio; enabling the splitting of HD content from DVR/Set -top boxes, Blu-Ray players, computers and other HD or non HD devices.
Providing a data rate of up to 2.25Gbps, the high bandwidth allows for the transmission of large amounts of information at a very high rate of speed. This is important when transferring Full HD 1080p (24/60 Hz) with multi -channel digital audio and 12-bit Deep Color.
The GHSP8118 can cascade up to 3 levels supporting up to 512 HDMI signals. Cascading distance from source to device 6ft, device to device 50ft and device to display 65ft; makes a total of 121ft through cascade.
More from the Manufacturer
Powered by GfK Etilize
HDMI Splitter
The IOGEAR 8-Port HDMI® Splitter that takes high definition audio and video from a single HDMI media source and directs it to 8 separate HD TVs or displays with 3D support. Being HDCP compliant, the unit is able to support the highest quality HD video and multi-channel digital audio; enabling the splitting of HD content from DVR/Set-top boxes, Blu-Ray players, computers and other HD or non HD devices. Designed with 1Urack-mountable metal casing.
Distribute Full HD 1080p (24/60 Hz) or your 3D content with multi-channel digital audio and 12-bit Deep Color.
Applications: Home - Boardroom - Education - House of Worship - Sports Bar
The IOGEAR 8 port HDMI Splitter can cascade up to 3 levels supporting up to 512 HDMI signals. Cascading distance from source to device 6ft, device to device 50ft and device to display 65ft; makes a total of 121ft through cascade.
Warranty
Limited Warranty: 3 Year
About IOGEAR
Innovate Our Engineers and Product Managers work around the clock to develop the next life-changing technology Desktop and Cable KVMs KVM, short for keyboard, video (monitor), and mouse, is a device used to control multiple PCs using a single set of peripherals. Our KVM solutions is the best of the breed. Engineered for efficiency and offers the best value. Docking Stations Our docking stations offer incredible connectivity for laptops, enhancing productivity without compromising mobility. Gaming Our gaming products is designed to give you the edge while staying productive. We create the best work and play products. Audio-Video Our wireless audio and video solutions is designed to simplify connectivity between AV sources and TVs, projectors, or displays with the latest technology.
Highlights
Distribute a single HDMI media source up to 8 HDMI displays
Works with DVR / Set-top boxes, Blu-ray / DVD players, video game consoles, media servers, computers, and many more
Full 3D Support
Supports high-resolution video: HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080)
Auto-detects the highest common resolution of connected displays
Supports 12-bit Deep Color
Cascadable
LED indication of displays
HDCP Compliant
Backwards compatible with DVI devices with HDMI to DVI adapter
Specifications
General Information
Manufacturer
IOGEAR, Inc
Manufacturer Part Number
GHSP8118
Brand Name
IOGEAR
Product Line
AVIOR
Product Name
AVIOR HDMI Splitter
Packaged Quantity
1
Product Type
Audio/Video Switchbox
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
1
Media & Performance
Maximum Operating Distance
121 ft
Physical Characteristics
Form Factor
Rack-mountable
Height
1.8"
Depth
6"
Weight (Approximate)
3.95 lb
Technical Information
Number of Input Devices Supported
1
Device Supported
Computer
Number of Displays Supported
8
Video
Graphics Modes
WUXGA, Full HD, VGA, SVGA, SXGA, UXGA, XGA
Maximum Video Resolution
1920 x 1200
Scan Format
1080p
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
AVIOR HDMI Splitter
1 x Rack Mount Kit
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
