Tower - 3 Hour Recharge - 2.96 Minute Stand-by - 120 V AC Input - 8 x NEMA 5-15R Receptacle(s) - TAA Compliant
MSRP$899.95
$778.38
Save 14%Special order — estimated available by September 10, 2026.
Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Reliable Power Back Up for All IT Equipment Needs

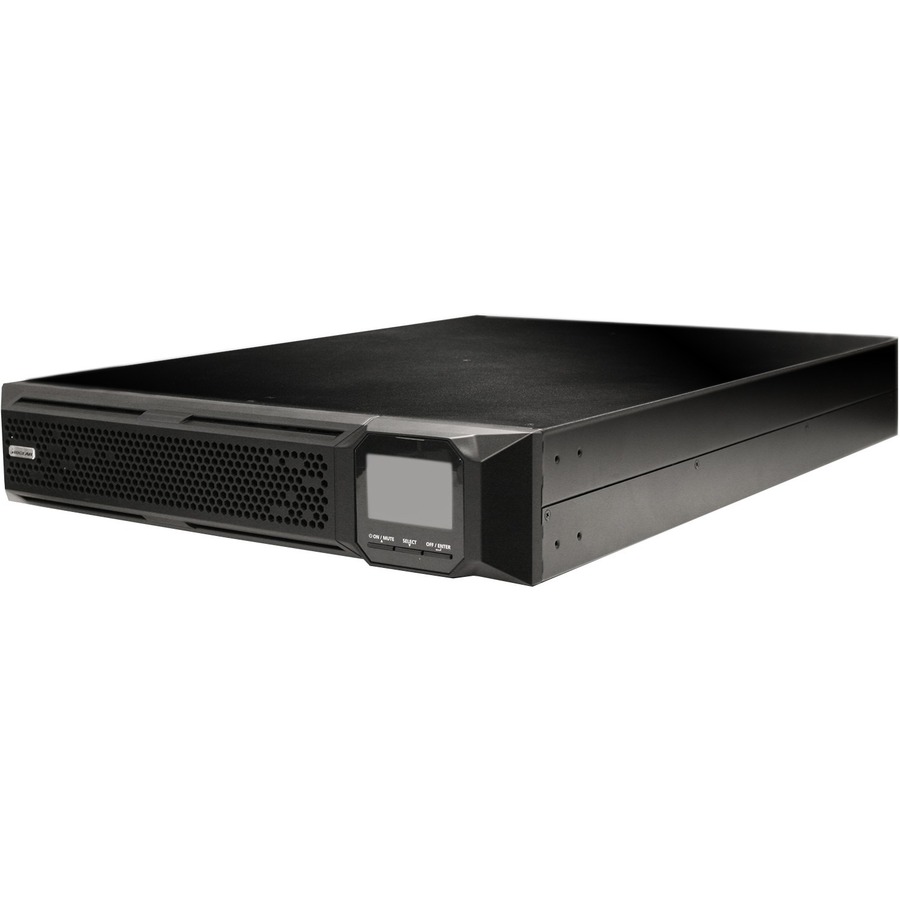

IOGEAR Online UPS Battery Back Up GBB1500N - 1500VA/1430 Watts is a high-performance UPS system with NEMA 5-15P input plug and 8 NEMA 5-15R outlets designed for most server rack configurations that support data, network and communication applications. It utilizes true double conversion with 95% power factor efficiency for all the power supplied by the UPS for critical IT equipment needs and output voltage regulation provides higher performance for critical applications. The rackmount form factor installs use only two rack spaces (2U). It ships with all mounting accessories for a four-post rackmount installation.
Online UPS Battery Design
IOGEAR Online UPS design utilizes true double conversion with 95% power factor efficiency over industry & competitor standards for all the power supplied by the UPS for critical server needs and output voltage regulation provides higher performance for critical applications.
Expandable Power Configurations
IOGEAR Online UPS provides expandable power solutions with External Battery Packs that can be daisy chained to increase system runtime.
Programmable Power Management Outlets
During a power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical applications and devices.
Emergency Power Off function

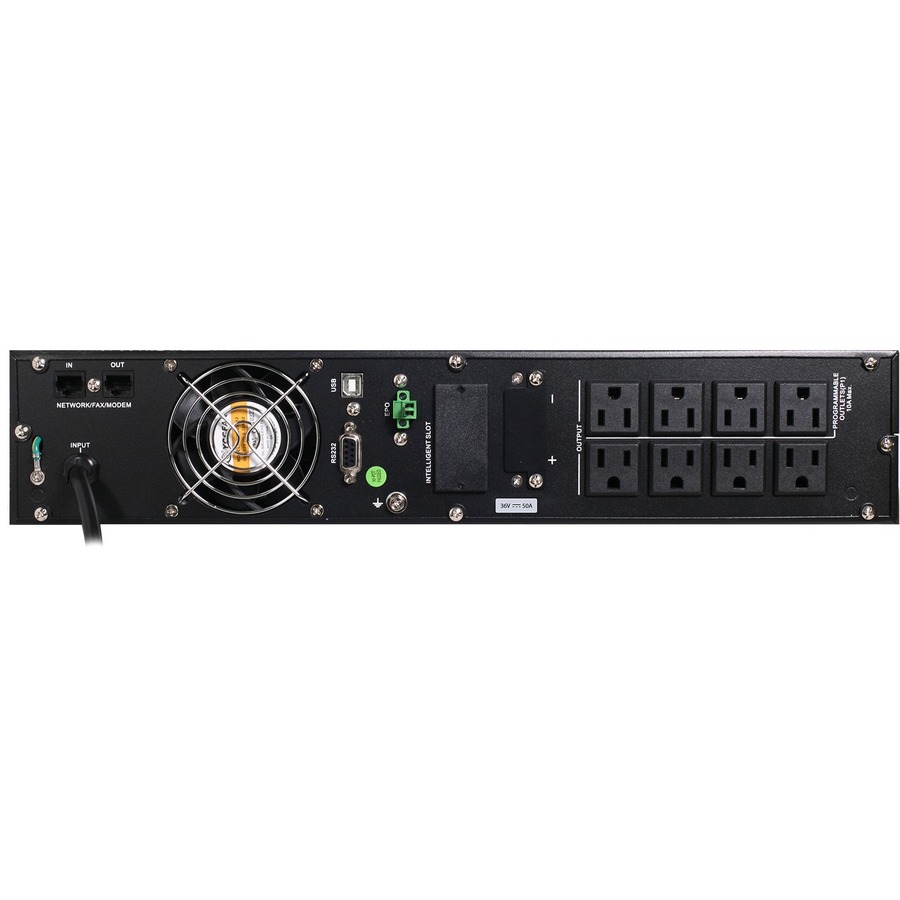

EPO connector at rear panel allows emergency UPS Power Off from a remote location.
SNMP + USB + RS-232 Multiple Communications
Use either USB or RS-232 communication ports to work with SNMP interface simultaneously.
Swappable Battery Design
IOGEAR Online UPS Battery Back Up swappable battery design allows for complete power module exchange without powering down connected equipment.
Efficient Power Modes
IOGEAR Online UPS batteries use ECO Mode to conserve energy and allow up to 97% efficiency cutting energy usage and cost. The unit provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection. The Online UPS battery high power factor charging up to 1430W capacity with very low ripple current when charging the battery. The smart battery charger design allows the Online UPS to optimize battery performance by adjusting charging voltage according to outside temperatures and extends the useful service life of batteries.

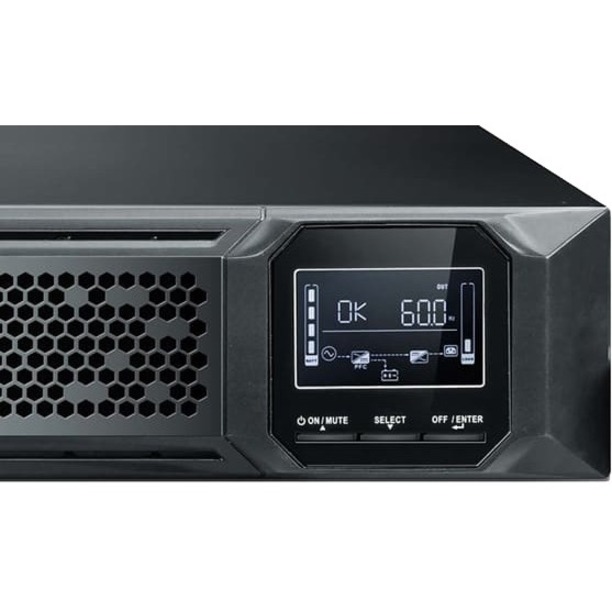

Multi-Functional LCD Interface
IOGEAR Online UPS features multi-function LCD interfaces for displaying detailed information on input voltage, battery capacity, power status, battery status, operating status, assessed backup runtime and more for IT system administrators.
More from the Manufacturer
Reliable Power Back Up for All IT Equipment Needs
IOGEAR Online UPS Battery Back Up GBB1500N – 1500VA/1430 Watts is a high-performance UPS system with NEMA 5-15P input plug and 8 NEMA 5-15R outlets designed for most server rack configurations that support data, network and communication applications. It utilizes true double conversion with 95% power factor efficiency for all the power supplied by the UPS for critical IT equipment needs and output voltage regulation provides higher performance for critical applications. The rackmount form factor installs use only two rack spaces (2U). It ships with all mounting accessories for a four-post rackmount installation.
Online UPS Battery Design
IOGEAR Online UPS design utilizes true double conversion with 95% power factor efficiency over industry & competitor standards for all the power supplied by the UPS for critical server needs and output voltage regulation provides higher performance for critical applications.
Expandable Power Configurations
IOGEAR Online UPS provides expandable power solutions with External Battery Packs that can be daisy chained to increase system runtime.
Programmable Power Management Outlets
During a power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical applications and devices.
Emergency Power Off function
EPO connector at rear panel allows emergency UPS Power Off from a remote location.
SNMP + USB + RS-232 Multiple Communications
Use either USB or RS-232 communication ports to work with SNMP interface simultaneously.
Swappable Battery Design
IOGEAR Online UPS Battery Back Up swappable battery design allows for complete power module exchange without powering down connected equipment.
Efficient Power Modes
IOGEAR Online UPS batteries use ECO Mode to conserve energy and allow up to 97% efficiency cutting energy usage and cost. The unit provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection. The Online UPS battery high power factor charging up to 2850W capacity with very low ripple current when charging the battery. The smart battery charger design allows the Online UPS to optimize battery performance by adjusting charging voltage according to outside temperatures and extends the useful service life of batteries.
Multi-Functional LCD Interface
IOGEAR Online UPS features multi-function LCD interfaces for displaying detailed information on input voltage, battery capacity, power status, battery status, operating status, assessed backup runtime and more for IT system administrators.
Add an External Battery Pack for Extended Runtime
Extend runtime on critical systems with a 36V External Battery Pack (GBP36V18AH), a high-performance expandable rackmount external battery pack solution for the Online UPS Battery Back Up GBB1500N. The external battery pack provides extended battery runtime for critical server rack configurations that support data, communication and network applications. An included daisy chain connector to enable the connection of additional compatible 36V external battery packs to primary Online UPS Battery Back Up system.
Note: When any online ups battery and extendable battery pack, provided or purchased separately, is not in use, recharge it for 4 ~ 6 hours
every 3 ~ 6 months.
Limited Warranty: 3 Year
Innovate Our Engineers and Product Managers work around the clock to develop the next life-changing technology Desktop and Cable KVMs KVM, short for keyboard, video (monitor), and mouse, is a device used to control multiple PCs using a single set of peripherals. Our KVM solutions is the best of the breed. Engineered for efficiency and offers the best value. Docking Stations Our docking stations offer incredible connectivity for laptops, enhancing productivity without compromising mobility. Gaming Our gaming products is designed to give you the edge while staying productive. We create the best work and play products. Audio-Video Our wireless audio and video solutions is designed to simplify connectivity between AV sources and TVs, projectors, or displays with the latest technology.
| Battery Information | |
|---|---|
| DC System Voltage | 36 V DC |
| Number of Batteries | 3 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.96 Minute |
| Backup/Run Time (Half Load) | 10.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Controls/Indicators | |
| Status Indicators | Multi-Functional LCD Interface |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| General Information | |
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GBB1500N |
| Brand Name | IOGEAR |
| Product Name | Professional Online 1500VA, 1430W UPS - TAA |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP |
| Physical Characteristics | |
| Height | 3.50" |
| Width | 17.30" |
| Form Factor | Tower |
| Weight (Approximate) | 32.20 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1450 W |
| Input Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Energy Saving | >96%(ECO), >89%(AC), >88%(Batt) |
| Application/Usage | IT Equipment |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
