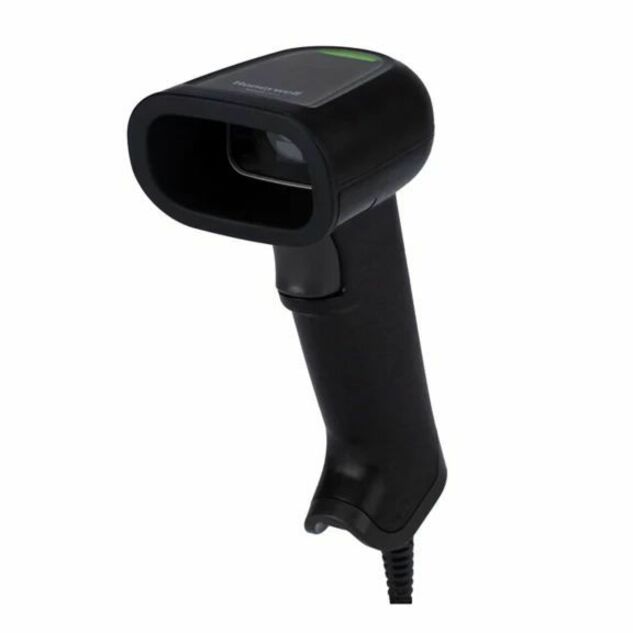

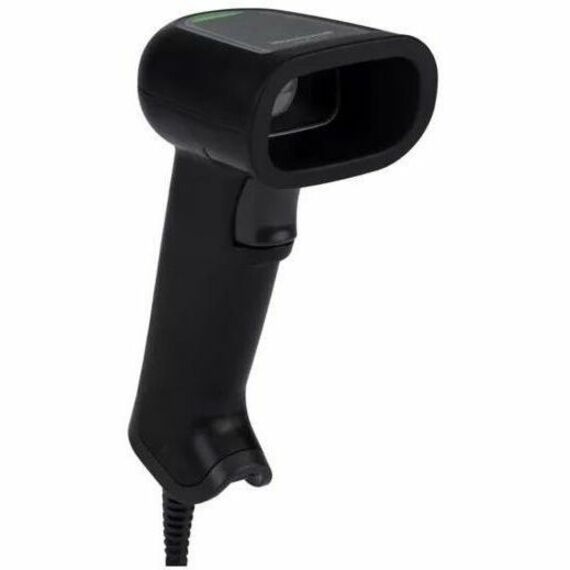

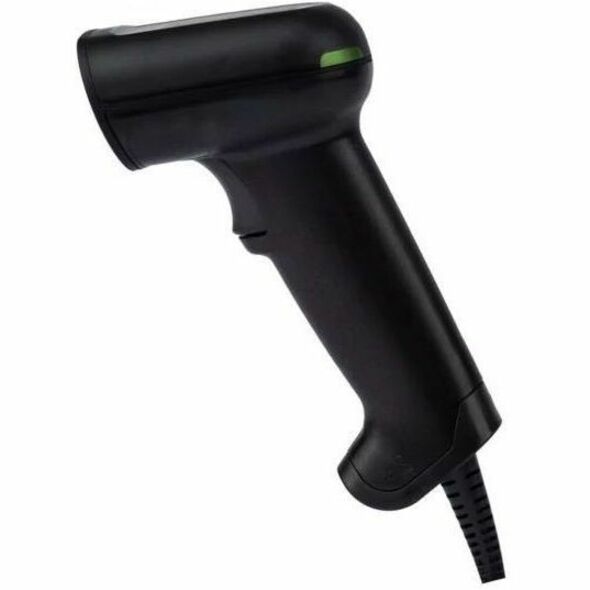

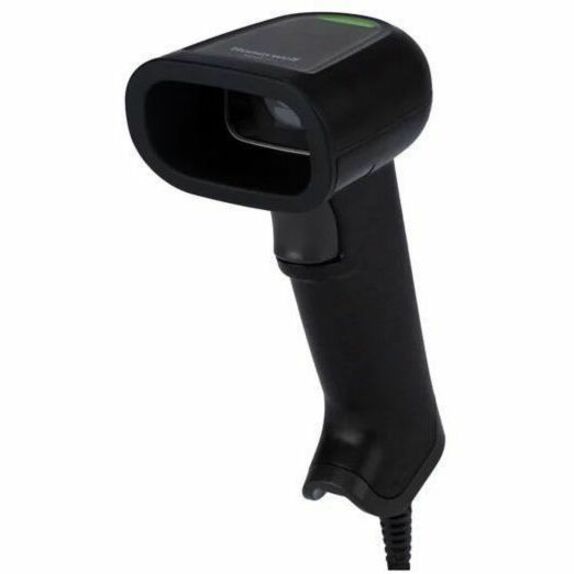

Honeywell Xenon Ultra 1960G Corded Handheld Scanner

Cable Connectivity - 43.90" Scan Distance - 1D, 2D - LED - Imager - Area - USB, Serial, Keyboard Wedge - Black - IP52 - Inventory, Component Tracking, Assembly Line, Retail, Self-checkout, Manufacturing

SKU: 1960GSR-2USB-2EZ-N
Category: Barcode Scanners

MSRP$859.24

$582.06

Save 32%

Back ordered

Back ordered — ships when restocked.

Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 1960GSR-2USB-2EZ-N
Category: Barcode Scanners

Overview

Today's retailers consistently face increasing demands for a seamless and memorable customer service. In order to achieve the efficiency needed to create elevated customer experiences, retailers need a scanning solution that empowers associates to move through their workflows precisely and without impedance.

The Xenon Ultra for retail is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

The Xenon Ultra 1960g incorporates Honeywell's next generation of scanning capability - allowing retailers to stay productive and keep customer service as their top priority. With optional dual-camera extended range (XR) models, retailers can use the scanner for both up-close and extended, bottom-of-the-basket scanning.

Available in a cordless Bluetooth configuration which offers premium accessory upgrades such as interchangeable power sources, contactless charging and magnetic retention capabilities.

Warranty

Limited Warranty: 5 Year

Highlights

Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
LED aimer is a perfect choice for patient-facing applications
Wired connectivity makes this scanner ideal for retail and desktop applications

Specifications

Application/Usage	Inventory, Component Tracking, Assembly Line, Retail, Self-checkout, Manufacturing
Barcode Symbology Supported	Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Package Contents	Xenon Ultra 1960G Corded Handheld Scanner USB Cable
Host Interface	USB, Serial, Keyboard Wedge
Product Type	Barcode Scanner Kit
Manufacturer Part Number	1960GSR-2USB-2EZ-N
Limited Warranty	5 Year
Weight (Approximate)	5.19 oz
Connectivity Technology	Cable
Features	Beep, Notification LED
Form Factor	Handheld
Manufacturer	Honeywell International, Inc
Product Model	1960G
Product Name	Xenon Ultra 1960G Corded Handheld Scanner
Product Line	Xenon Ultra
Brand Name	Honeywell
Scanning Distance	43.90"
Light Source	LED
Scanner Range	Standard Range
Drop Specification	Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range
Scan Pattern	Area
Image Sensor Type	Imager
Illumination Type	LED
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Product Color	Black
Color Family	Black
Illumination Color	White
Ingress Protection (IP) Rating	IP52
Scanning Capability	1D, 2D
Field of View (Horizontal)	42°
Field of View (Vertical)	36°
Reading Angle (Skew)	65°
Reading Angle (Pitch)	65°
Reading Angle (Roll)	360°
Motion Tolerance	157.48 in/s
Maximum Operating Power Consumption	2.50 W
Maximum Ambient Light	100000 lux
Minimum Print Contrast	15%
Minimum Element Resolution (Code 39)	3 mil
Maximum Element Resolution (Code 39)	20 mil
Minimum Element Resolution (DataMatrix)	5 mil
Maximum Element Resolution (DataMatrix)	10 mil
Minimum Element Resolution (PDF417)	5 mil
Maximum Element Resolution (PDF417)	6.7 mil
Air Electrostatic Discharge (+/-)	15kV
Operating Temperature	32°F (0°C) to 122°F (50°C)
Image Sensor Resolution	1280 x 1080
Humidity (Non-condensing)	0% to 95%
