Honeywell Genesis XP 7680g Barcode Scanner Kit
Cable Connectivity - 1D, 2D - Imager - Area - USB, Serial, Keyboard Wedge, IBM 46XX - Black - Stand Included - IP52 - USB Cable Included
- SKU
- 7680GSR-2USB-1-N
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7680GSR-2USB-1-N
- Category
- Barcode Scanners
Overview

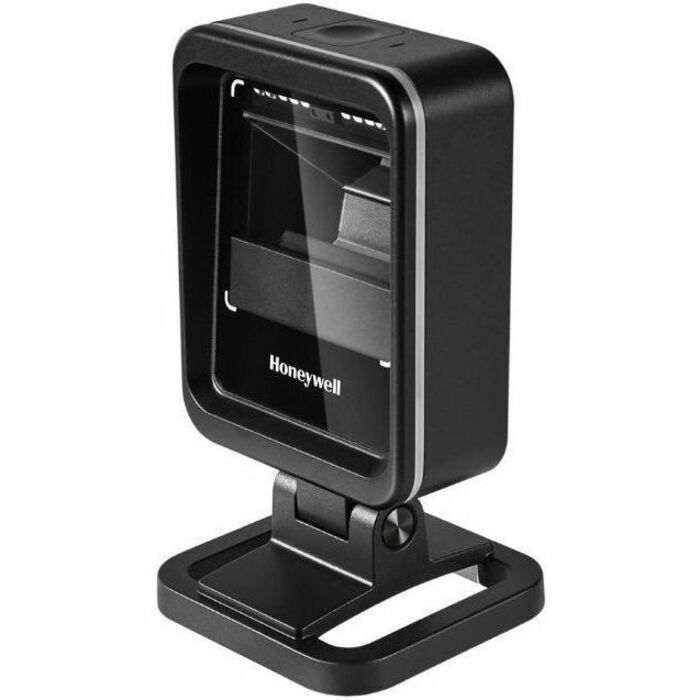

The Honeywell Genesis? XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity.
BIG VALUE IN A SMALL PACKAGE
Increased Productivity
The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell's field proven XP scanning technology handles poorly printed and damaged barcodes with ease. Impressive depth of field allows barcodes to be read even if placed right at the face of the scanner.
Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.
Fantastic User Experience
The compact and modern design offers a contemporary experience with minimal counter space required. The 360° tri-color LED ring highlights the scanning target area and provides clear user feedback, offering an intuitive experience for both employees and customers.
The scanning user experience is a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye. The automatic object detection feature turns the illumination completely off between scans, so the scanner is not a distraction.
Warranty
Limited Warranty: 3 Year
Highlights
- Allows productive and precise reading of 1D barcodes
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- Wired connectivity makes this scanner ideal for retail and desktop applications
Specifications
| Barcode Symbology Supported |
|
|---|---|
| Package Contents |
|
| Host Interface | USB, Serial, Keyboard Wedge, IBM 46XX |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | 7680GSR-2USB-1-N |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 11.99 oz |
| Connectivity Technology | Cable |
| Features | Beep |
| Form Factor | Hands-free |
| Input Current | 500 mA |
| Length | 80" |
| Manufacturer | Honeywell International, Inc |
| Product Model | 7680g |
| Product Name | Genesis XP 7680g Barcode Scanner Kit |
| Product Line | Genesis XP |
| Brand Name | Honeywell |
| Height | 12.1 ft |
| Width | 40" |
| Drop Specification | 50 drops @ 1.5 m |
| Scan Pattern | Area |
| Image Sensor Type | Imager |
| Stand Included | Yes |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP52 |
| Rugged | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Motion Tolerance | 158 in/s |
| Maximum Operating Power Consumption | 2.50 W |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 0% to 95% |
