Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
NCSMA180-U-US
Category
A/V Receivers & Amplifiers
Overview

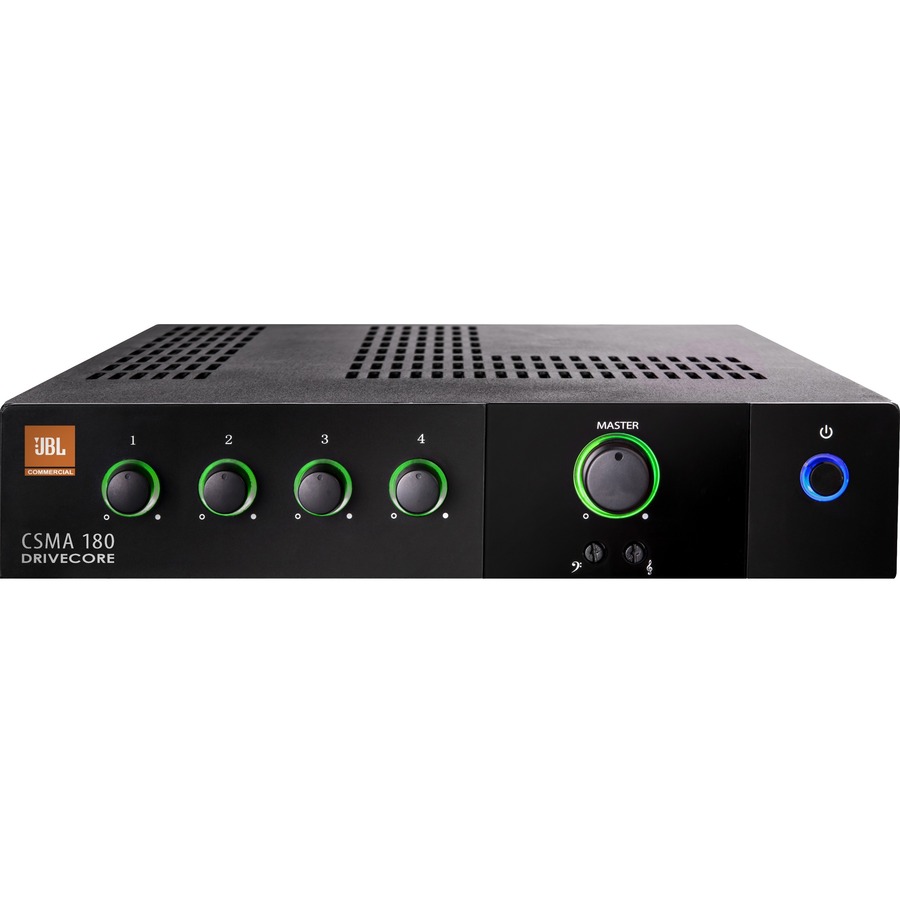

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight - all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.
The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.
Warranty
Limited Warranty: 3 Year
Highlights
4 inputs with 1 output of 80 or 120-watts of power
Ideal for commercial and industrial use
Fanless, space-saving 1U design
Sleek industrial look with illuminated rings, making them easy to see and operate
Euro-block type mic/line input connectors and output connectors
Independent Bass and Treble controls for each output channel
Supports 70V and 100V distributed audio systems without the need for a separate transformer
Remote volume control capability using JBL CSR-V module and standard Ethernet cable
Priority muting
Configurable output routing
Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
Includes rack mounting kit
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
Energy Star® Certified
Specifications
Audio
Audio Channels
4
RMS Output Power
80 W
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
NCSMA180-U-US
Brand Name
JBL Commercial
Product Model
CSMA 180
Product Name
CSMA 180 Amplifier
Product Type
Amplifier
Interfaces/Ports
Number of Analog Audio Inputs
6
Network & Communication
Ethernet
Yes
Physical Characteristics
Height
1.7"
Width
8.6"
Depth
11.9"
Power Description
Operating Power Consumption
40 W
Technical Information
Maximum Frequency Response
1 kHz
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
CSMA 180 Amplifier
Rack mounting kit
Energy Star
Yes
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
