AtlasIED AZA404 Amplifier - 300 W RMS - 4 Channel - Black
1% THD - 20 Hz to 20 kHz - Ethernet
SKU
Category
A/V Receivers & Amplifiers
MSRP$1,931.99
$1,616.26
Save 16%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine AtlasIED through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
A/V Receivers & Amplifiers
Overview

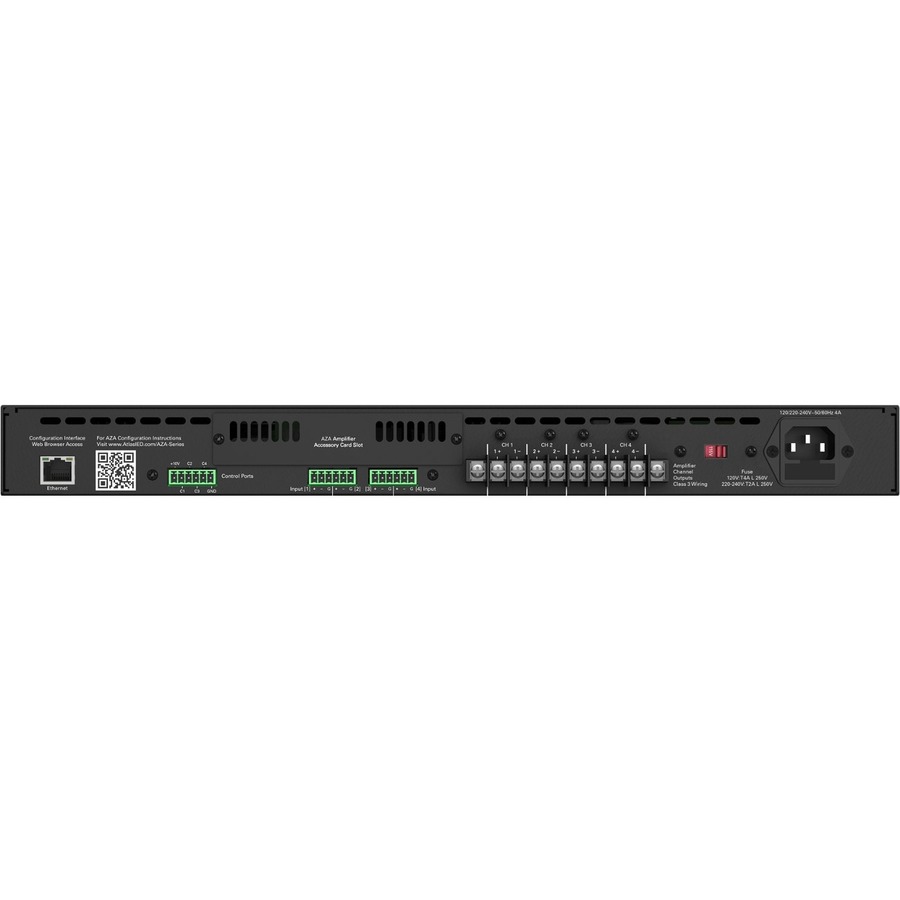

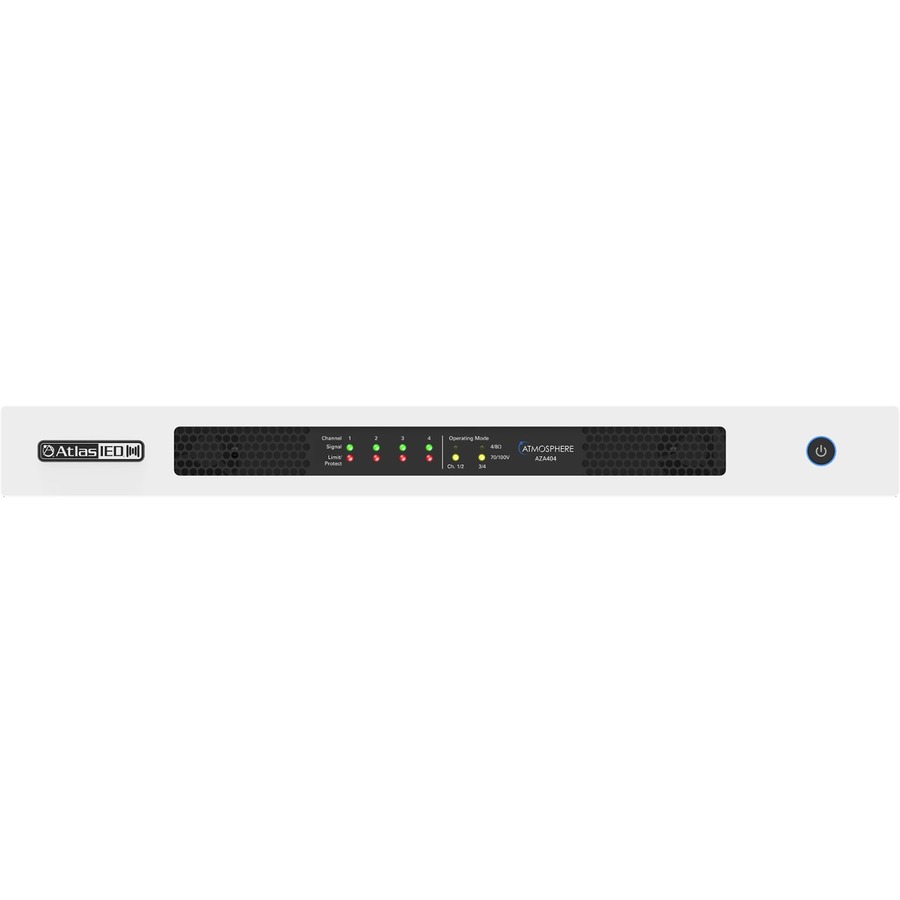

The AtlasIED Atmosphere AZA404 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4?/8?/70V/100V).
The AZA404 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.
Warranty
Limited Warranty: 3 Year
Highlights
70V, 100V, 8?, or 4? functionality, configurable in channel pairs
Up to 100W per channel (4 x 100W)
Four (4) balanced inputs
Web interface to change output modes and additional monitoring/processing
Optional Accessory Card Slot for a Four-Channel Dante Receiver (DPA-DAC4)
Specifications
Audio
Audio Channels
4
RMS Output Power
300 W
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
AZA404
Brand Name
AtlasIED
Product Series
AZA
Product Model
AZA404
Product Name
400-Watt Networkable 4-Channel Power Amplifier
Product Type
Amplifier
Network & Communication
Ethernet
Yes
Physical Characteristics
Product Color
Black
Height
1.8"
Width
19"
Depth
15.5"
Weight (Approximate)
13 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Technical Information
Minimum Frequency Response
20 Hz
Maximum Frequency Response
20 kHz
Total Harmonic Distortion (THD)
1%
Impedance
8 Ohm
Classification
AB
Features
Digital Signal Processing
Warranty
Limited Warranty
3 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
