JBL AW595-LS 2-way Outdoor Speaker - 400 W RMS - Black
1600 W (PMPO) - 15" - 1.50" - 88 Hz to 19 kHz - 8 Ohm
SKU
Category
Component Speakers
MSRP$5,575.00
$3,623.44
Save 35%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Harman International Industries through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Component Speakers
Overview
Applications:
• Sports Facilities
• Themed Entertainment Venues
• Outdoor Entertainment Centers
• Cruise Ships
• Water Parks

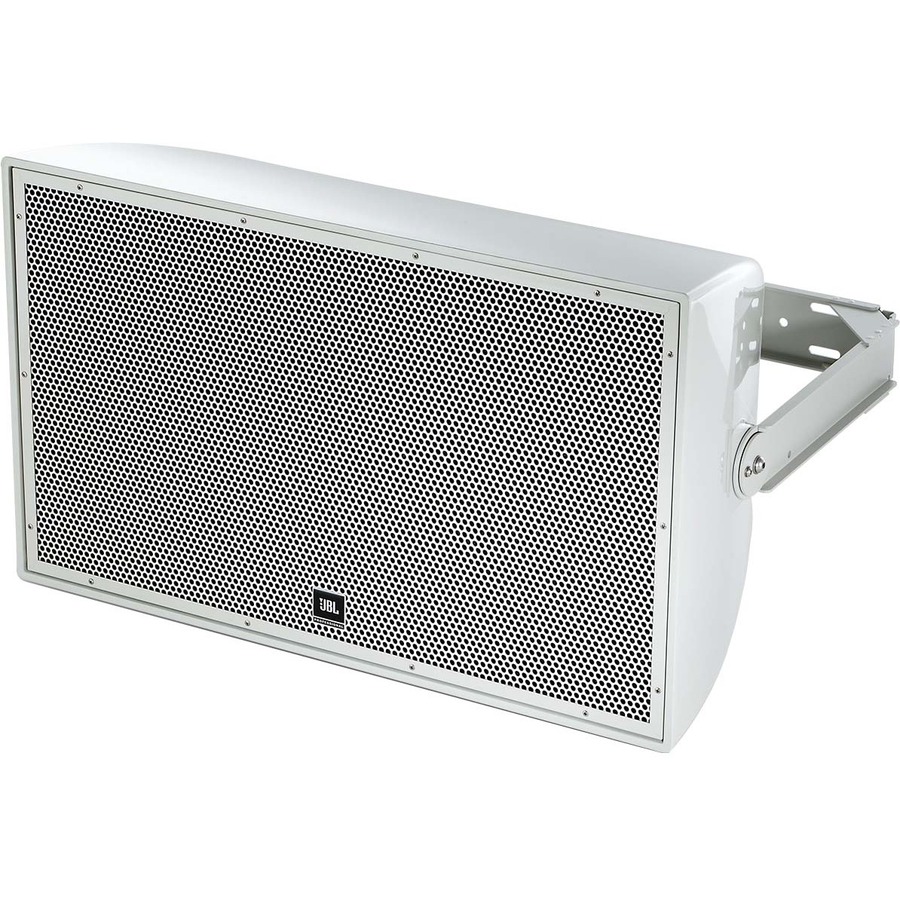

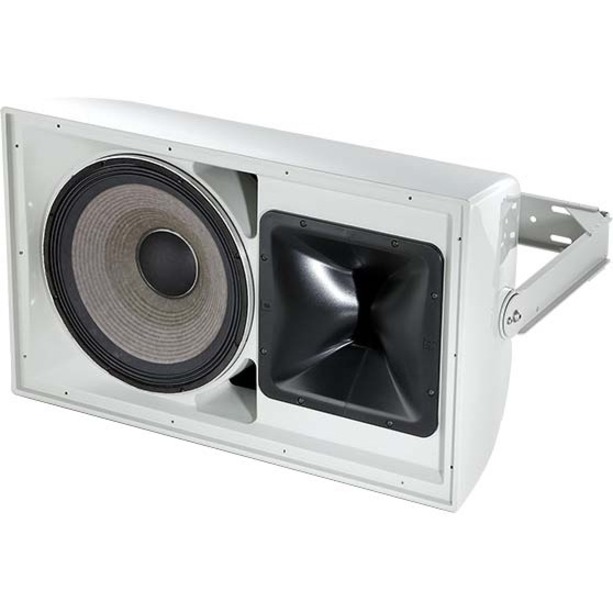

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system can be operated as an 8- ohm device and is equipped with a 400W transformer for 70/100V applications.

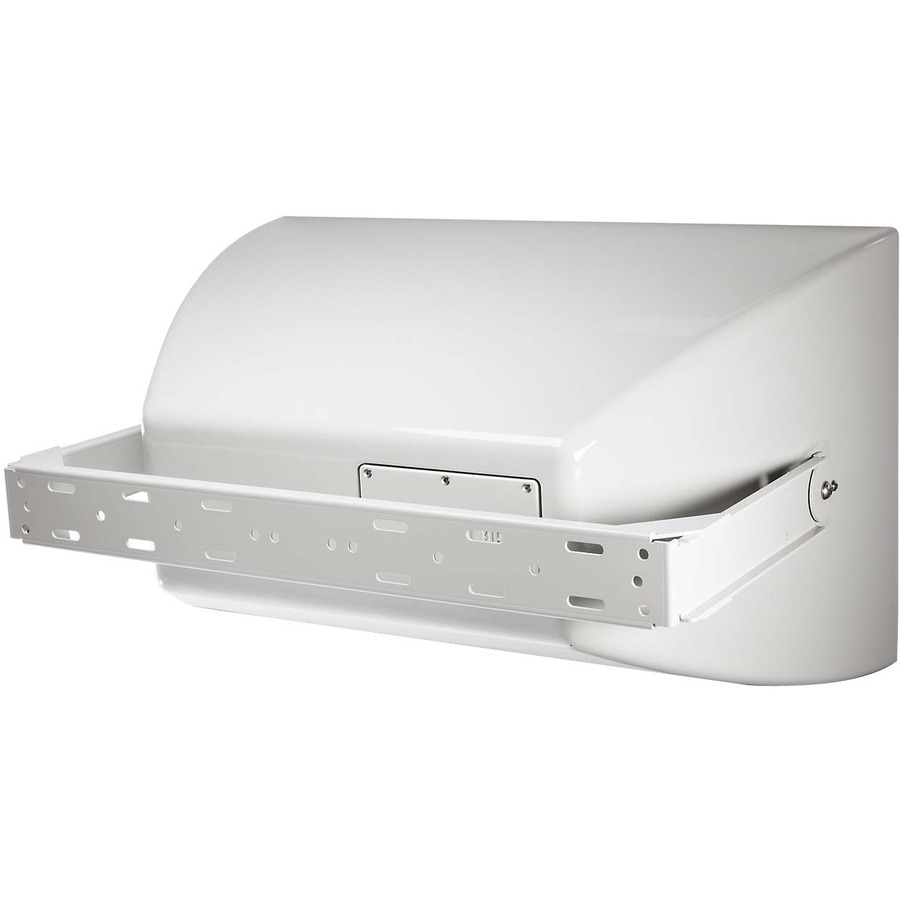

A corrosion-resistant extra-thick zincplated polyester powder coated U-type mounting bracket is included.
The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 16-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments.
The AW595-LS is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Highlights
Weather-Resistant, All Fiberglass Enclosure
EN54-24 Compliant
90° x 50° Coverage
2265H Differential Drive® LowFrequency Driver
2432H High Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable wave guide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AW595-LS-BK
Brand Name
JBL
Product Model
AW595-LS
Product Name
AW595-LS Speaker
Packaged Quantity
2
Product Type
Speaker
Physical Characteristics
Product Color
Black
Durability
Corrosion Resistant, Weather Resistant
Speaker Installation
Outdoor
Height
19.1"
Width
31.9"
Depth
18.82"
Weight (Approximate)
62.39 lb
Technical Information
Crossover Type
2-way
RMS Output Power
400 W
PMPO Output Power
1600 W
Woofer Driver Size
15"
Tweeter Driver Size
1.50"
Minimum Frequency Response
88 Hz
Maximum Frequency Response
19 kHz
Impedance
8 Ohm
Sensitivity
113 dB
Ingress Protection (IP) Rating
IP55
Miscellaneous
Package Contents
AW595-LS Speaker
Mounting Bracket
Application/Usage
Cruise Ship, Sport Center, Amusement Park, Outdoor Entertainment Center, Themed Entertainment Venue
