SKU
90480170
Category
Lighting Fixtures
Overview
The Martin RUSH CS Series is a color LED cove lighting system designed to illuminate interior walls and other indoor spaces. These high output, cost effective lighting strips are a great fit for indoor lobbies, lounges or other spaces. The fixtures offer both basic and advanced control modes, allowing these venues the ultimate flexibility to establish the exact look they need without adding unneeded complexity to the lighting design, installation or operation. Designed to be easy to install and use, the RUSH CS Series is a perfect fit for a variety of applications.
Available in both wide and graze options in varying lengths, integrators can install up to 10 meters on a single Power Supply Unit (PSU). To power the units, the RUSH CS Series uses a hybrid power and data cable system that reduces wiring and installation costs by using a single cable for both power and data.

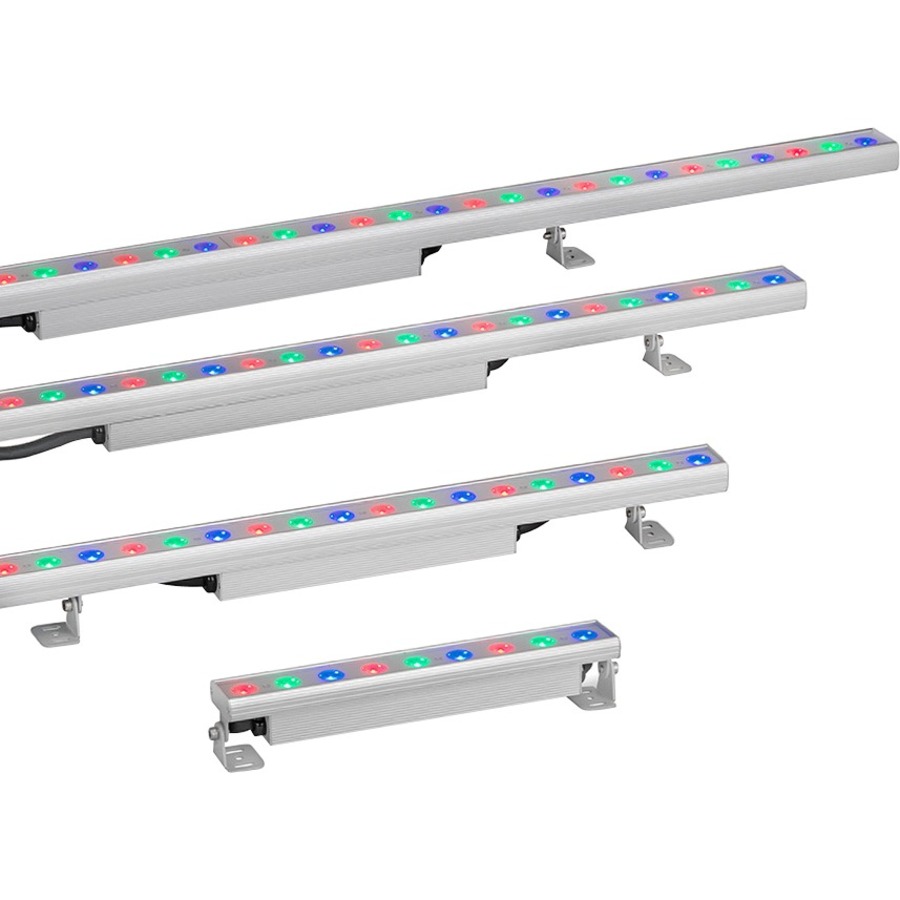

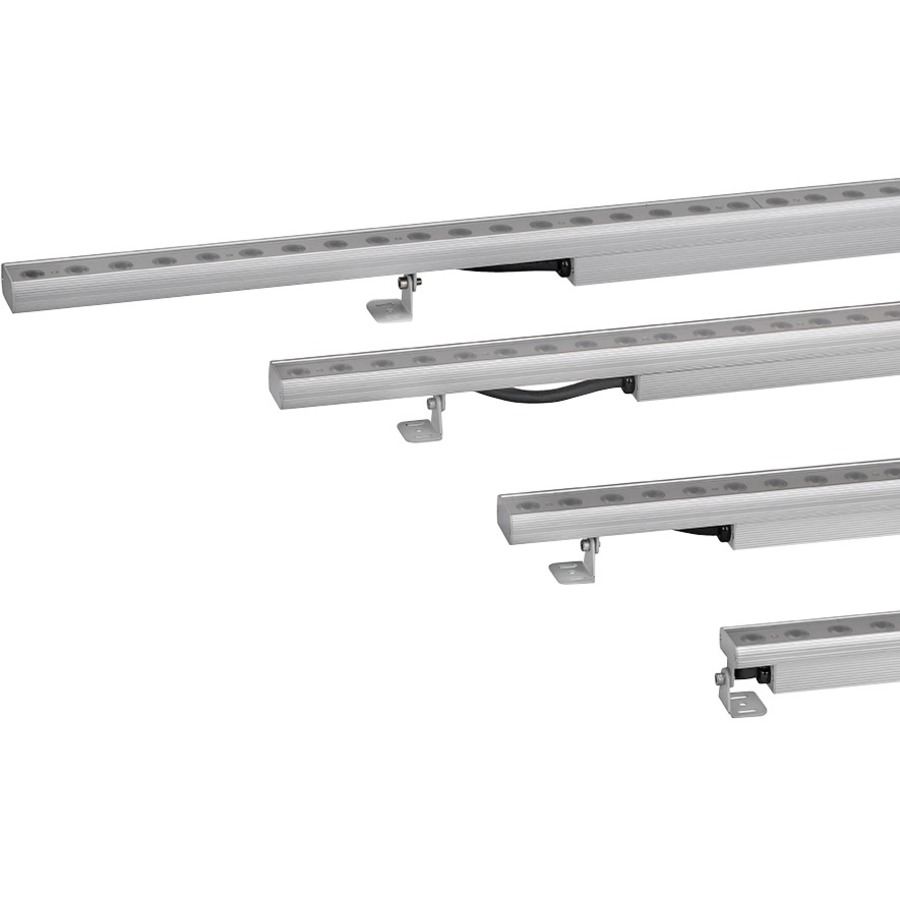

The series is available in a variety of sizes. The RUSH CS 300 Graze and 300 Wide are 303mm ( 11.9 in) in length. The RUSH CS 600 Graze and 600 Wide are 603mm ( 23.7 in) in length. The RUSH CS 900 Graze and 900 Wide are 903mm ( 35.6 in) in length. And the RUSH CS 1200 Graze is 1203mm ( 47.4 in) in length.
• High-output indoor LED cove lighting fixture
• Multiple control modes & pre-programmed CTC presets
• Easy installation of up to 10m on a single PSU
Warranty
Limited Warranty: 2 Year
Highlights
CREE XP-E2 R/G/B LED
18 x 65° beam angle-Graze
124° beam angle-Wide
Electronic dimming
CTC preset control channel
Easy mounting bracket system
Hybrid power & data in/out
DMX and RDM control
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90480170
Brand Name
Martin
Product Line
RUSH
Product Series
CS
Product Model
CS300 Graze
Product Name
RUSH CS300 Graze Decorative Light
Product Type
Decorative Light
Physical Characteristics
Product Color
Aluminum
Product Material
Aluminum
Width
1.8"
Weight (Approximate)
1.76 lb
Power Description
Power Source
AC Supply
Input Voltage
230 V AC
Power Consumption
485 W
Product Information
Bulb/Tube Type
LED
Finishing
Anodized
Light Color
Red, Blue, Green
Lens Color
Clear
Light Output
455 lm
Application/Usage
Industry, Wall, Lobby, Lounge
Features
Dimmable, Thermal Management
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
CS300 Graze Decorative Light
Power cables (supplied with RUSH CS Series PSU):
Power input cable, US type: IEC C13 female to NEMA 5-15P male, 1.5 m (4.9 ft.)
Power input cable, universal: IEC C13 female to bare ends, 1.5 m (4.9 ft.)
User manual
Two adjustable mounting brackets
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
