Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
9045107780
Category
Lighting Fixtures
Overview

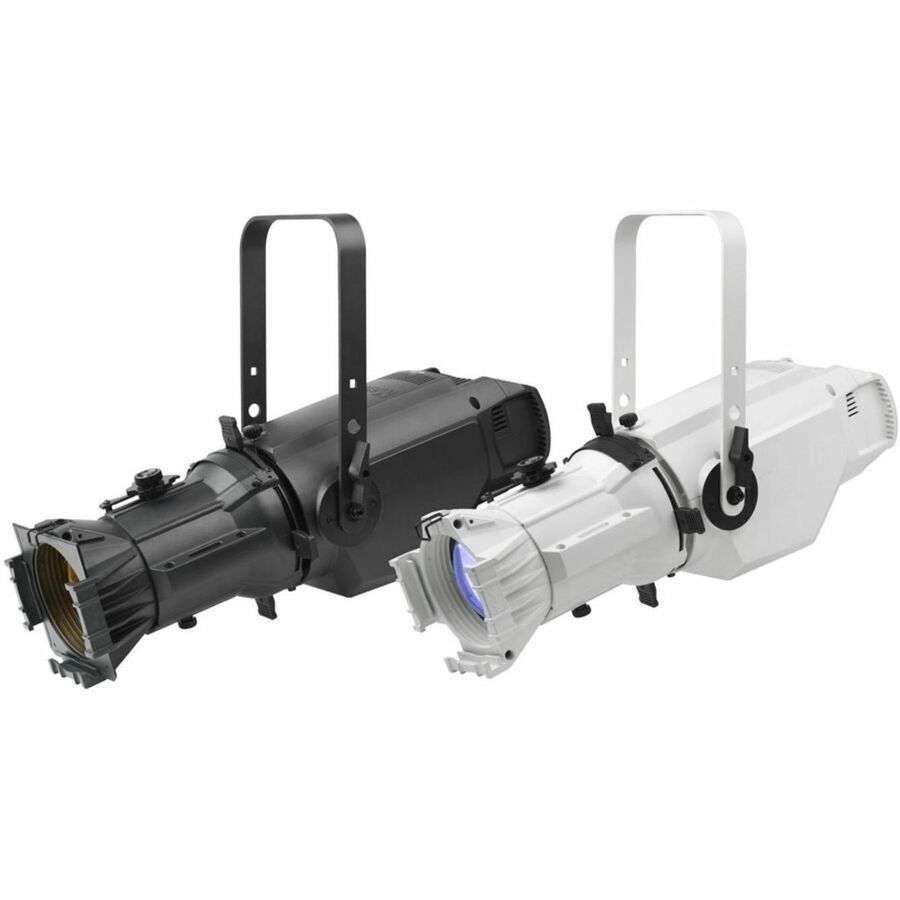

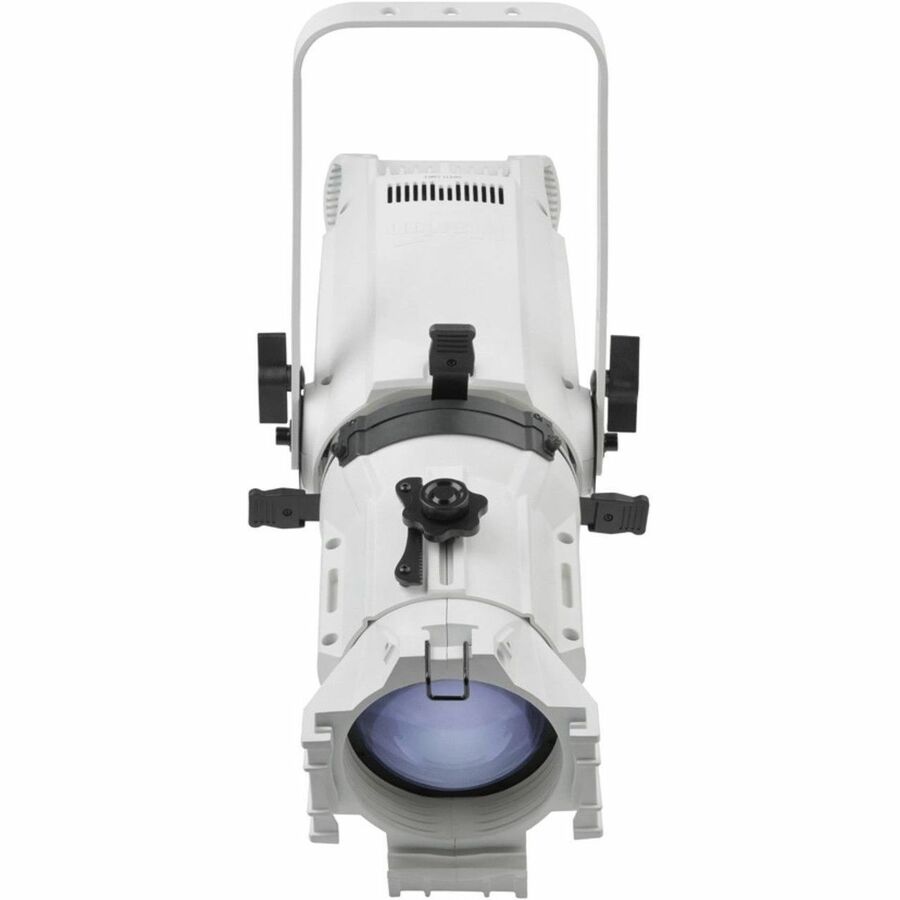

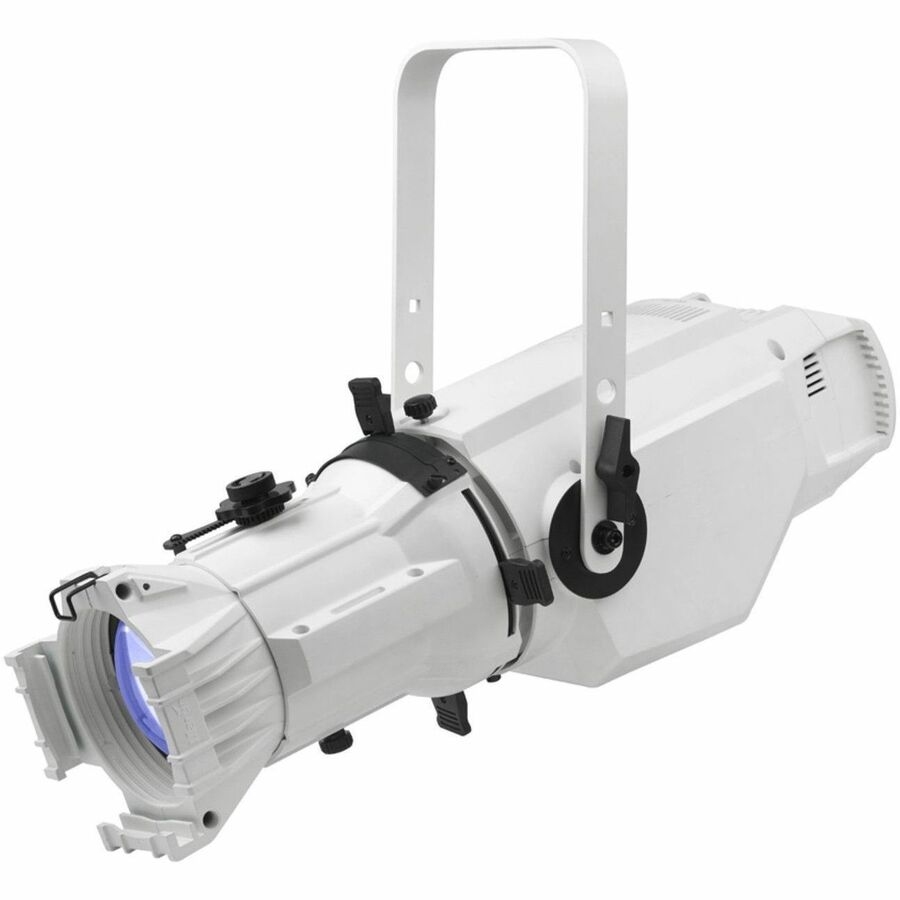

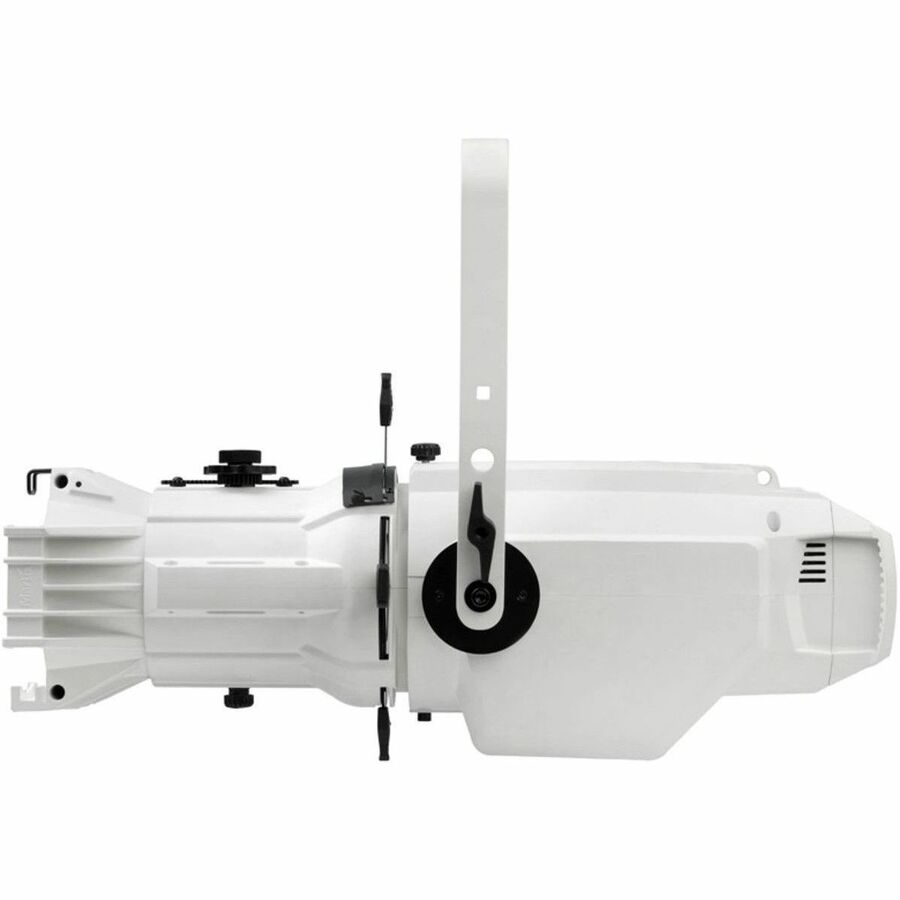

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you've come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus-an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.
Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.
Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.
Highlights
Impressive light output rating of 6,900 lumens (in High Output mode).
Superior CRI rating of 90 (in High Quality mode).
Revolutionary focus and functionality-industry's first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
Compatible with universal accessories-use existing lens tubes, gel frames, gobo holders and rotators
15-30 degree and 25-50 degree beam Zoom lenses available in black and white
Advanced optics engineered in Denmark
RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
26 color presets match industry-standard filters
16-bit dimming with 4 selectable dimming curves
Flicker-free operation

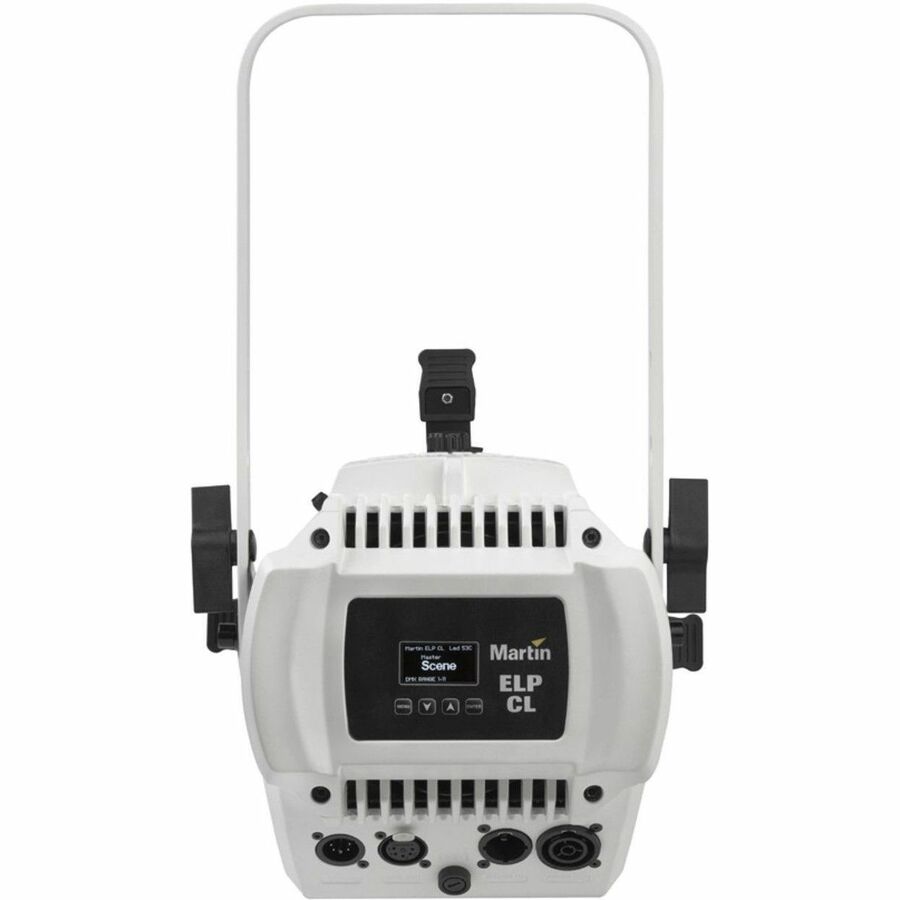

5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
9045107780
Brand Name
Martin
Product Series
ELP
Product Name
ELP Decorative Light
Product Type
Decorative Light
Physical Characteristics
Product Material
Die-cast Aluminum
Height
10"
Width
10.2"
Weight (Approximate)
16.98 lb
Power Description
Power Source
AC Supply
Input Voltage
120 V AC, 230 V AC
Power Consumption
259 W
Product Information
Bulb/Tube Type
LED
Light Color
RGBLA
Light Output
6900 lm
Mount Type
Bracket Mount
Application/Usage
Industry, Indoor
Features
Ergonomic Design, Flexible, Flicker-free
Color Temperature Supported
17540.3°F (9726.8°C)
Dimmable
Yes
Miscellaneous
Package Contents
ELP Decorative Light
Power input cable (0.75mm2, 18 AWG)
Bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual
Ingress Protection (IP) Rating
IP20
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
