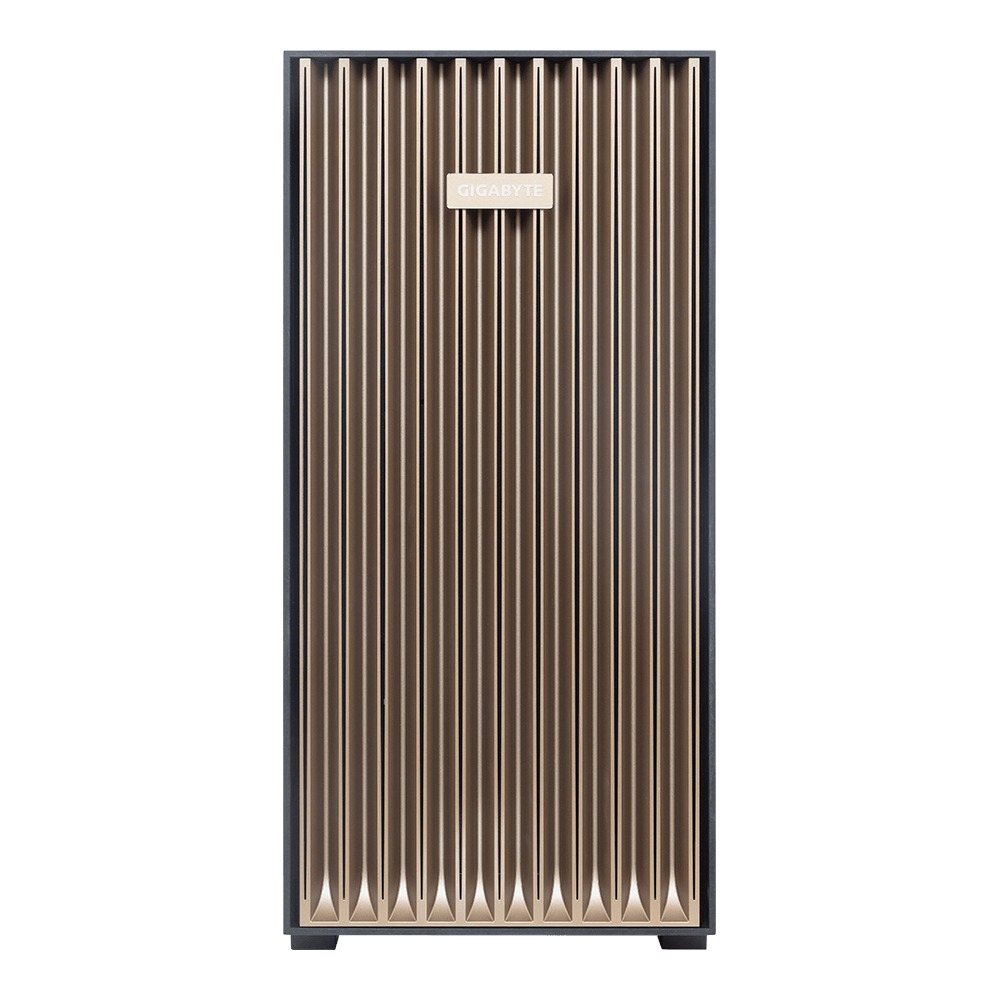

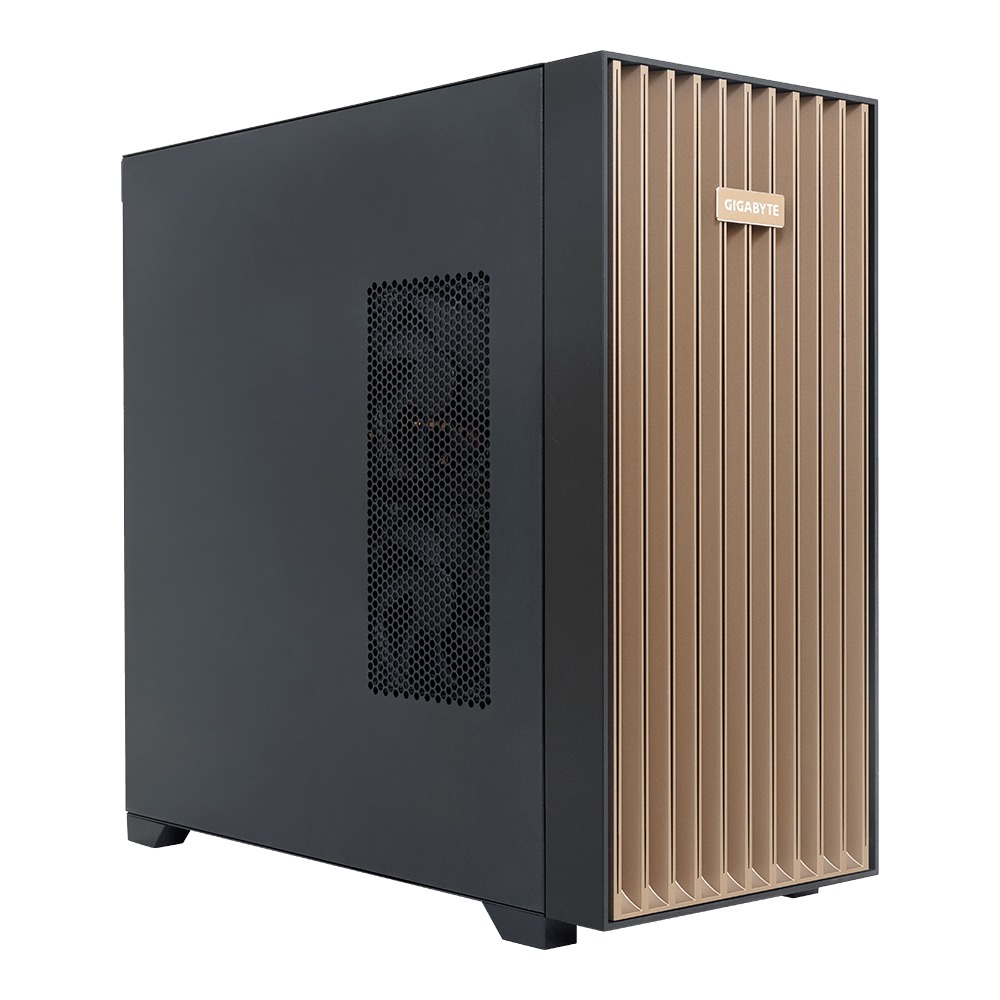

GIGABYTE W775-V10-L01 NVIDIA DGX Station GB300 748GB Deskside AI…
Supercomputer
NVIDIA ConnectX-8 SuperNIC - 2 x 400 Gb/s QSFP - 10 Gb/s LAN - Closed-loop liquid cooling solution - 1600 W ATX 80 PLUS Platinum power supply
SKU
Category
Workstations
MSRP$112,999.99
$98,437.56
Save 13%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 20 and Dec 25, then process your delivery right after.
Genuine GIGABYTE Technology through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Workstations
Overview
Technological Breakthroughs
NVIDIA Grace Blackwell Ultra Desktop Superchip: Powered by an NVIDIA Blackwell Ultra GPU and Grace CPU connected via NVLink-C2C, this platform delivers top-tier system communication and performance with next-gen CUDA and Tensor Cores.
Fifth-Generation Tensor Cores: Powered by latest NVIDIA Blackwell Tensor Cores, the system enables FP4 AI to boost model capacity and performance while maintaining high accuracy.
NVIDIA ConnectX-8 SuperNIC: The NVIDIA ConnectX®-8 SuperNIC™ delivers up to 800 Gb/s network speed, supercharging AI factory workloads with ultra-fast, efficient connectivity.
NVIDIA DGX OS: This solution provides a stable, fully qualified OS environment with built-in configurations, drivers, and diagnostic tools, enabling seamless scaling across local, cloud, and accelerated data center infrastructure
NVIDIA NVLink-C2C Interconnect: NVIDIA NVLink-C2C extends NVLink technology to a chip-to-chip interconnect, enabling high-bandwidth, coherent data transfers between the CPU and GPU.
Large Coherent Memory for AI: As AI models grow in scale and complexity, the NVIDIA Grace Blackwell Ultra uses its C2C interconnect to create a large coherent memory pool, bypassing traditional bottlenecks to train and run massive models efficiently.
NVIDIA AI Software Stack: A full-stack AI solution for fine-tuning, inference, and data science, NVIDIA’s AI software stack lets you develop locally and seamlessly deploy to the cloud or data center using unified tools, frameworks, and models.
Workload Optimized Power-Shifting: The system leverages AI-driven optimization to dynamically shift power based on active workloads, continuously maximizing performance and energy efficiency.
To meet the demands of large-scale AI models, this platform features the NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip and up to a massive 748 GB of coherent memory. This breakthrough architecture delivers an unprecedented amount of compute performance, enabling teams to develop and run large-scale AI training and inferencing workloads directly from the deskside.
Optimized for the NVIDIA AI software stack, cloud-native and AI-native developers, researchers, and data scientists can instantly prototype, fine-tune, and inference large AI models from the desktop and seamlessly deploy to the data center or cloud.
Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
Highlights

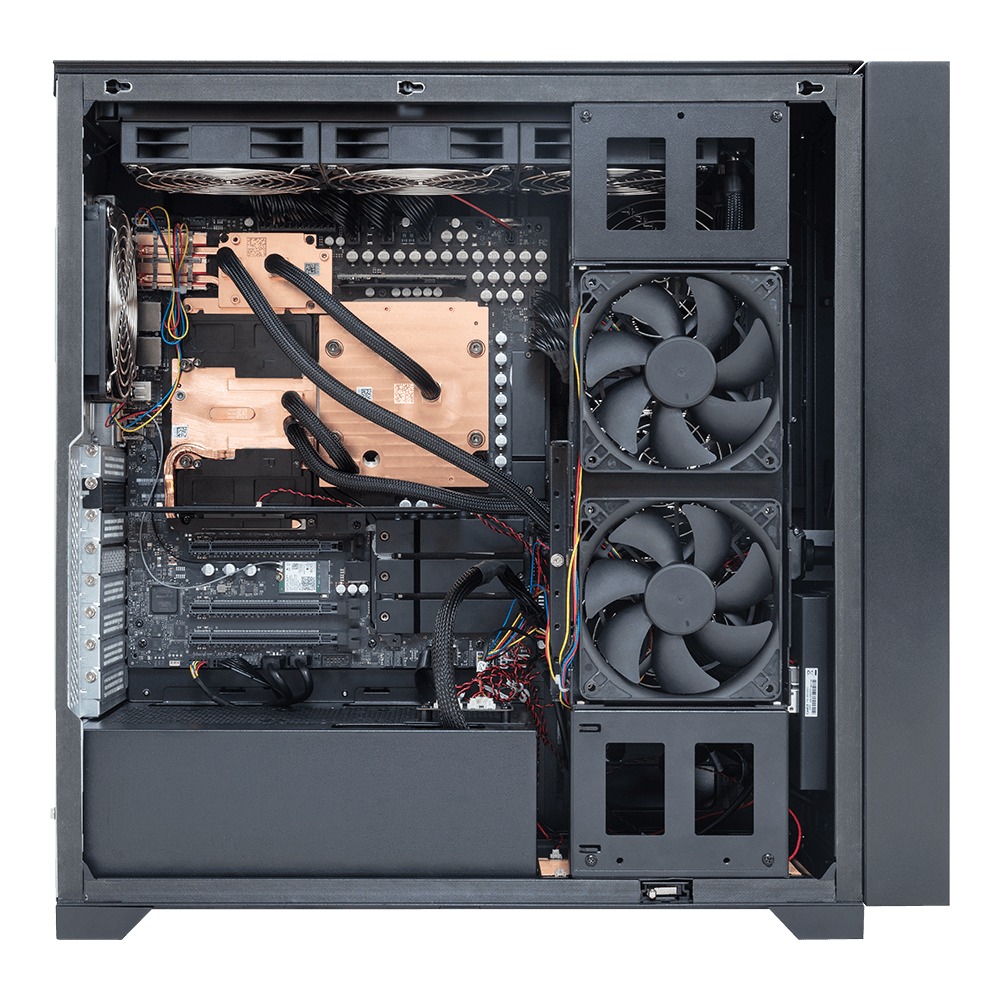

Closed-loop liquid cooling solution
1 x NVIDIA Blackwell Ultra GPU
1 x NVIDIA Grace 72-Core Neoverse V2 CPU
252 GB HBM3E GPU memory with 7.1 TB/s total bandwidth
496 GB LPDDR5X CPU memory with up to 396 GB/s bandwidth
2 x 400 Gb/s QSFP ports via NVIDIA ConnectX®-8 SuperNIC™
2 x 400 Gb/s QSFP (1 x NVIDIA ConnectX®-8 SuperNIC™)
1 x 10 Gb/s LAN (1 x Marvell AQC113)
1 x 10/100/1000 Mb/s Management LAN
Video
Integrated in onboard BMC
- 1 x Mini-DP (1920 x 1080 @ 60 Hz)
Optional GPUs:
- NVIDIA RTX PRO 6000 Blackwell Workstation Edition
- NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition
- NVIDIA RTX PRO 4000 Blackwell SFF Edition
- NVIDIA RTX PRO 2000 Blackwell
Audio
Realtek® ALC4080 Audio Codec
Front: 2 x Audio jacks (Audio out/Mic)
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Storage
Internal M.2:
2 x M.2 (2280), PCIe Gen5 x4, from CPU, with OS RAID 1 support
2 x M.2 (2280), PCIe Gen6 x4, from ConnectX-8
PCIe Expansion Slots
Slot_1: PCIe x16 (Gen5 x16), for GPUs
Slot_2: PCIe x16 (Gen5 x8)
Slot_3: PCIe x16 (Gen5 x8)
1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen2 x1, from ConnectX-8
Front I/O
1 x USB 3.2 Gen2 port (Type-C) (5 V Output)
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button with storage activity LED
Rear I/O
4 x USB 3.2 Gen2 ports (Type-A)
1 x Micro USB port (USB-to-UART)
1 x Mini-DP
2 x QSFP ports
1 x RJ45 port
1 x MLAN port
2 x Wi-Fi antenna ports
3 x Audio jacks (Audio in/Audio out/Mic)
Power Supply
Single 1600 W ATX 80 PLUS Platinum power supply [1]
AC Input:
- 100-240V~, 15-8A, 47-63Hz
- 115-240V~, 15-8A, 47-63Hz
DC Output:
- Max 1300W/ 100-240V~ & Max 1600W/ 115-240V~
+12V1-12V6/ 50A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 3.5A
-12V/ 0.3A
[1] The system power supply requires C19 power cord.
[Note] 115-240 V AC input is recommended for optimized user experience.
[Note] System requires a 20-amp circuit to plug-in.
OS Compatibility
Ubuntu with NVIDIA AI Developer Tools
System Fans
3 x 120x120x25mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
