Genuine Fluke Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
LIQ-100-IE
Category
Test Equipment
Overview

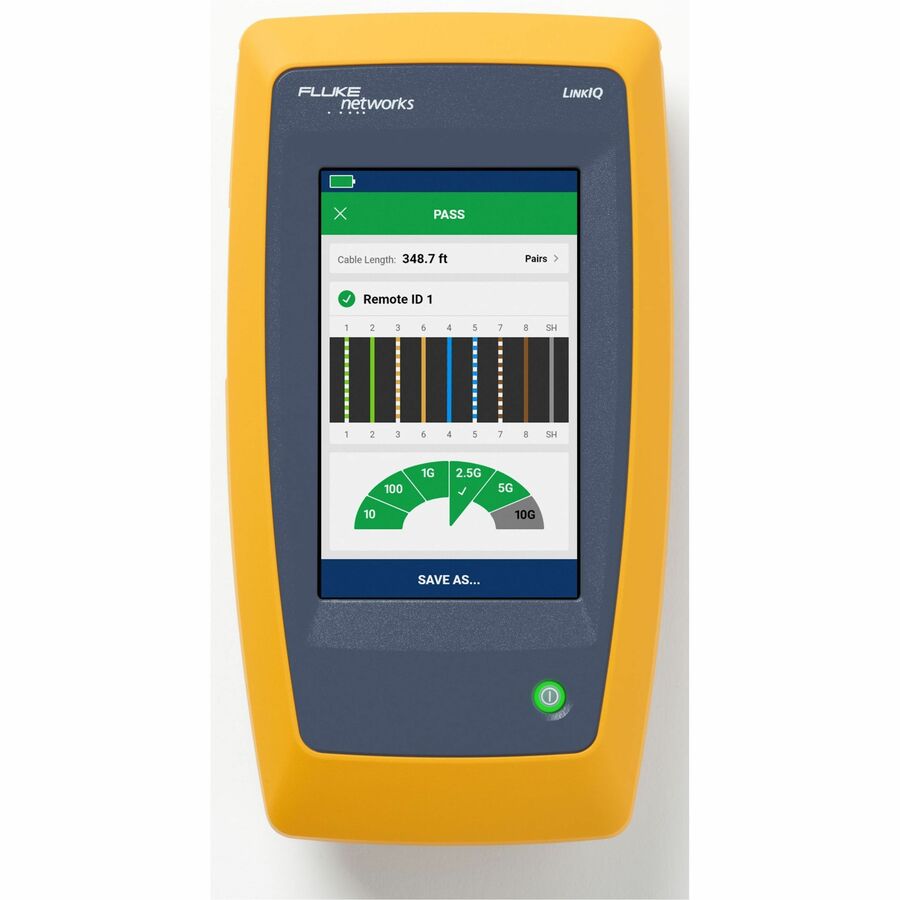

The LinkIQ Industrial Ethernet Cable+Network Tester measures lengths up to 1000 feet (305 m) and provides the distance to faults such as opens, shorts, and unterminated cable.

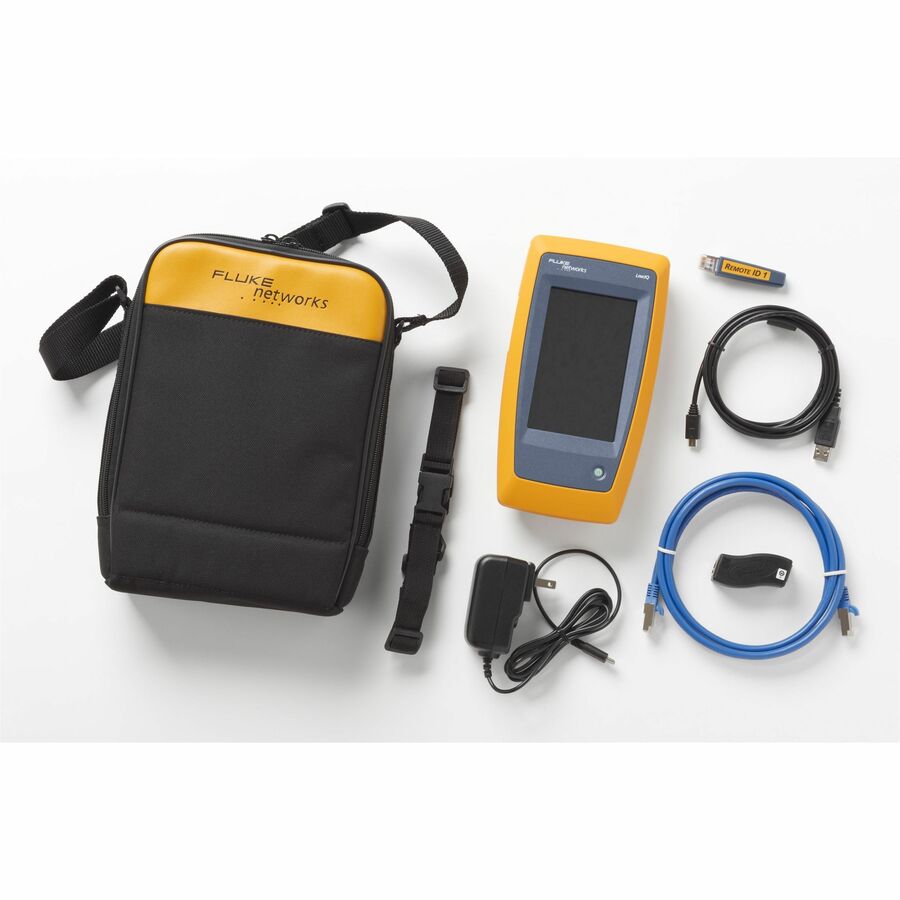

The included MS-IE Remote Adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables.

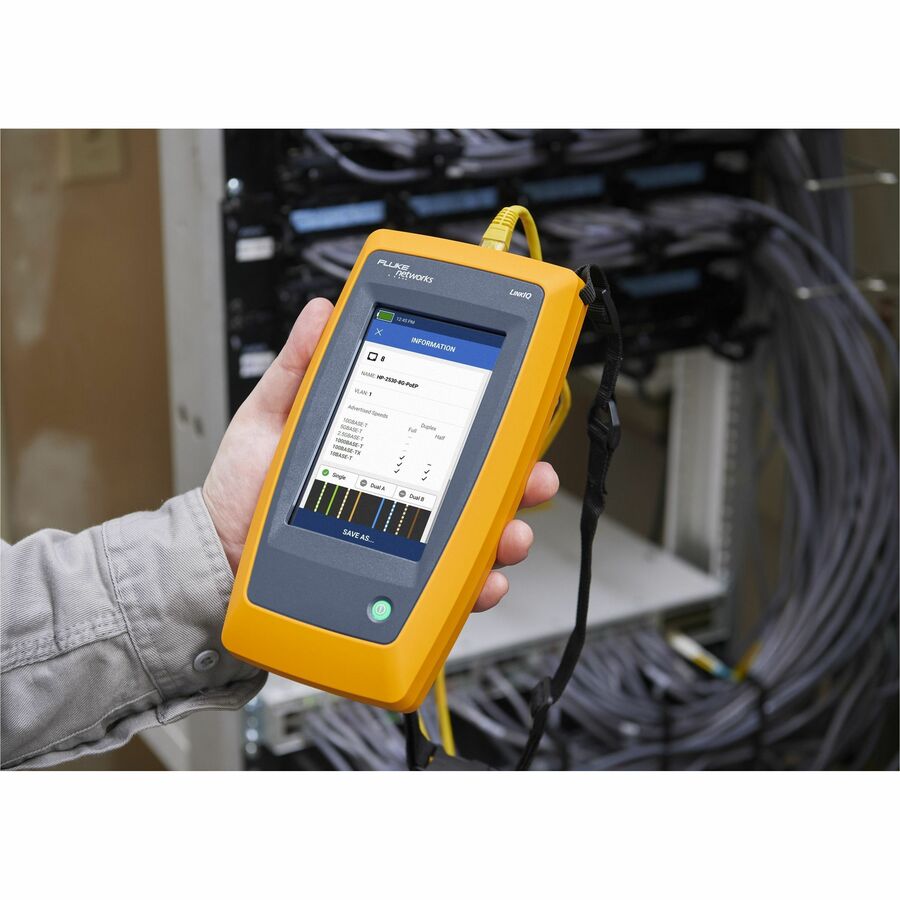

LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT, and other Industrial Ethernet protocols. It performs ping tests to verify connectivity, and also provides nearest switch diagnostics, including advertised data rate, switch name and port number, VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.
LinkIQ supports multiple languages, and its keyboard includes extended alpha characters and symbols.
Highlights
Validates EtherNet/IP, PROFINET, EtherCAT cable to 10 Gb/s
Speeds troubleshooting with IP ping
Includes adapters for RJ45, M12X, M12D, and M8D cables
Performs cable diagnostics, including length
Specifications
Battery Information
Battery Size Supported
3.6V
Battery Rechargeable
Yes
Battery Life
8 Hour
Battery Chemistry
Lithium Ion (Li-Ion)
General Information
Manufacturer
Fluke Networks
Manufacturer Part Number
LIQ-100-IE
Brand Name
Fluke Networks
Product Line
LinkIQ
Product Model
LIQ-100-IE
Product Name
LinkIQ Industrial Ethernet Cable+Network Tester
Product Type
Cable/Network Tester
Interfaces/Ports
USB
Yes
Network (RJ-45)
Yes
Media & Performance
Media Type Supported
Twisted Pair
Network & Communication
Network Standard
10GBase-T
Ethernet Technology
10 Gigabit Ethernet
Physical Characteristics
Height
8.5"
Width
4.5"
Weight (Approximate)
1.38 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Technical Information
Device Function
Cable Testing, Network Testing, Wiremap, Open Circuit Testing, Short Circuit Testing, Twisted Pair Cable Testing, Crossed Pair Testing, Tone Detection, Split Pair Testing, PoE Testing, IP Testing, Mismatched Wiring Testing, Cable Fault Testing
