Resistance Measure, Voltage Measurement, Capacitance Measurement, Resistance Tester - LCD - 12V - Yes - Battery Included - Battery Rechargeable - Lead Acid
SKU
Category
Test Equipment
$7,424.55
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Fluke through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Test Equipment
Country of origin
United States
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Perform tests, collect data wirelessly and from a safe distance

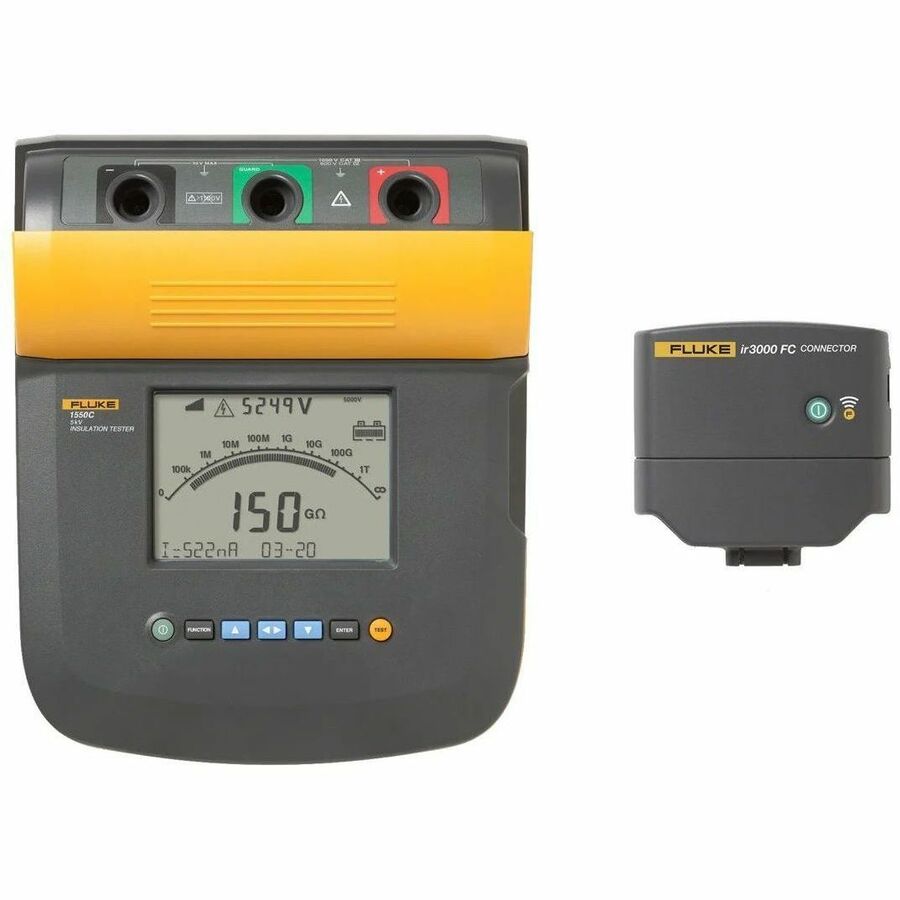

The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making it ideal for testing high voltage equipment including switchgear, motors, generators and cables.
Data collection is easy using the Fluke Connect® wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos. The 1555 insulation tester can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating.
Other useful features:
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
• CAT III 1000 V, CAT IV 600 V safety rating
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
• Long battery life gives the user over 750 tests between charges
• Large digital/analog LCD for easy viewing
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Resistance measurements up to 2 T?
• Timer settings up to 99 minutes for timed tests
• 3-year warranty
Warranty
Limited Warranty: 3 Year
Highlights

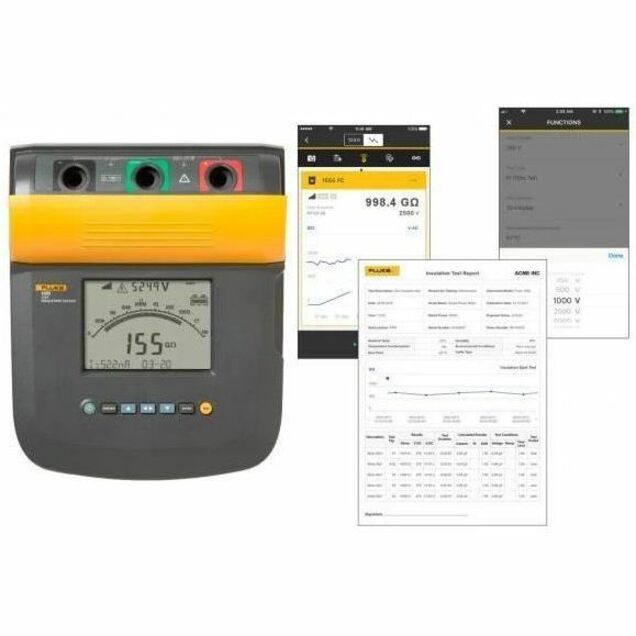

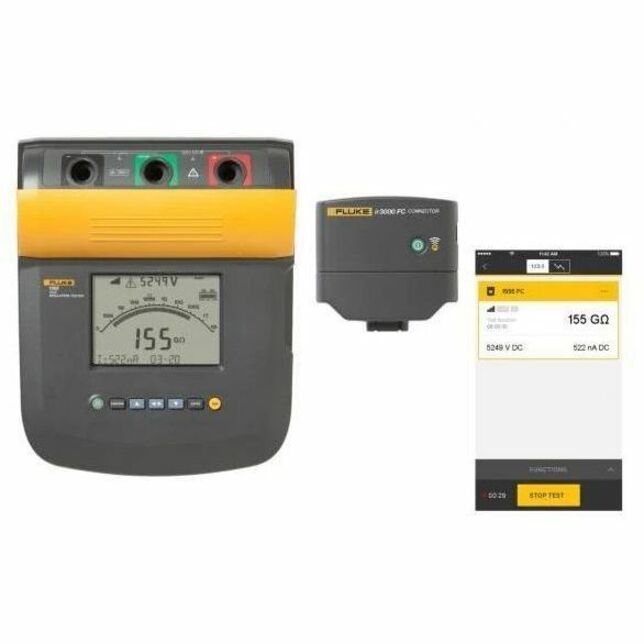

Quickly configure, start and stop tests on the 1555 remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
Report creation using Fluke Connect desktop saves time and makes test results easier to understand
Fluke Connect saves test results to the cloud for analysis and preventive maintenance
Specifications
Battery Information
Battery Size Supported
12V
Built-in Battery
Yes
Battery Included
Yes
Battery Rechargeable
Yes
Battery Chemistry
Lead Acid
Display & Graphics
Display Screen Type
LCD
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-1555 FC
Brand Name
Fluke
Product Series
1555 FC
Product Model
Fluke 1555 FC
Product Name
1555 FC 10 kV Insulation Tester
Product Type
Insulation Tester
Physical Characteristics
Height
10.6"
Width
10.9"
Depth
6.3"
Weight (Approximate)
8.16 lb
Technical Information
Device Function
Resistance Measure, Voltage Measurement, Capacitance Measurement, Resistance Tester
Warranty
Limited Warranty
3 Year
Miscellaneous

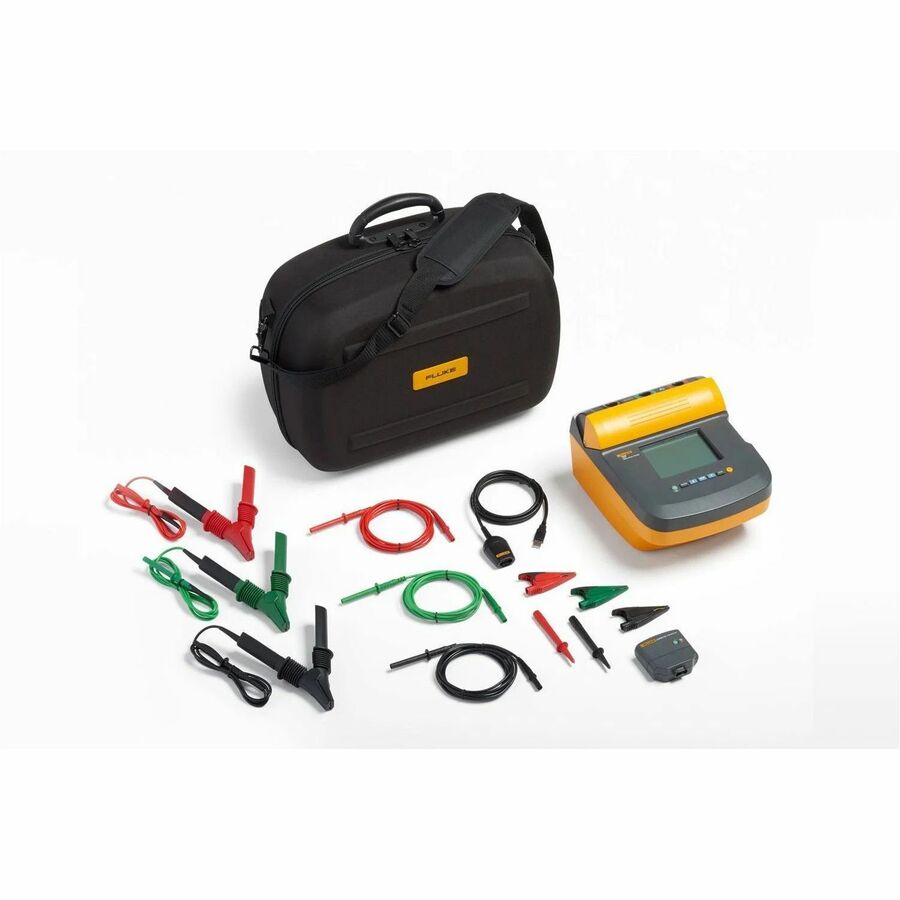

Package Contents
1555 FC 10 kV Insulation Tester
Test Cables with Alligator Clips (red, black, green)
