Genuine EnGenius Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SFP3313-20A
Category
Modules
Overview

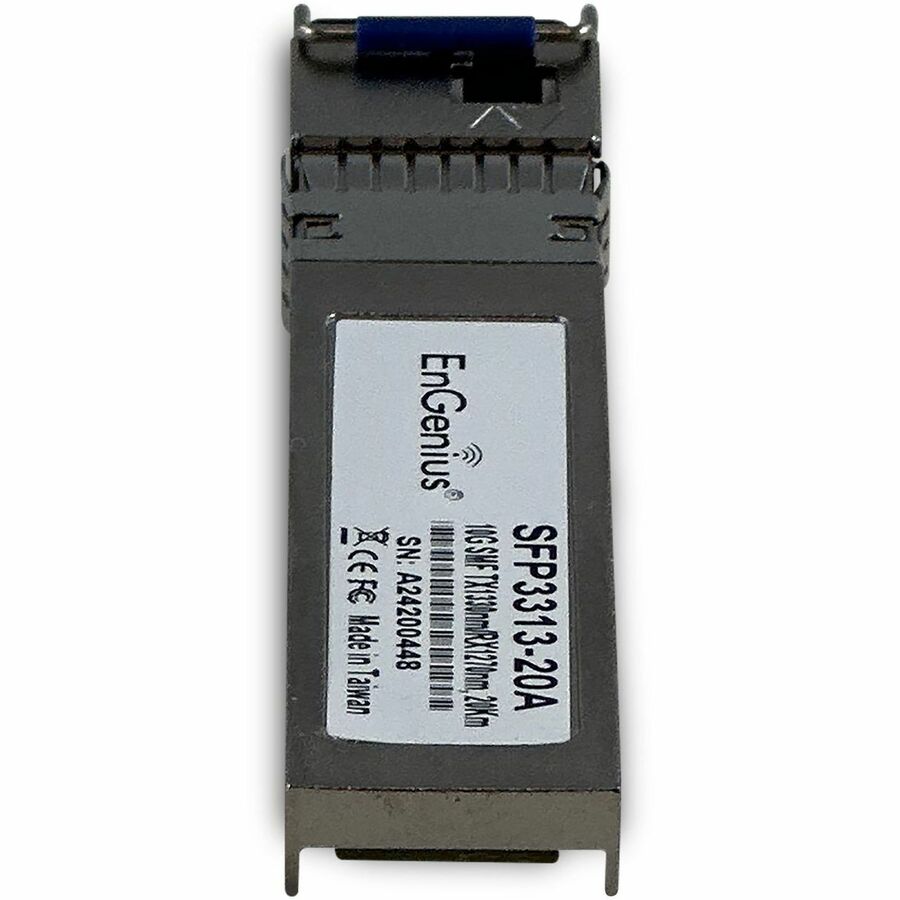

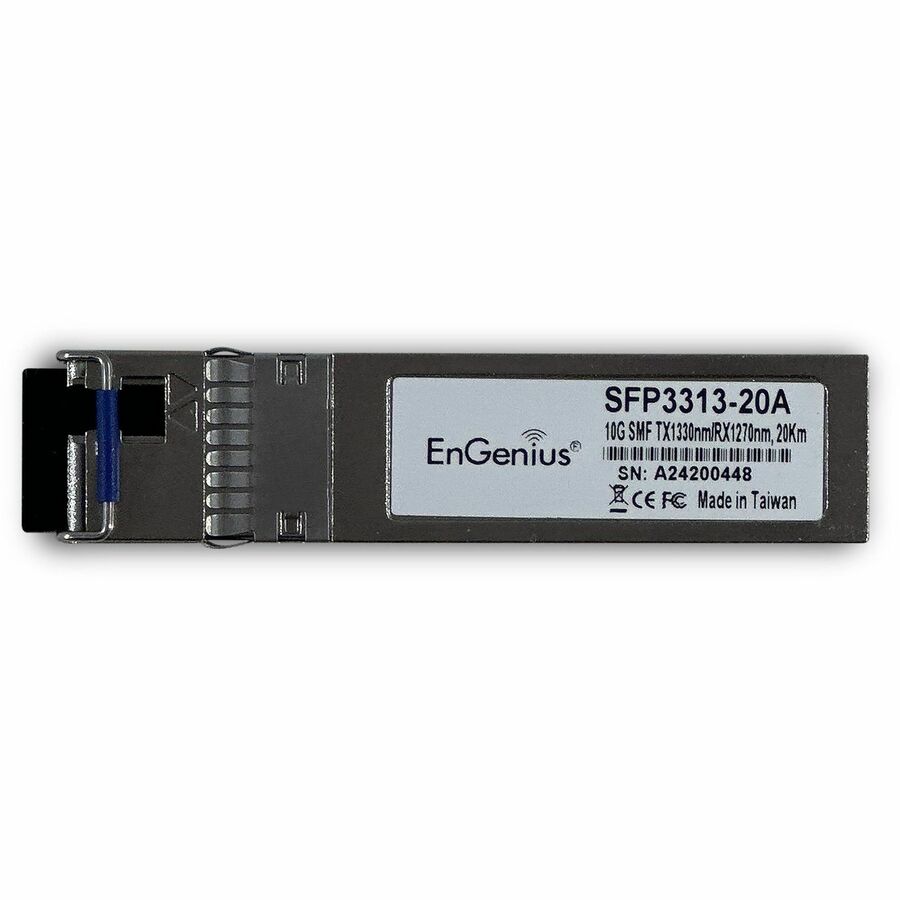

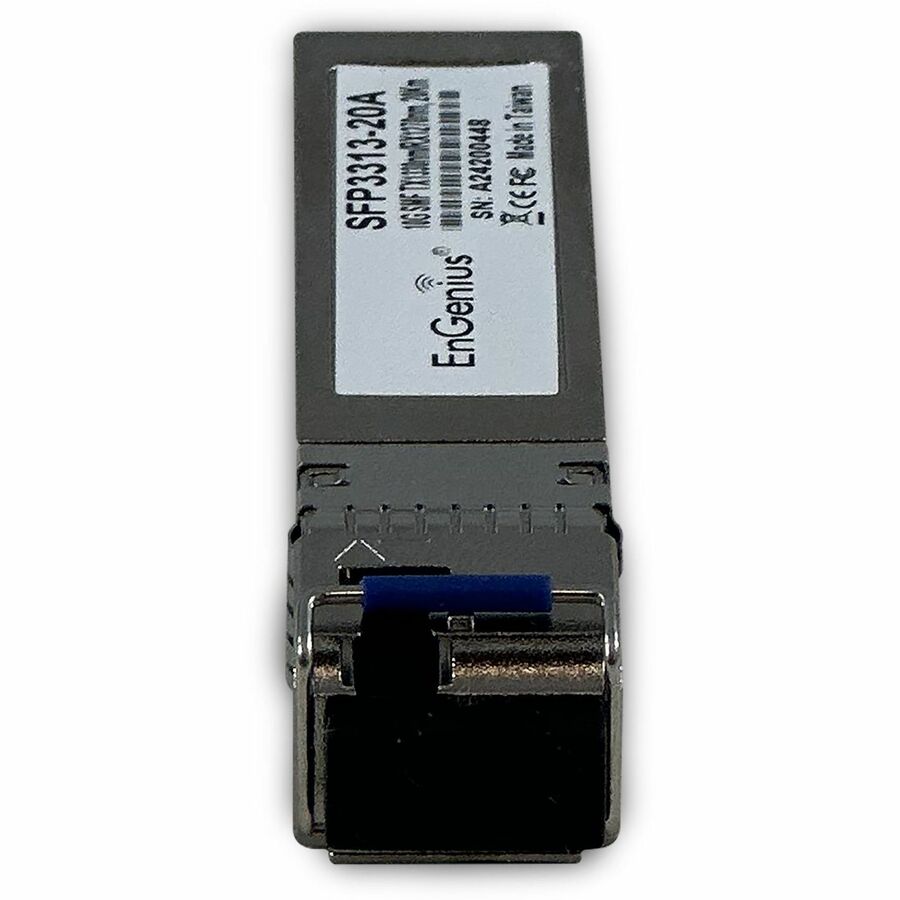

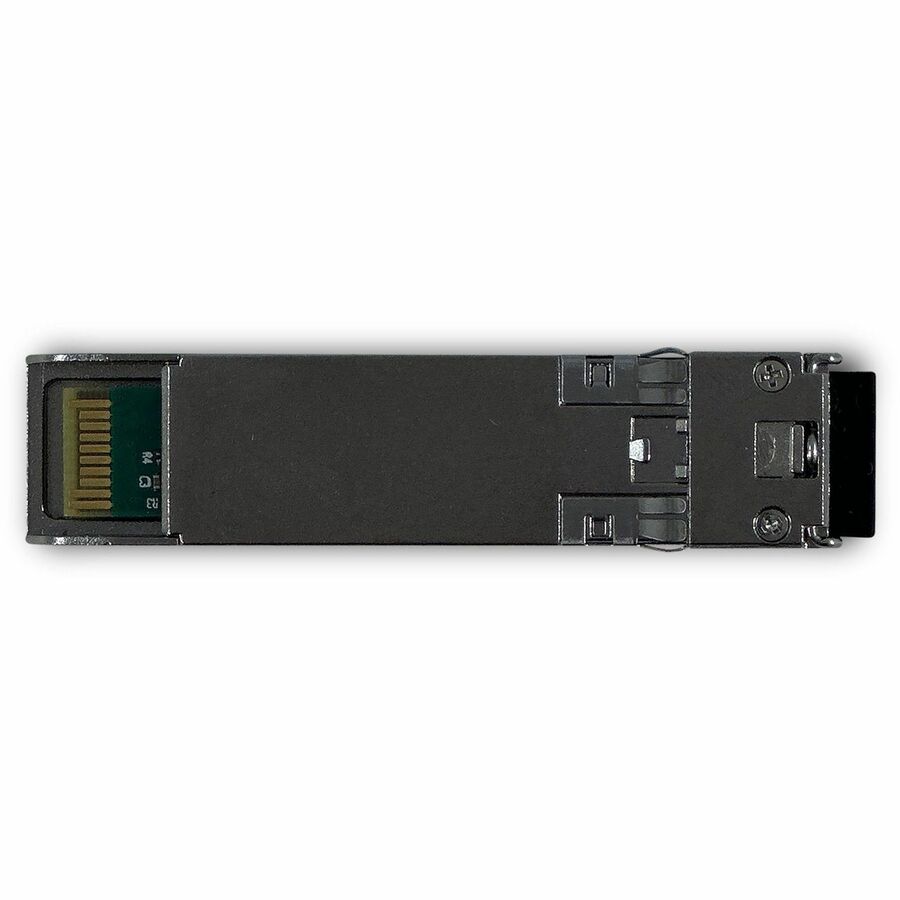

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.
Highlights
SFP+ offers better usage with maximum efficiency and convenience
10GBase-LR network technology for convenient, easy sharing of data and information over the network with maximum internet usage feasibility
Lets you conveniently connect to the 10 gigabit ethernet Ethernet technology to offer maximum productivity
Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Single-mode (Bi-directional) fiber mode support for reliable, fast transfer, sharing, and access to the data and information
Hot-swappable form factor for added reliability and dependability
SFP+ with data networking application/usage for maximum productivity and usability
Specifications
General Information
Manufacturer
EnGenius Technologies, Inc
Manufacturer Part Number
SFP3313-20A
Brand Name
EnGenius
Product Name
SFP+ Module
Product Type
SFP+
Interfaces/Ports
Total Number of Ports
1
Connector Type
LC
Interfaces/Ports Details
1 x LC Duplex 10GBase-LR Network
Media & Performance
Media Type Supported
Optical Fiber
Fiber Optic Cable Wavelength
1330 nm, 1270 nm
Fiber Mode Supported
Single-mode (Bi-directional)
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-LR
Maximum Distance Supported
20 km
Maximum Data Transfer Rate
10 Gbit/s
Physical Characteristics
Form Factor
Hot-swappable
Height
0.4"
Width
0.6"
Length
2.26"
Weight (Approximate)
0.06 lb
Technical Information
Application/Usage
Data Networking, Optical Network
Miscellaneous
Country of Origin
Taiwan
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
