15.6" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 450 Nit - LED Backlight - HDMI - USB - DisplayPort - USB Type-C - Black
MSRP$638.00
$616.36
Save 3%Special order — estimated available by September 10, 2026.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

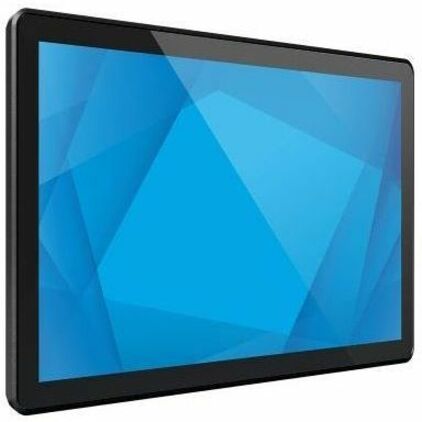

Elo's 1564L 15-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1564L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro® PCAP display.
The 15-inch 1564L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.

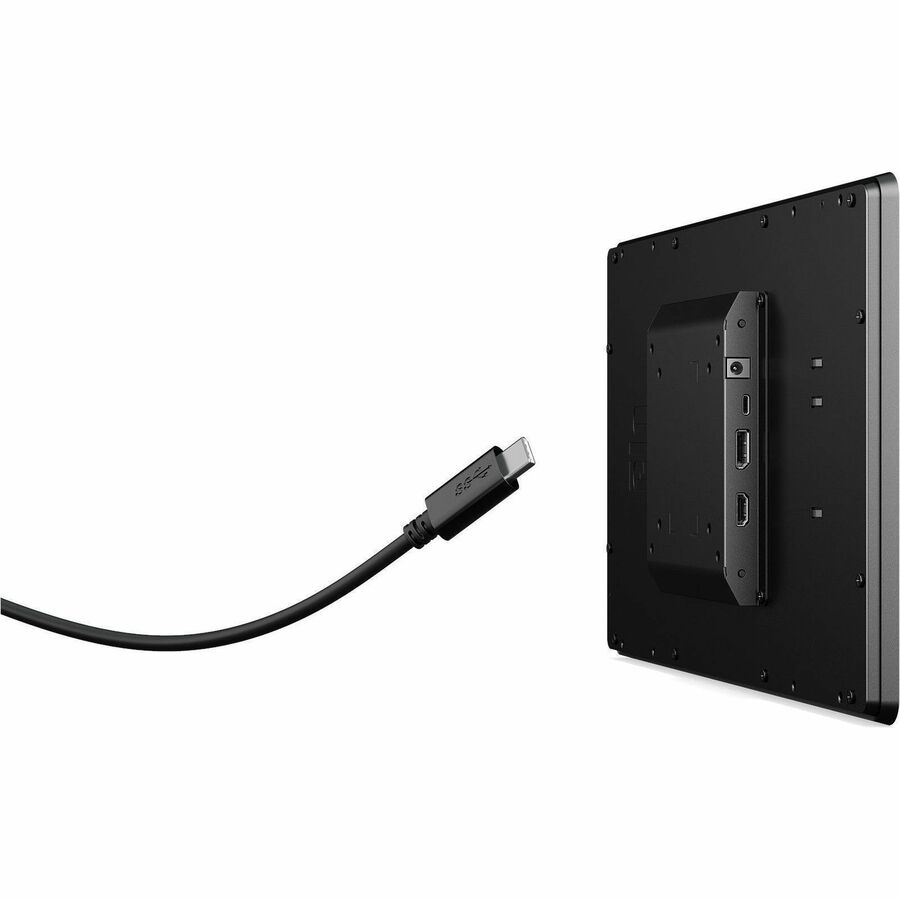

Enable power, video and touch with a single USB-C cable. | Durable, energy efficient touchscreen.
• UL62368 & IK08 compliance
• Chemically-strengthened glass
• Ready for24/7 use
• Wide operaing voltage range (12V-24V)
• Energy Star 8.0 certified
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.

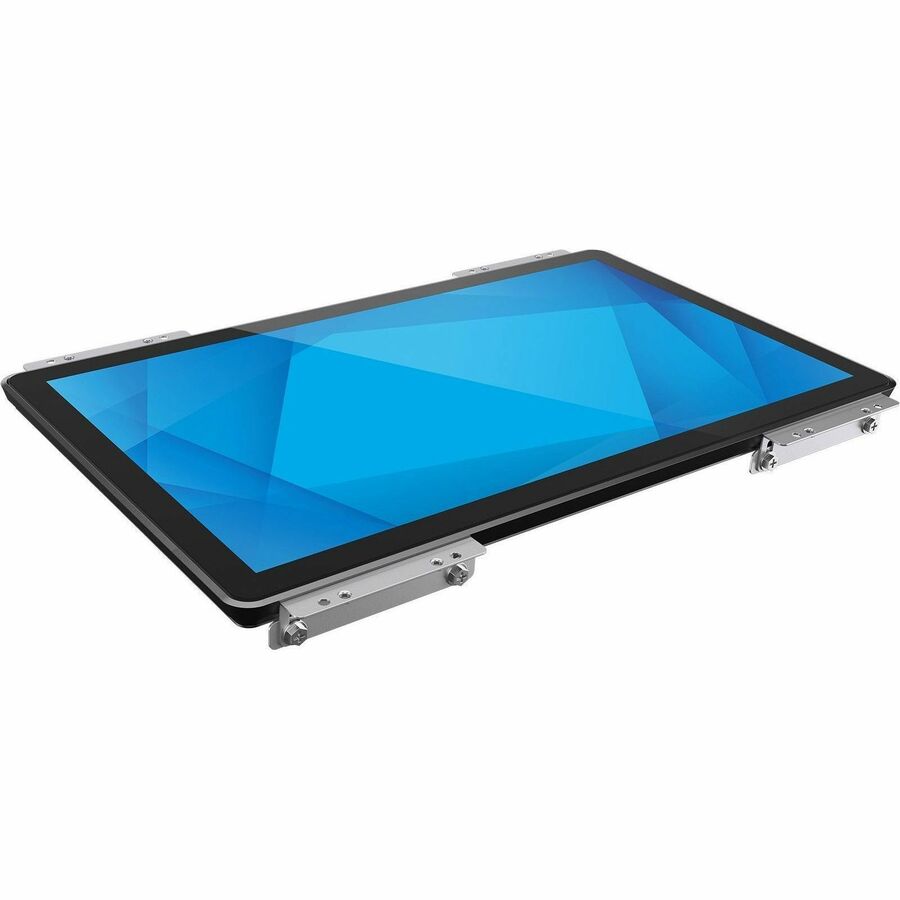

Elo's 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that scales with a single cable.

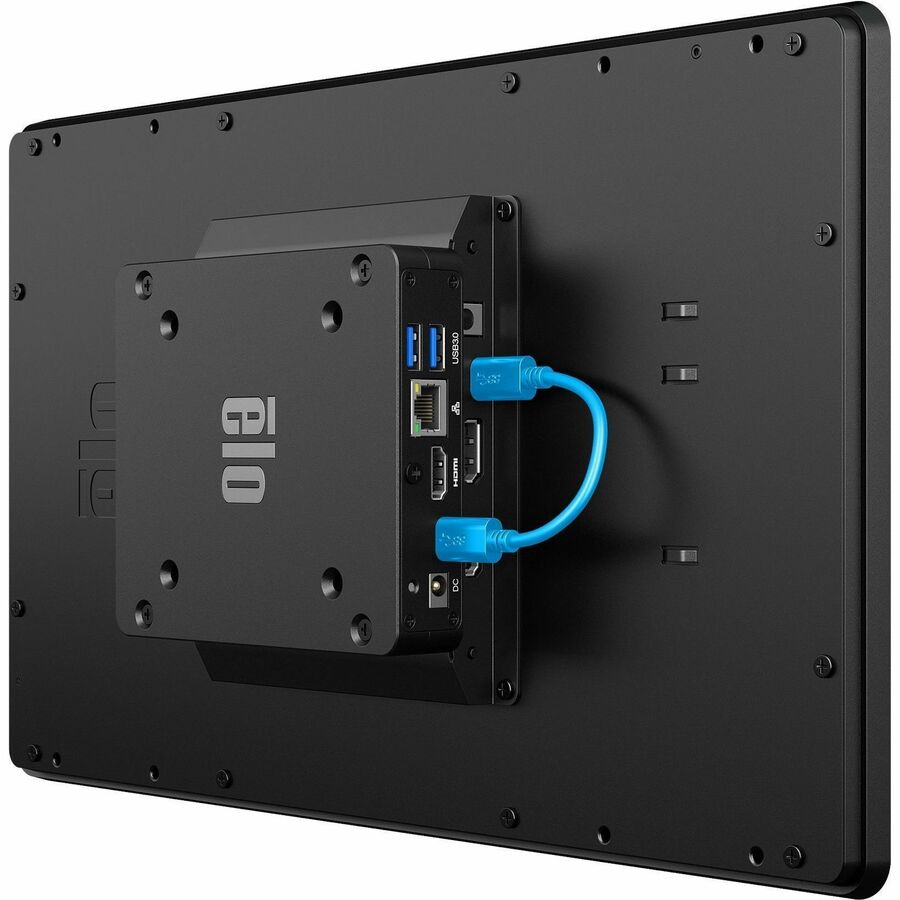

With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.
| General Information | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E971256 |
| Brand Name | Elo |
| Product Model | 1564L |
| Product Name | 1564L 15-Inch Industrial-Grade Open Frame Touch Display |
| Product Type | Open-frame LED Touchscreen Monitor |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Physical Characteristics | |
| Color Family | Black |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| VESA Mount Standard | 100 x 100 |
| Height | 8.8" |
| Width | 14.8" |
| Depth | 1.2" |
| Weight (Approximate) | 4.91 lb |
| Power Description | |
| Voltage Current | 3 A |
| Technical Information | |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 25 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Flush Mount |
| Backlight Technology | LED |
| Features | On-screen Display (OSD), Landscape/Portrait Viewable, Low Blue Light |
| Horizontal Frequency | 30 kHz to 80 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Operation Hours | 24 Hours/7 Days |
| Ingress Protection (IP) Rating | IPX1 |
| Impact Protection (IK) Rating | IK08 |
| Active Display Area (H x V) | 13.50" x 7.60" |
| On Screen Display (OSD) Controls | Brightness, Contrast, Sharpness, Color Temperature |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 450 Nit |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Miscellaneous | |
| Energy Star | Yes |
| Application/Usage | Automation, Gaming, Commercial, Kiosk System |
