Computer, Notebook, Tablet, Smartphone - Gray, White - USB B - 1 x USB Type A - 6 V DC Input - 5 V DC Output - USB - 3 ft - TAA Compliant
MSRP$552.00
$240.70
Save 56%In stock: 76
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | Protects Sensitive Computing Equipment and USB Peripherals in Medical Environments
The U234-000-UGI makes it easier to integrate non-medical USB devices into ME (Medical Environment) systems by creating a 6kV DC isolation barrier between the host and peripheral to reduce risk from electrical surges and EMI (electromagnetic interference)/RFI (radio frequency interference) line noise. The isolator can protect critical equipment with 6,000V isolation for up to one minute. The IP40 housing protects against solid substances of one millimeter or more.
Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities
The U234-000-UGI complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical isolator can be used in patient care vicinities. It is 2MOPP certified to provide a redundant layer of electric protection. It is also UL/cUL recognized (E531095) and it meets CAN/CSA-C22.2 No. 60601-1 safety standards.
Plug-and-Play for Immediate Use

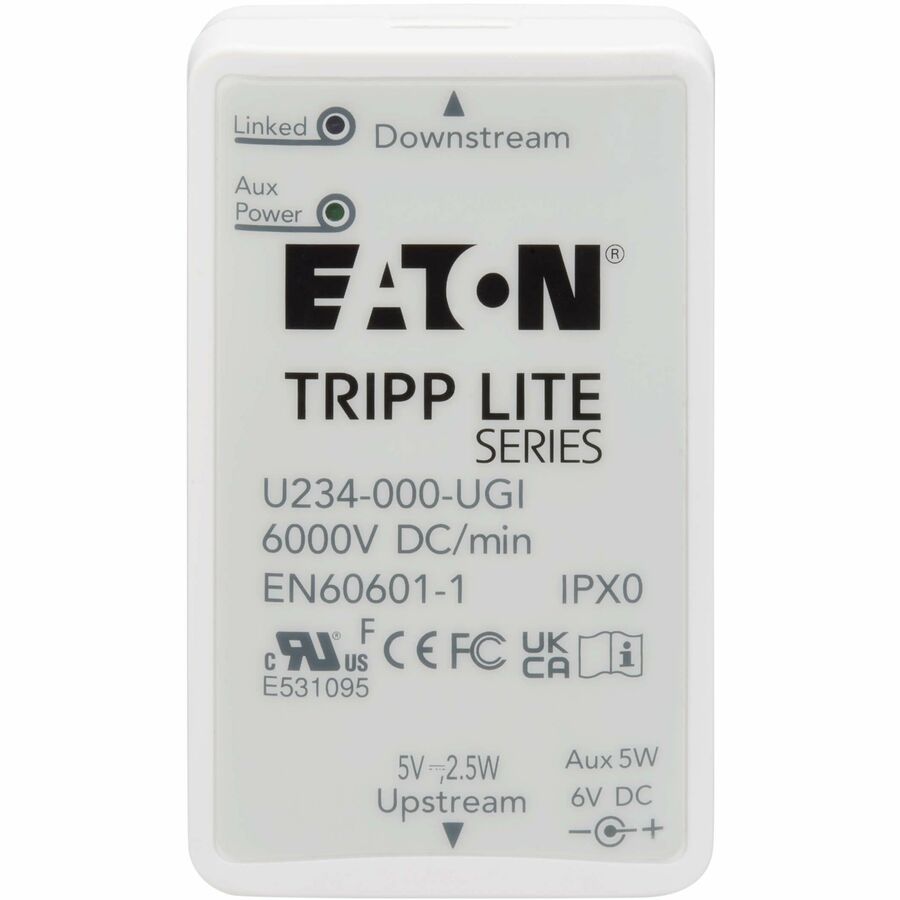

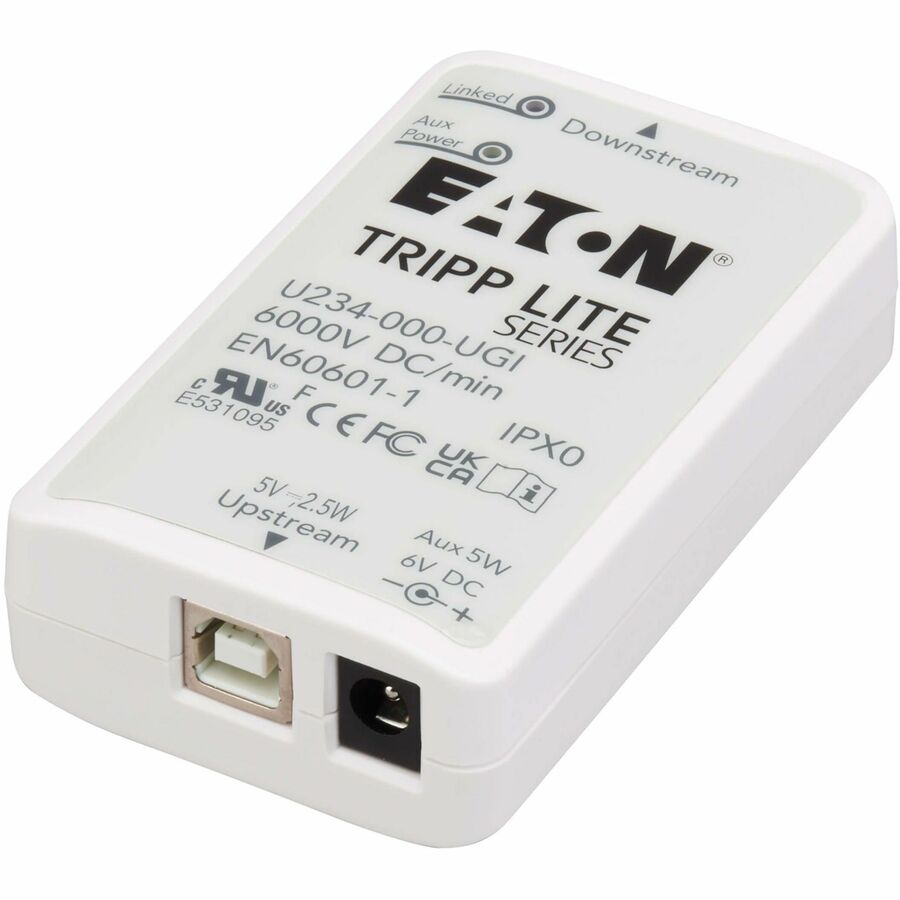

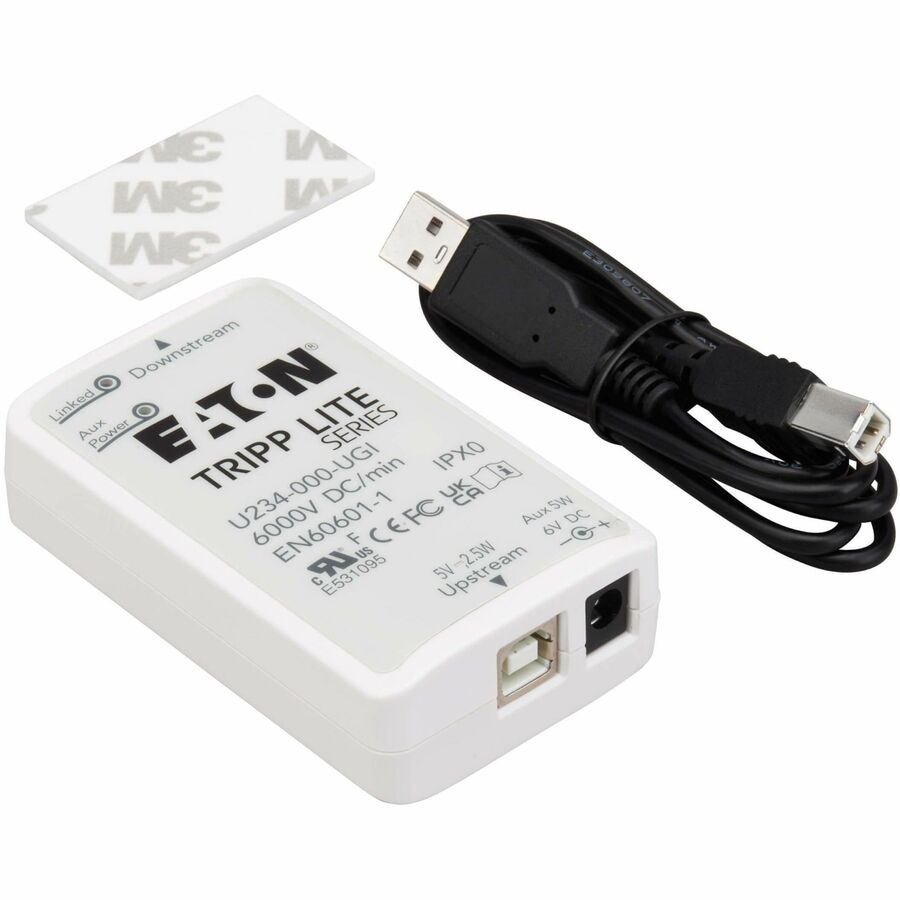

Just connect the included USB cable's USB-B plug to the isolator's "Upstream" port, then the cable's USB-A plug to the host device. Connect the desired USB peripheral to isolator's "Downstream" USB-A port with a user-supplied cable. A blue LED will illuminate to indicate a connection has been established and the device can be used. The self-powered U234-000-UGI can provide an isolated 5V DC @ 250mA current output.
TAA-Compliant for GSA Schedule Purchases
The U234-000-UGI is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 185°F (85°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U234-000-UGI |
| Brand Name | Tripp Lite series |
| Product Model | U234-000-UGI |
| Product Name | U234-000-UGI Surge Suppressor/Protector |
| Product Type | Surge Suppressor/Protector |
| Physical Characteristics | |
| Power Cord/Cable Length | 3 ft |
| Product Color | Gray, White |
| Product Material | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate |
| Height | 0.9" |
| Width | 2.2" |
| Depth | 3.5" |
| Power Description | |
| Input Voltage | 6 V DC |
| Output Voltage | 5 V DC |
| Technical Information | |
| Plug/Connector Type | USB B |
| Receptacles | 1 x USB Type A |
| Dataline Protection | USB |
| Features | LED Indicator |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Computer, Notebook, Tablet, Smartphone |
| Ingress Protection (IP) Rating | IP40 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
