Overview

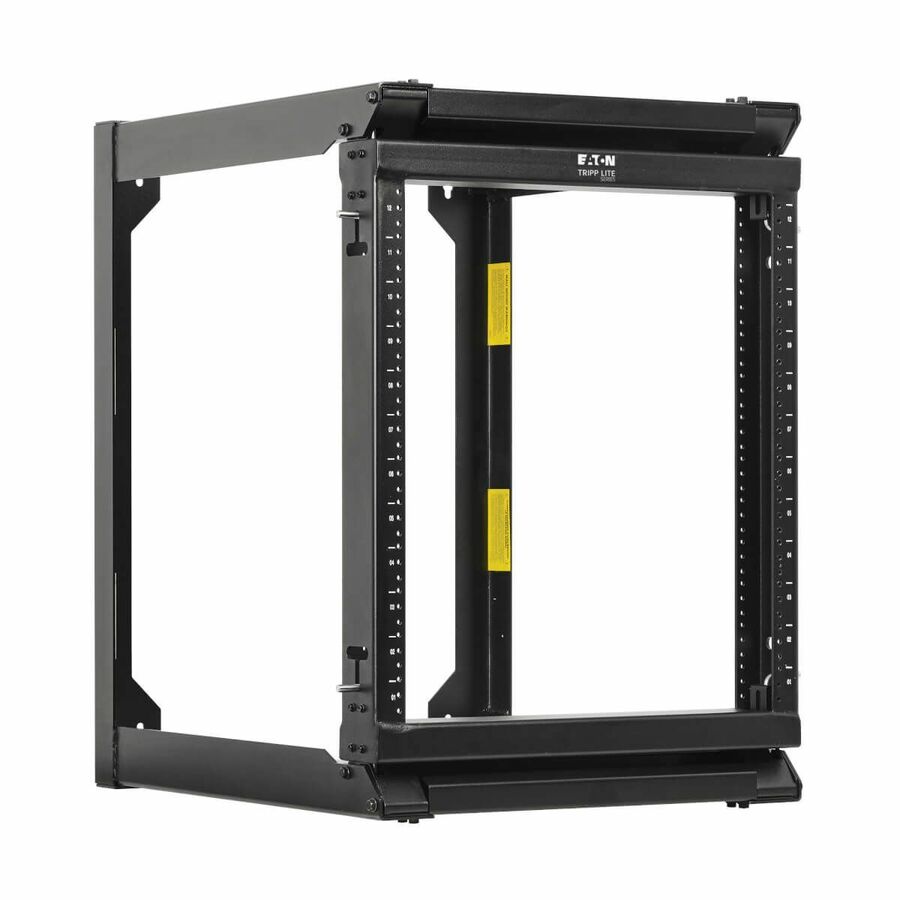

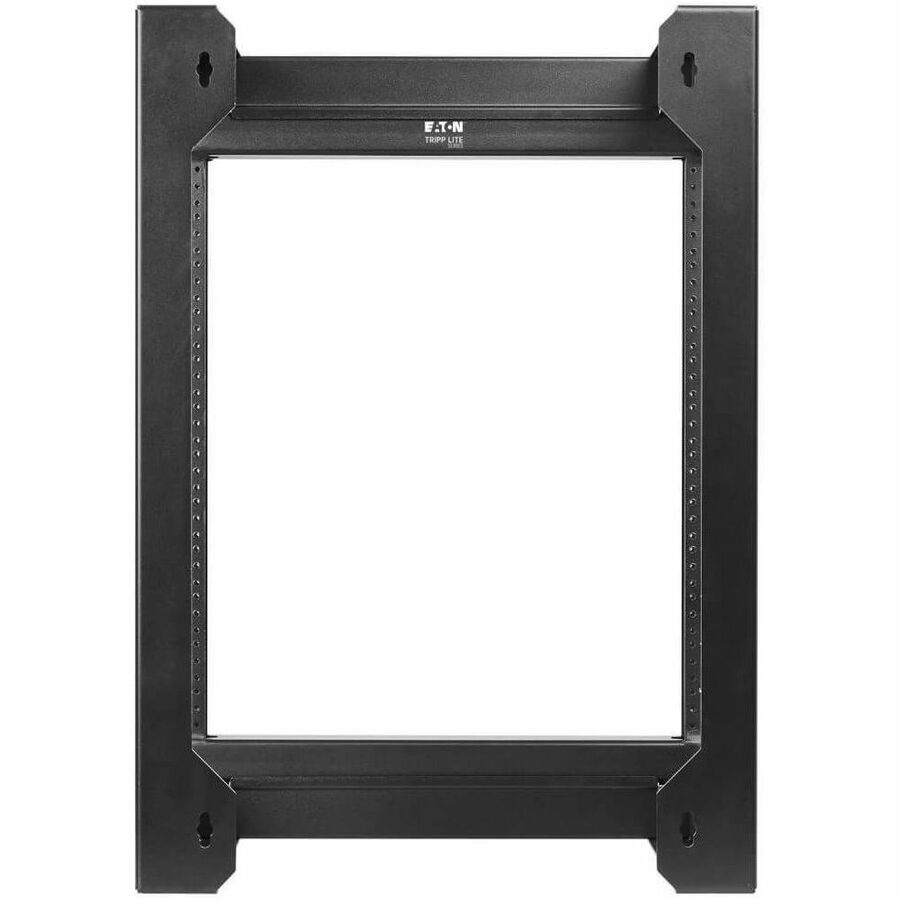

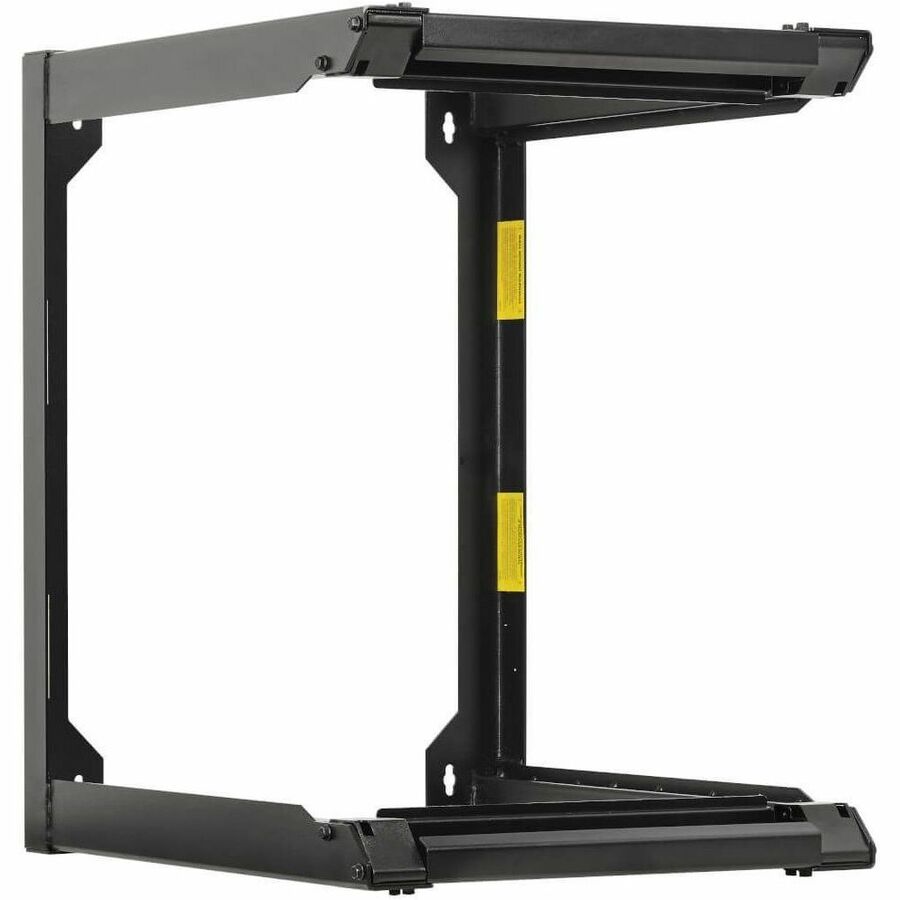

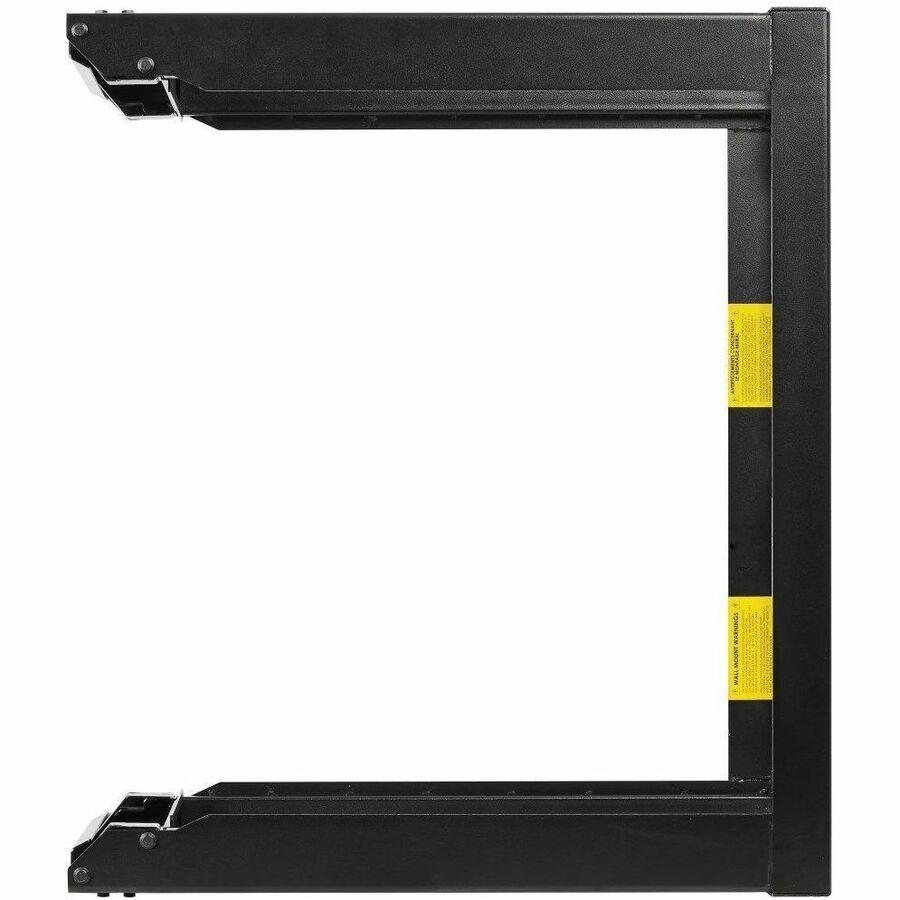

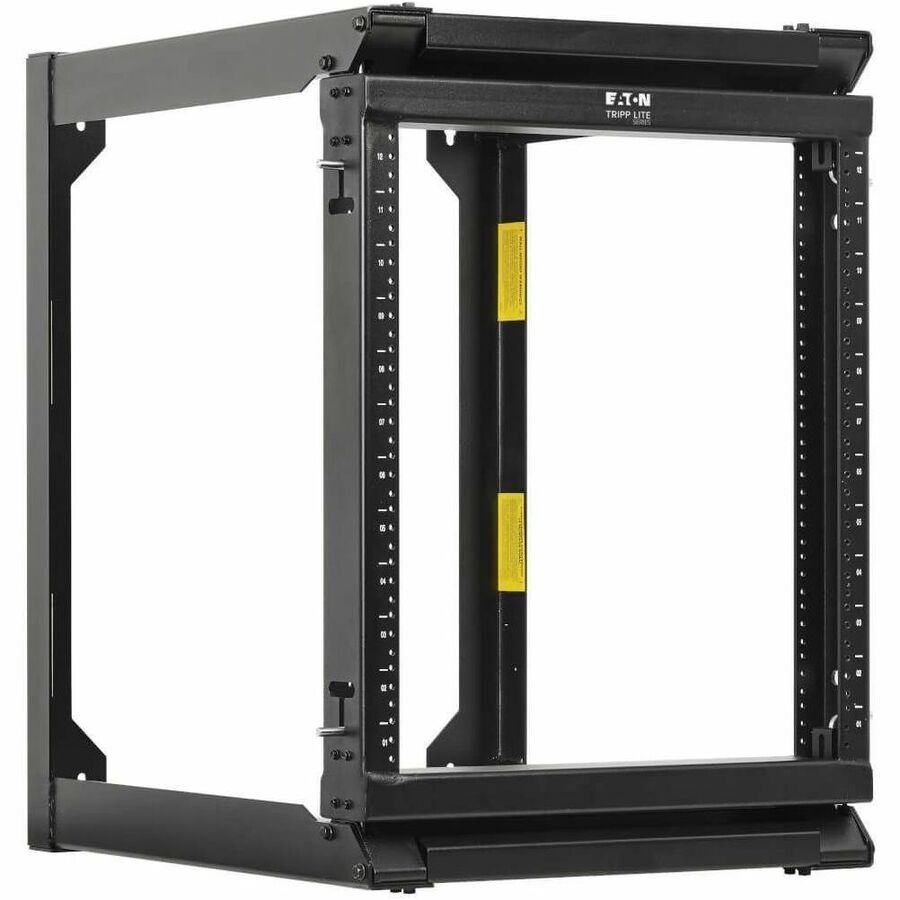

Wall-mount open frame rack stores 12U of 19-inch rack equipment up to 22 inches deep and swings open for maximum accessibility.
Features | 2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space
The SRWO12US2 open frame rack stores and organizes 12U of EIA-standard 19-inch rack equipment compatible with 2-post mounting. Designed for wall mounting, the rack saves space in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. The 2-post rack is made of heavy-duty steel with a durable black powder-coated finish. Maximum load capacity is 150 pounds (68 kilograms).
Hinged Front Provides Convenient Access to Cables and Equipment

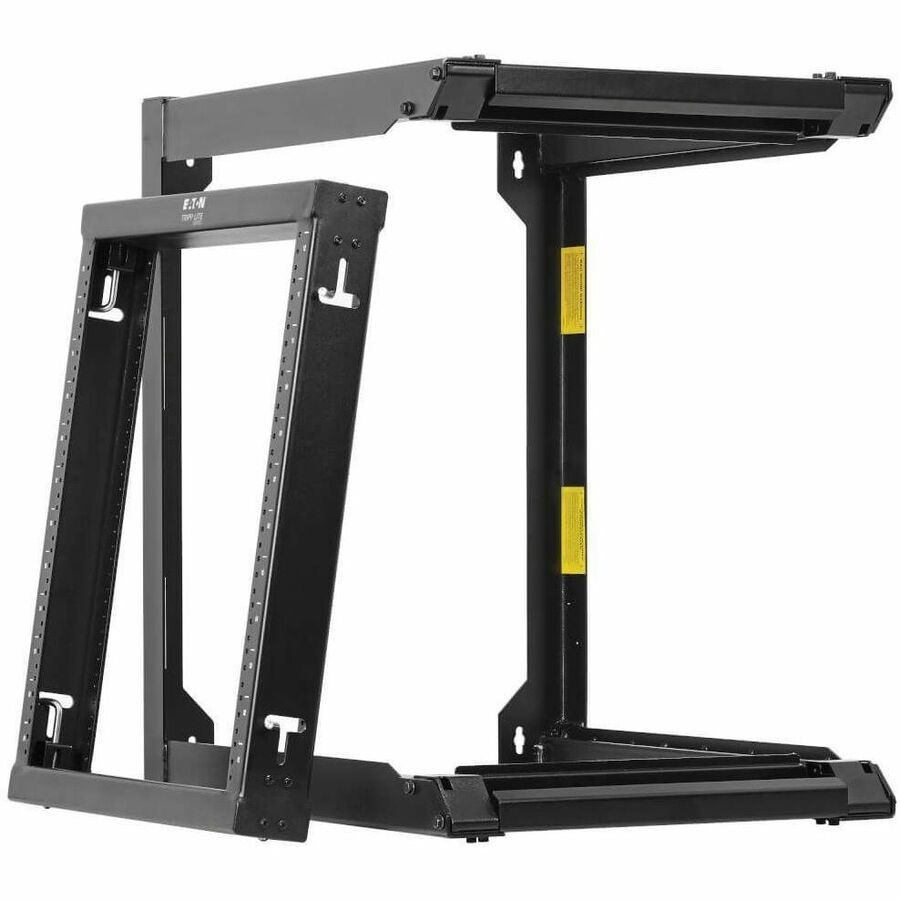

The hinged front of the rack can be mounted to open to the left or the right, providing unrestricted access for installing, configuring and servicing cables and EIA-standard 19-inch rack equipment up to 22 inches deep, such as network switches and patch panels. The swinging front frame can be secured in position to prevent movement during equipment installation.
Easy Assembly and Equipment Mounting
Assemble this open frame rack on location with the included hardware. Wall-mounting holes are spaced 16 inches apart for standard wall stud placement with user-supplied fasteners. Vertical mounting rails with 12-24 threaded mounting holes accommodate equipment up to 22 inches deep. Rack spaces are numbered for easy reference.
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
12U 2-post rack accommodates 19 in. rack equipment up to 22 in. deep
Hinged front provides easy rear access to cables and equipment
Keyhole mounting slots are spaced 16 in. apart to match standard wall stud placement
Maximum load capacity is 150 lb.
Assembly hardware is included
5-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
SRWO12US2
Brand Name
Tripp Lite series
Product Line
SmartRack
Product Model
SRWO12US2
Product Name
SmartRack 12U Wall-Mount 2-Post Open Frame Rack, Hinged Front, Heavy Duty
Product Type
Rack Frame
Physical Characteristics
Form Factor
Floor Standing
Color Family
Black
Product Color
Black Powder Coat
Product Material
Steel
Static/Stationary Weight Capacity
149.91 lb
Height
29.6"
Width
22.3"
Depth
25.2"
Rack Height
12U
Rack Width
19"
Rack Depth
23.50"
Weight (Approximate)
66.69 lb
Technical Information
Rack Type
Open Frame
Application/Usage
Networking, Switch, PDU, Patch Panel, Server, UPS
Features
Cable Management, Heavy Duty
Rack Post Quantity
2
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
SRWO12US2 12U Wall-Mount 2-Post Open Frame Rack, Hinged
