Eaton Tripp Lite Series SmartRack 12U Flat-Pack Low-Profile Switch-Depth Wall-Mount Pivoting 2-Post Open Frame Rack

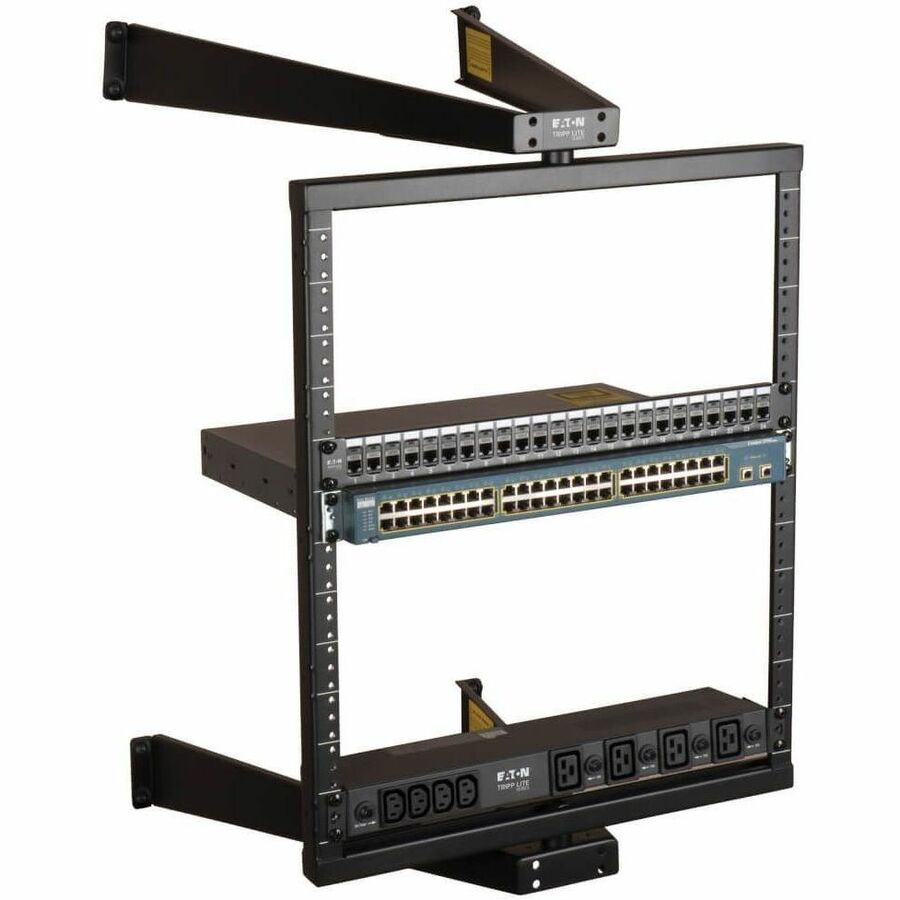

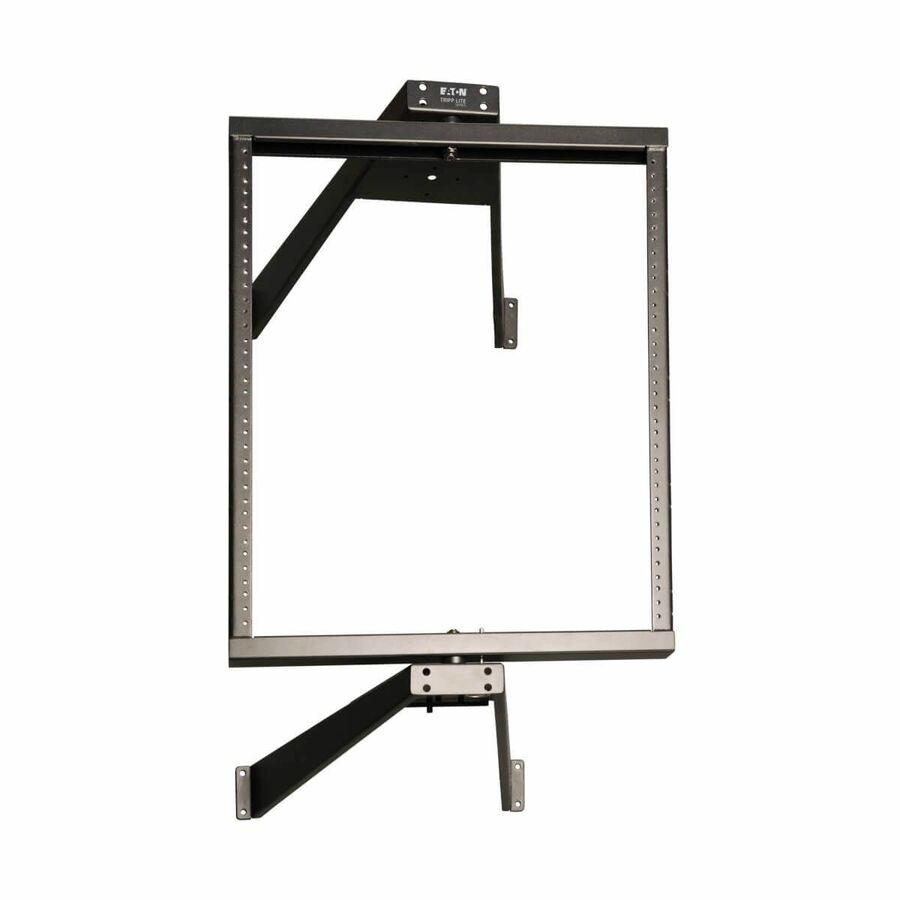

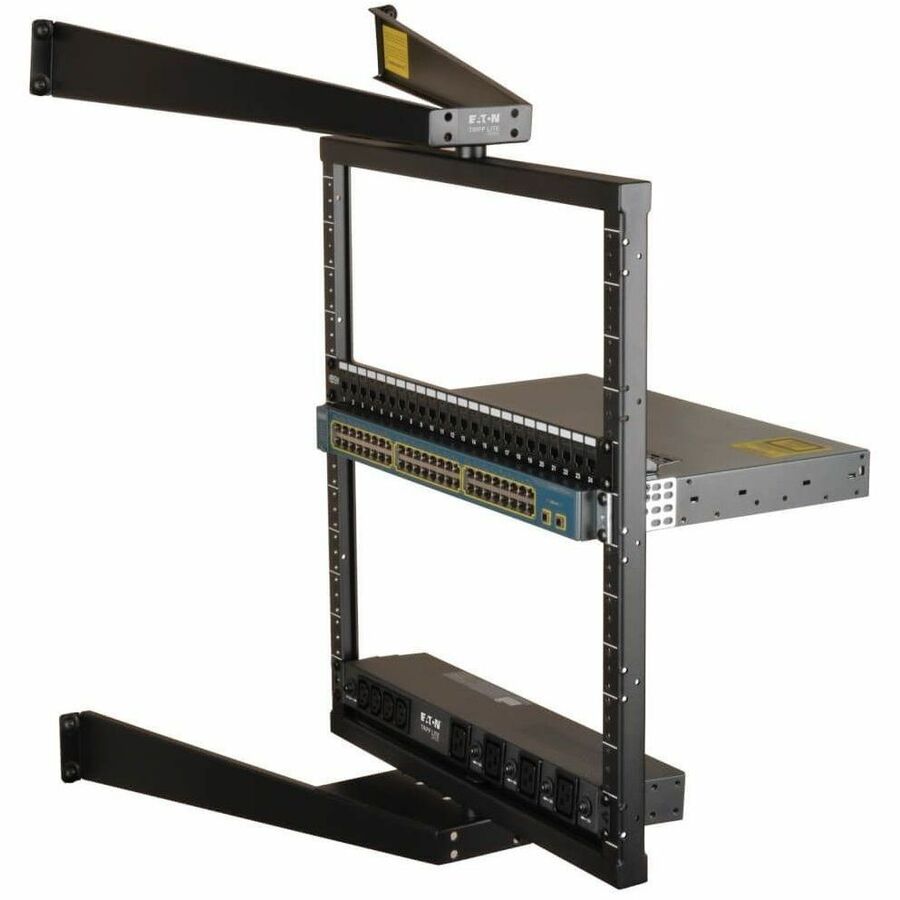

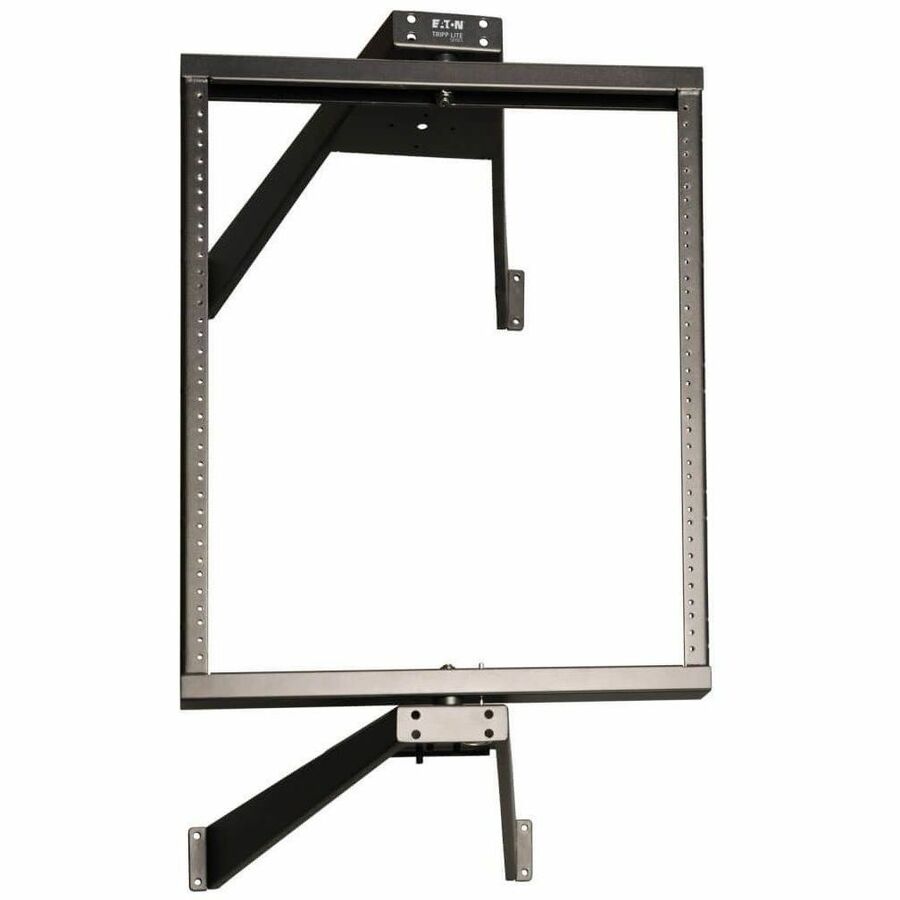

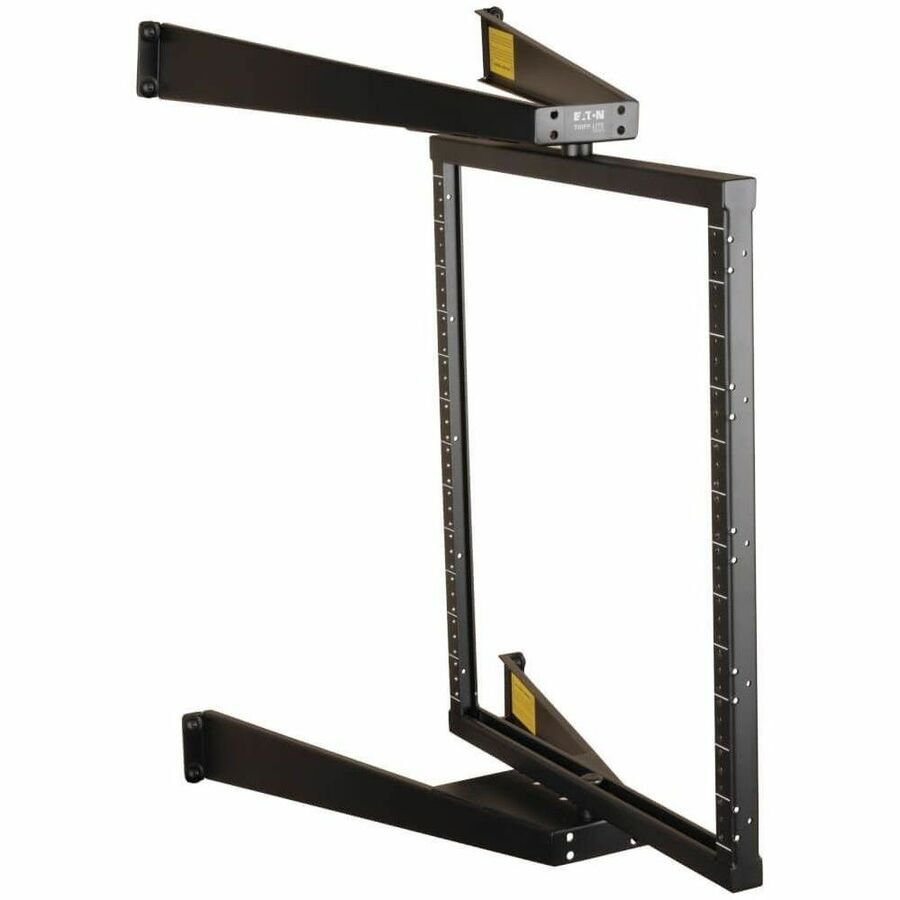

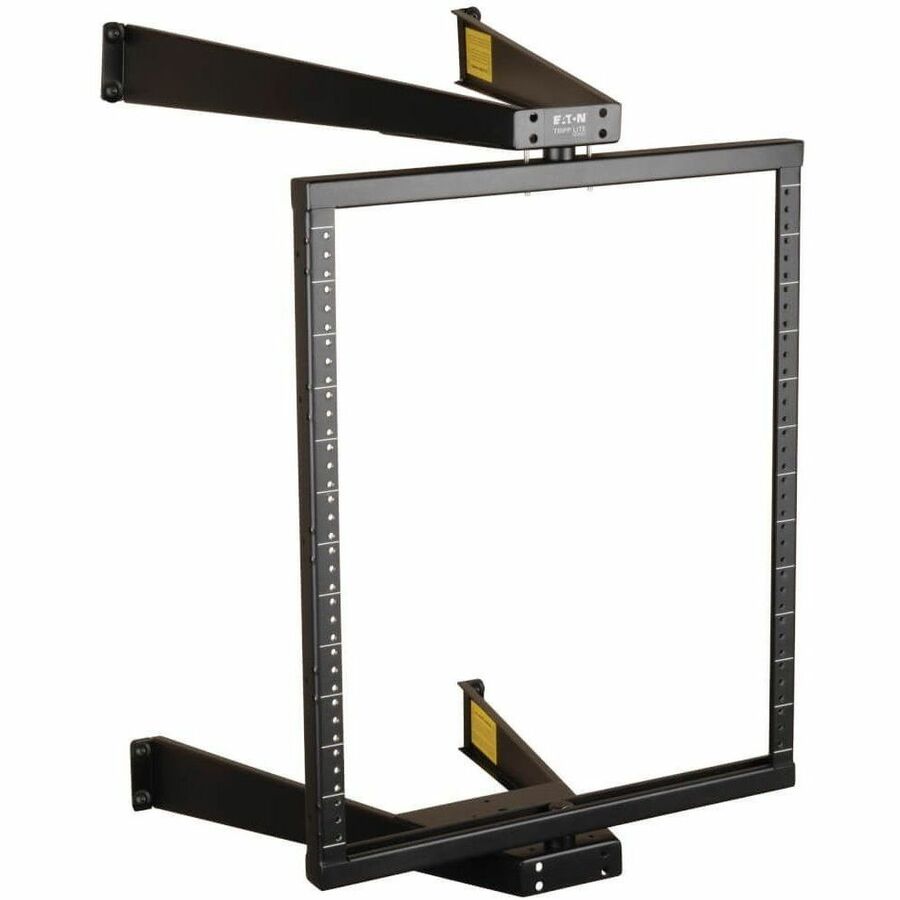

The SRWO12US SmartRack 12U Flat-Pack Low-Profile Switch-Depth Wall-Mount Pivoting 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 150 pounds.The open frame design pivots to allow unrestricted access for installing, configuring and servicing equipment and cabling from any direction. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. Included locking pins secure the frame in position while pivoted for mounting equipment. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.

More from the Manufacturer

Versatile, Space-Saving Design and Optimized for Secure Environment

The SRWO12US features sturdy wall-mount brackets and a heavy-duty steel frame that allows the enclosure to be wall-mounted—an ideal rackmount solution for any venue where floor space is limited. Adjustable pivots enable the frame to swing out from the wall for easy access to equipment and cabling.

The SRWO12US is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It conserves valuable floor space, helps IT managers to better organize their equipment array, and simplifies access for equipment installation and servicing.

Simple Equipment Installation and 5-Year Warranty

The adjustable pivots support three different frame depths and enables the frame to be safely locked the in the closed position or in the open (90° left/right) position. The SRWO12US is designed with a tight swing-out arc to minimize cable slack. These smart design features facilitate quick installation of equipment and provide convenient service access to equipment and cabling. The SRWO12US has a maximum weight capacity of 150 pounds and a maximum mounting depth of 18 inches.

The SRWO12US comes with a 5-year manufacturer’s product warranty and is designed according to strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
