Mini Rack Enclosure, Black
For Server, PDU, Switch, Patch Panel - 9U Rack Height29.40" Rack Depth - Wall Mountable Enclosed Cabinet - Black - Steel - 250 lb Static/Stationary Weight Capacity
MSRP$1,646.31
$1,514.61
Save 8%In stock: 298
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Space-Saving 9U Wall-Mount Enclosure Houses 19 in. Rack Equipment up to 29.4 in. Deep
This SmartRack® cabinet is designed to house 9U of equipment, such as network switches and patch panels. It's recommended for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way.
Equipment Mounts Sideways to Save Space
To use limited space efficiently, equipment is mounted sideways within the rack. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW9USM has a maximum load capacity of 250 pounds.
Lockable for Simple and Secure Equipment Access
The front door and removable side panels lock securely to help prevent damage, tampering or theft. Convenient top and bottom access ports with removable covers allow easy cable routing.
Generous Airflow Keeps Equipment Cool

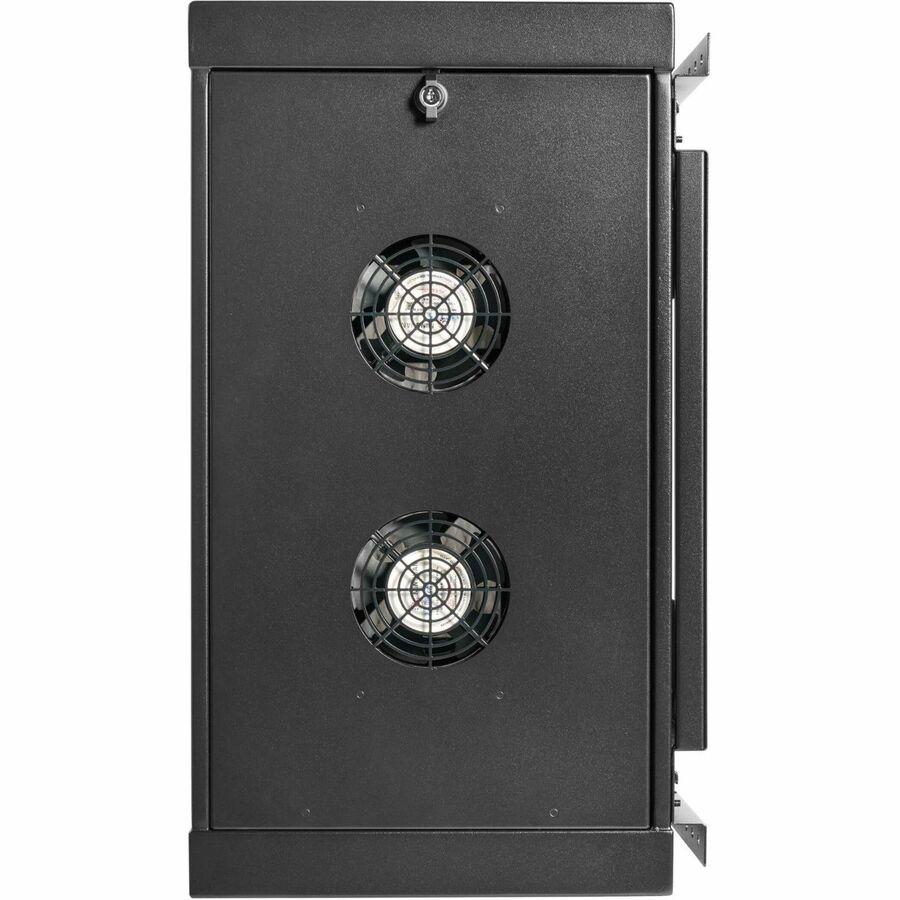

Vented doors and built-in fans ensure a constant flow of air that cools rack-mount equipment and helps prevent overheating that can lead to costly downtime.
Easy Enclosure and Equipment Installation

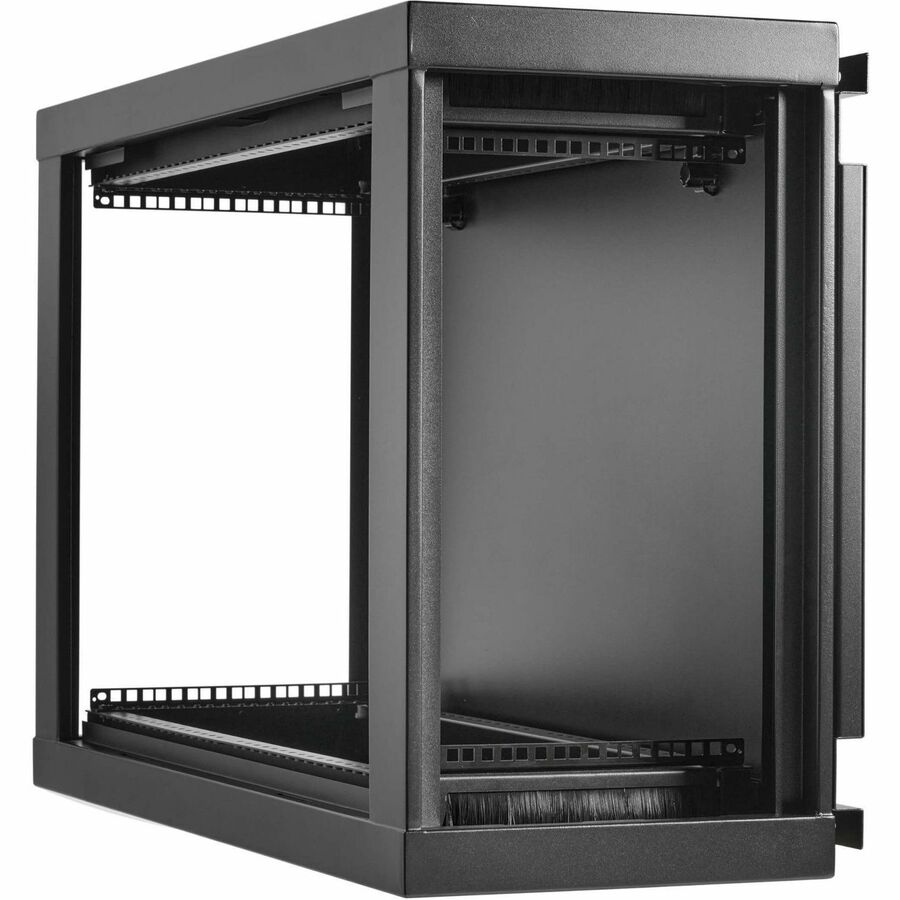

The SRW9USM comes fully assembled and ready to mount to the wall using the included hardware. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 29.4 inches deep, such as network switches and patch panels.
Make It a Mobile Rack Cabinet to Take It Where Best Needed
Instead of mounting the 9U enclosure on a wall, you may install the optional SRCASTER rolling caster kit (sold separately) to smoothly wheel the rack along the floor to its destination.
Meets Payment Card Industry Standards
The SRW9USM provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW9USM |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW9USM |
| Product Name | SmartRack SRW9USM Rack Cabinet |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Static/Stationary Weight Capacity | 250 lb |
| Height | 25.5" |
| Width | 38.9" |
| Depth | 20.1" |
| Rack Height | 9U |
| Rack Depth | 29.40" |
| Weight (Approximate) | 110 lb |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Server, PDU, Switch, Patch Panel |
| Ventilation | Yes |
| Features | Damage Resistant, Anti-theft, Removable Side Panel, Tamper Resistant, Removable Cover, Heavy Duty, Powder Coated, Vented, Lockable Front Door, Lockable Side Panel |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
