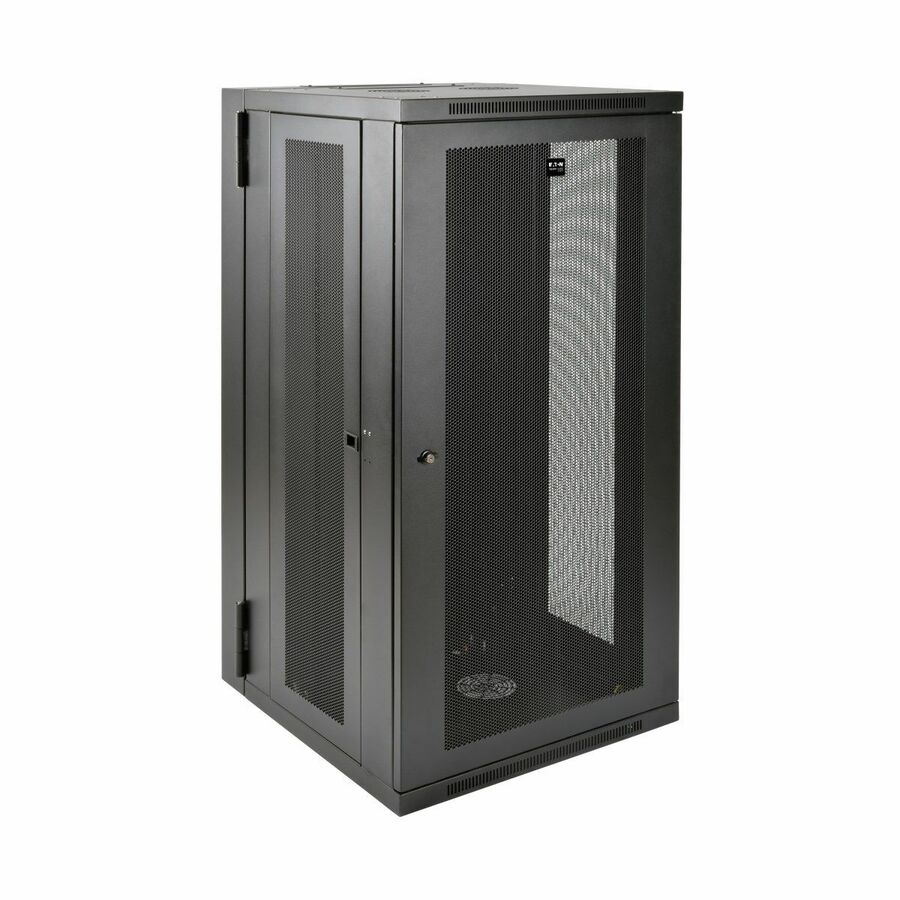

Tripp Lite by Eaton SmartRack 26U UPS-Depth Wall-Mount Half-Height Rack Enclosure Hinged Back

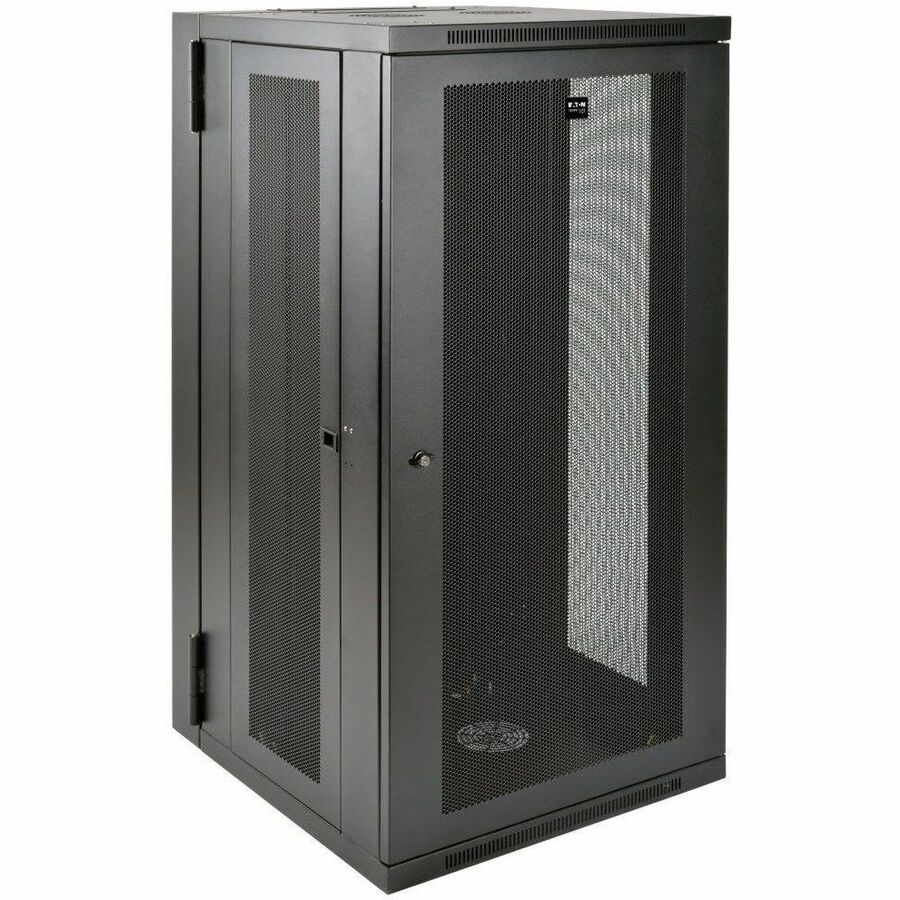

The SRW26USDP SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

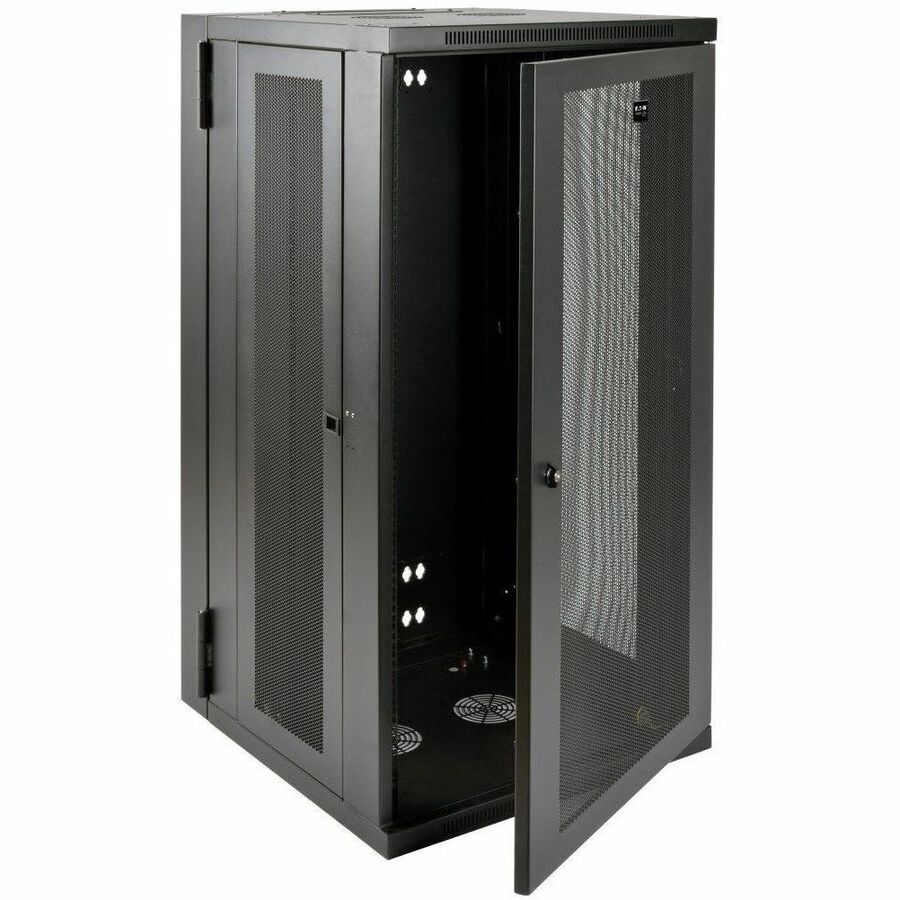

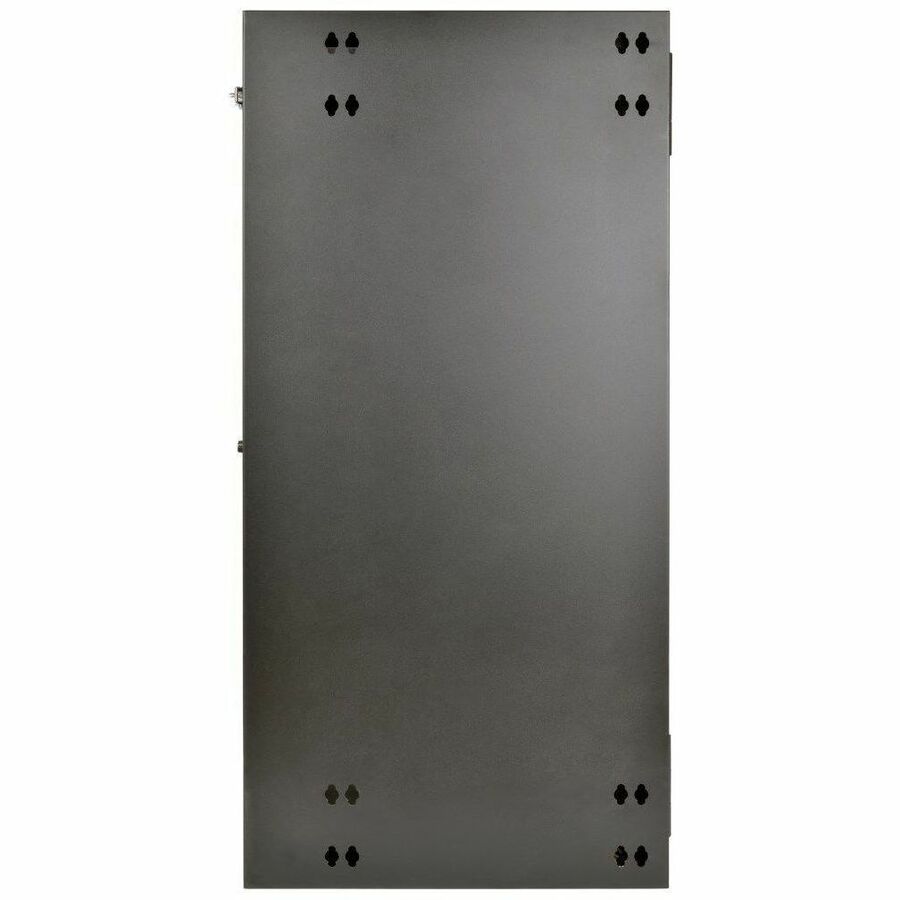

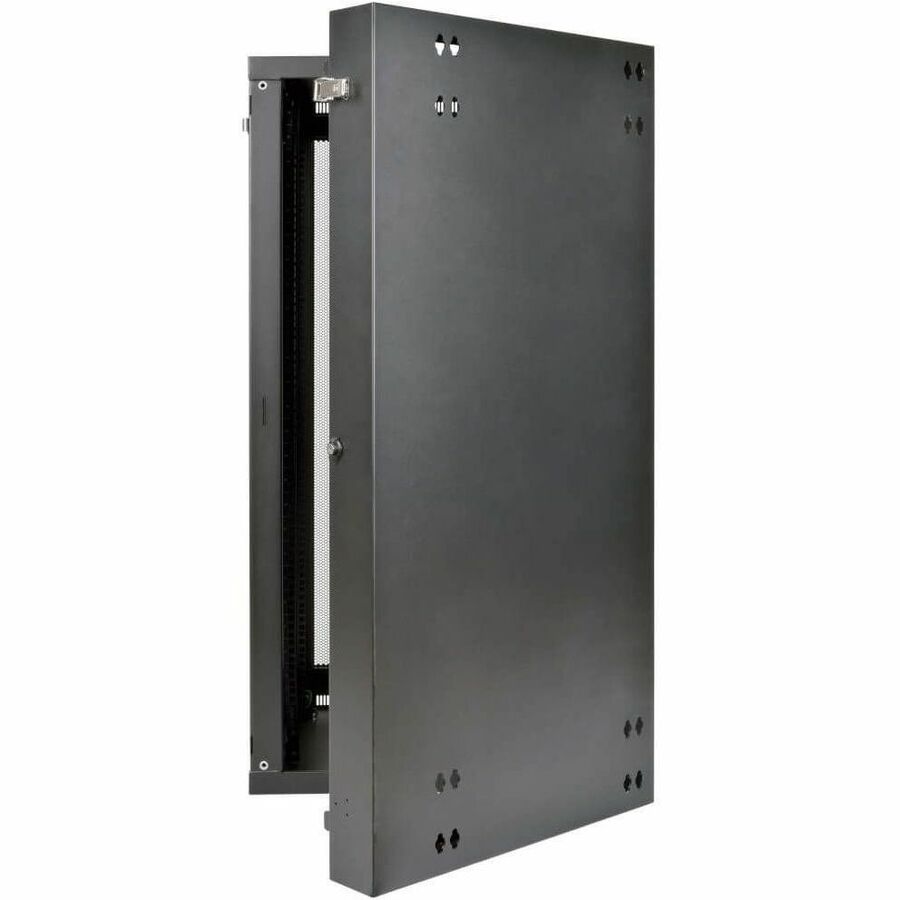

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

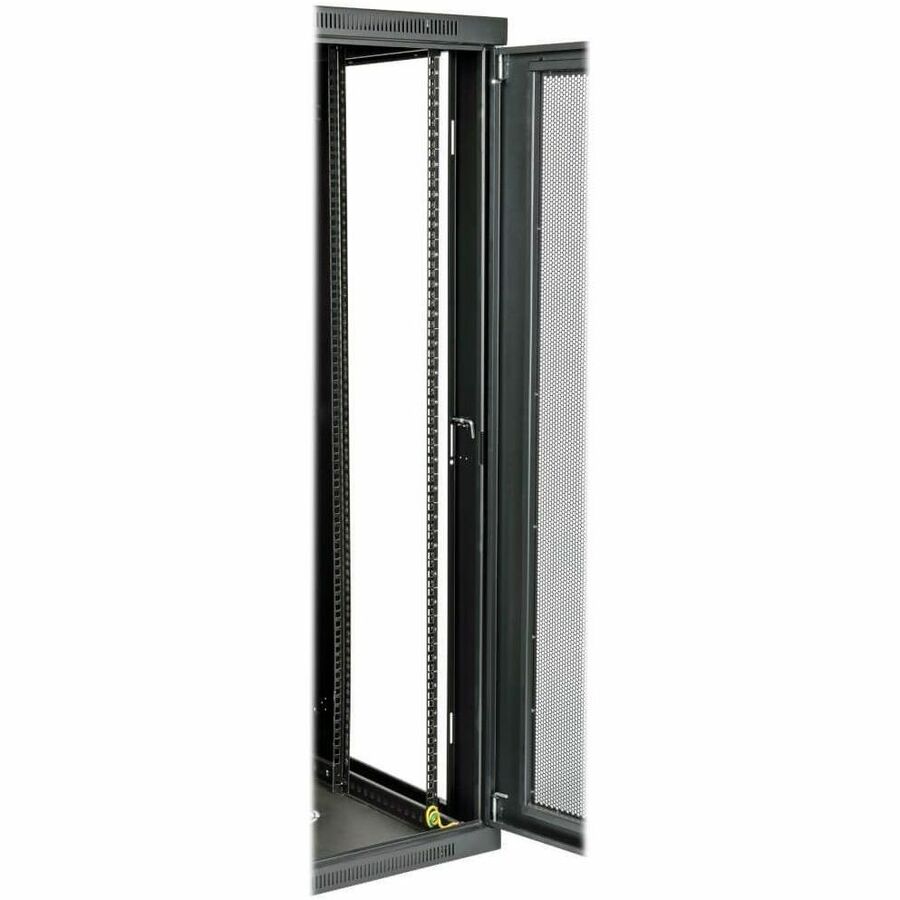

The SRW26USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling. More from the Manufacturer

Easy to Install and Use

The SRW26USDP comes fully assembled for quick and easy installation. You can mount it on the wall with included hardware or add an optional caster kit (Tripp Lite model SRCASTER, sold separately) to turn it into a mobile rolling rack. Side panels can be removed for convenient installation, maintenance and replacement of equipment. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. Vertical mounting rails adjust in 7/8-inch increments to house equipment up to 24.5 inches deep, like network switches and UPS systems, along with related battery packs and cabling.

Hinged and Lockable for Simple and Secure Equipment Access

The SRW26USDP’s sturdy hinge swings away from the wall for easy back-door access to equipment and cabling during installation and maintenance. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. The door and side panels lock securely to prevent damage, tampering or theft. Convenient top and bottom ports allow you to easily route cables.

Keeps Equipment Cool with Generous Airflow

Ventilated front door and side panels allow air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of optional cooling fans, such as Tripp Lite’s SRFANWM fans (sold separately).

Meets Payment Card Industry Standards

The SRW26USDP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Comes Backed by a 5-Year Warranty

The SRW26USDP comes with a 5-year product warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
