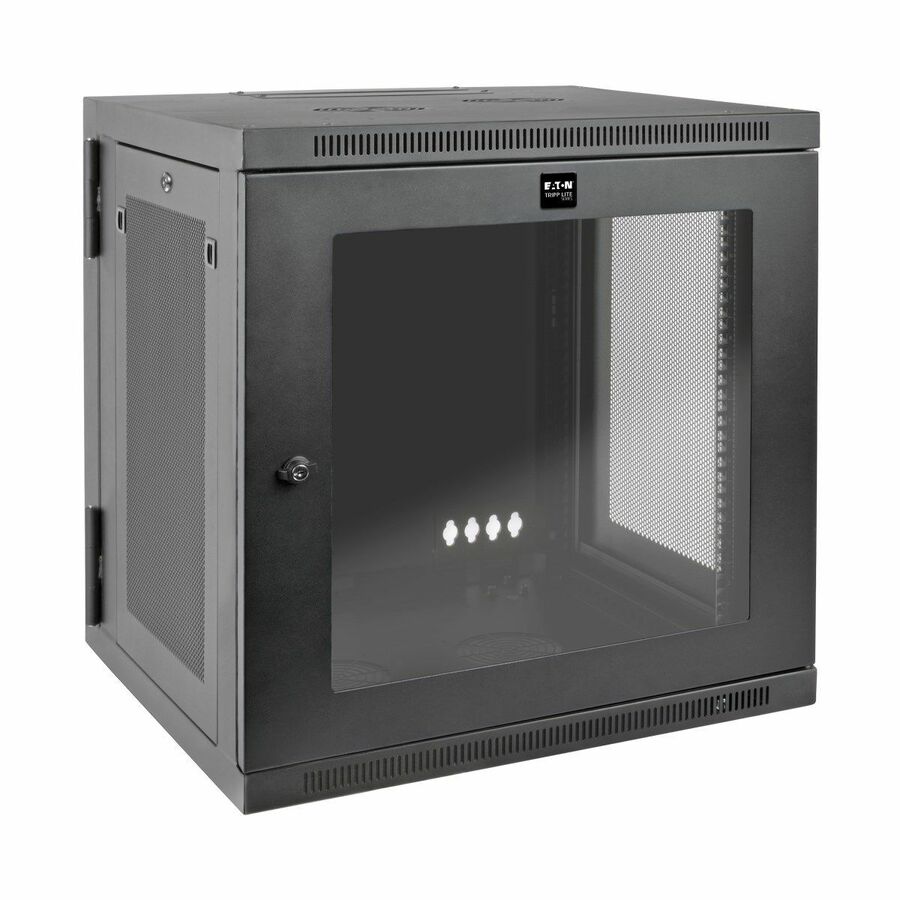

Tripp Lite by Eaton SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back

The SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

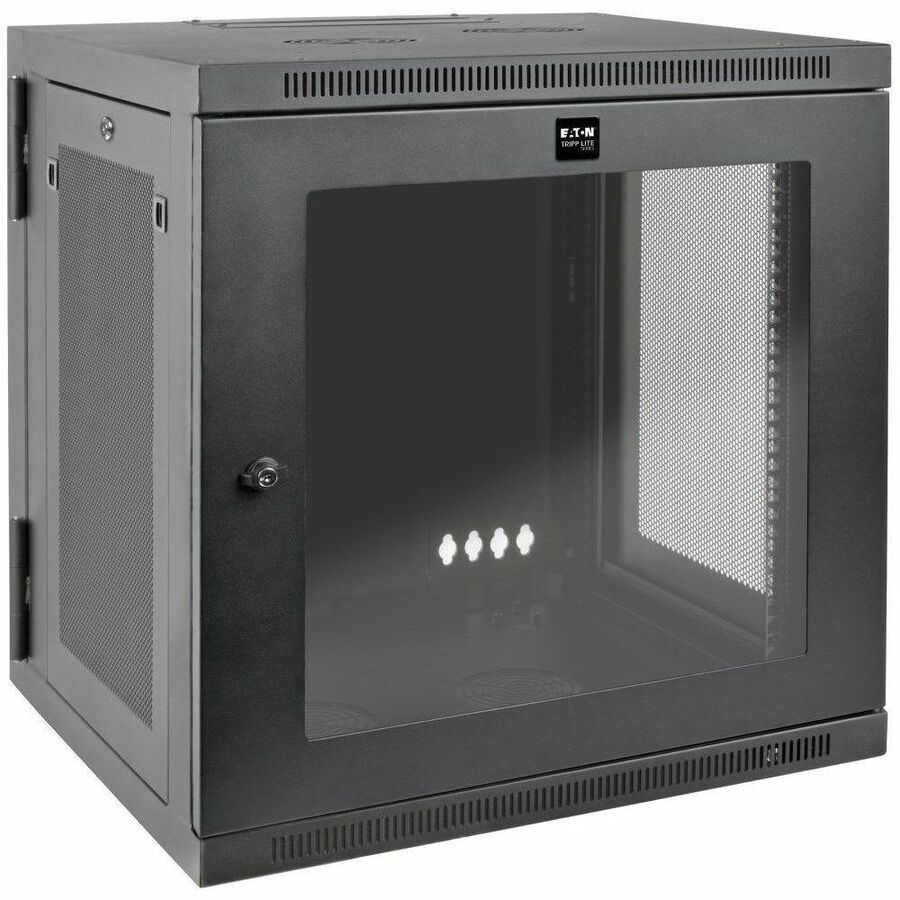

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

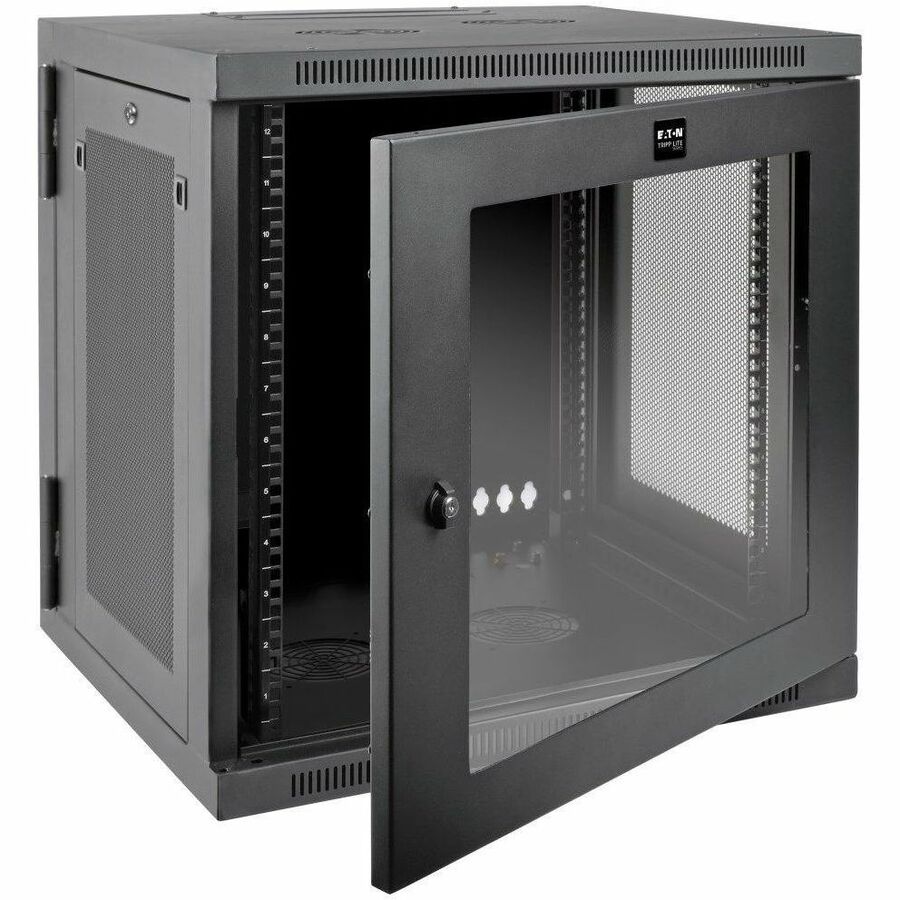

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

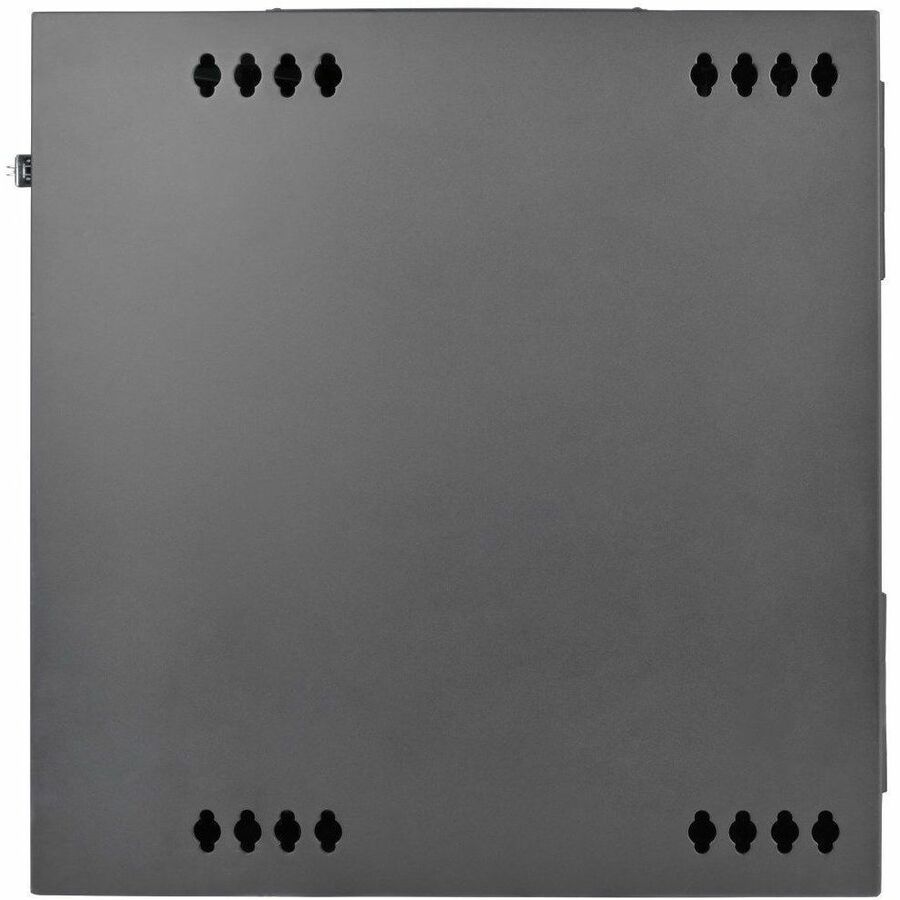

The SRW12USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling. More from the Manufacturer

Designed for Deep Equipment and Shatter Resistant Window

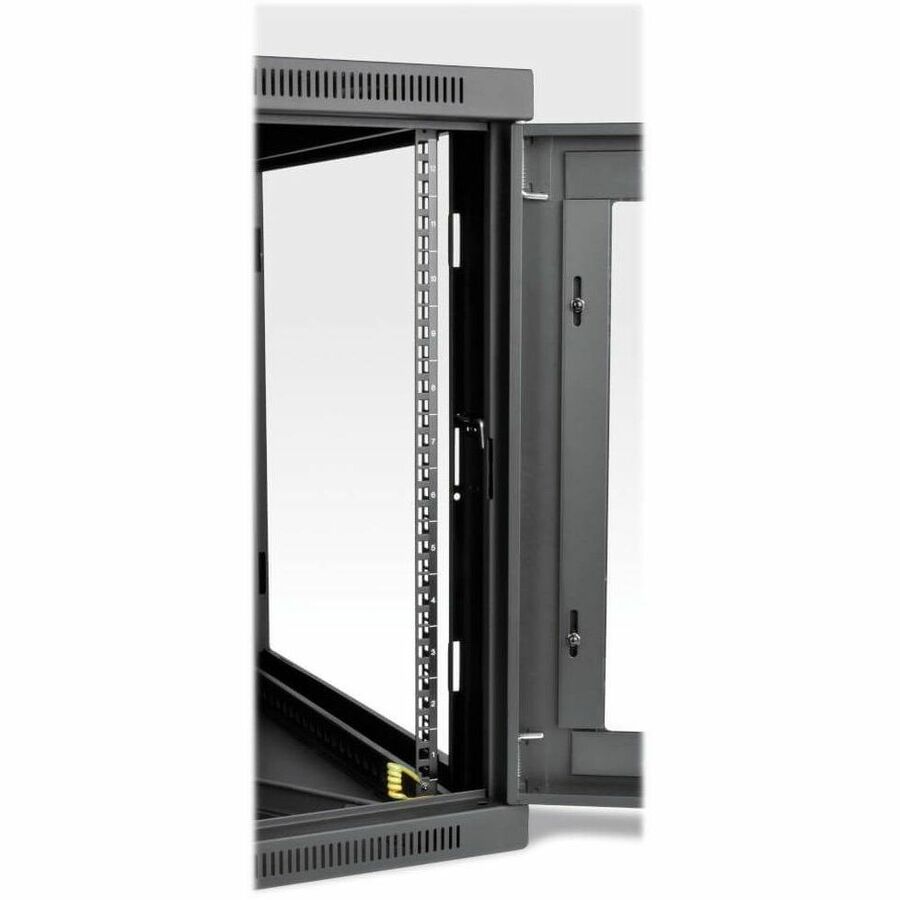

The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery backs and cabling.

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, it also adds visual flair to your IT installation.

Hinged and Lockable for Simple and Secure Equipment Access

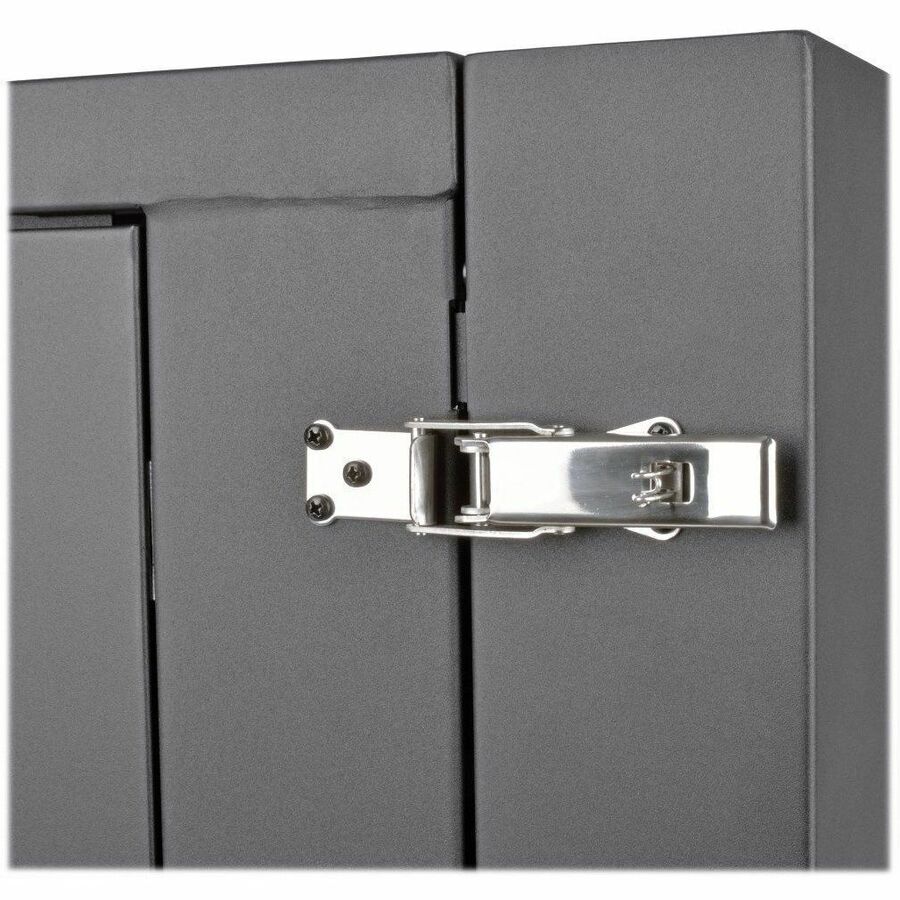

The SRW12USDPG swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting. The side panels and doors lock securely to help prevent damage, tampering or theft. Convenient top and bottom ports allow easy cable routing.

Generous Airflow Keeps Equipment Cool

The side panels are ventilated, which allows air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of optional cooling fans, such as Tripp Lite’s SRFANWM fans (sold separately).

Easy Enclosure and Equipment Installation

The SRW12USDPG comes fully assembled and ready to mount to the wall, or you can add Tripp Lite’s optional SRCASTER (sold separately) to turn it into a mobile rolling rack. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Square and threaded mounting holes and numbered rack spaces also make equipment installation easy.

Meets Payment Card Industry Standards and Backed by a 5-Year Warranty

The SRW12USDPG provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

The SRW12USDPG comes with a 5-year product warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
