For DVR, Switch, PDU, Patch Panel, UPS - 12U Rack Height32" Rack Depth - Wall Mountable Enclosed Cabinet - Gray - Metal, Steel - 200 lb Maximum Weight Capacity - 200.62 lb Static/Stationary Weight Capacity
MSRP$2,032.76
$1,521.91
Save 25%In stock: 3
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 32 in. Deep

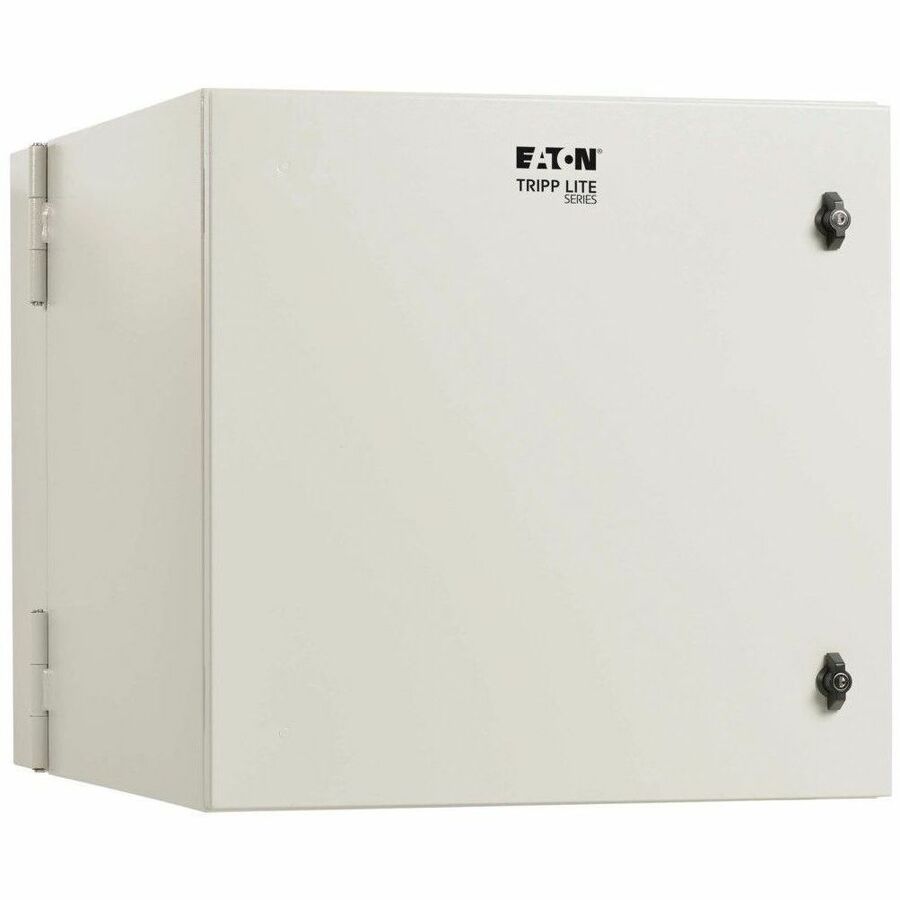

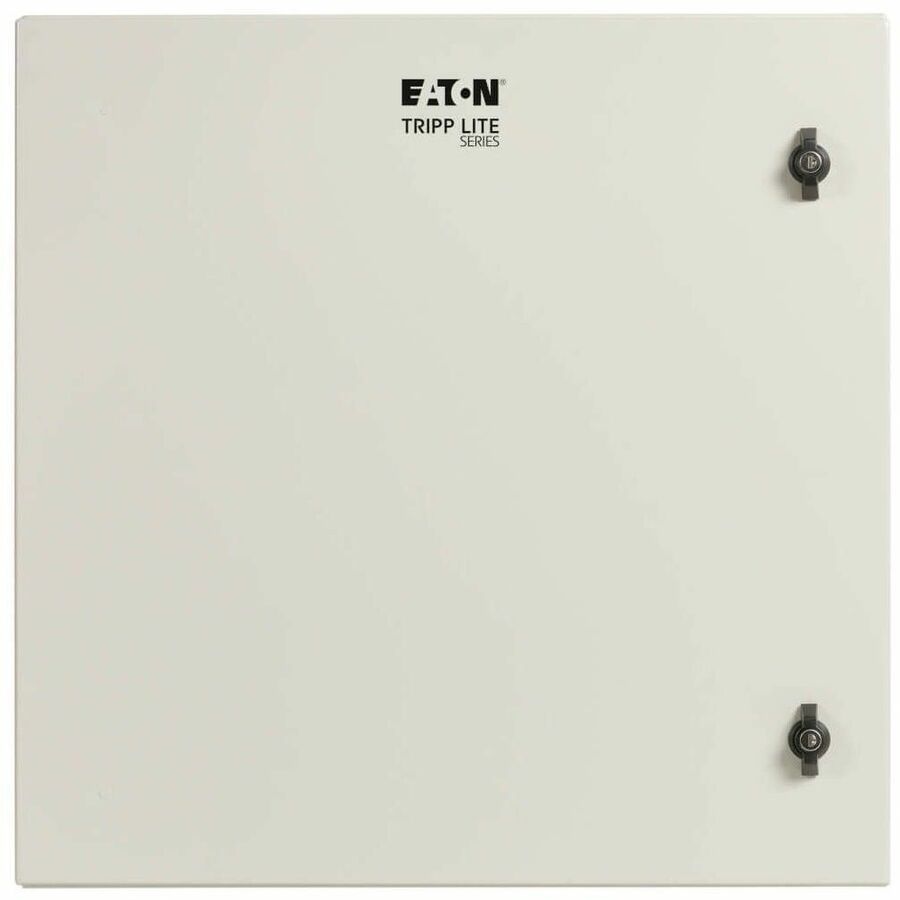

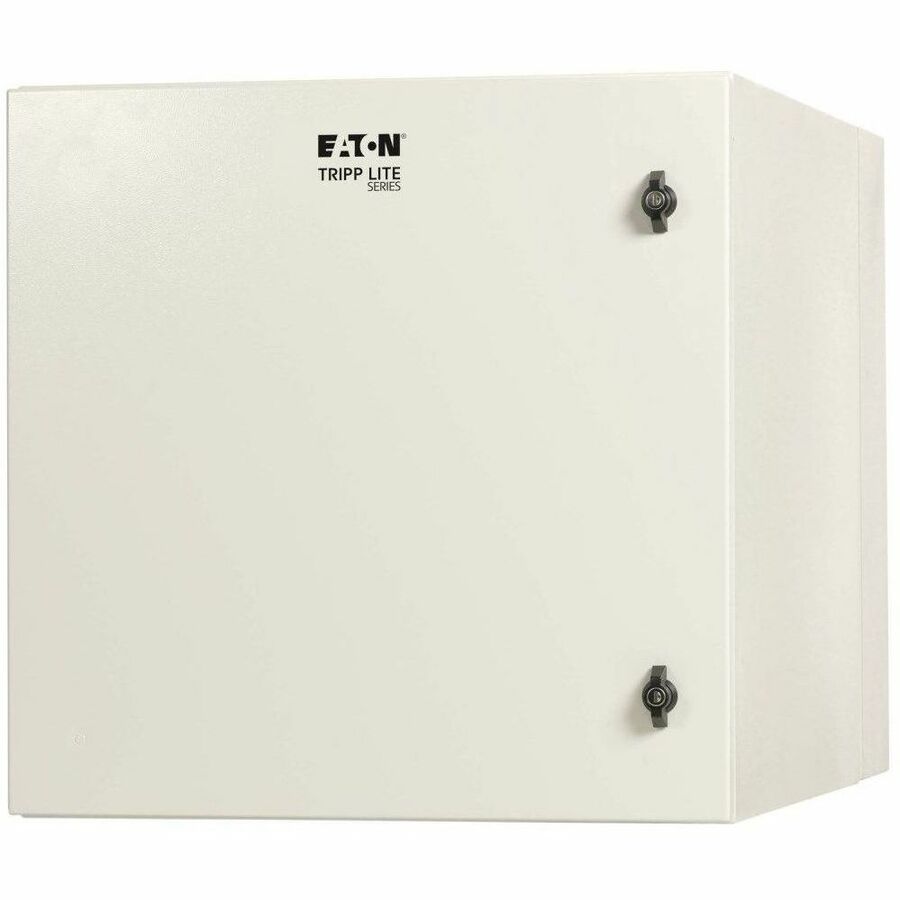

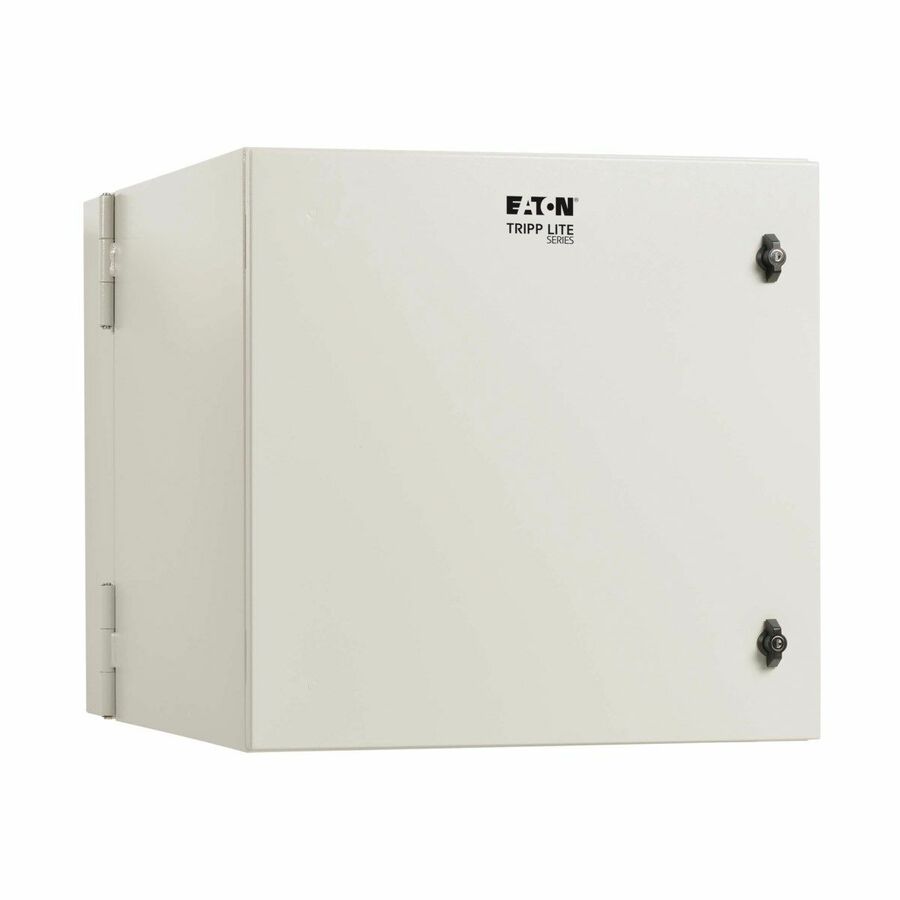

This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN4G12USDP has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G12USDP protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering

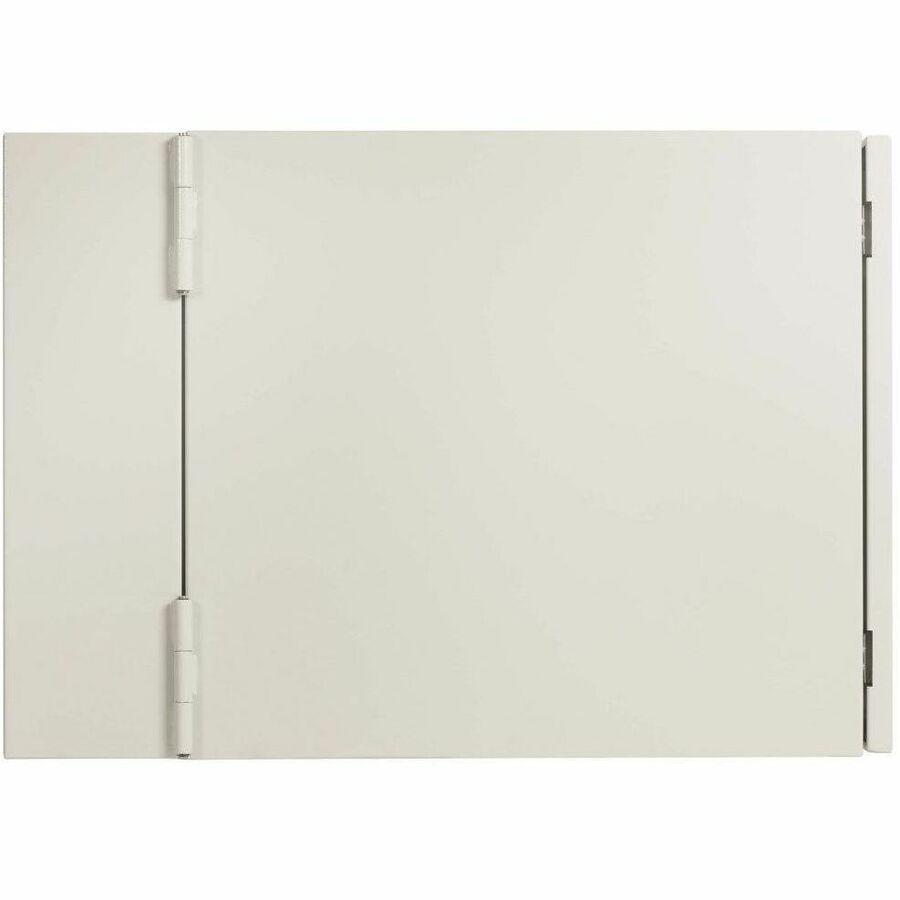

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 32 inches deep. Hardware for mounting equipment inside the enclosure is included.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Application/Usage | DVR, Switch, PDU, Patch Panel, UPS |
|---|---|
| Package Contents |
|
| Product Type | Rack Mount Enclosure |
| Manufacturer Part Number | SRN4G12USDP |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 131.73 lb |
| Features | Snow Resistant, Moisture Resistant, Lockable Door, Damage Resistant, Tamper Resistant, Anti-theft, Cable Management, Adjustable Mounting Rails, Debris Resistant, Heavy Duty, Rain Resistant, Water Resistant |
| Form Factor | Wall Mountable |
| Manufacturer | Eaton Corporation |
| Product Model | SRN4G12USDP |
| Product Name | SmartRack SRN4G12USDP Rack Mount Enclosure |
| Product Line | SmartRack |
| Rack Height | 12U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 4 |
| Country of Origin | China |
| Assembly Required | No |
| Height | 24.1" |
| Width | 24" |
| Depth | 34.1" |
| Environmentally Friendly | Yes |
| Maximum Weight Capacity | 200 lb |
| Static/Stationary Weight Capacity | 200.62 lb |
| Rack Depth | 32" |
| Product Color | Gray |
| Color Family | Gray |
| Rack Type | Enclosed Cabinet |
| Product Material | Metal, Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
