For Computer, DVR, LAN Switch, PDU, Patch Panel, Server, UPS - 6U Rack Height16.50" Rack Depth - Wall Mountable Enclosed Cabinet - Yellow - Metal, Powder Coated Steel - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity
MSRP$1,323.96
$1,218.04
Save 8%In stock: 6
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

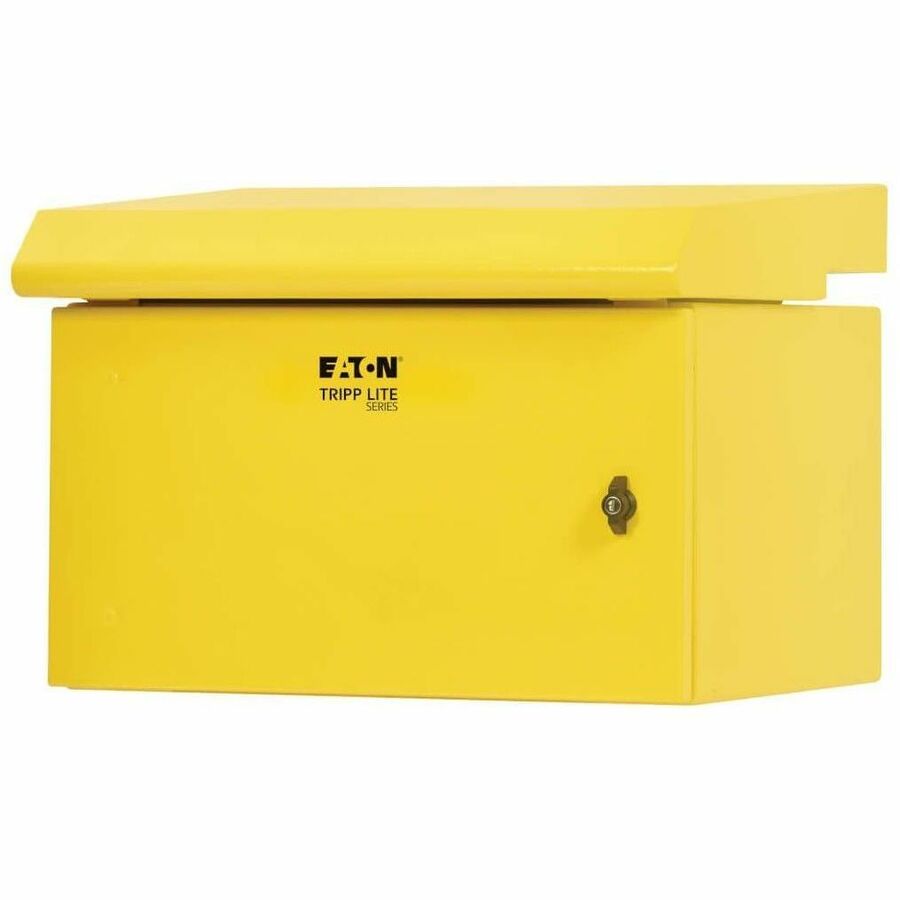

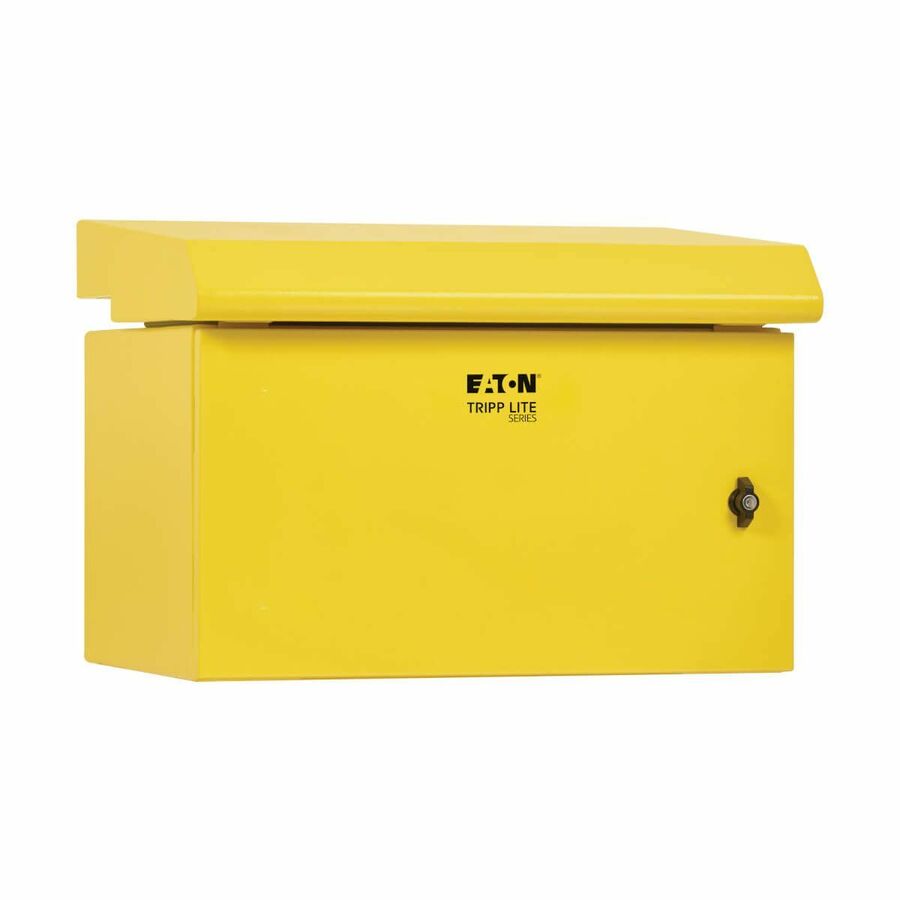

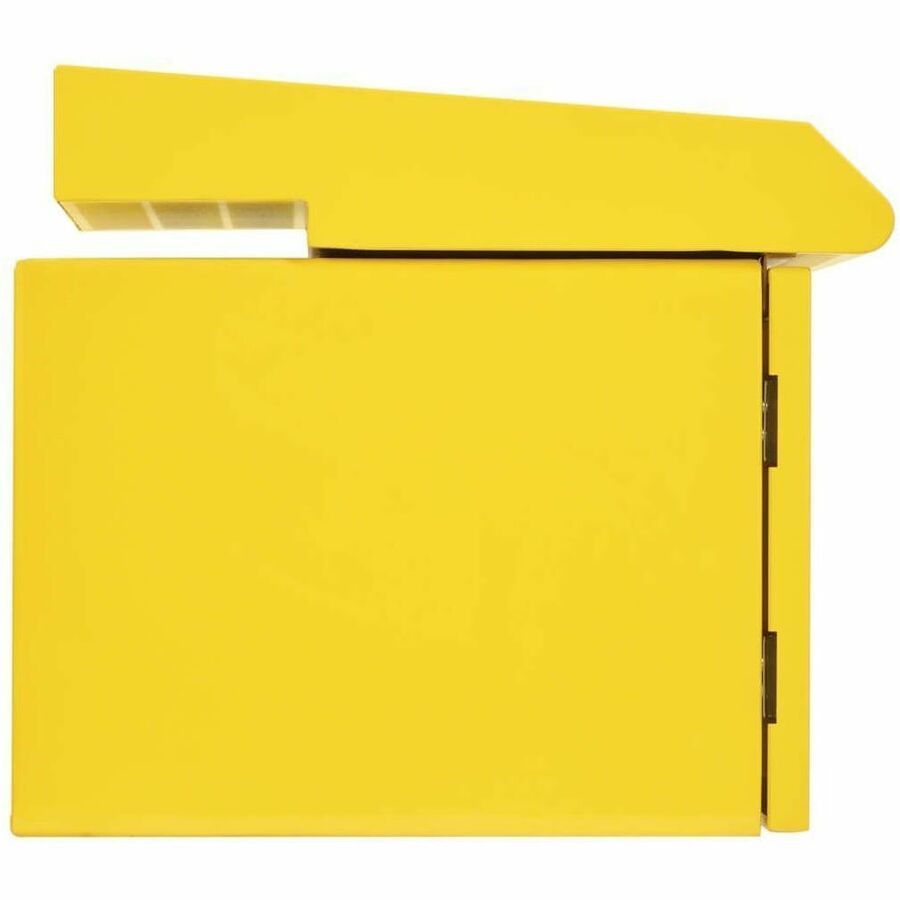

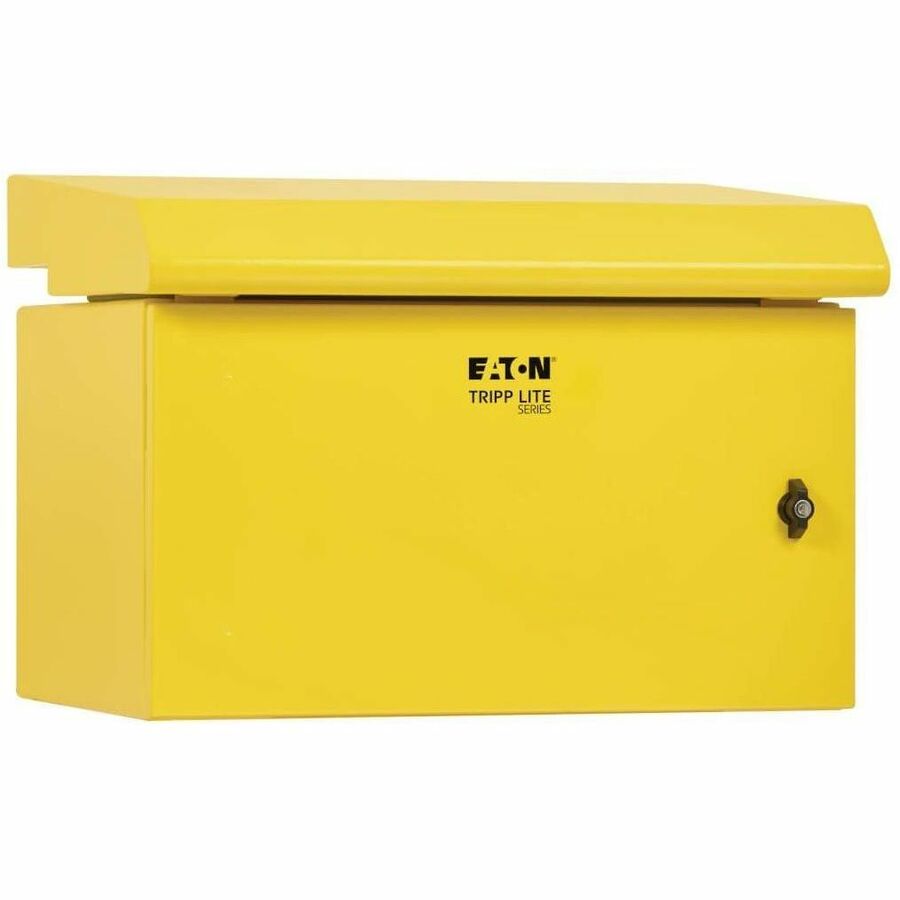

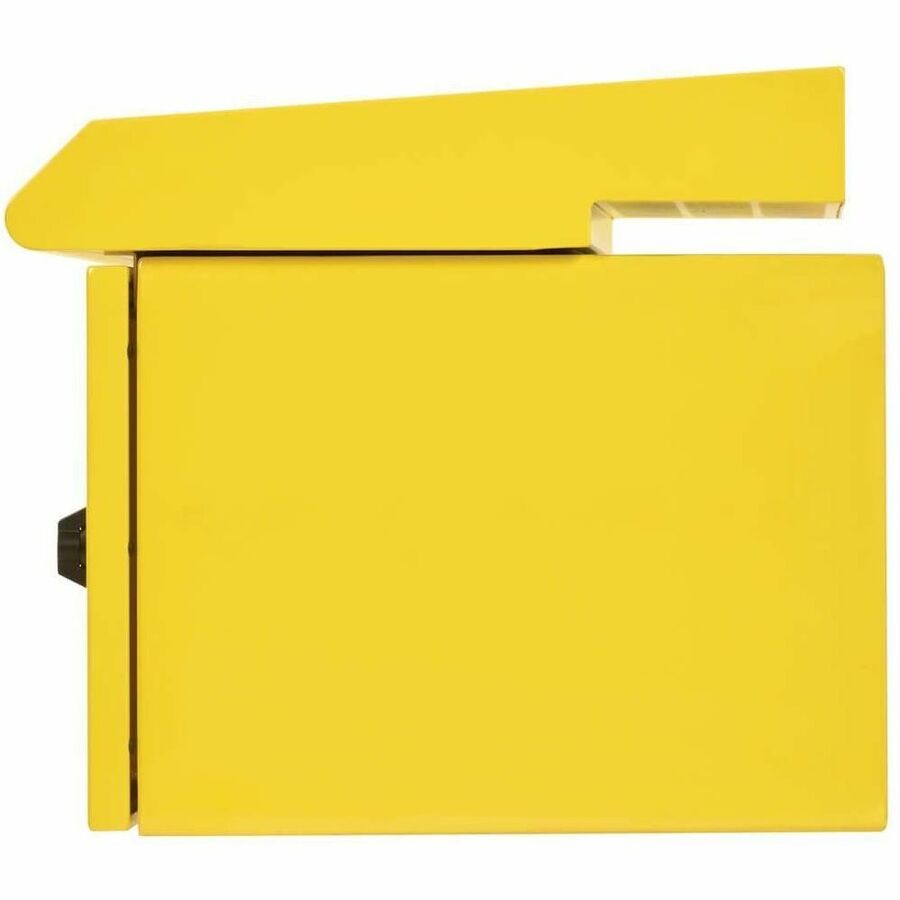

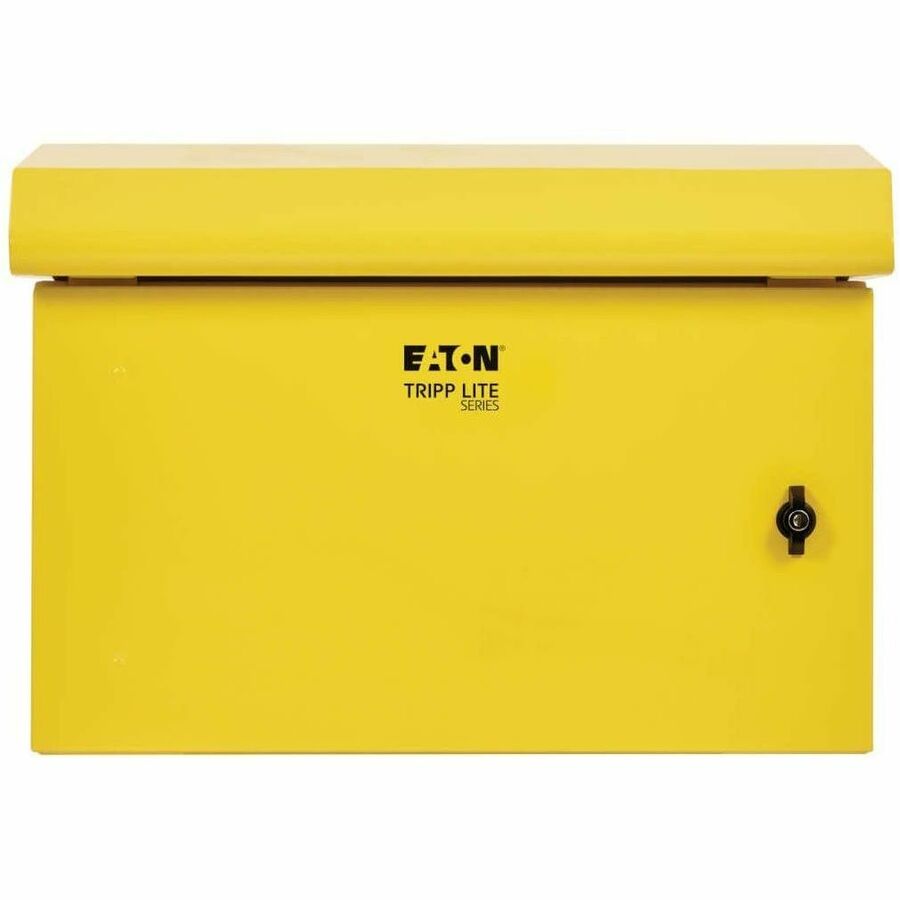

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable yellow powder-coated finish, the SRN3RY6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications, especially security, fire, law enforcement and other first-responder applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RY6U protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN3RY6U |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRN3RY6U |
| Product Name | SRN3RY6U Industrial Enclosure |
| Product Type | Rack Mount Enclosure |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Metal, Powder Coated Steel |
| Maximum Weight Capacity | 200 lb |
| Static/Stationary Weight Capacity | 200 lb |
| Height | 18" |
| Width | 25.2" |
| Depth | 20.8" |
| Rack Height | 6U |
| Rack Depth | 16.50" |
| Weight (Approximate) | 73.53 lb |
| Power Description | |
| Plug/Connector Type | NEMA 5-15P |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Computer, DVR, LAN Switch, PDU, Patch Panel, Server, UPS |
| Features | Snow Resistant, Moisture Resistant, Lockable Door, Damage Resistant, Tamper Resistant, Anti-theft, Cable Management, Adjustable Mounting Rails, Debris Resistant, Rain Resistant |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
