Attention: Due to high order volume, orders may require an additional business day to process.
For DVR, Switch, PDU, Patch Panel, UPS, Computer, Server - 9U Rack Height28" Rack Depth - Wall Mountable Enclosed Cabinet - Gray - Metal, Steel - 200 lb Maximum Weight Capacity - 200.62 lb Static/Stationary Weight Capacity
MSRP$2,483.99
$2,285.27
Save 8%In stock: 14
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

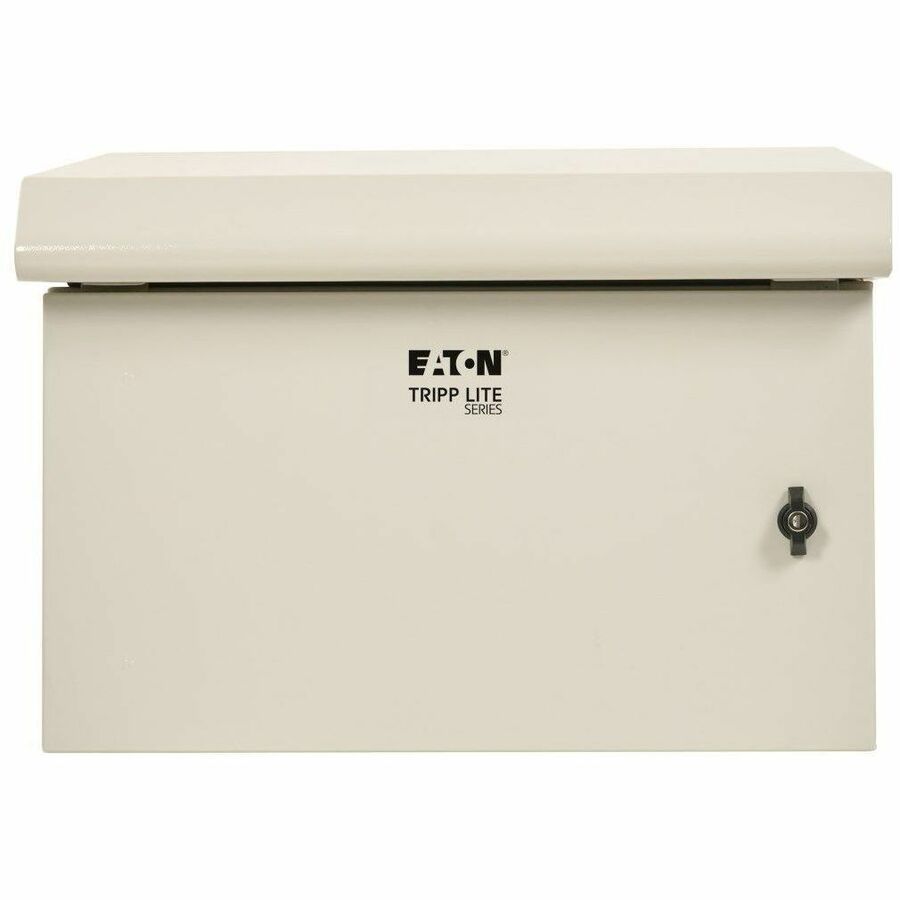

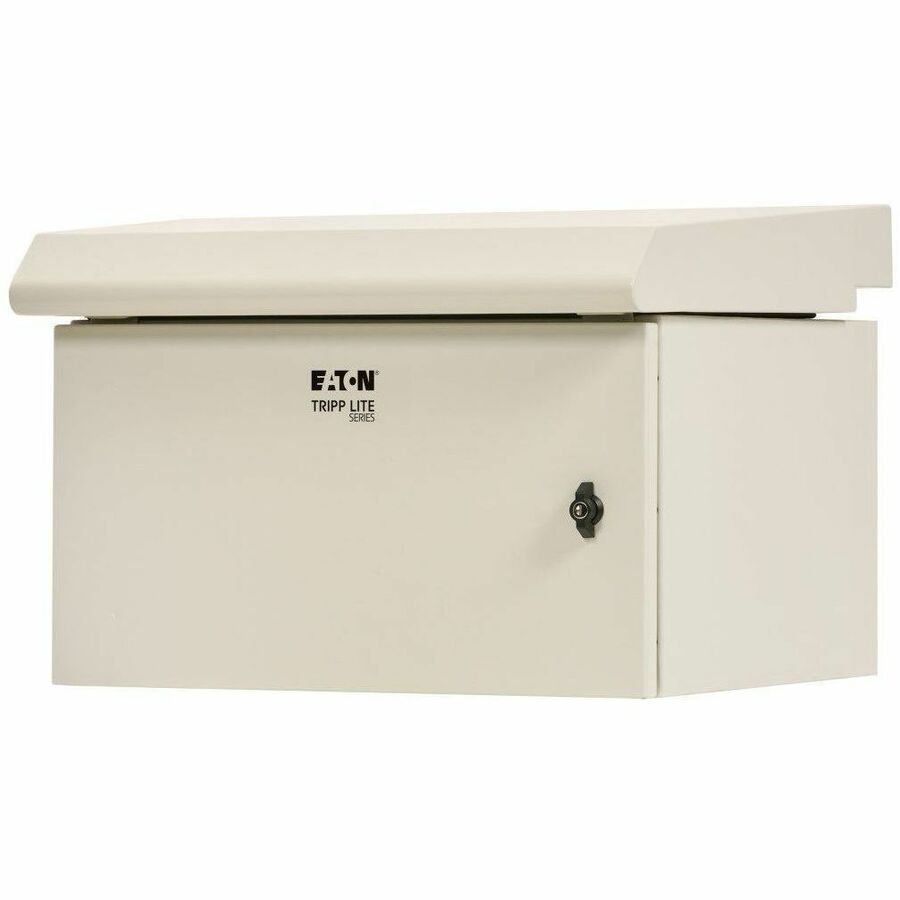

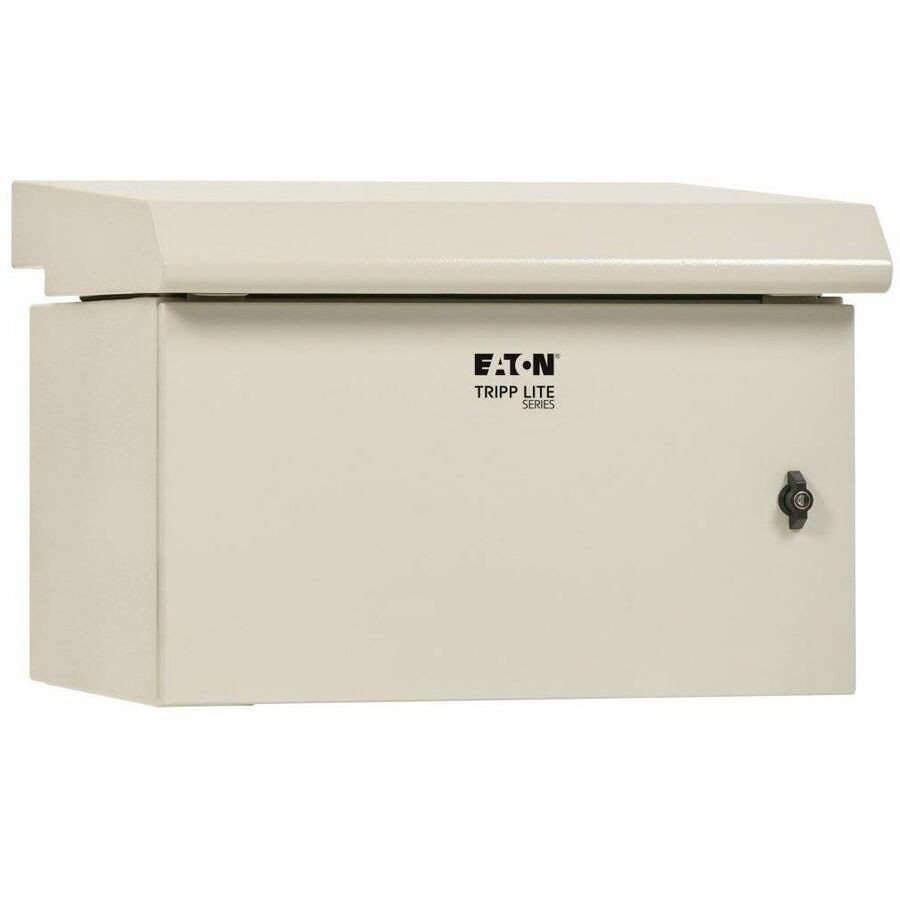

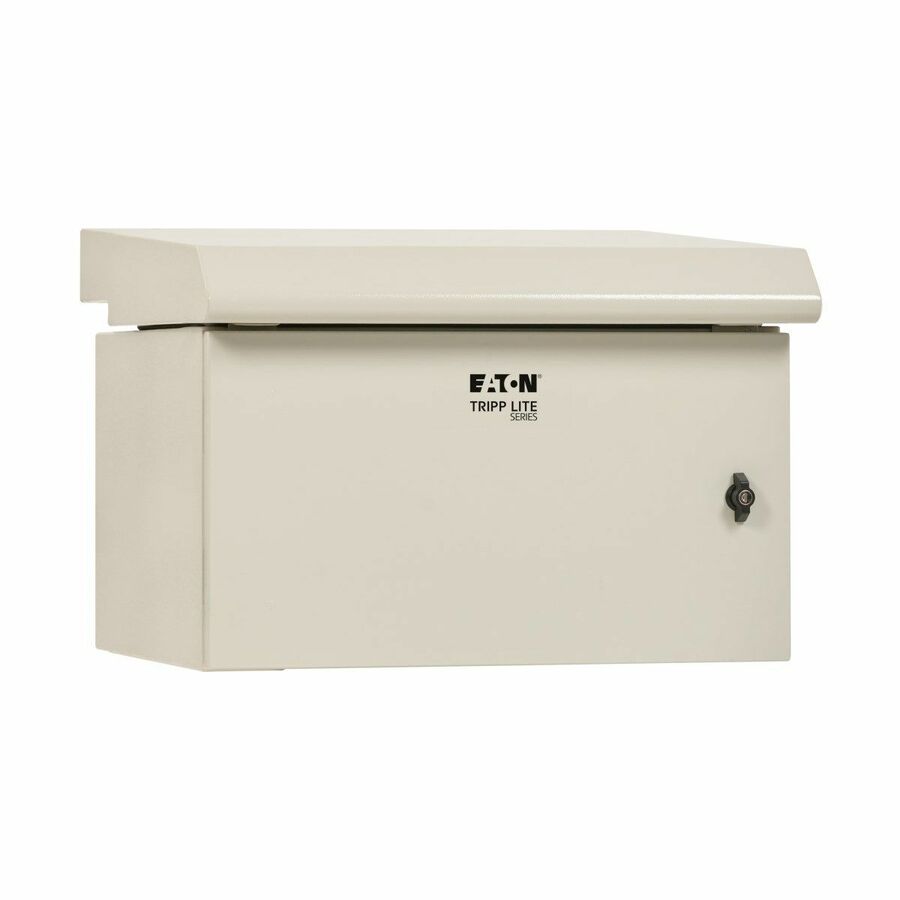

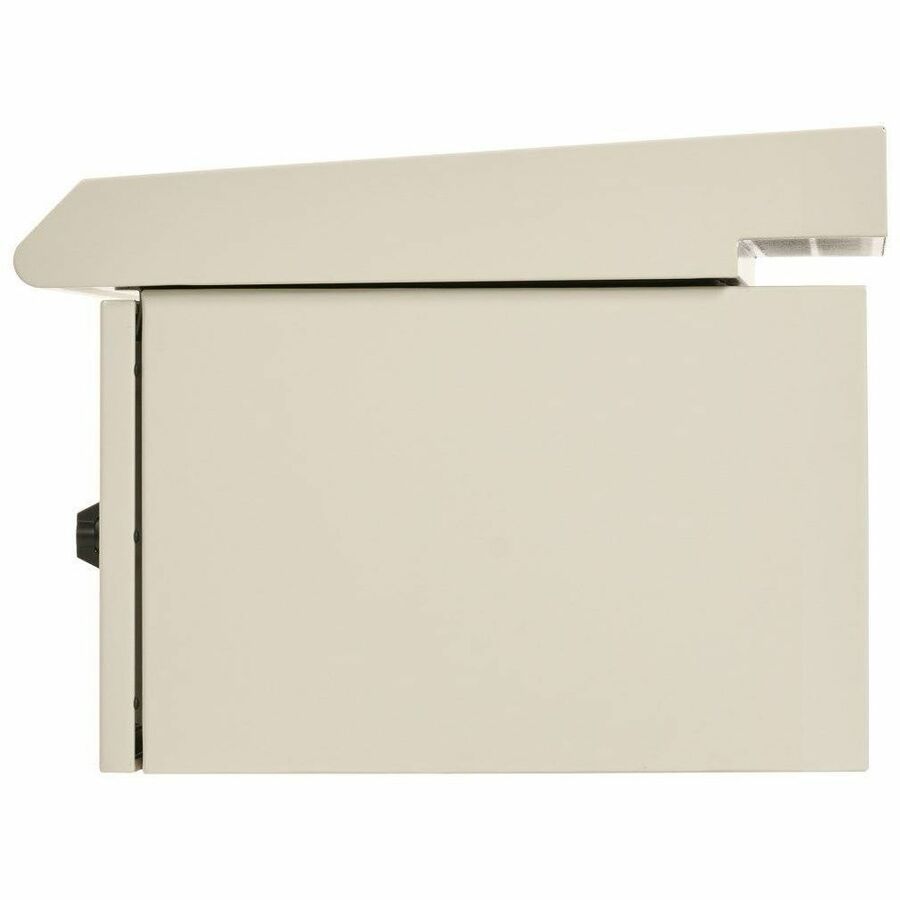

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep
This SmartRack® industrial enclosure is designed to house 9U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG9US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG9US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

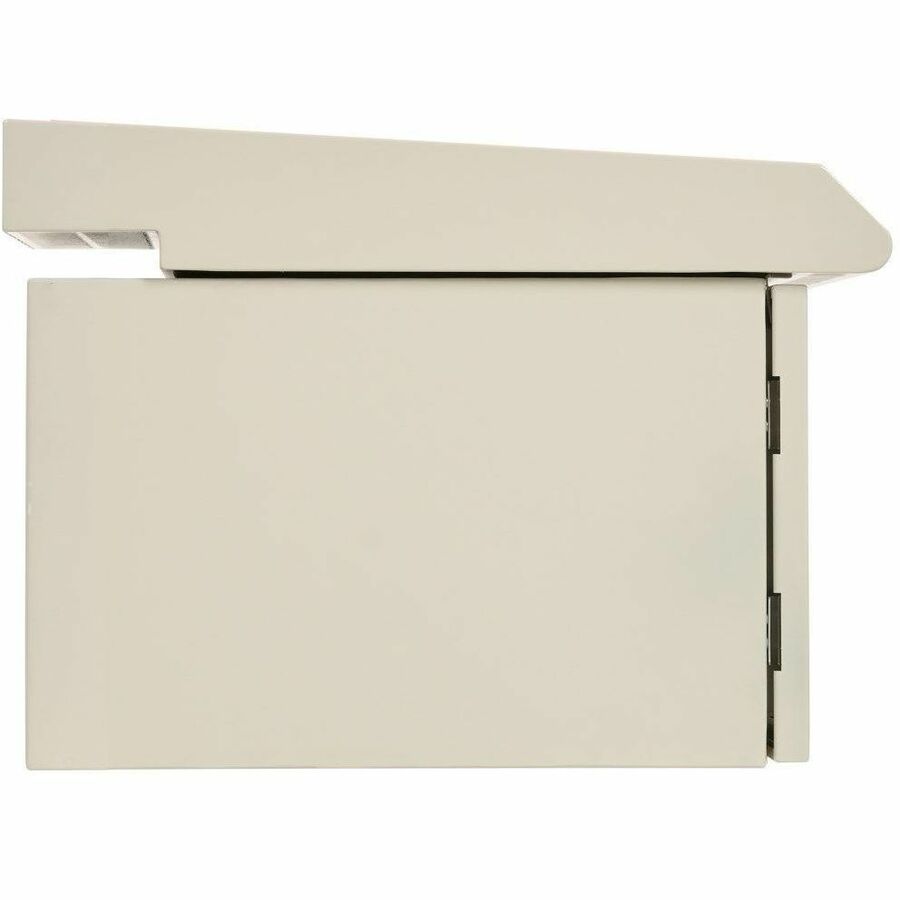

Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 9U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN3RG9US |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRN3RG9US |
| Product Name | SmartRack SRN3RG9US Rack Mount Enclosure |
| Product Type | Rack Mount Enclosure |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Gray |
| Product Color | Gray |
| Product Material | Metal, Steel |
| Maximum Weight Capacity | 200 lb |
| Static/Stationary Weight Capacity | 200.62 lb |
| Height | 23.2" |
| Width | 25.2" |
| Depth | 32.1" |
| Rack Height | 9U |
| Rack Depth | 28" |
| Weight (Approximate) | 131.18 lb |
| Power Description | |
| Plug/Connector Type | NEMA 5-15P |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | DVR, Switch, PDU, Patch Panel, UPS, Computer, Server |
| Features | Snow Resistant, Moisture Resistant, Lockable Door, Damage Resistant, Tamper Resistant, Anti-theft, Cable Management, Adjustable Mounting Rails, Debris Resistant, Heavy Duty, Rain Resistant, Water Resistant |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
