Eaton Tripp Lite Series SmartRack Roof-Mounted Fan Panel for Wide Rack Enclosure Cabinets - 6 120V Fans, 630 CFM, 5-15P Plug

6 Fan - 120 V AC30" - 630 CFMRack Mount, Roof Mount - Black

SKU: SRFANROOFWD
Category: Fan Trays

MSRP$507.07

$330.71

Save 35%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SRFANROOFWD
Category: Fan Trays

Overview

Rack Cooling Fans for 30 in. Wide Enclosures

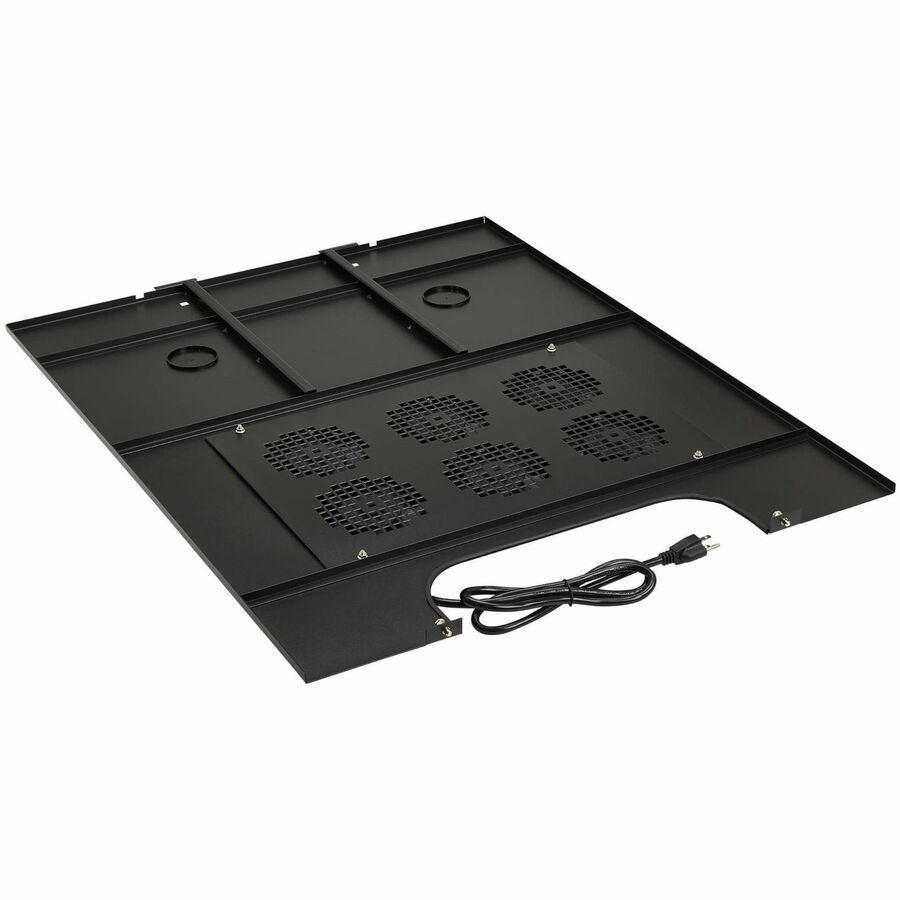

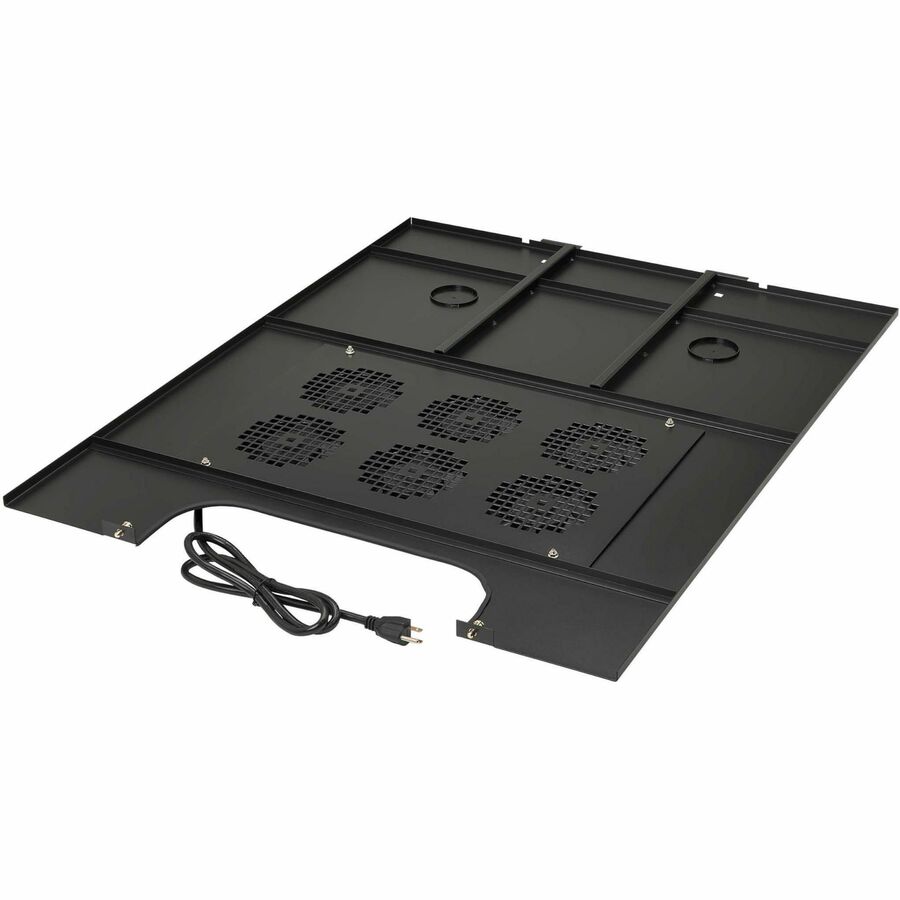

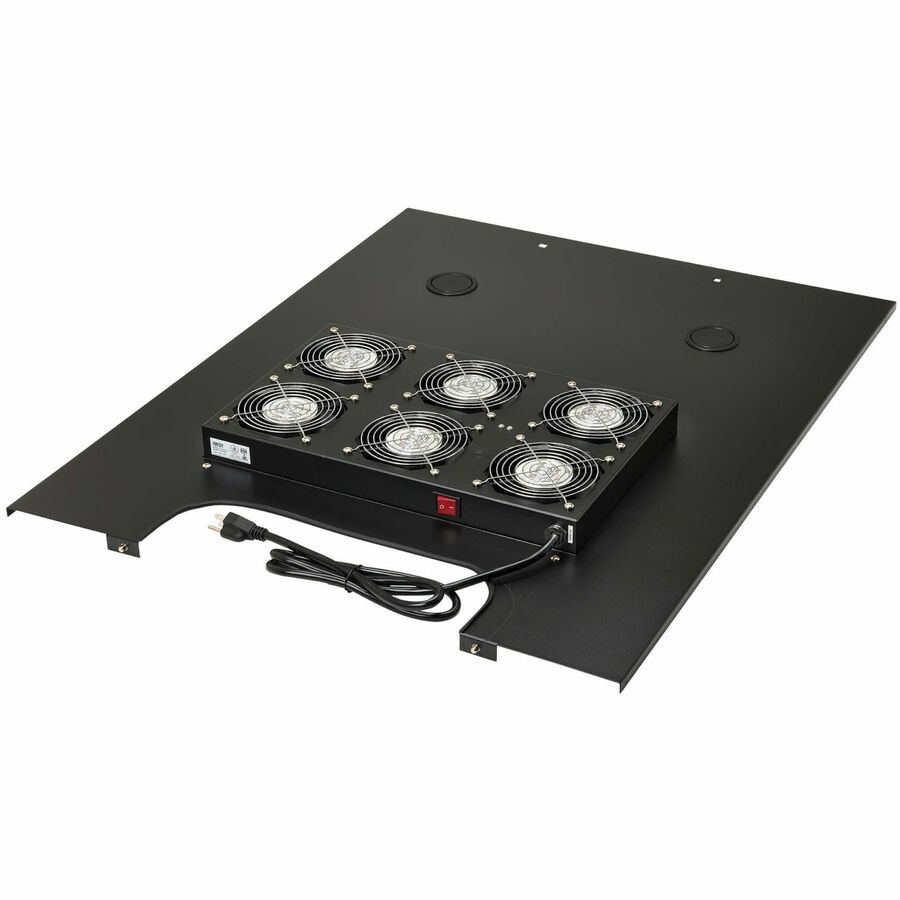

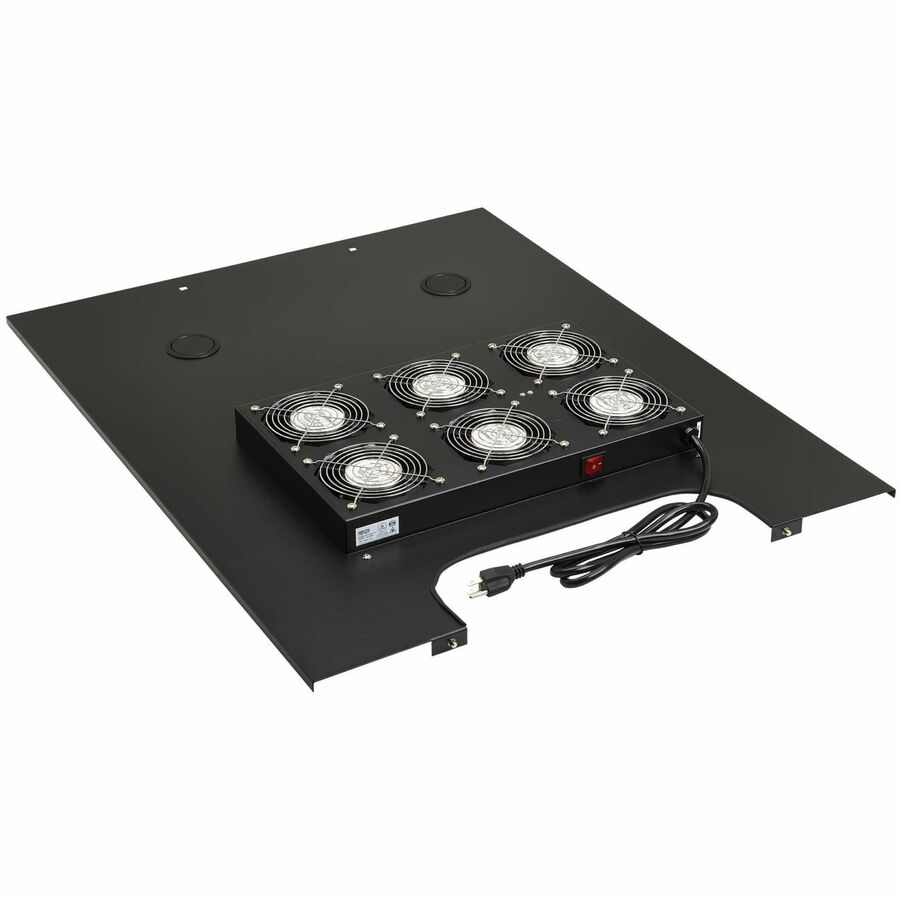

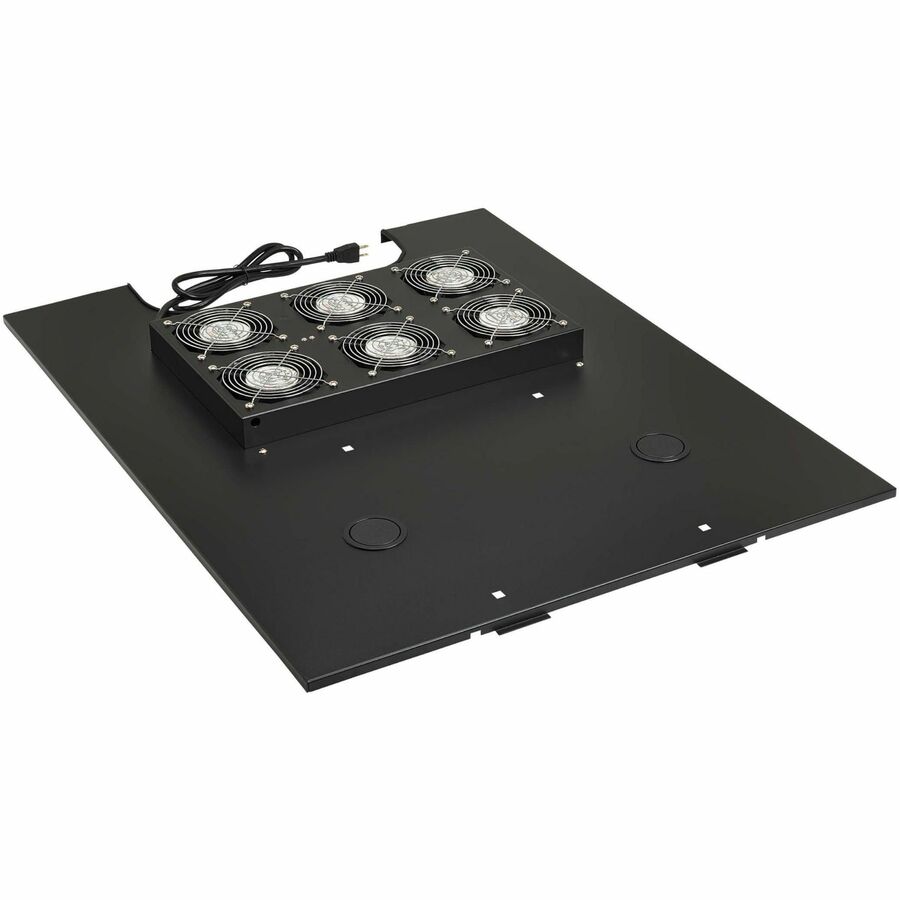

The SmartRack® SRFANROOFWD is a roof-mounted panel containing six 120V high-performance fans. Designed specifically for SmartRack's 30-inch-wide rack enclosures, these fans help keep rack-mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss. The SRFANROOFWD removes warm air at rates up to 630 CFM.

Plug-and-Play Construction for Easy Installation

All necessary toolless mounting hardware is included. The SRFANROOFWD is made from heavy-duty cold-rolled steel with a black finish. The six-foot power cord with NEMA 5-15P plug connects to any compatible wall outlet, PDU or UPS system.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Helps boost rack equipment performance by increasing airflow through the enclosure
Includes 6 high-performance 630 CFM fans pre-mounted in cold-rolled steel roof panel
Plug-and-play operation with all necessary toolless mounting hardware included
Specially designed for 30 in. wide SmartRack enclosures for AI servers
2-year limited warranty

Specifications

Application/Usage	Wall Outlet, PDU, UPS System, Rack
Package Contents	SmartRack SRFANROOFWD Fan Tray Mounting Hardware
Product Type	Fan Tray
Input Voltage	120 V AC
Manufacturer Part Number	SRFANROOFWD
Limited Warranty	2 Year
Weight (Approximate)	20 lb
Manufacturer	Eaton Corporation
Product Model	SRFANROOFWD
Product Name	SmartRack SRFANROOFWD Fan Tray
Mount Type	Rack Mount, Roof Mount
Product Line	SmartRack
Brand Name	Tripp Lite series
Country of Origin	China
Height	2.7"
Width	27.8"
Depth	35.5"
Number of Fans	6
Compatible Rack Width	30"
Maximum Air Flow	630 CFM
Product Color	Black
Color Family	Black
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
