Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Fan Trays
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
This cold-rolled steel SmartRack® blanking panel with a black powder-coated finish fills 3U of unused space in your EIA-standard 19-inch rack. Not only does this give your rack a sleek, clean look, but it also protects your valuable equipment by improving airflow and cooling efficiency. This reduces operating costs, improves performance and provides longer lifespans for your equipment.
High-Performance Fans Keep Equipment Cool in Crowded Server Rack Enclosures
Two built-in four-inch 12VDC fans mount into the rack and pull cool air from the outside. The included 12V DC power supply features a six-foot cord and NEMA 1-15P plug that connects to an AC wall outlet, PDU or UPS system.
Helps You Precisely Measure Your Rack Temperature, Even High Up
The SRFAN3UTEMP can help you notice hot spots at any section of your rack with the included temperature sensor. The six-foot sensor reaches every crack and crevice within your rack and finds hot spots that need to be cooled with the fans. The sensor accurately measures the rack temperature within 2°F and 1°C and a range of -58°-302°F and -50°-150°C.

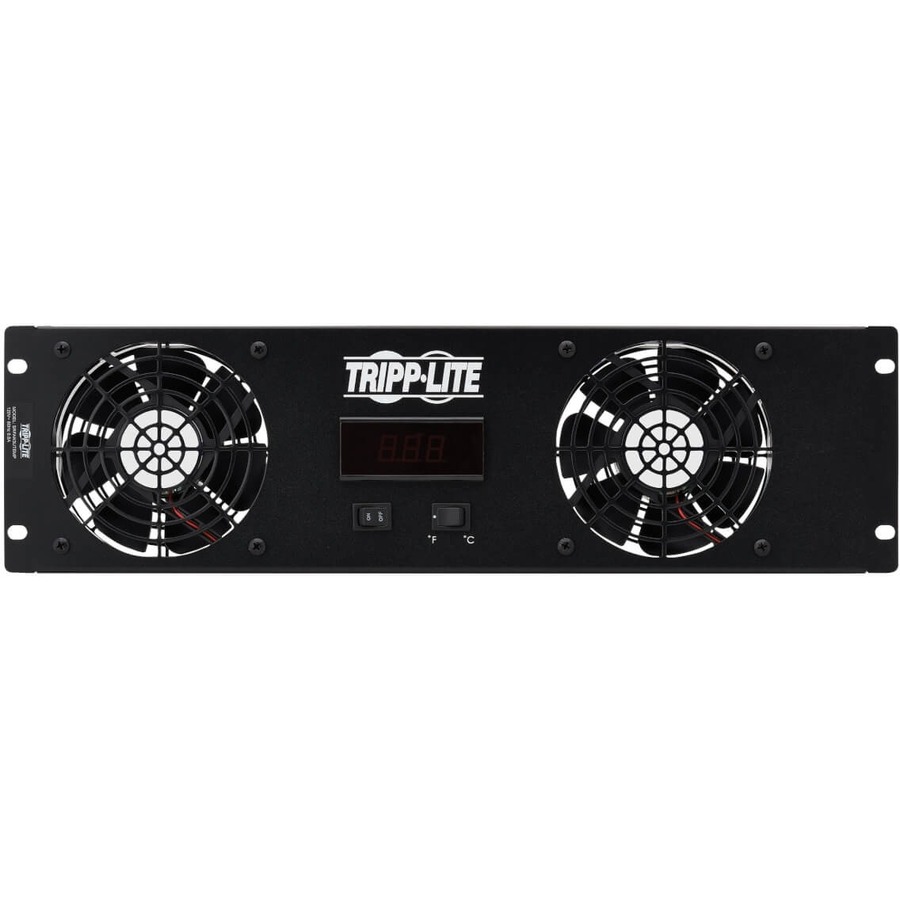

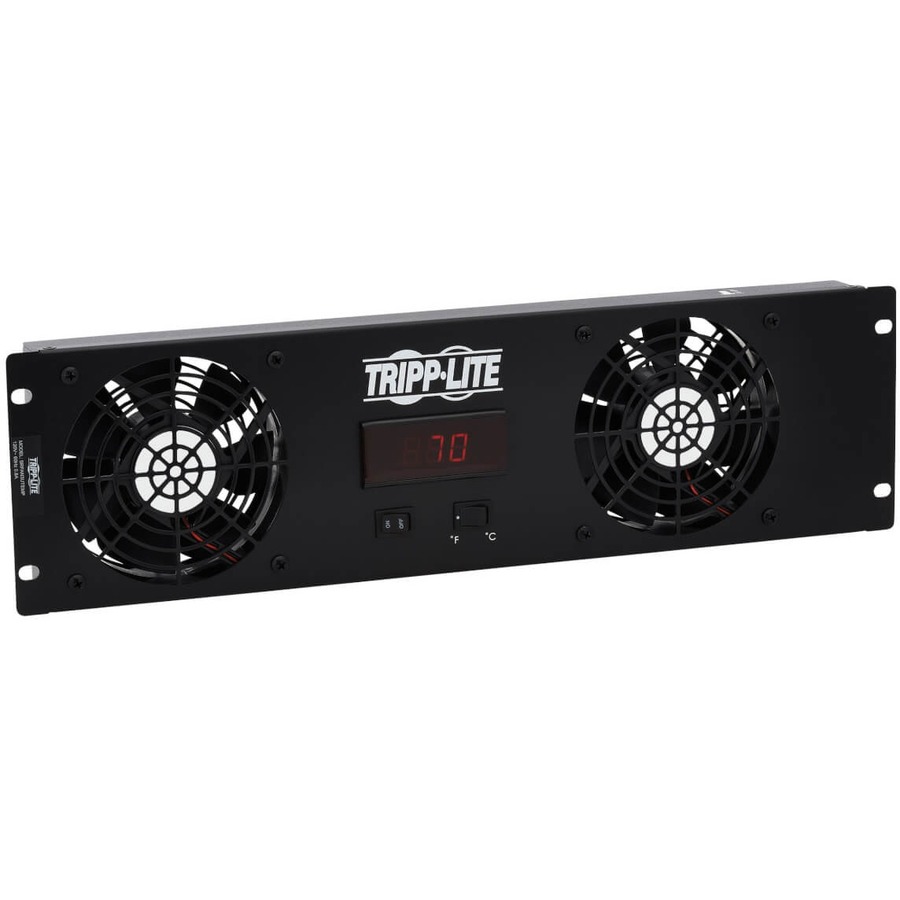

LCD Indicator Lets You Keep a Close Watch on Environmental Changes
A front-panel LCD lets you monitor the rack temperature in either Fahrenheit or Celsius. One front rocker switch flips between °F and °C. The other turns the SRFAN3UTEMP on and off.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Cools rack equipment to boost system performance and avoid costly downtime
Pre-installed high-performance 4 in. 12VDC fans pull cool air in through the rack
Included temperature sensor identifies hot spots within the rack up to 6-ft. (1.83 m) away
Front-panel LCD displays rack temperature in Fahrenheit or Celsius
Mounts easily into 3U of space in your EIA-standard 19 in. rack enclosure
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
SRFAN3UTEMP
Brand Name
Tripp Lite series
Product Model
SRFAN3UTEMP
Product Name
SRFAN3UTEMP Fan Tray
Product Type
Fan Tray
Physical Characteristics
Color Family
Black
Product Color
Black
Compatible Rack Height
3U
Compatible Rack Width
19"
Height
5.2"
Width
18.9"
Depth
2.6"
Weight (Approximate)
5.11 lb
Technical Information
Number of Fans
2
Maximum Air Flow
202.6 CFM
Warranty
Limited Warranty
2 Year
Miscellaneous

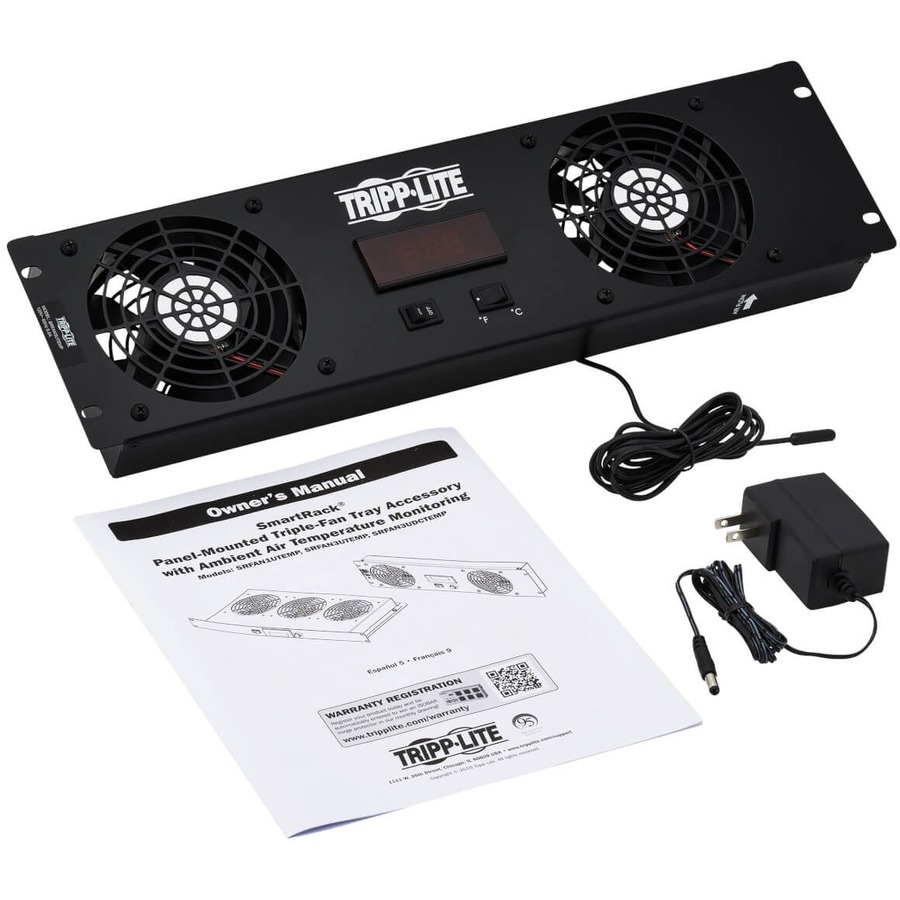

Package Contents
SRFAN3UTEMP Fan Tray
Temperature Sensor
12V DC Power Supply with 6 ft. Cord and NEMA 1-15P Plug
