1 x HDMI Female Digital Audio/Video - 1 x HDMI Female Digital Audio/Video - 3840 x 2160 Supported - Black
MSRP$58.28
$25.04
Save 57%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
IP67-rated coupler connects two industrial 4K HDMI cables in tough environments that need protection against dust and moisture.
Industrial HDMI Coupler Recommended for Outdoor or Harsh Indoor Environments
This 4K HDMI coupler is ideal for connecting industrial-grade high-speed HDMI cables in outdoor applications and other areas where protection from harsh elements is essential, such as factories and warehouses. The industrial bulkhead adapter and two female HDMI connectors are designed to withstand dust, debris and moisture that could threaten your IT infrastructure. An included dust cap protects the connectors when they aren't in use
IP68 Rating Denotes Resistance to Dust and Water

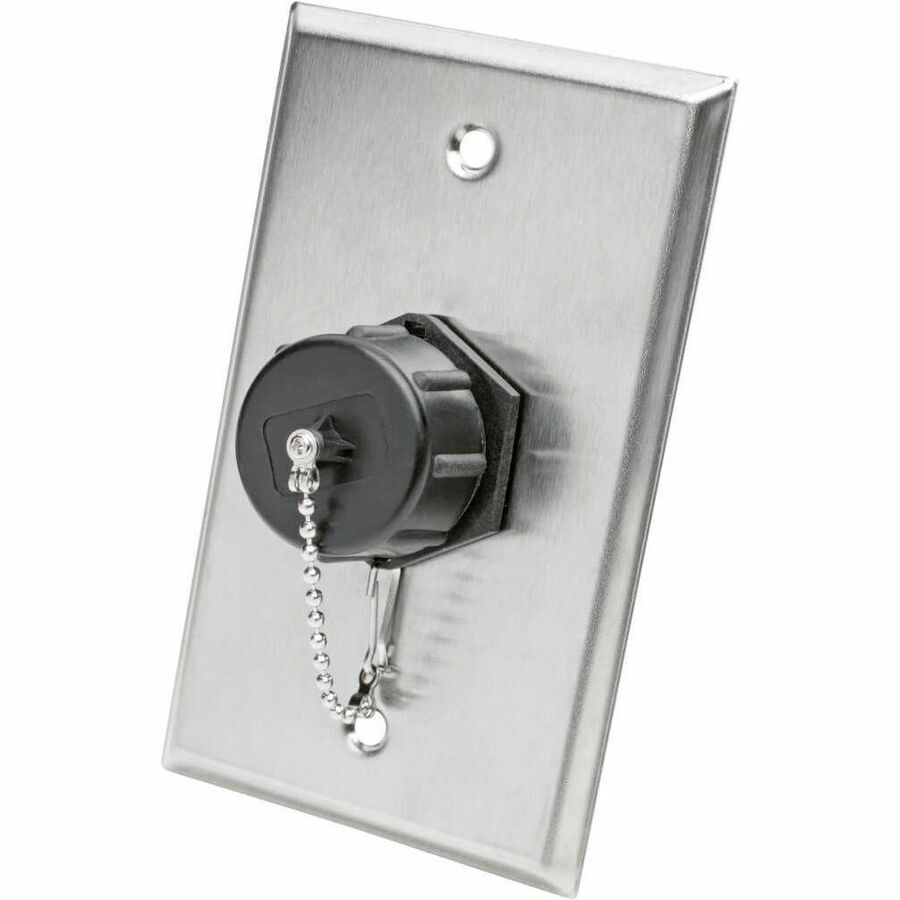

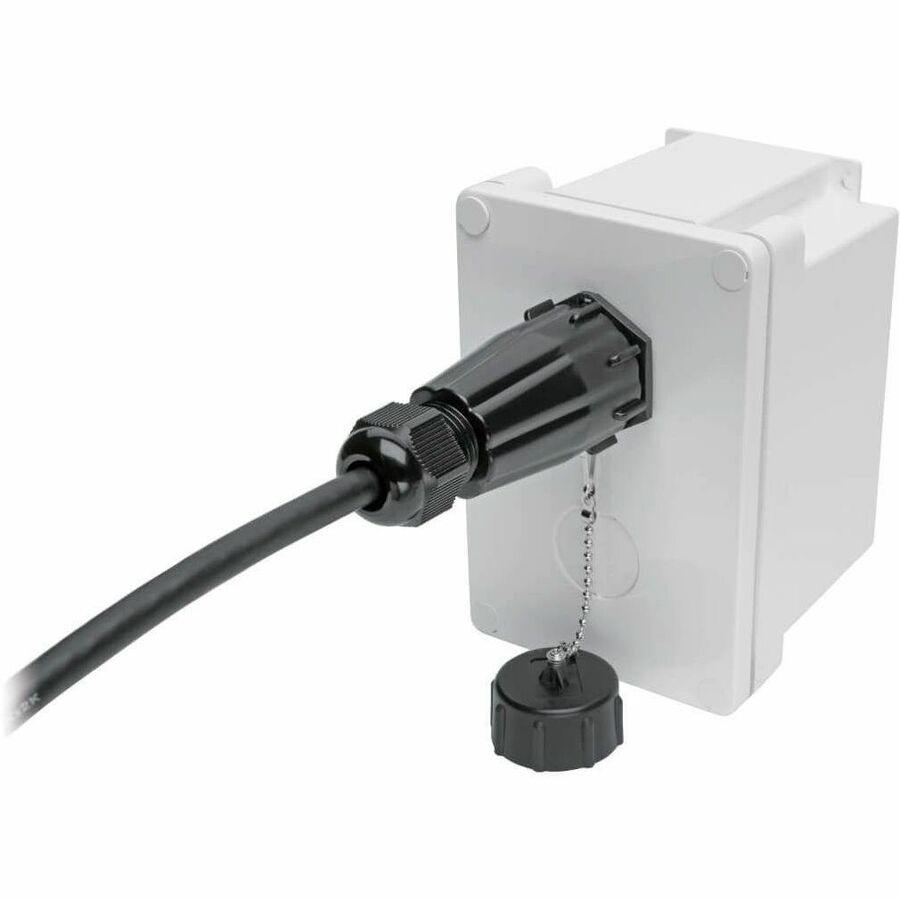

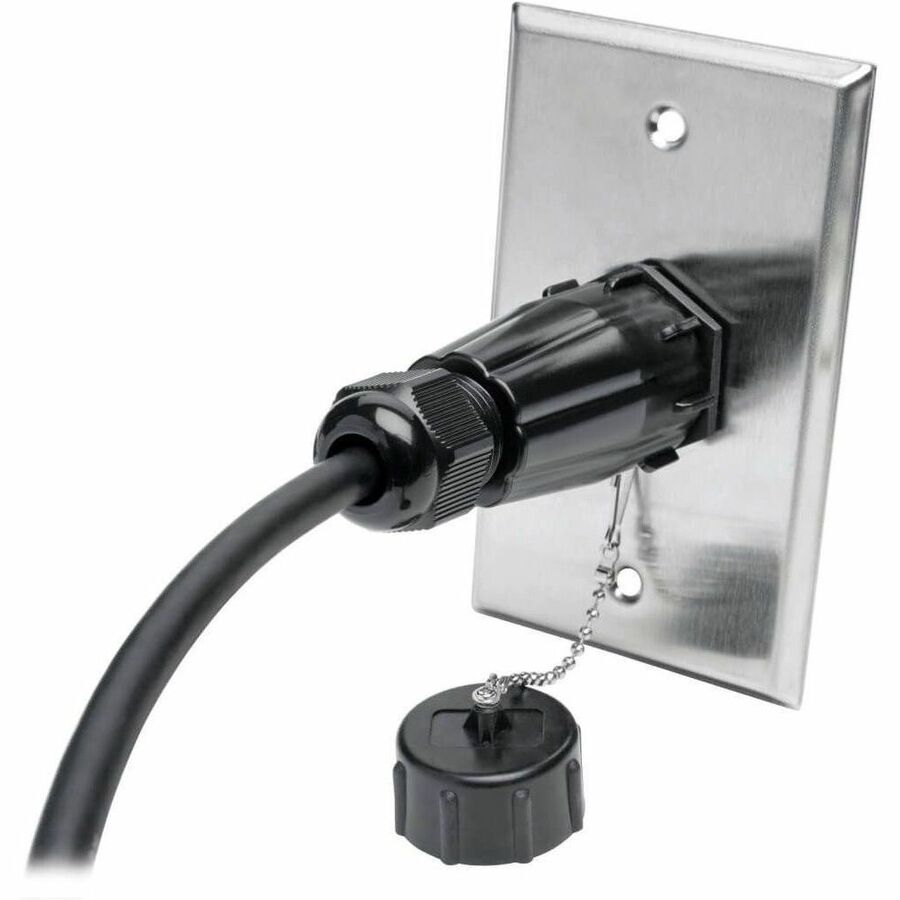

The IP68 rating means the HDMI coupler is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance, making the coupler ideal for basement applications. For applications that require IP68 protection, use the coupler with a Tripp Lite N206-SB01-IND surface-mount box and P569-Series 4K/60Hz HDMI cables. If only IP44 protection against splashing water from all directions is required, pair the coupler with an N206-FP01-IND, N206-FP02-IND or N206-FP04-IND wall plate and the P569-Series cables.
Enjoy the Clarity of True 4K HDMI 2.0 Video with Multi-Channel Audio and 4:4:4 Color
This 4K HDMI coupler supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz for crystal-clear picture and sound. It's compatible with HDCP 2.2 and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming. The coupler is backward compatible with previous HDMI generations, allowing you to use it to connect lowerresolution components.
More from the Manufacturer
Tripp Lite P569-000-FF-IND Product Summary
Industrial-grade coupler connects two industrial 4K HDMI cables
Protects high-speed HDMI audio/video applications in harsh environments
IP68-rated to resist dust and endure immersion in 1.5 m of water up to 60 min.
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Supports true 4:4:4 chroma subsampling for HDR-compatible televisions
Recommended for factories, warehouses and other areas where protection from harsh elements is essential
HDMI Coupler Ideal for Connecting Industrial-Grade Cabling in Severe Environments

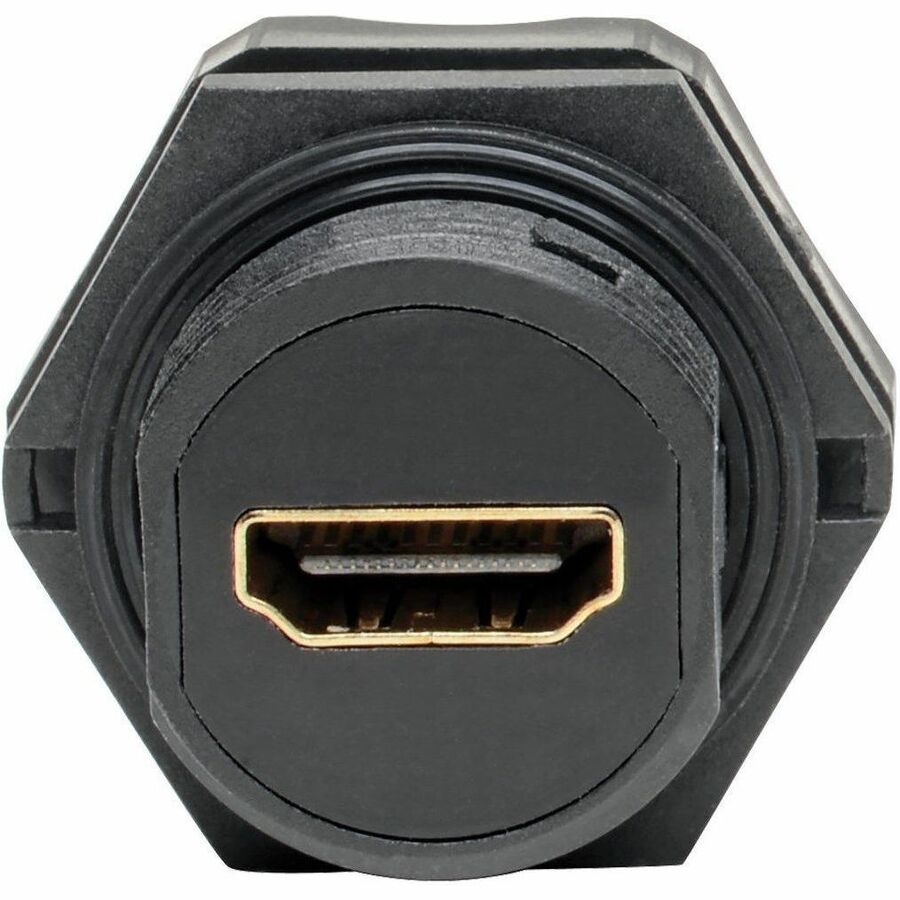

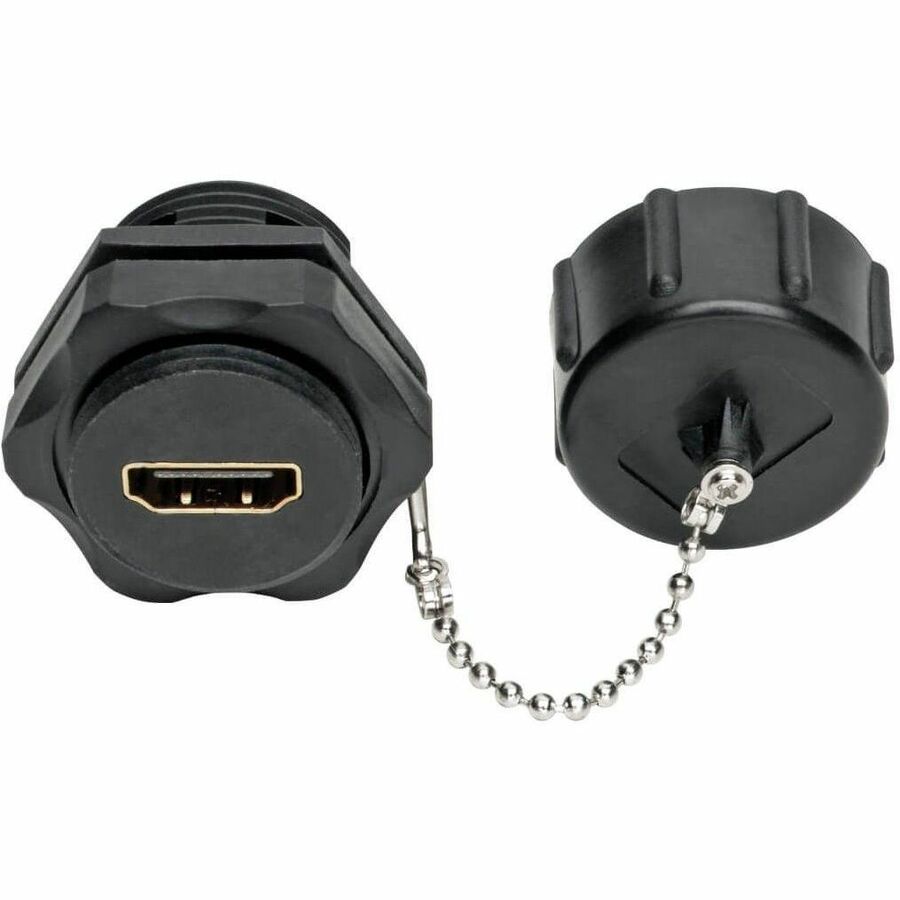

The Tripp Lite P569-000-FF-IND 4K HDMI coupler connects industrial-grade high-speed HDMI cables in outdoor applications and other areas where protection from harsh elements is essential, such as factories and warehouses. The industrial bulkhead adapter features two female HDMI connectors. It is designed to withstand dust, debris and moisture that could threaten your IT infrastructure. An included dust cap protects the connectors when they aren’t in use.
Typical Applications
Provide 4K HDMI connectivity in outdoor environments susceptible to rain, such as a stadium or outdoor arena
Set up outdoor digital signage at malls, theaters and bus stops
Organize a high-speed video gaming setup in a basement
Connect a security camera or other A/V surveillance equipment to a network
Provides 4K HDMI Video with Multi-Channel Audio and True 4:4:4 Color
This 4K HDMI coupler supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz for crystal-clear picture and sound. It’s compatible with HDCP 2.2 and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports true 4:4:4 chroma subsampling for top-level PC gaming. The coupler is backward compatible with previous HDMI generations, allowing you to use it to connect lower-resolution components.
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Product Type | A/V Adapter |
| Manufacturer Part Number | P569-000-FF-IND |
| Limited Warranty | Lifetime |
| Features | HDCP 2.2 |
| Manufacturer | Eaton Corporation |
| Product Model | P569-000-FF-IND |
| Product Name | P569-000-FF-IND 4K HDMI Coupler with Ethernet, 4K x 2K, Industrial High Speed |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Female |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Adapter Type | HDMI |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x HDMI HDMI 2.0 Digital Audio/Video Female |
| Connector on Second End Details | 1 x HDMI HDMI 2.0 Digital Audio/Video Female |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
