24 V DC Output - 1 x RJ-45 Input Port(s) - 1 x RJ-45 Output Port(s) - 65 W
MSRP$344.00
$246.15
Save 28%In stock: 99
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

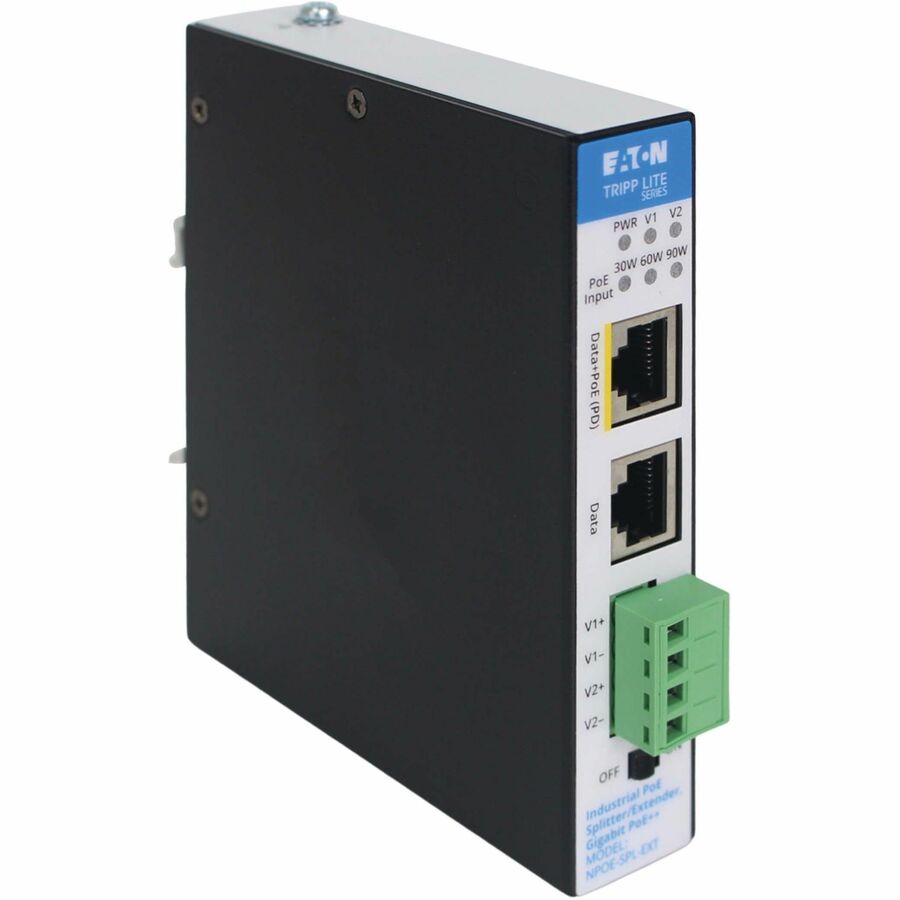

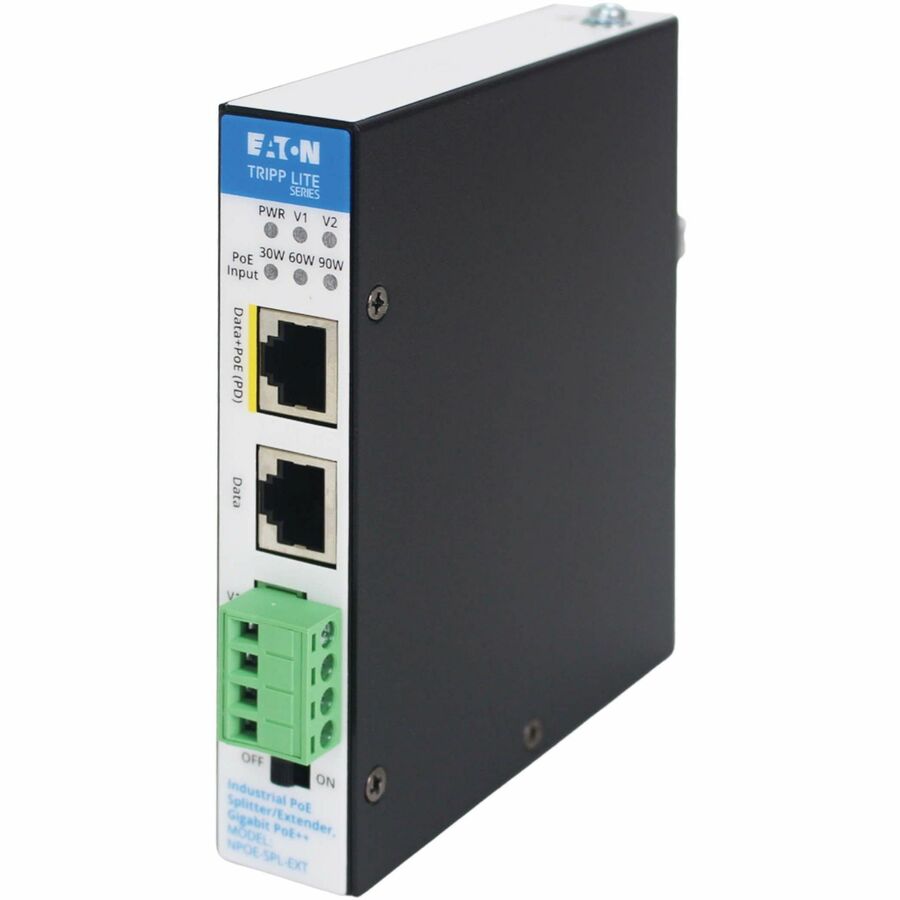

Eaton's Tripp Lite series industrial PoE++ splitter/extender brings power and connectivity to non-PoE devices in demanding environments. By splitting a high-power 802.3bt PoE signal into 24 VDC power and Gigabit data outputs, this plug-and-play splitter enables flexible, cost-effective network expansion without additional electrical wiring or specialized technical expertise.
The splitter (model NPOE-SPL-EXT) connects to a compatible PoE switch or injector up to 100 meters (328 feet) away. For best performance, pair with an Eaton industrial PoE++ injector (model NPOEI-90W-1G).
Gigabit Ethernet connections
• Auto-negotiating Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports enable high-speed data transmission.
• MDI/MDIX crossover detection allows the RJ45 ports to automatically detect and choose the connection required without using special crossover cables for uplinks.
Flexible 24 VDC output
• This splitter converts PoE input into 24 VDC output to power non-PoE devices. This provides placement flexibility because it eliminates the need for AC outlets in device locations, saving the expense and effort of powering devices with individual power supplies.
• Compliant with IEEE 802.3af/at/bt standards, the splitter delivers up to 65 watts of power to meet the needs of modern industrial hardware.
• An on/off switch eliminates the need to plug and unplug a PoE cable and helps mitigate power inrush, which can negatively affect devices.
Intuitive local monitoring

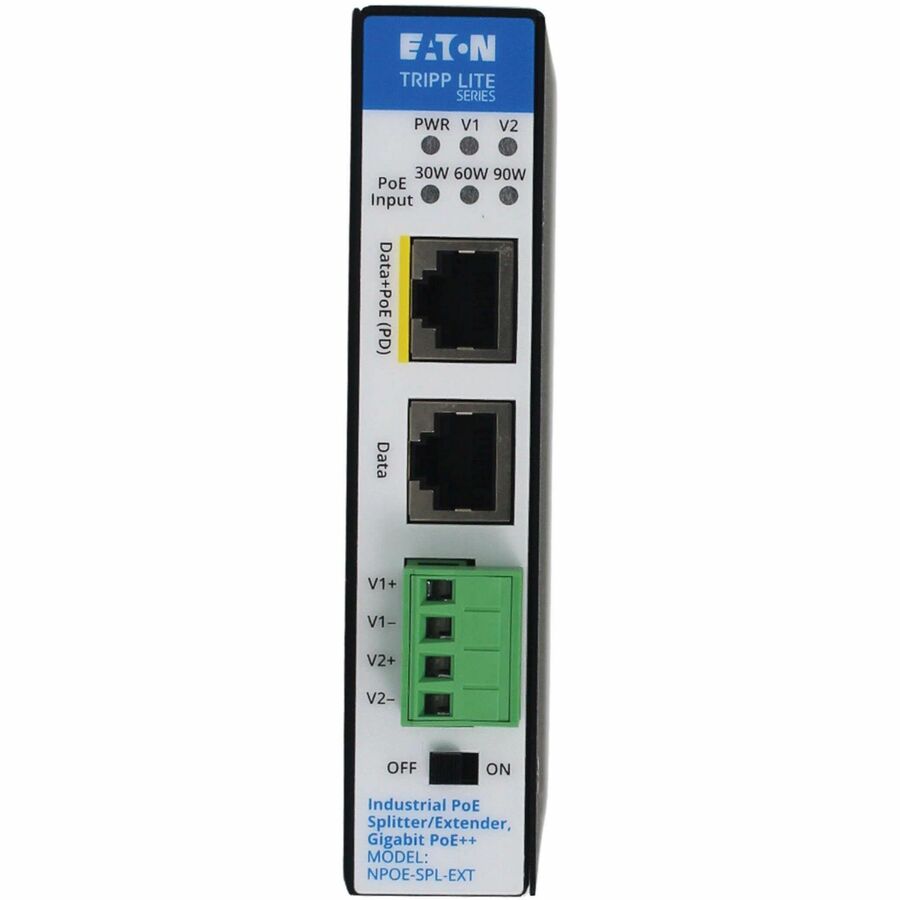

LEDs indicate system power status and PoE input wattage.
Designed for industrial environments
• Ruggedized metal case withstands vibration, shock and free fall. IP30 rating indicates protection from tools and wires with a diameter of 2.5 millimeters or greater.
• Wide operating temperature range allows equipment to function in cold and hot environments.
• ESD protection reduces potential static damage to connected equipment.

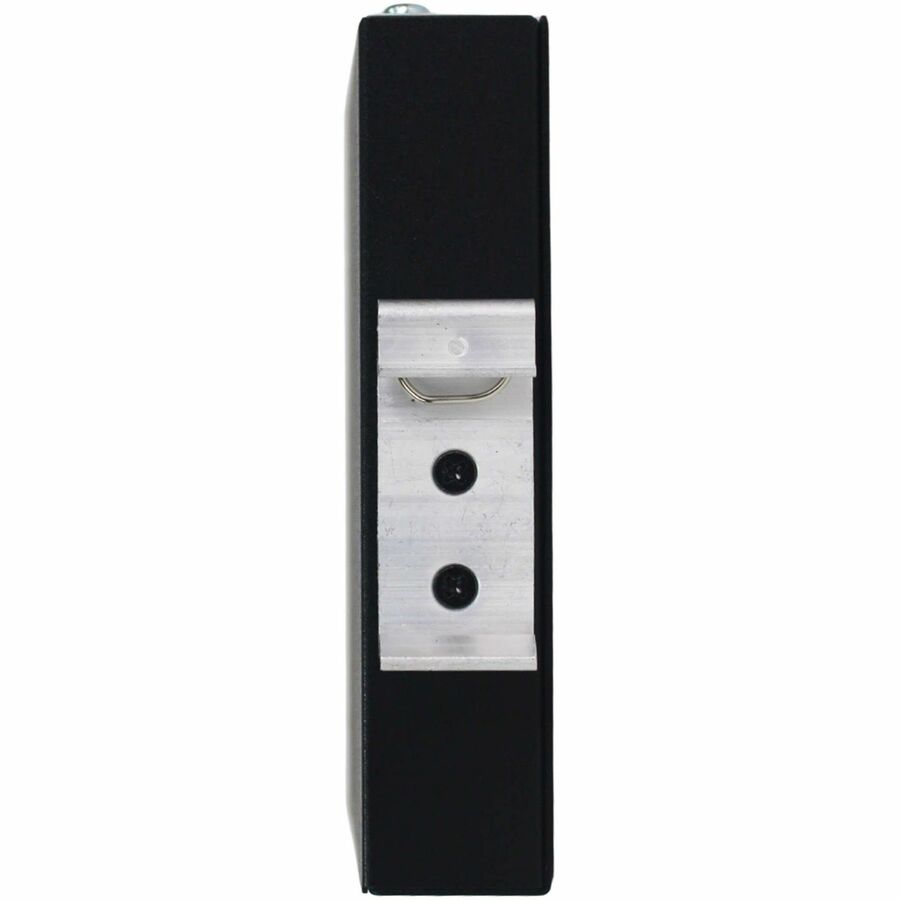

• Pre-installed rail clip mounts to a standard 35 mm DIN rail in cabinets or control panels.
Enhanced protection
Built-in short-circuit protection and overload protection safeguard connected equipment.
TAA compliance
The splitter complies with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NPOE-SPL-EXT |
| Brand Name | Tripp Lite series |
| Product Model | NPOE-SPL-EXT |
| Product Name | Industrial Gigabit Ethernet PoE++ Splitter/Extender |
| Product Type | PoE++ Splitter/Extender |
| Interfaces/Ports | |
| Input Ports | 1 x RJ-45 |
| Output Ports | 1 x RJ-45 |
| Physical Characteristics | |
| Form Factor | Din Rail |
| Height | 1" |
| Width | 4.6" |
| Depth | 3.9" |
| Weight (Approximate) | 10.24 oz |
| Power Description | |
| Maximum Output Voltage | 24 V DC |
| Maximum Output Power | 65 W |
| Technical Information | |
| Protection Type | Overload Protection, Short Circuit, ESD Protection |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Certifications & Standards |
|
| TAA Compliant | Yes |
