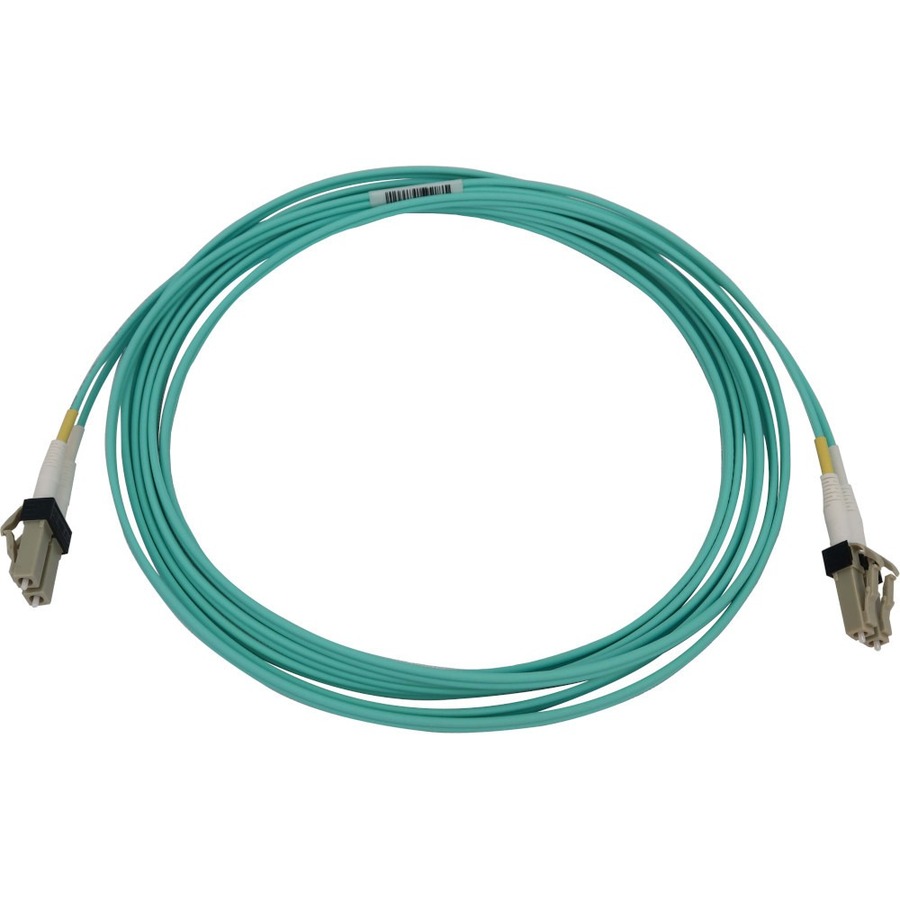

Eaton Tripp Lite Series 400G Multimode 50/125 OM3 Switchable Fiber Optic Cable (Duplex LC-PC M/M), LSZH, Aqua, 3 m (9.8 ft.)
9.84 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 2 x LC/PC Network - Male - Second End: 2 x LC/PC Network - Male - 400 Gbit/s - LSZH, OFNR - 50/125 µm
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
N820X-03M
Category
Connector Cables
Overview
400 GbE Cable Supports Higher Bandwidths Needed for Next-Generation Data Networking
As the amount of traffic in data networks grows, so does the need for next-gen devices and fiber cables to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM3 cable is an ideal choice for 400G Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

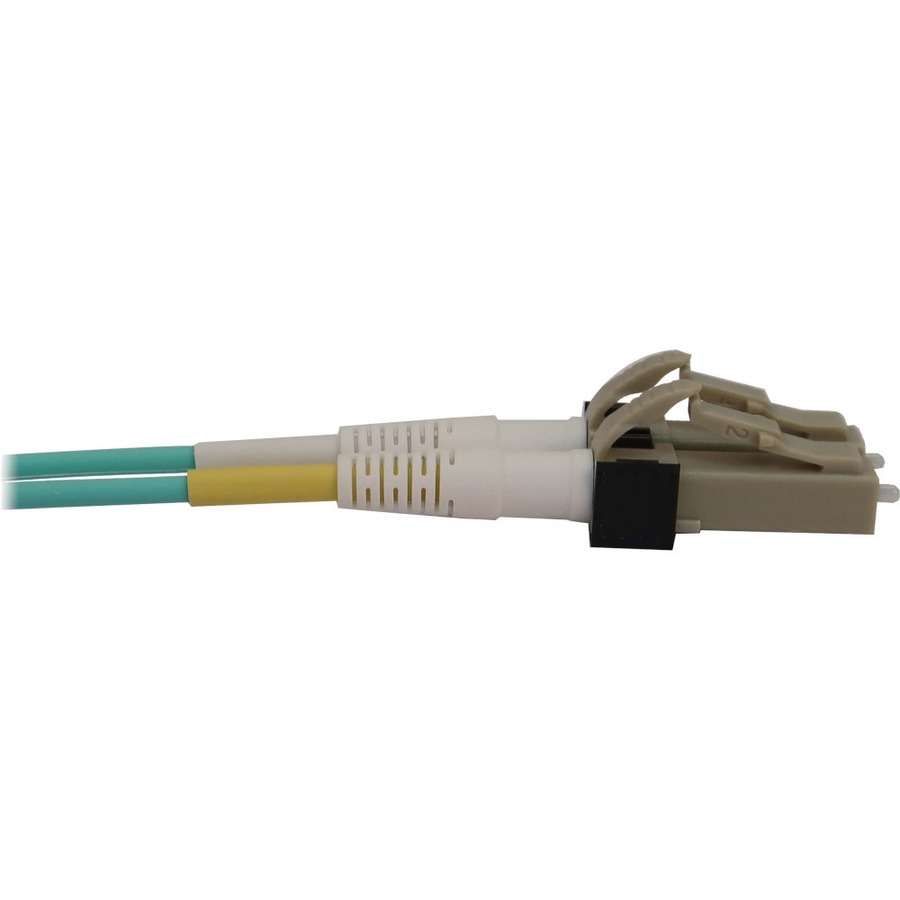

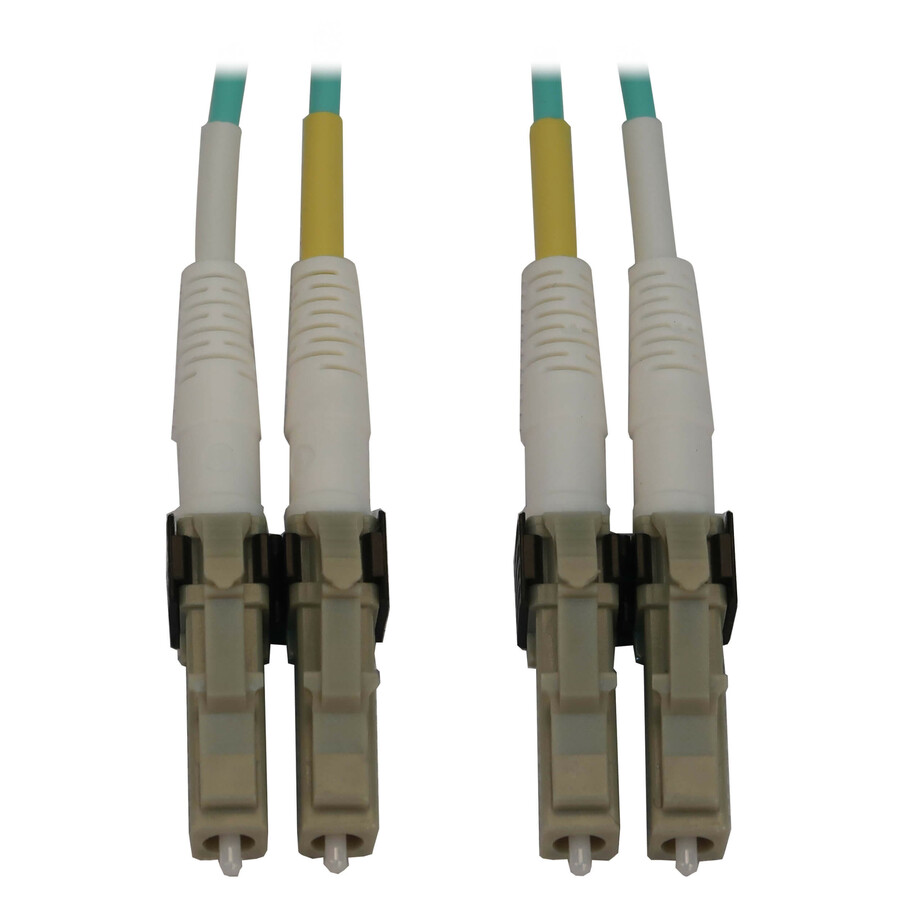

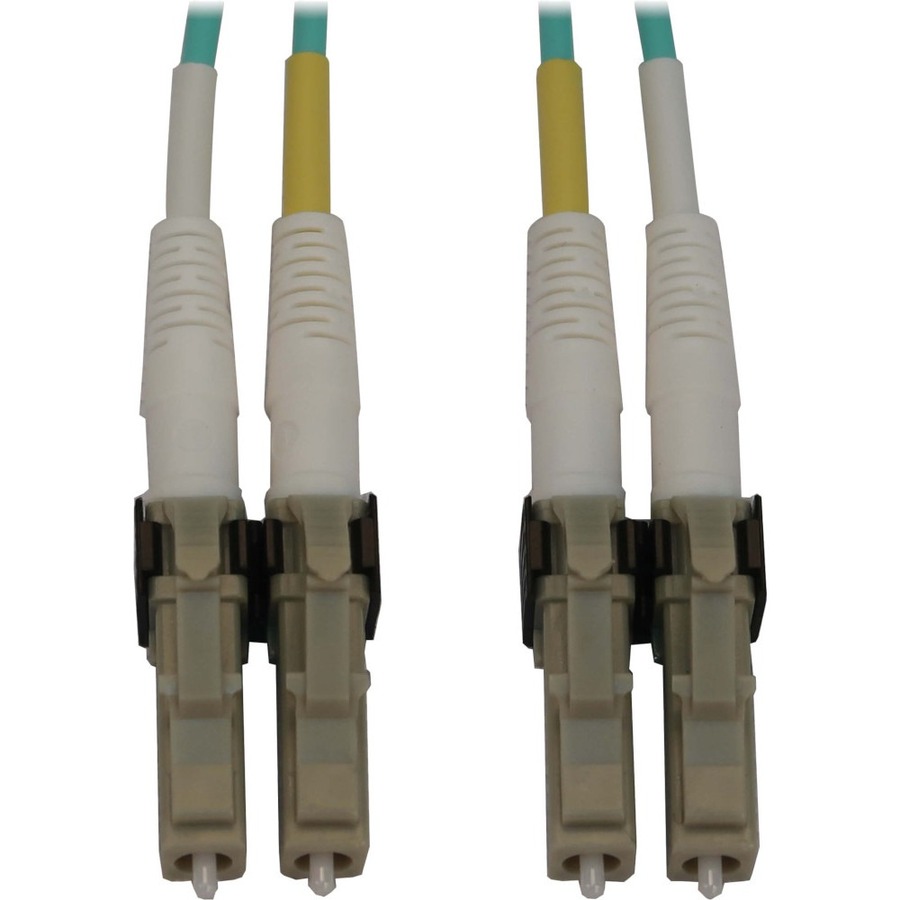

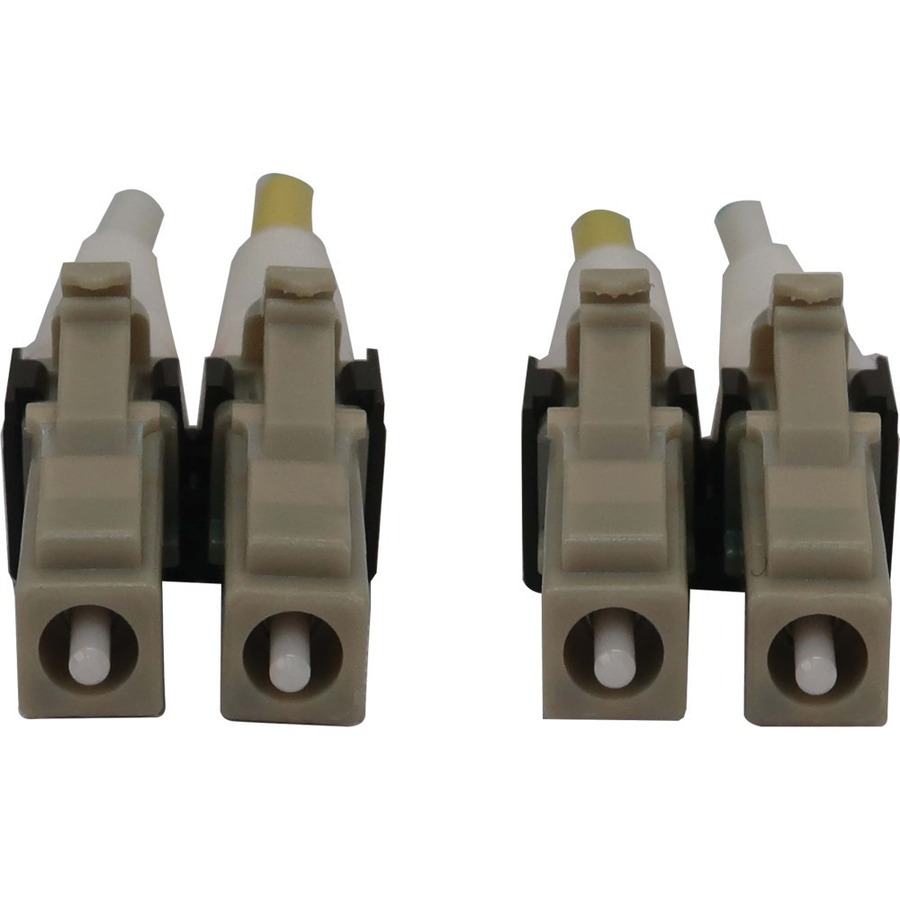

The switchable LC duplex connectors on both ends of the cable let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. This can allow for stacked LC adapters, eliminating the need for dual zip cords and reducing overall bulk cabling in high-density situations. Just remove the clipped piece holding the connector ends together on each side, identify the send and receive ends, and switch the polarity of those ends based on your application needs.
Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
OM3-rated cable recommended for 400 Gb speeds up to 100 meters (@ 850 nm)
Switchable connector ends allow polarity conversion without tools or re-termination
Allows use of stacked LC adapters to increase population density
Backward compatible with 40/100 Gb networks to facilitate future-proofing
Aqua LSZH jacket allows fast, easy identification in a crowded switch or patch panel
Specifications
Cable Length
9.84 ft
Product Type
Network Cable
Data Transfer Rate
400 Gbit/s
Device Supported
Switch, Patch Panel, Network Device
Jacket Type
LSZH, OFNR
Manufacturer Part Number
N820X-03M
Limited Warranty
Lifetime
Features
Bendable
Manufacturer
Eaton Corporation
Product Model
N820X-03M
Product Name
N820X-03M Fiber Optic Duplex Network Cable
Brand Name
Tripp Lite series
Country of Origin
China
Environmentally Friendly
Yes
Cable Type
Fiber Optic
Connector Type on First End
LC/PC Network - Male
Connector Type on Second End
LC/PC Network - Male
Fiber Optic Mode
Multi-mode
Connector on First End Details
2 x LC/PC Network - Male
Connector on Second End Details
2 x LC/PC Network - Male
Jacket Color
Aqua
Connector Color
Beige
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
