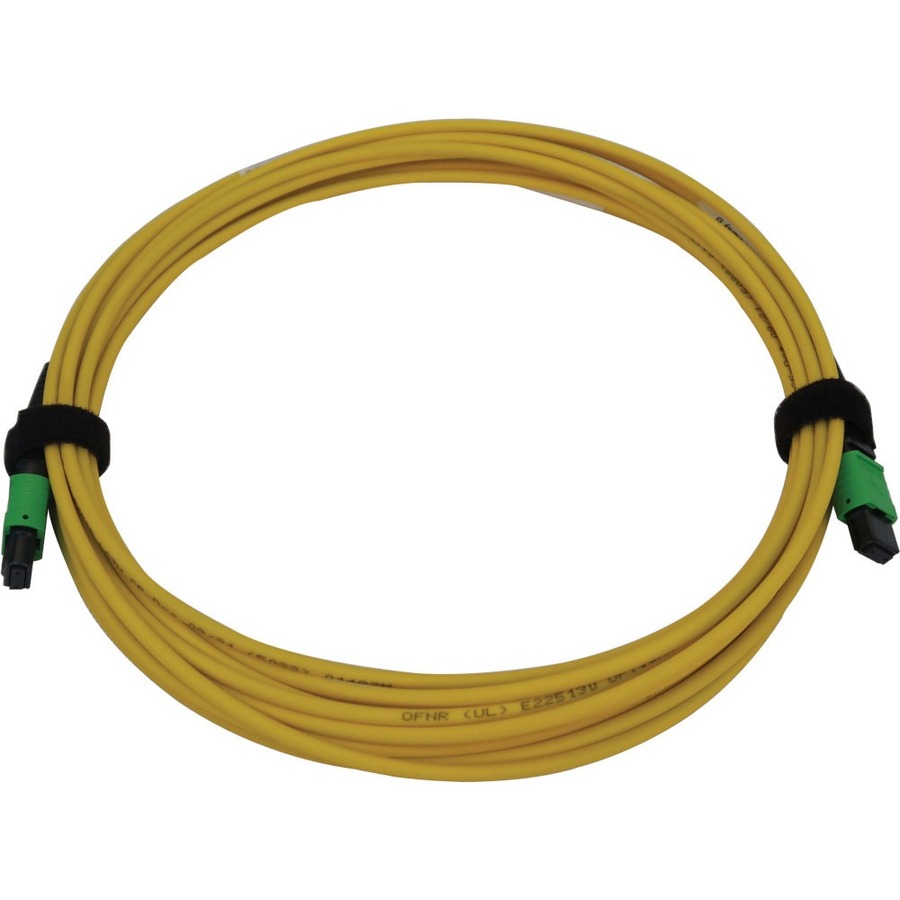

Tripp Lite by Eaton 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (12F MTP/MPO-APC F/F) LSZH Yellow 5 m (16.4 ft.)
16.40 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Network - Female - Second End: 1 x MTP/MPO Network - Female - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Green
SKU
Category
Connector Cables
MSRP$247.47
$227.67
Save 8%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Connector Cables
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
100 GbE Cable Supports Higher Bandwidths Needed for Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection

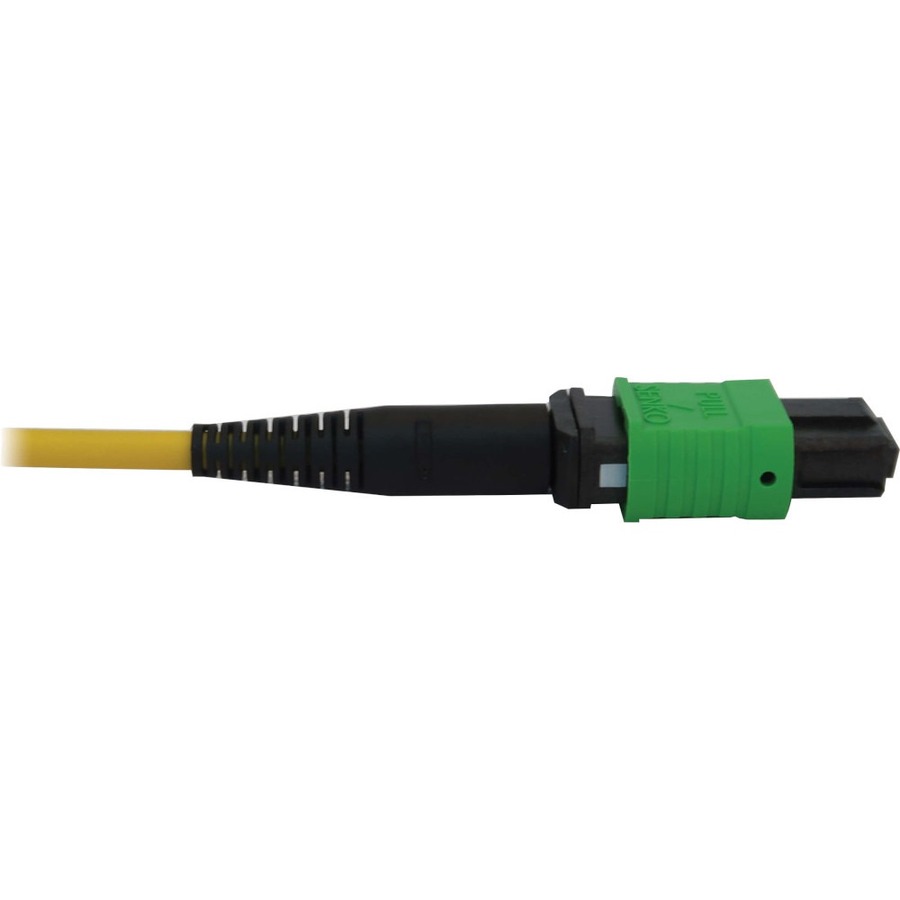

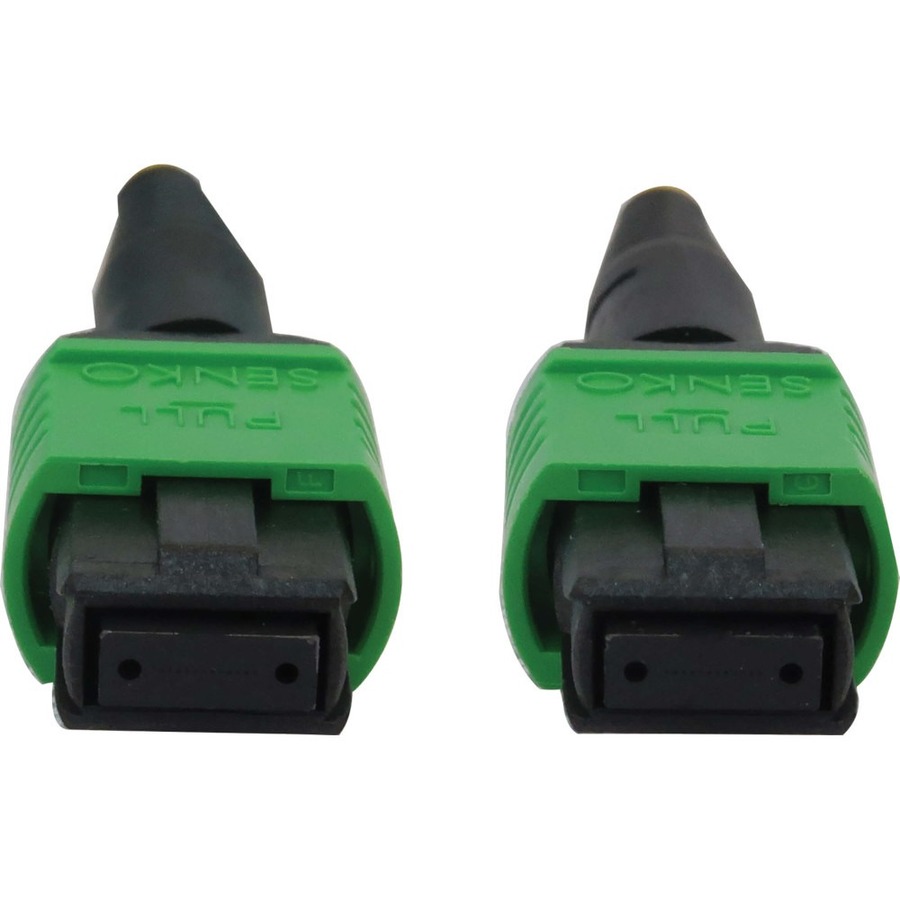

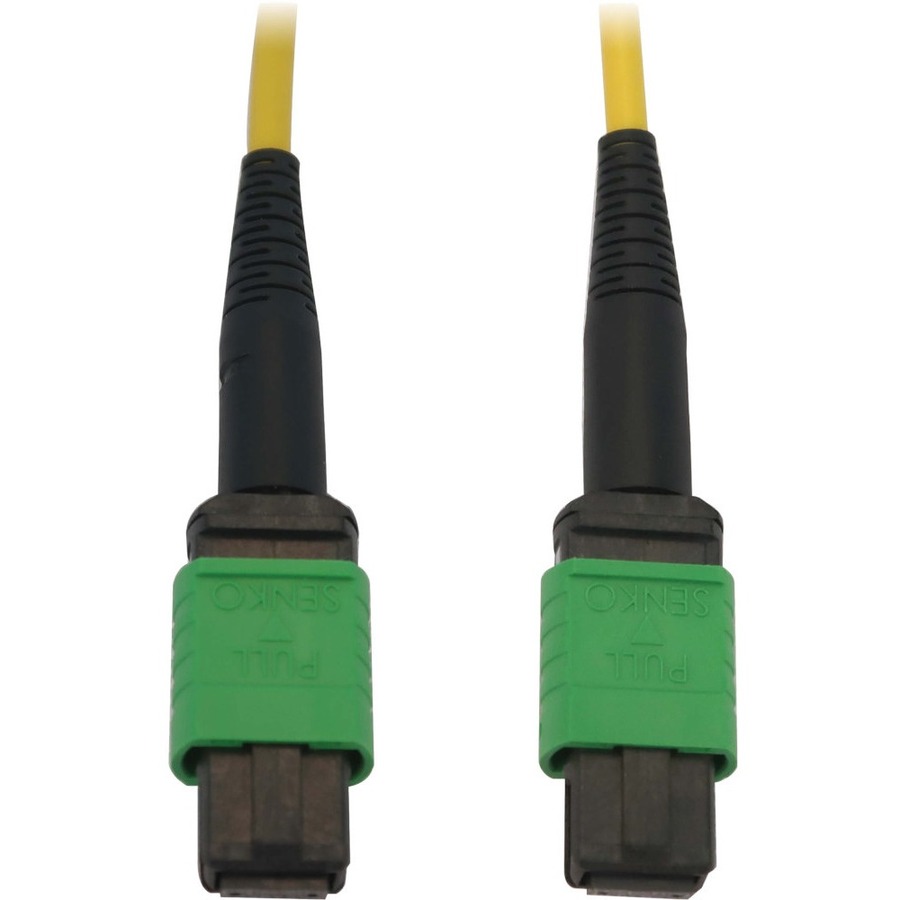

The 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
OS2-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1550 nm)
MTP/MPO APC connectors minimize back reflection with low insertion loss
Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
Yellow LSZH jacket allows fast, easy ID in a crowded switch or patch panel
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N390B-05M-12-AP
Brand Name
Tripp Lite series
Product Model
N390B-05M-12-AP
Product Name
N390B-05M-12-AP Fiber Optic Network Cable
Product Type
Network Cable
Physical Characteristics
Color Family
Green
Product Color
Green
Jacket Color
Yellow
Connector Color
Black
Technical Information
Cable Type
Fiber Optic
Fiber Optic Mode
Single-mode
Fiber Optic Cable Core/Cladding Specification
9/125 µm
Cable Length
16.40 ft
Connector Type on First End
MTP/MPO Network - Female
Connector on First End Details
1 x MTP/MPO Network - Female
Connector Type on Second End
MTP/MPO Network - Female
Connector on Second End Details
1 x MTP/MPO Network - Female
Jacket Type
LSZH, OFNR
Device Supported
Switch, Patch Panel, Network Device
Data Transfer Rate
400 Gbit/s
Features
Bendable, Stranded, Angled Physical Contact (APC)
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
