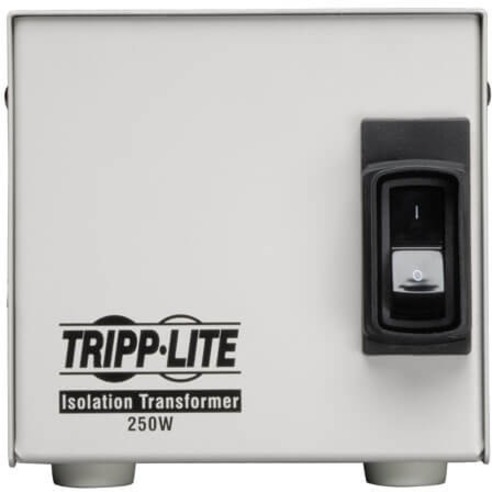

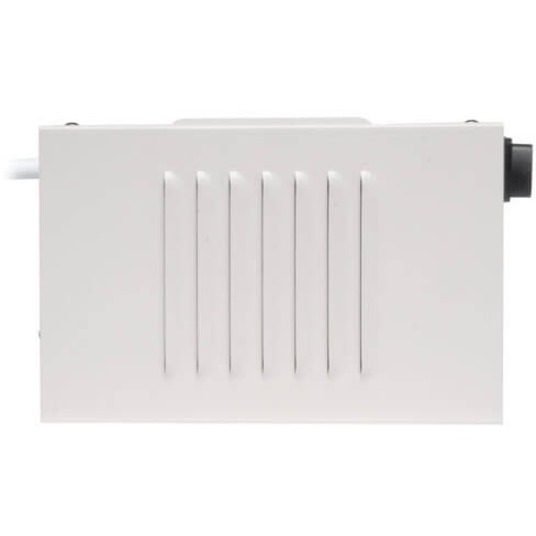

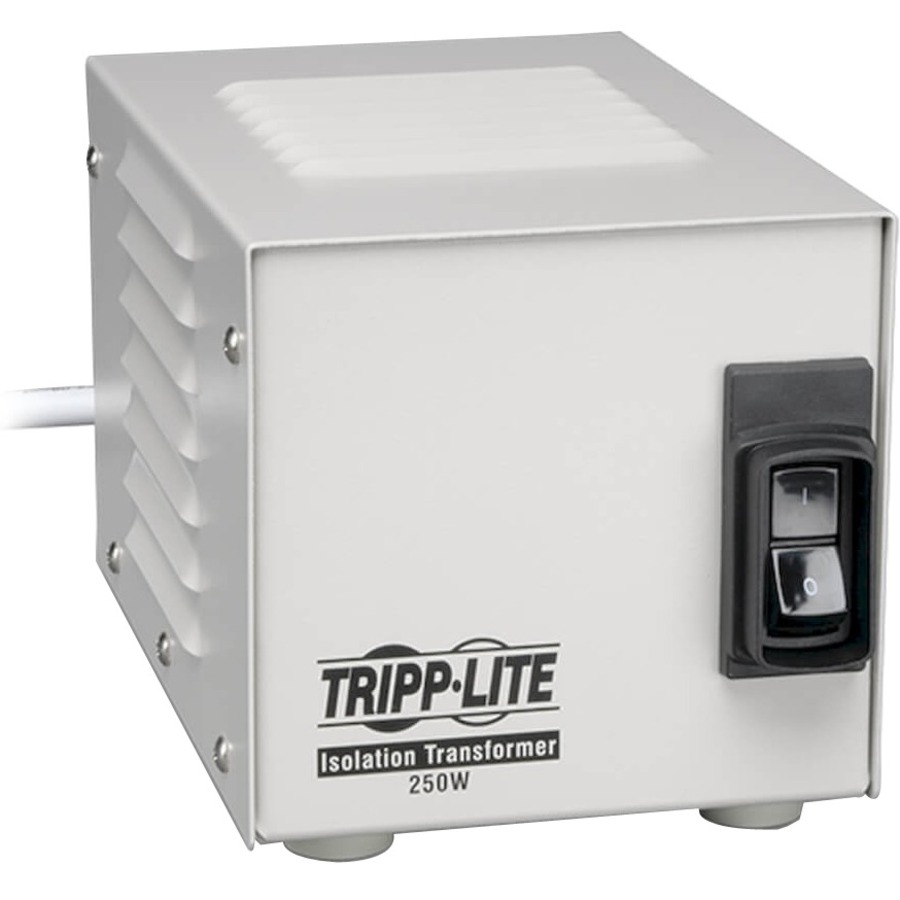

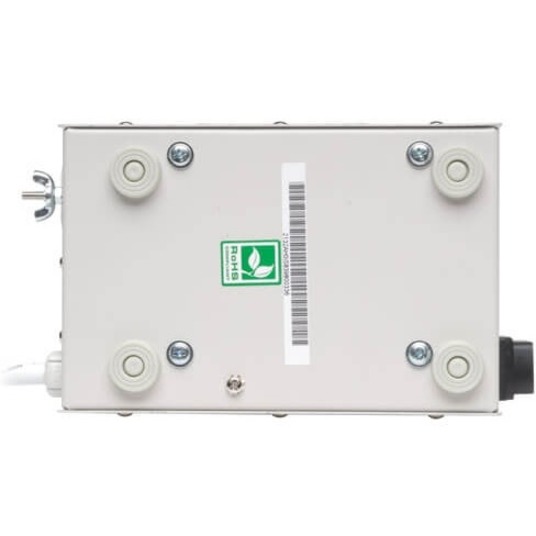

Eaton Tripp Lite Series Isolator Series 120V 250W UL 60601-1 Medical-Grade Isolation Transformer with 2 Hospital-Grade Outlets, TAA

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE

More from the Manufacturer

Approved for Use in Patient Care Areas and Robust Power Protection

UL 60601-1 compliance is required for isolation transformers within patient care areas in order to avoid hazardous conditions and provide an optimally safe environment for patients, staff and visitors. By isolating equipment from unpredictable and disruptive utility power, the IS250HG eliminates the need for dedicated circuits or costly upgrades to a healthcare facility’s electrical system. The internal isolation transformer with Faraday Shielding provides 100% isolation from the AC power line for equipment plugged into the IS250HG and reduces leakage to less than 100 microamps for full UL 60601-1 compliance.

The IS250HG’s 250 watt capacity can handle a variety of electronic devices, while additional features like a 940-joule surge suppression rating, integrated 2-amp circuit breaker and powerful line noise filtering ensure ultimate protection and safety in even the most hazardous conditions. With continuous transformer filtering and no wearable parts, the IS250HG reduces surges in the worst power environments to harmless levels.

Convenient, User-Friendly Operation and 2-Year Warranty

A 6-foot cord with 5-15P-HG hospital-grade plug allows for flexible installation, while two 5-15R-HG hospital-grade outlets let you plug equipment into the IS250HG without any adapters or custom power cords. Operation is easy; simply plug the IS250HG into a grounded three-prong utility outlet, plug your equipment into the IS250HG and turn the power on with the one-touch power switch.

The IS250HG is backed by a 2-year warranty, is TAA-compliant for GSA Schedule purchases and is manufactured in compliance with strict RoHS specifications.
